Disassembly and Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion. Refer to REAR SEAT BACKREST - Crew Cab .
  2. Remove the cup holder from the center of the seat, if so equipped.
    Fig 1: Removing Cup Holder From Center Of Seat
    G01555697Courtesy of FORD MOTOR CO.
  3. Remove two cup holder screws, if so equipped.
    Fig 2: Removing Two Cup Holder Screws
    G01555698Courtesy of FORD MOTOR CO.
  4. Remove the right and left seat risers (right side shown, left side similar).

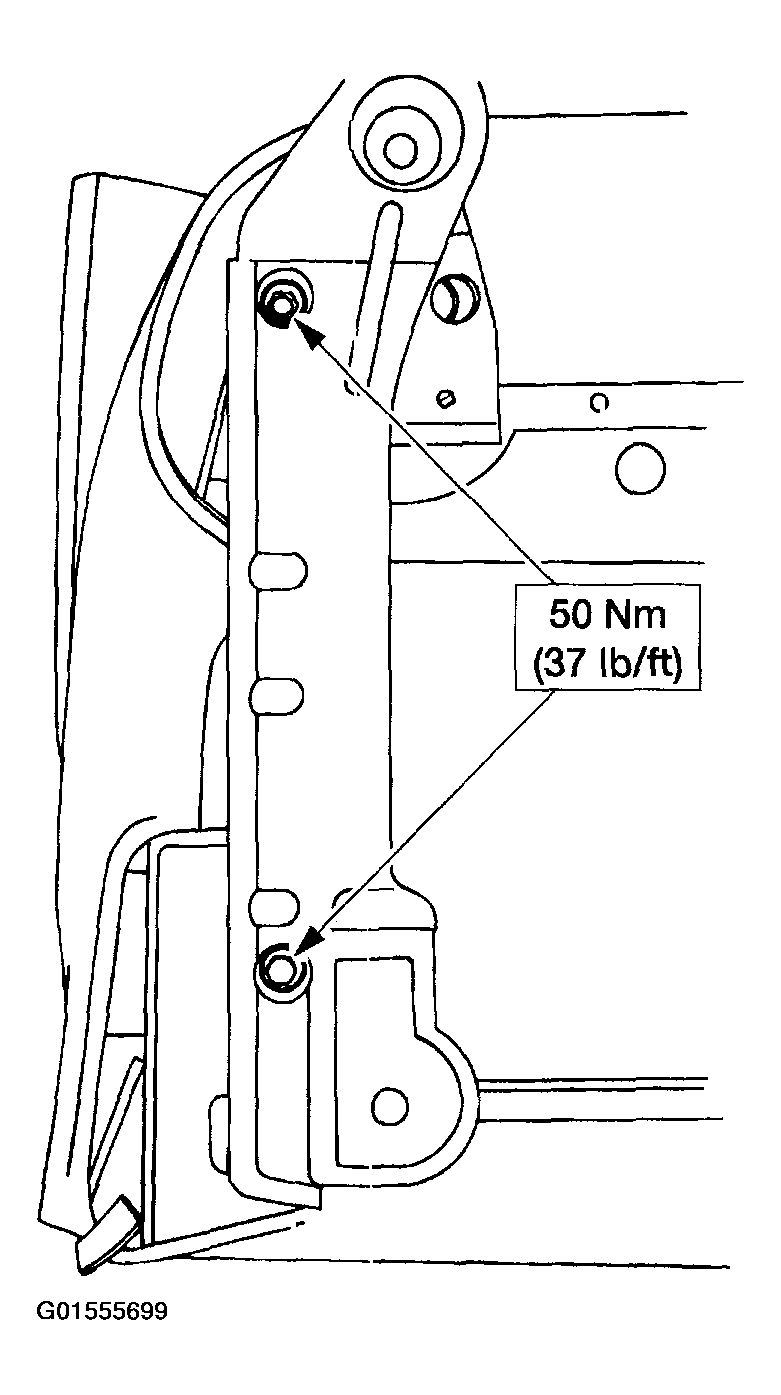

    Fig 3: Removing Right And Left Seat Risers
    G01555699Courtesy of FORD MOTOR CO.
  5. Remove the right and left seat spacers.
    NOTE: Note location of spacers when removing for installation reference.

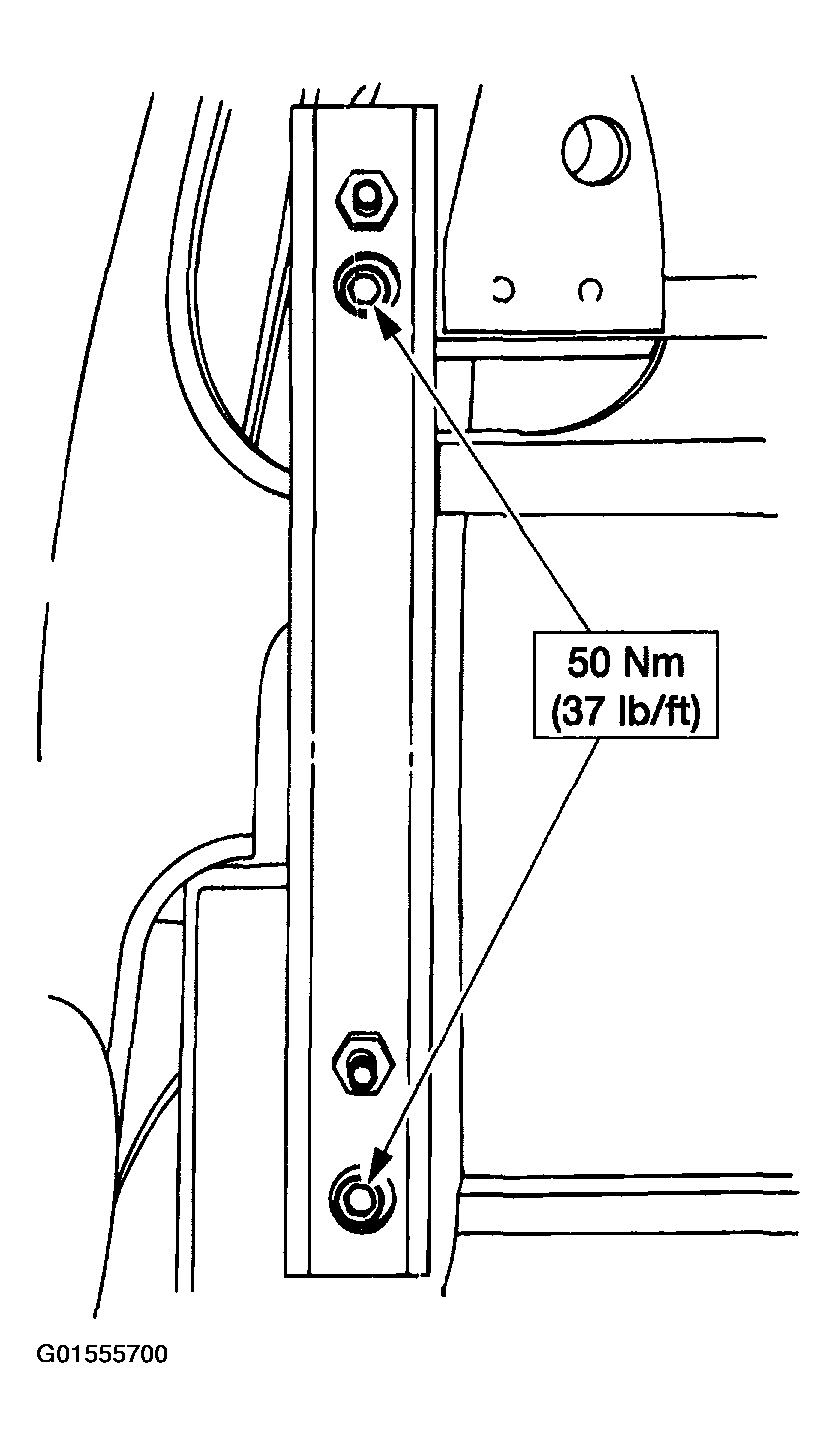

    Fig 4: Removing Right And Left Seat Spacers
    G01555700Courtesy of FORD MOTOR CO.
  6. Unfasten the seat cushion cover J-strips and remove the seat cushion cover.
    Fig 5: Unfastening Seat Cushion Cover J-Strips
    G01555701Courtesy of FORD MOTOR CO.
  7. Remove the seat cushion foam pad from the seat frame.
  8. To assemble, reverse the disassembly procedure.
