Rear Seat Backrest - Third Row: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the two seat adjusters.
    1. Position the seat adjusters.
    2. Install the two bolts.
      Fig 1: Installing Two Seat Adjusters
      G01555705Courtesy of FORD MOTOR CO.
  2. Install the two upper seat adjuster covers.
    • Install the pin-type retainers.

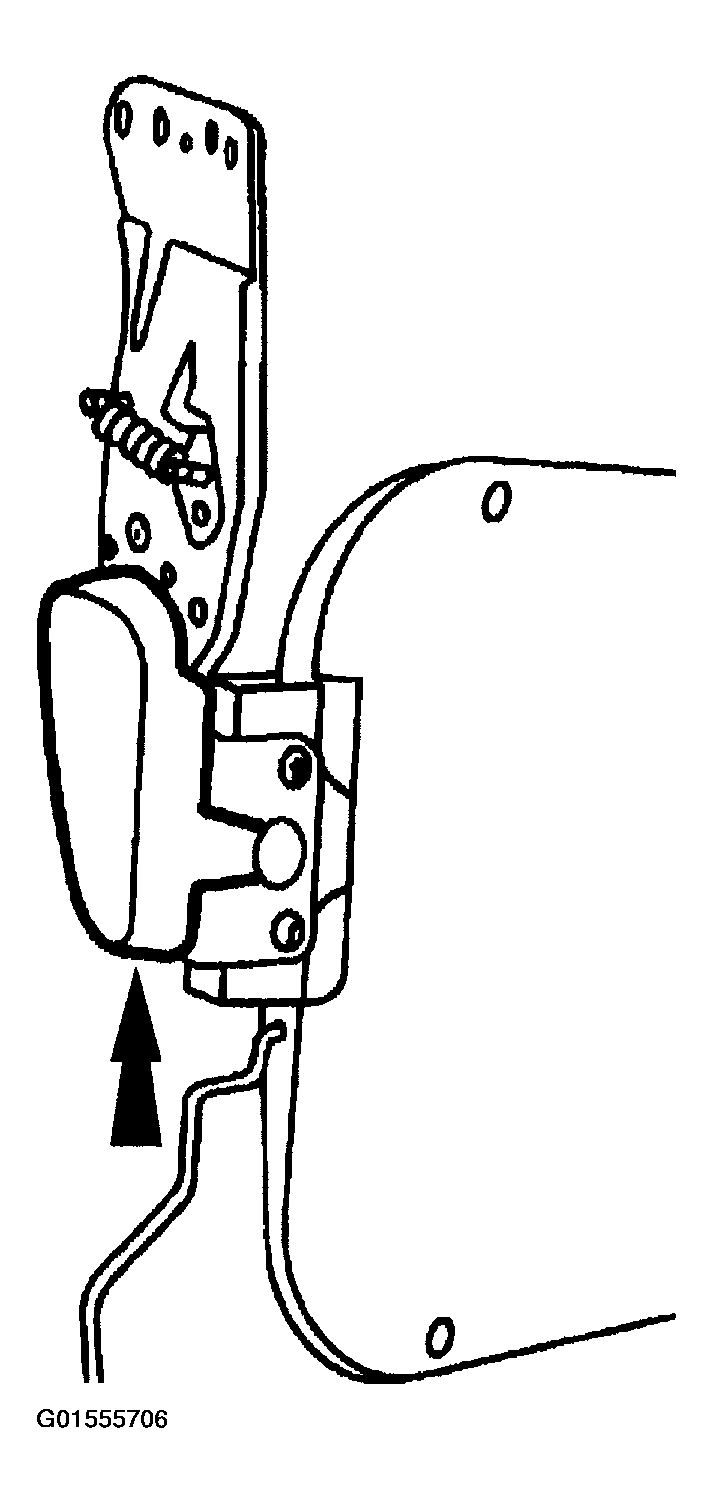

      Fig 2: Installing Two Upper Seat Adjuster Covers
      G01555706Courtesy of FORD MOTOR CO.
  3. Install the seat cover on the seat cushion.
  4. Install the seat backrest frame into the seat backrest trim cover and cushion foam pad.
    1. Install the seat backrest frame into the seat backrest trim cover and cushion foam pad.
    2. Connect the seat cover J-clips.
    • Install the hog rings from foam to frame.
      Fig 3: Installing Seat Backrest Frame Into Seat Backrest Trim Cover And Cushion Foam Pad
      G01555707Courtesy of FORD MOTOR CO.
