Disassembly and Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat backrest. Refer to REAR SEAT BACKREST - Excursion, Second Row .
NOTE: The 60 percent seat is shown, the 40 percent seat is similar.

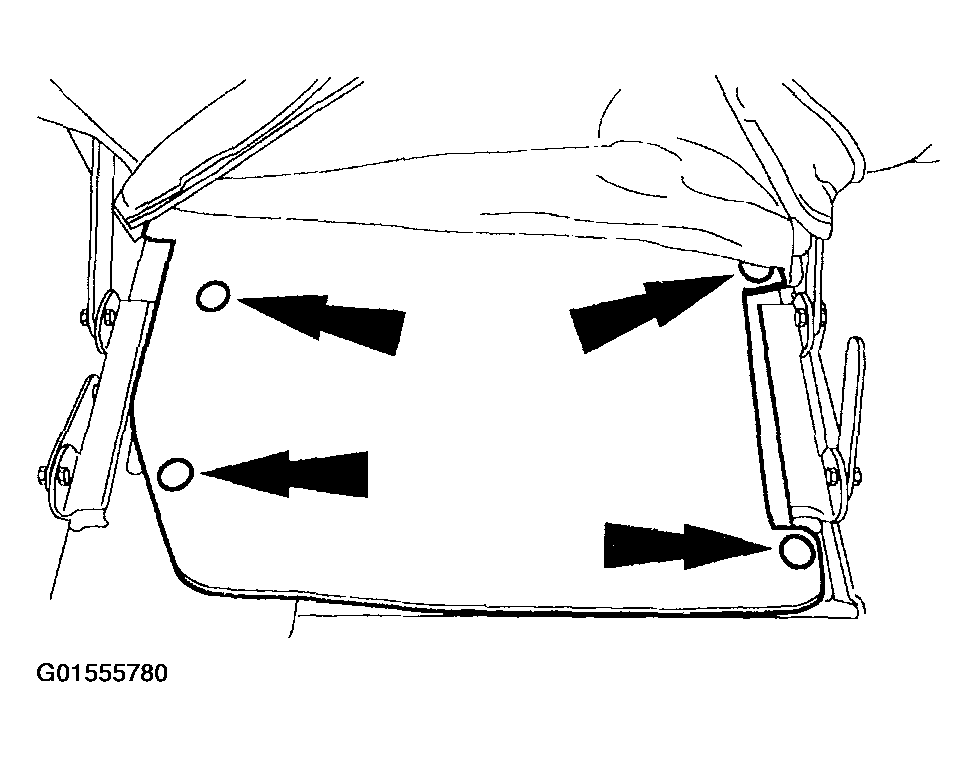

Remove the screws for load floor panel.

Fig 1: Removing Screws For Load Floor Panel
Courtesy of FORD MOTOR CO.
Remove the screws.

Fig 2: Removing Screws
Courtesy of FORD MOTOR CO.
Remove the armrest. Refer to SEAT ARMREST - Excursion, Second Row, 60 Percent .
Unclip the J-clips.

Fig 3: Uncliping J-Clips
Courtesy of FORD MOTOR CO.
Remove the seat handle clip and handle.

Fig 4: Removing Seat Handle Clip And Handle
Courtesy of FORD MOTOR CO.
Position the upholstery, then remove and discard the pin-type retainers.

Fig 5: Removing And Discarding Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Position the upholstery and remove the hog rings.

Fig 6: Removing Hog Rings
Courtesy of FORD MOTOR CO.
Lift the backrest pad and remove the headrest guide pins.

Fig 7: Removing Headrest Guide Pins
Courtesy of FORD MOTOR CO.
Remove the upholstery.
Remove the staples, then the backrest pad.

Fig 8: Removing Staples And Backrest Pad
Courtesy of FORD MOTOR CO.
Remove the screws.

Fig 9: Removing Screws
Courtesy of FORD MOTOR CO.
Remove the mat holder from the cup holder.
Remove the screws.

Fig 10: Removing Mat Holder From Cup Holder
Courtesy of FORD MOTOR CO.
Unclip the J-clips.

Fig 11: Uncliping J-Clips
Courtesy of FORD MOTOR CO.
Remove the upholstery.

Fig 12: Removing Upholstery
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
