Front Seat Cushion - With Seat Integrated Restraints (SIR): Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the disassembly procedure.

Place the seat cushion foam pad on the seat cushion pan.
Position and stretch the seat fabric over the foam cushion while attaching the hook and loop fasteners.

Fig 1: Attaching Hook And Loop Fasteners
Courtesy of FORD MOTOR CO.
Attach the J-clips, butterfly clips and scrivets.
WARNING: The metal edges of seat cushion pan can be sharp.

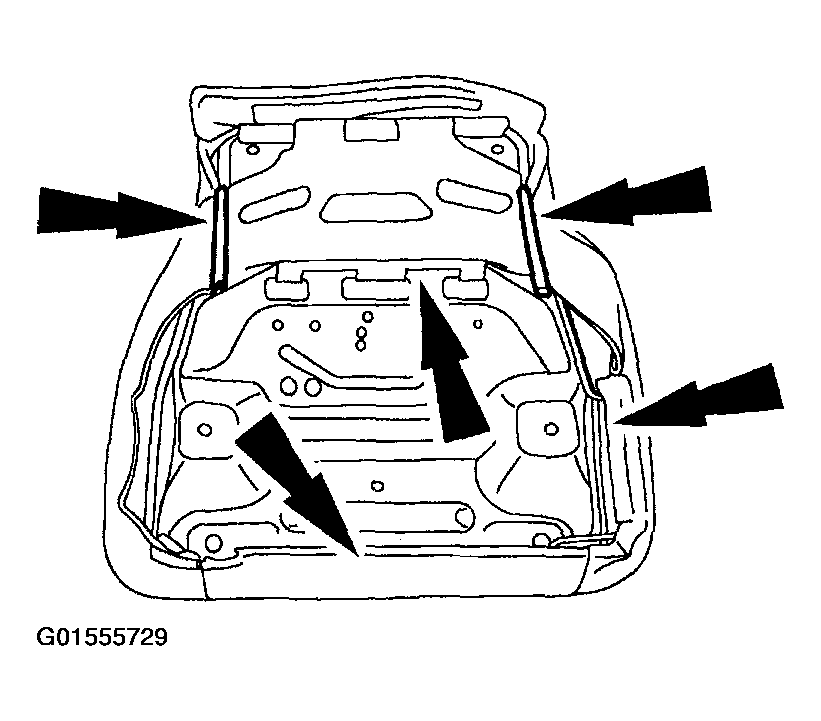

Fig 2: Attaching J-Clips, Butterfly Clips And Scrivets
Courtesy of FORD MOTOR CO.
Install the front seat cushion assembly. Refer to FRONT SEAT CUSHION - With Seat Integrated Restraints (SIR) .
Reactivate the supplemental restraint system (SRS). Refer to Supplemental Restraint System (SRS) Deactivation and Reactivation .
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). Refer to AIR BAG RESTRAINT SYSTEMS .
WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
