Pinpoint Test K: Heated Seat Is Inoperative - Seat Does Heat But Heated Seat Switch Does Not Illuminate When Pressed

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

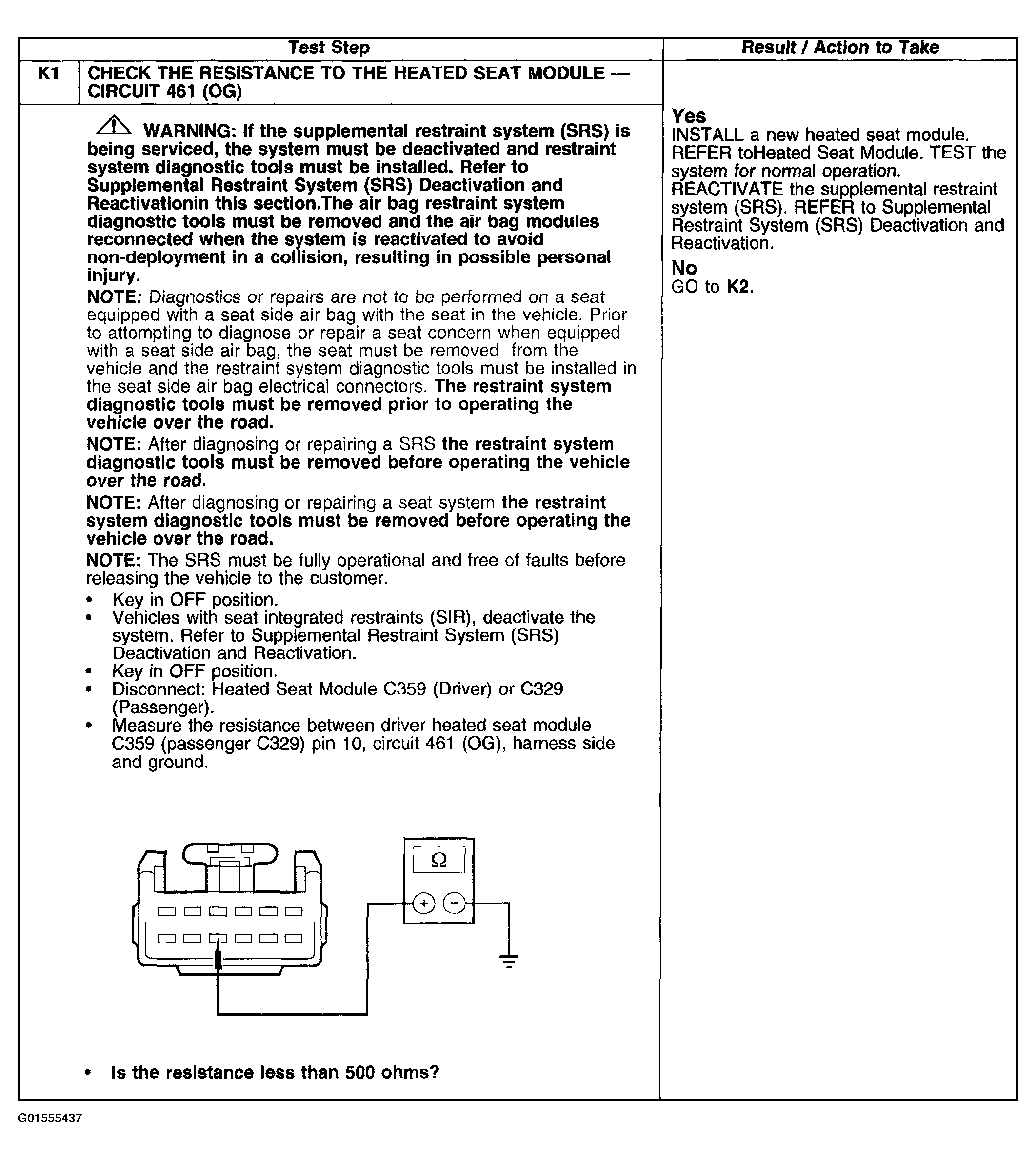

Fig 1: Pinpoint Test K: Heated Seat Is Inoperative - Seat Does Heat But Heated Seat Switch Does Not Illuminate When Pressed (K1)
G01555437Courtesy of FORD MOTOR CO.

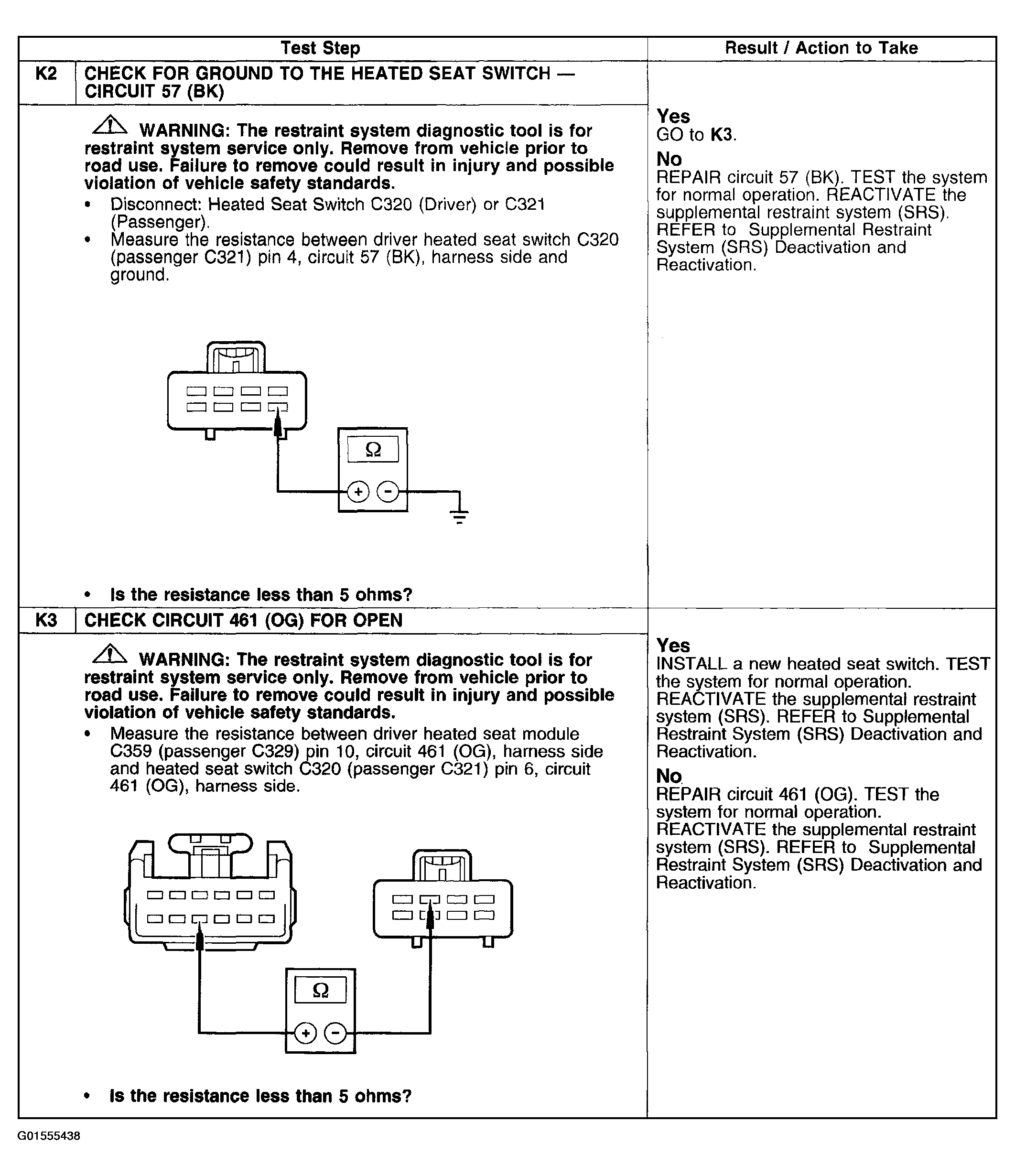

Fig 2: Pinpoint Test K: Heated Seat Is Inoperative - Seat Does Heat But Heated Seat Switch Does Not Illuminate When Pressed (K2 & K3)
G01555438Courtesy of FORD MOTOR CO.
