Pinpoint Test J: Heated Seat Is Inoperative - Seat Does Not Heat But Heated Seat Switch Illuminates When Pressed

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

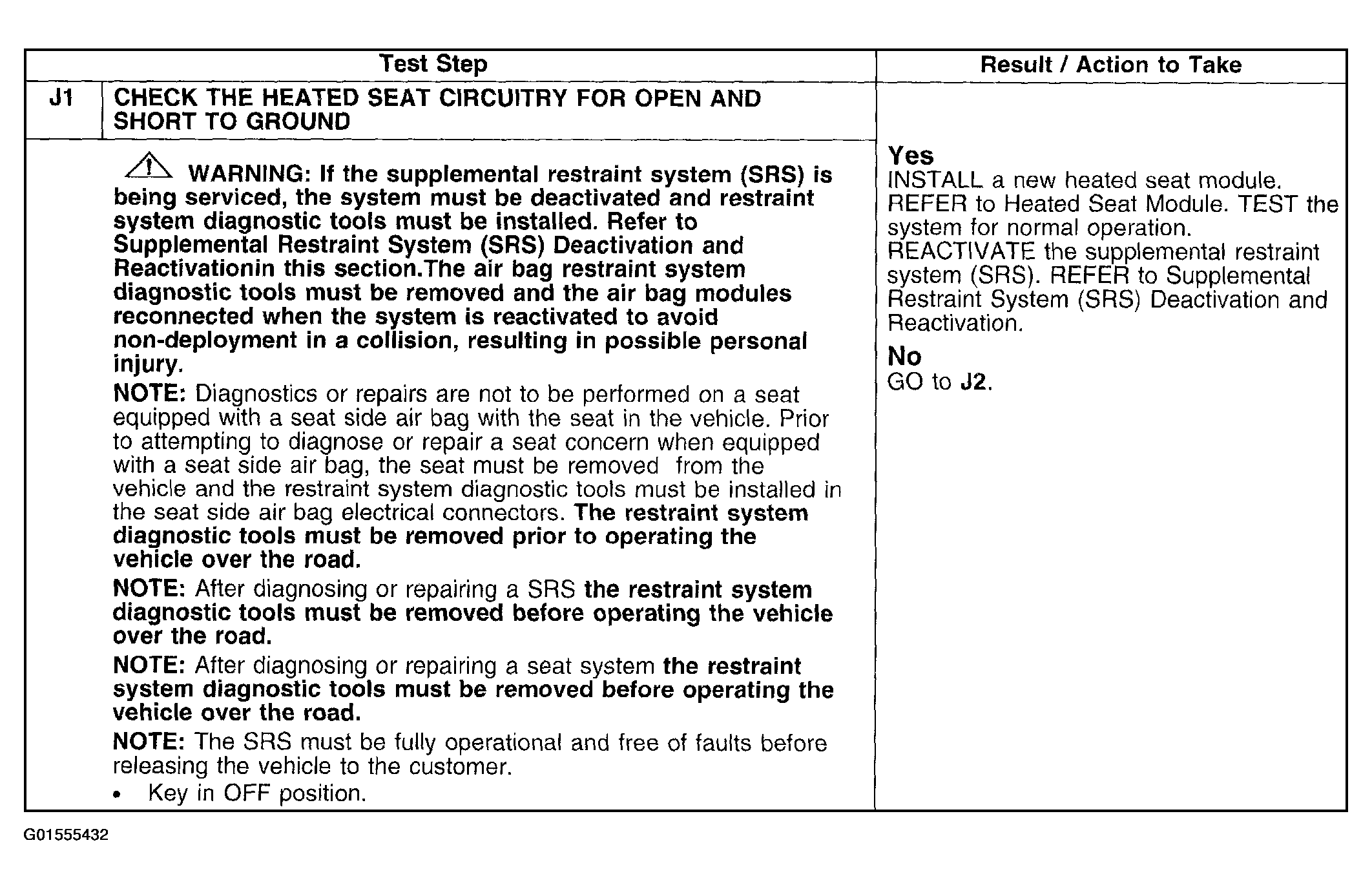

Fig 1: Pinpoint Test J: Heated Seat Is Inoperative - Seat Does Not Heat But Heated Seat Switch Illuminates When Pressed (J1)
G01555432Courtesy of FORD MOTOR CO.

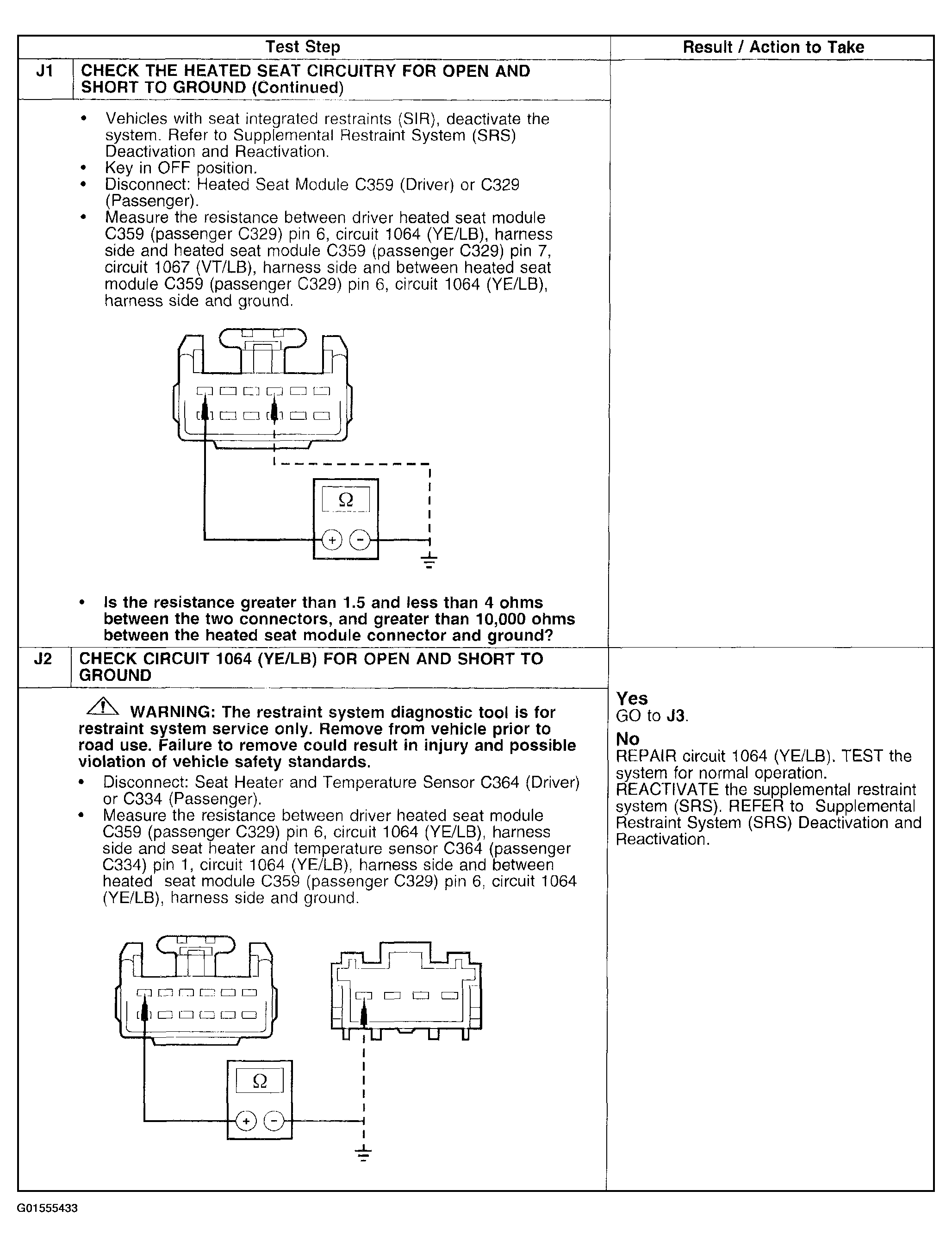

Fig 2: Pinpoint Test J: Heated Seat Is Inoperative - Seat Does Not Heat But Heated Seat Switch Illuminates When Pressed (J1 Cont. & J2)
G01555433Courtesy of FORD MOTOR CO.

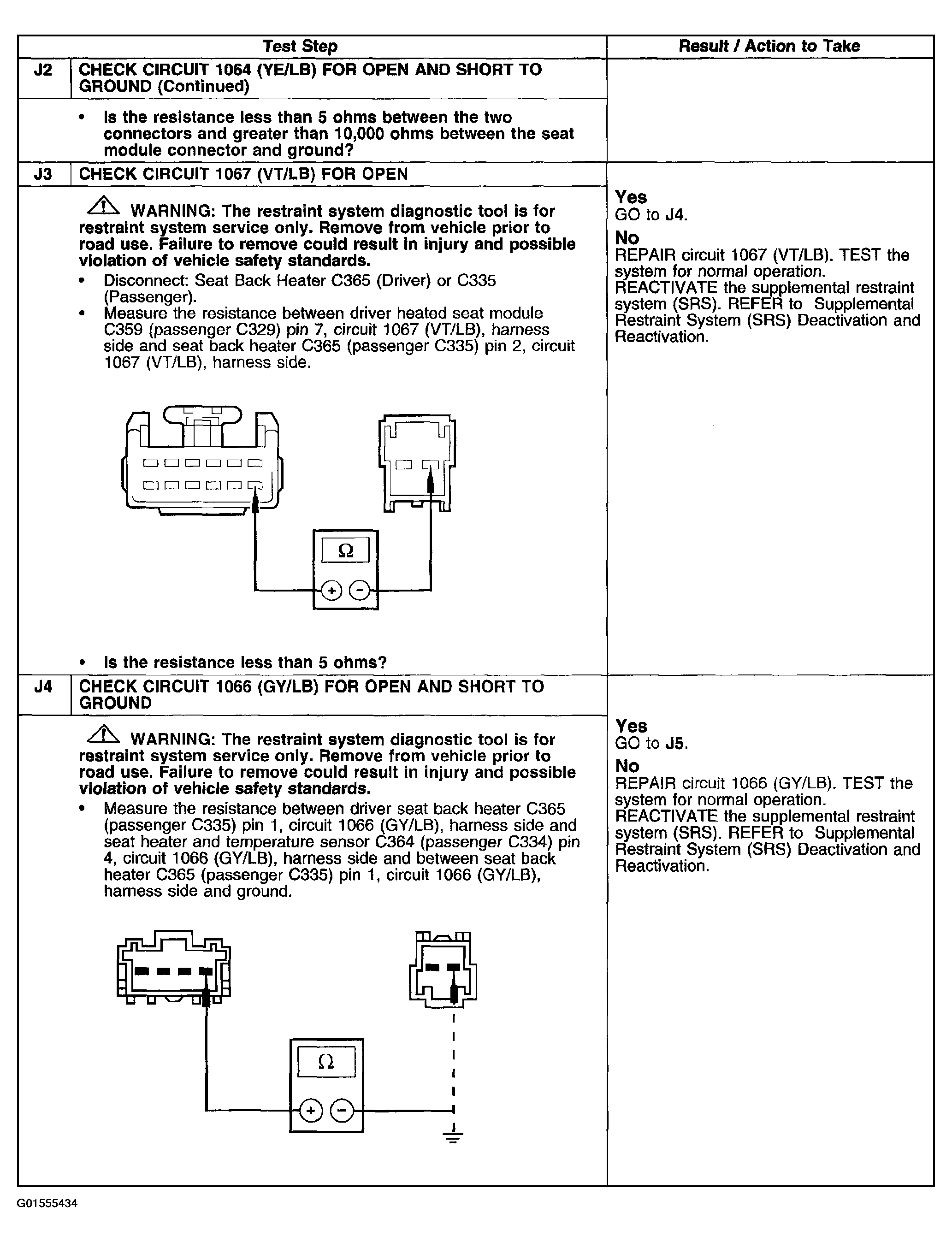

Fig 3: Pinpoint Test J: Heated Seat Is Inoperative - Seat Does Not Heat But Heated Seat Switch Illuminates When Pressed (J2 Cont.-J4)
G01555434Courtesy of FORD MOTOR CO.

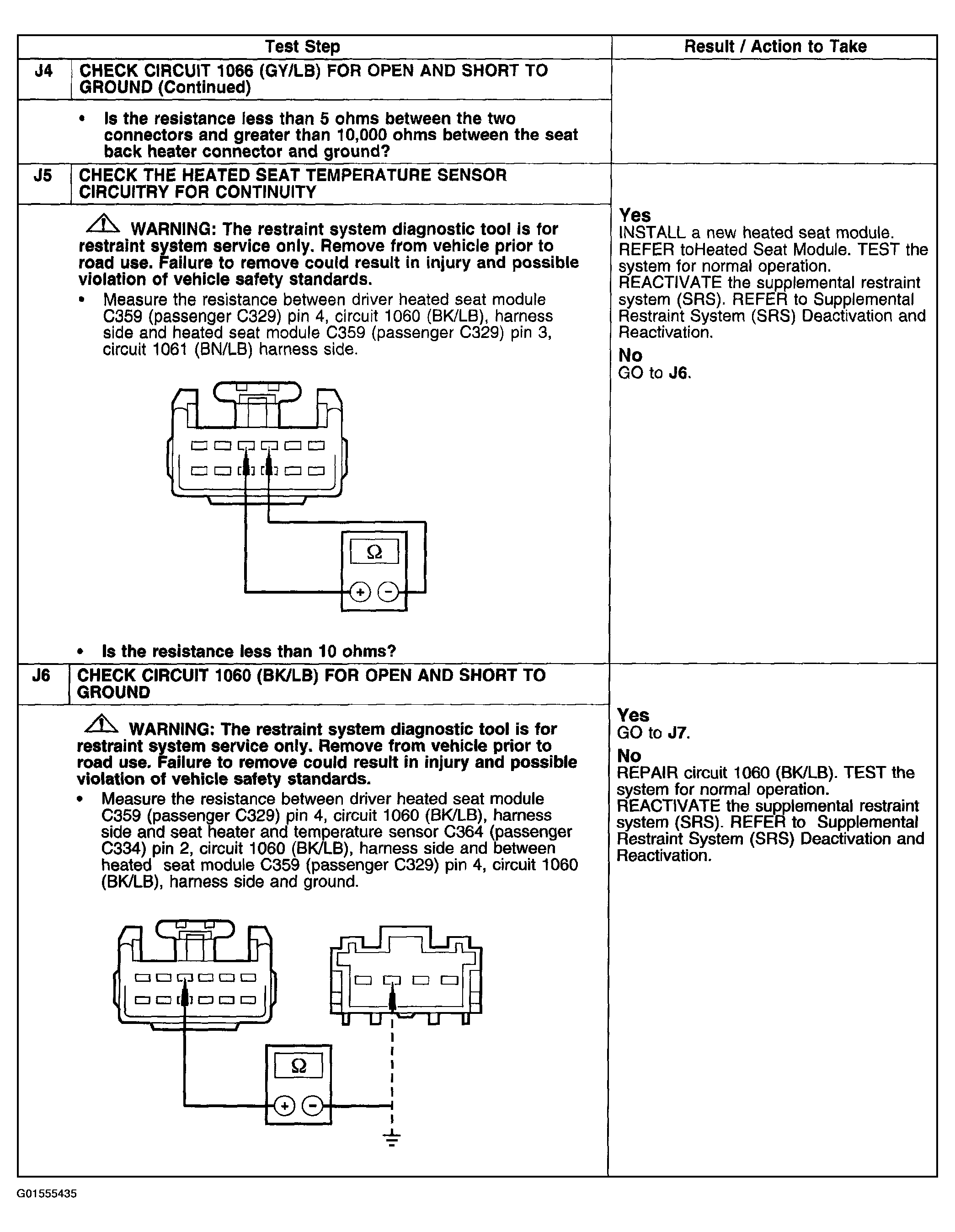

Fig 4: Pinpoint Test J: Heated Seat Is Inoperative - Seat Does Not Heat But Heated Seat Switch Illuminates When Pressed (J4 Cont.-J6)
G01555435Courtesy of FORD MOTOR CO.

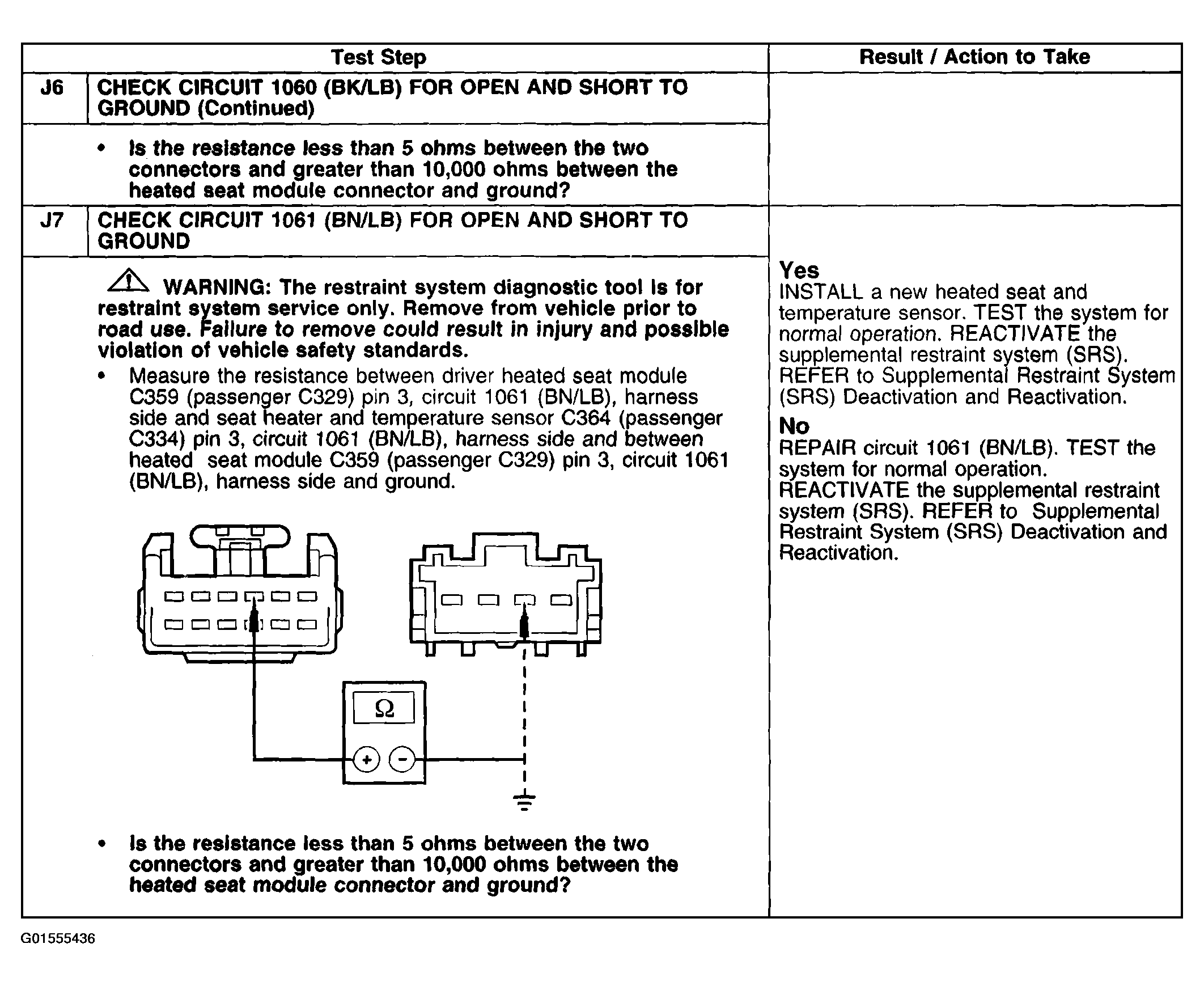

Fig 5: Pinpoint Test J: Heated Seat Is Inoperative - Seat Does Not Heat But Heated Seat Switch Illuminates When Pressed (J6 Cont. & J7)
G01555436Courtesy of FORD MOTOR CO.
