Pinpoint Test I: Heated Seat Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

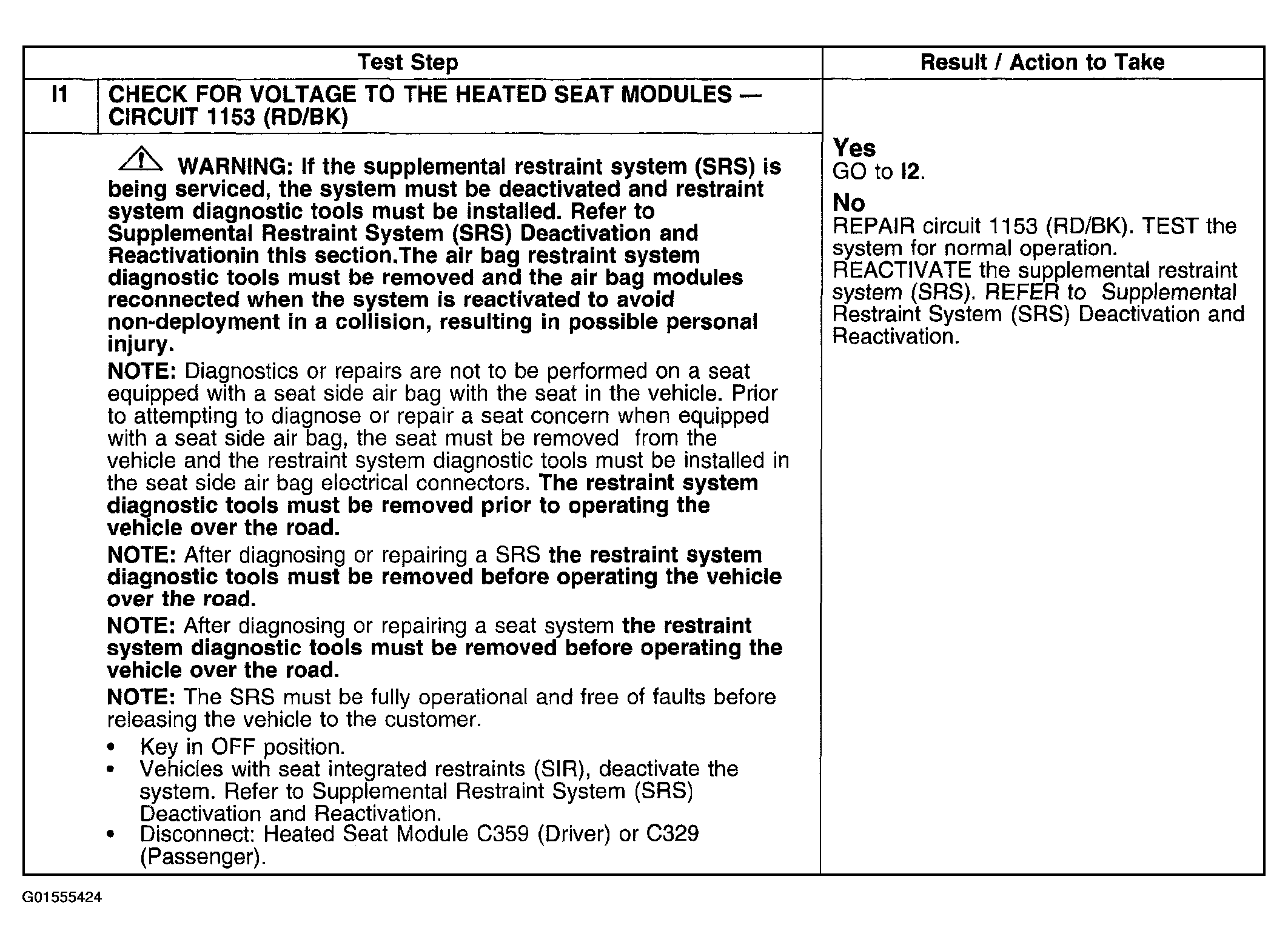

Fig 1: Pinpoint Test I: Heated Seat Is Inoperative (I1)

G01555424

Courtesy of FORD MOTOR CO.

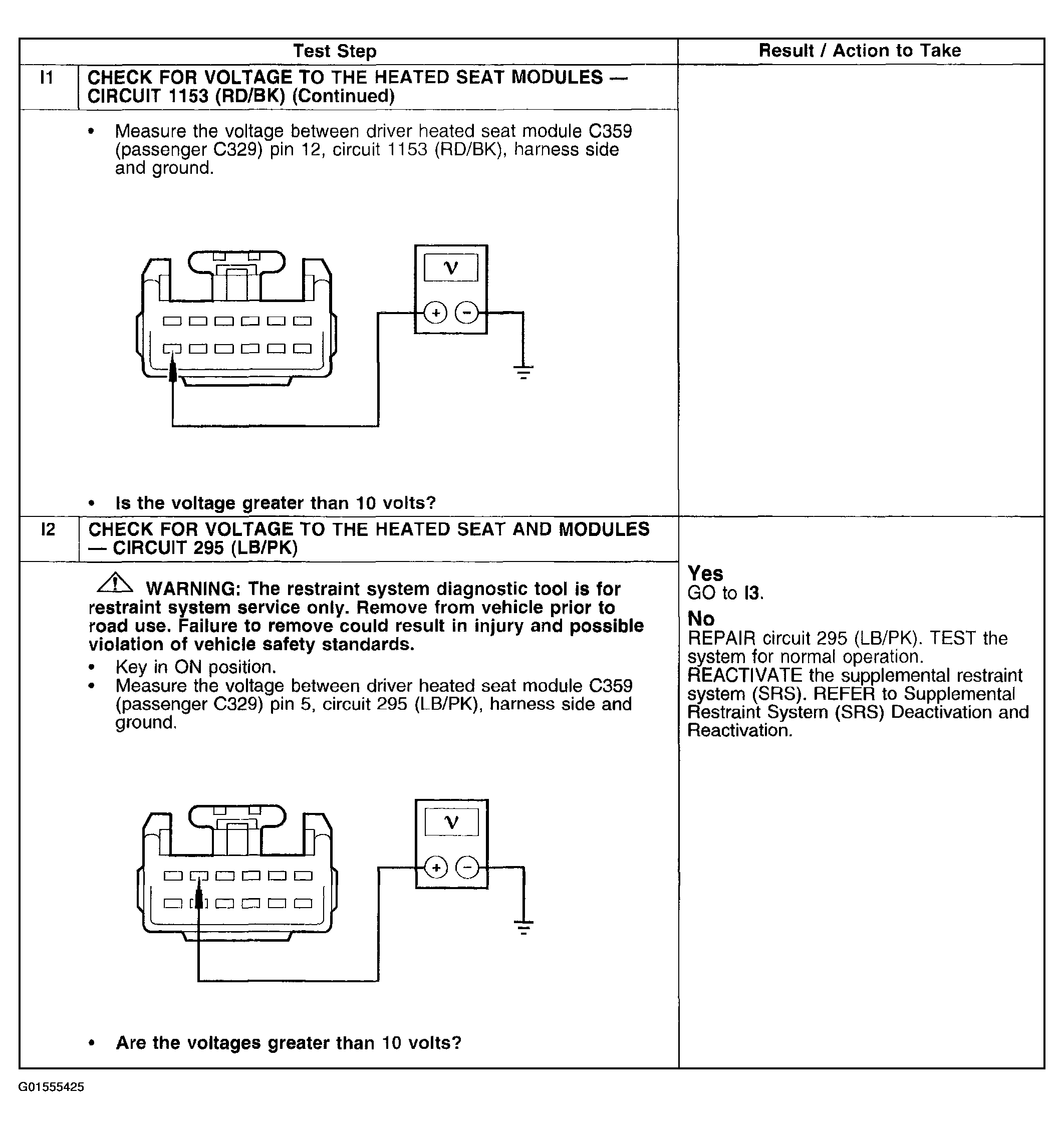

Fig 2: Pinpoint Test I: Heated Seat Is Inoperative (I1 Cont. & I2)

G01555425

Courtesy of FORD MOTOR CO.

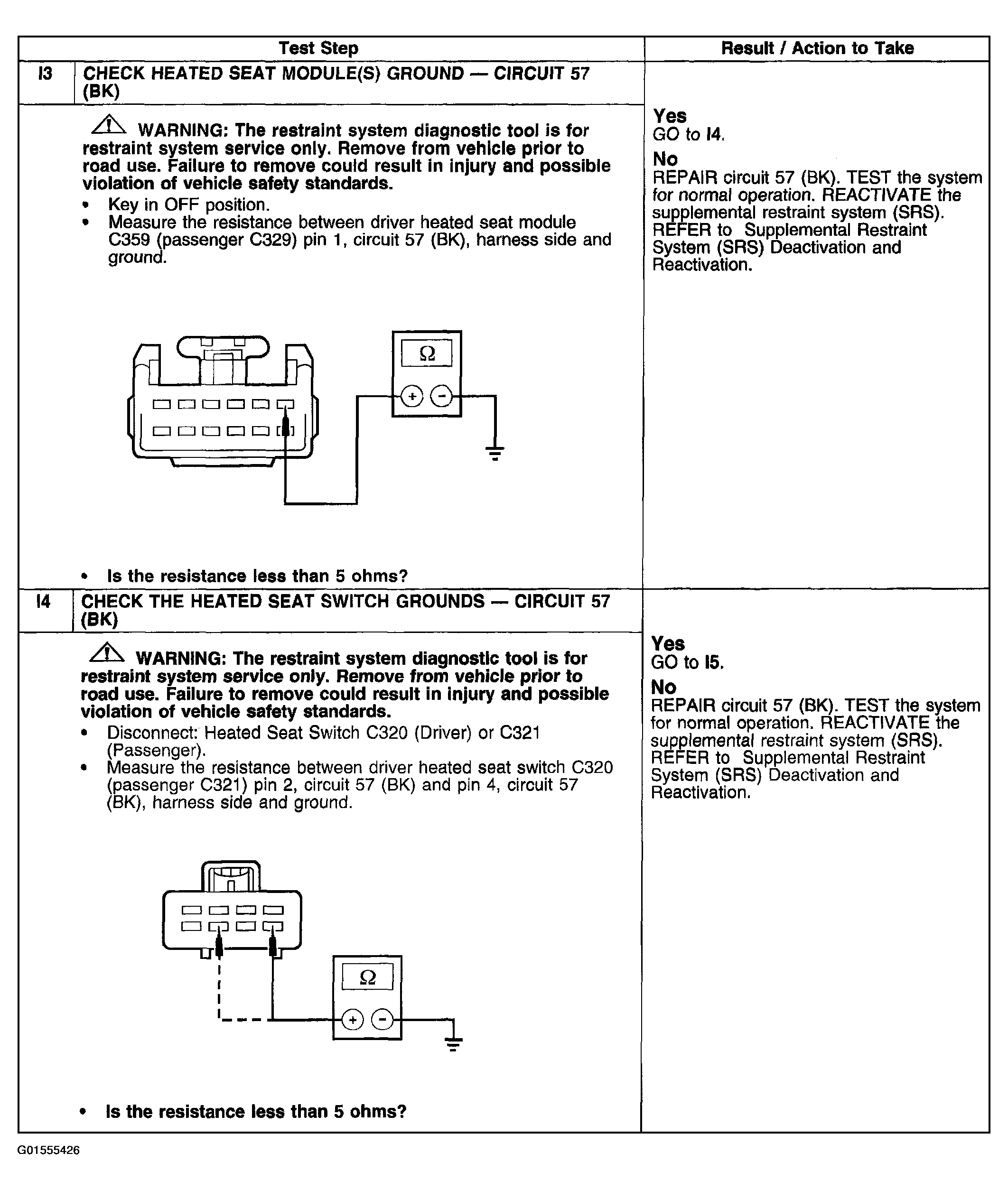

Fig 3: Pinpoint Test I: Heated Seat Is Inoperative (I3 & I4)

G01555426

Courtesy of FORD MOTOR CO.

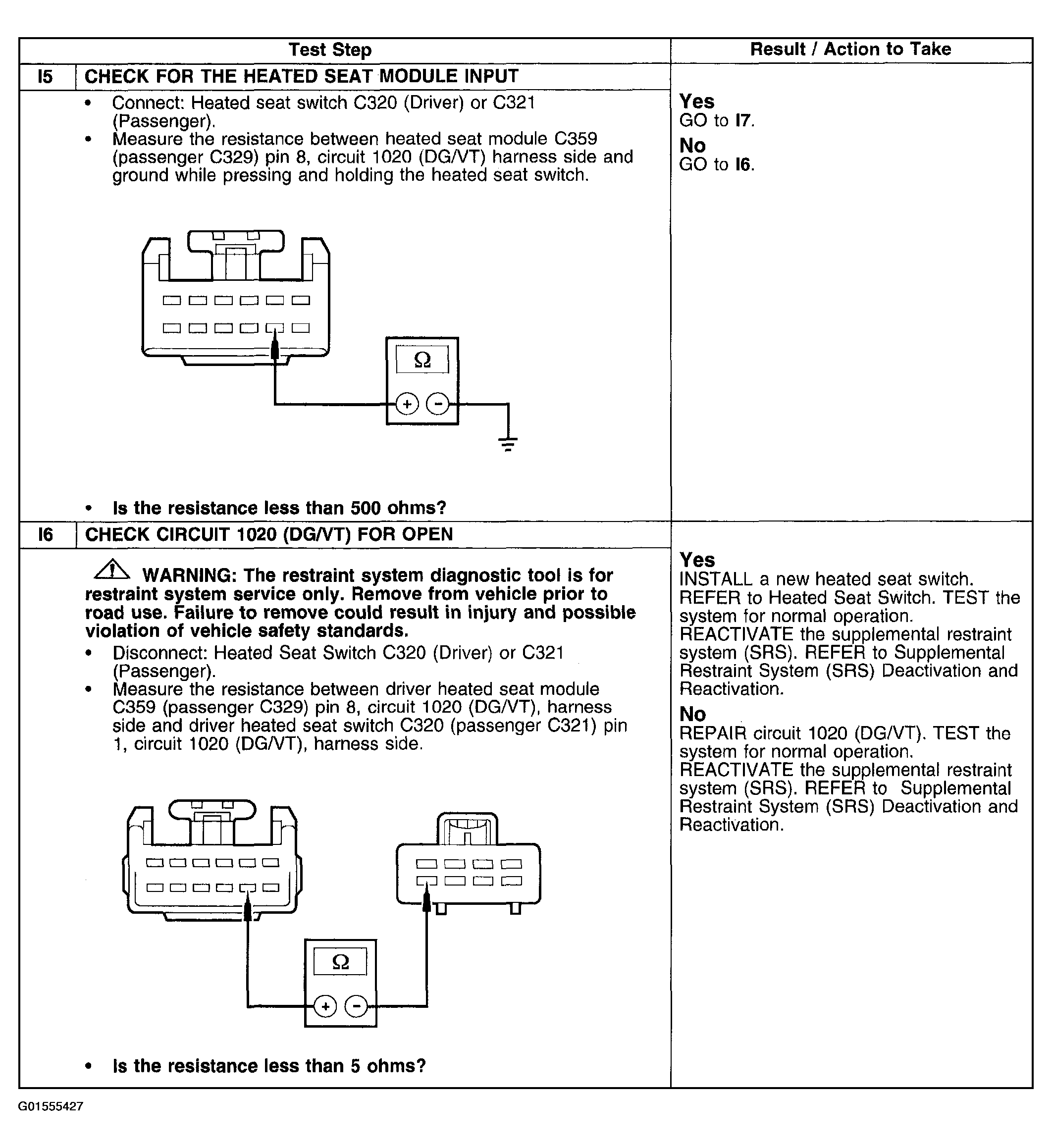

Fig 4: Pinpoint Test I: Heated Seat Is Inoperative (I5 & I6)

G01555427

Courtesy of FORD MOTOR CO.

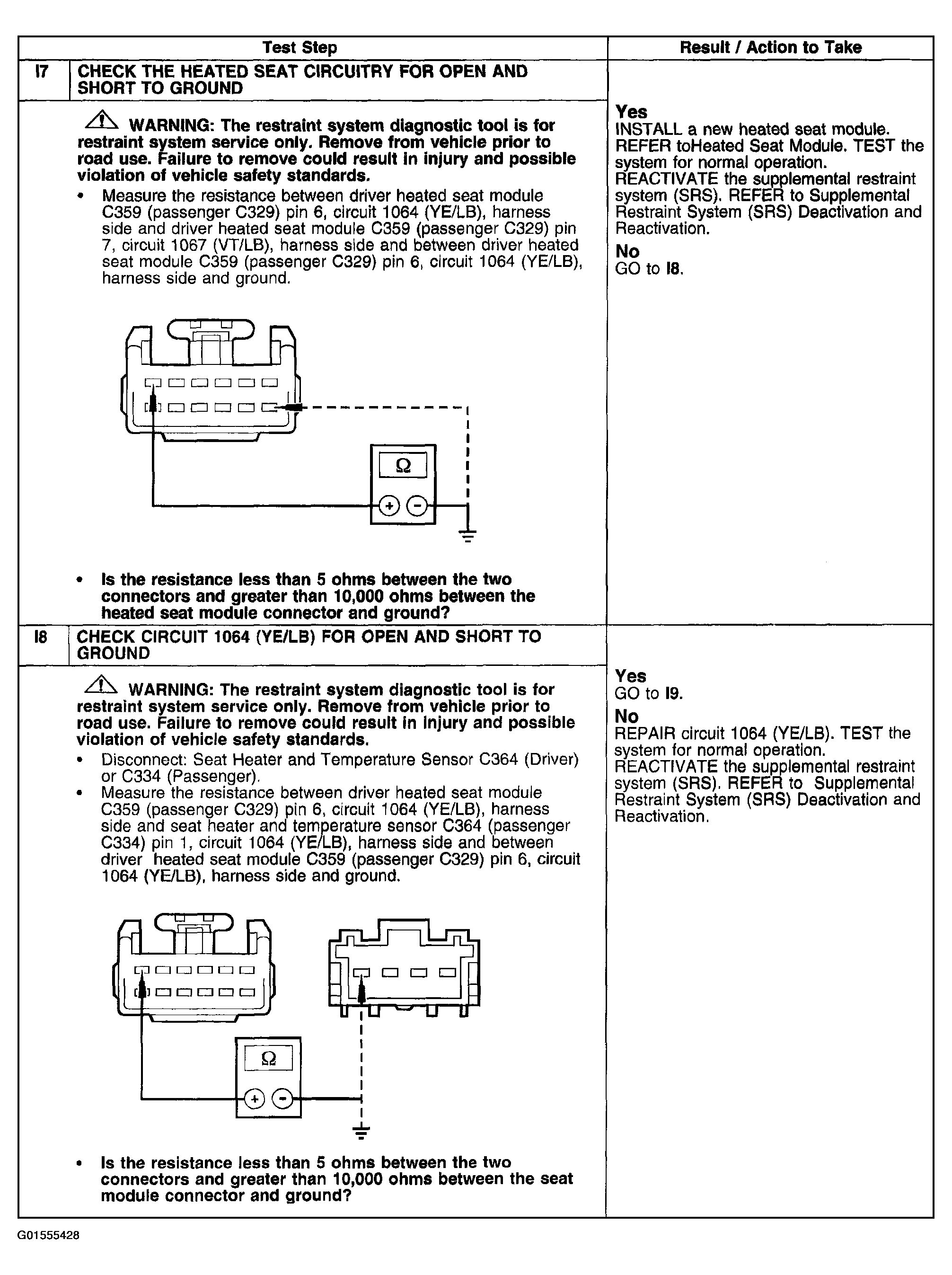

Fig 5: Pinpoint Test I: Heated Seat Is Inoperative (I7 & I8)

G01555428

Courtesy of FORD MOTOR CO.

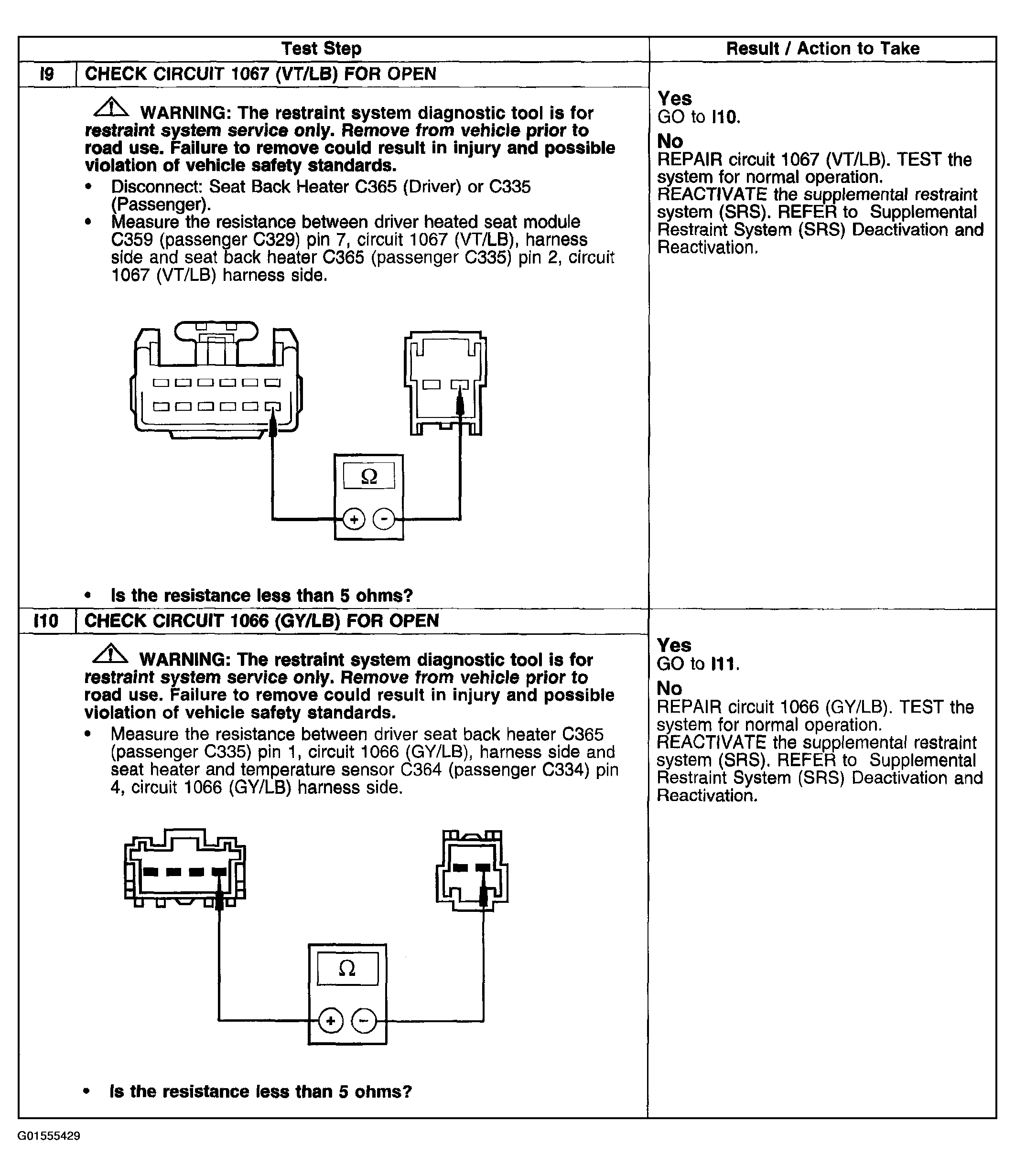

Fig 6: Pinpoint Test I: Heated Seat Is Inoperative (I9 & I10)

G01555429

Courtesy of FORD MOTOR CO.

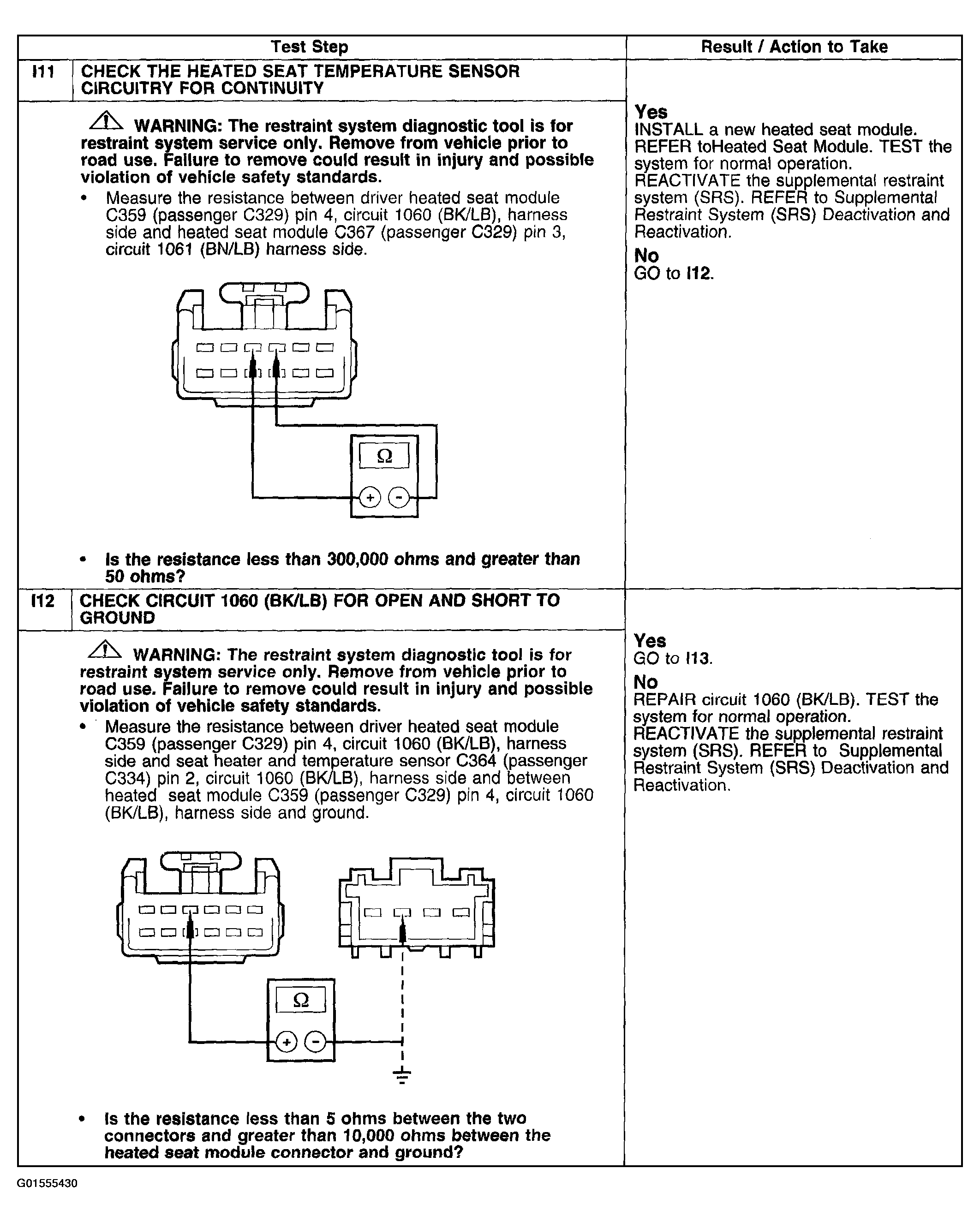

Fig 7: Pinpoint Test I: Heated Seat Is Inoperative (I11 & I12)

G01555430

Courtesy of FORD MOTOR CO.

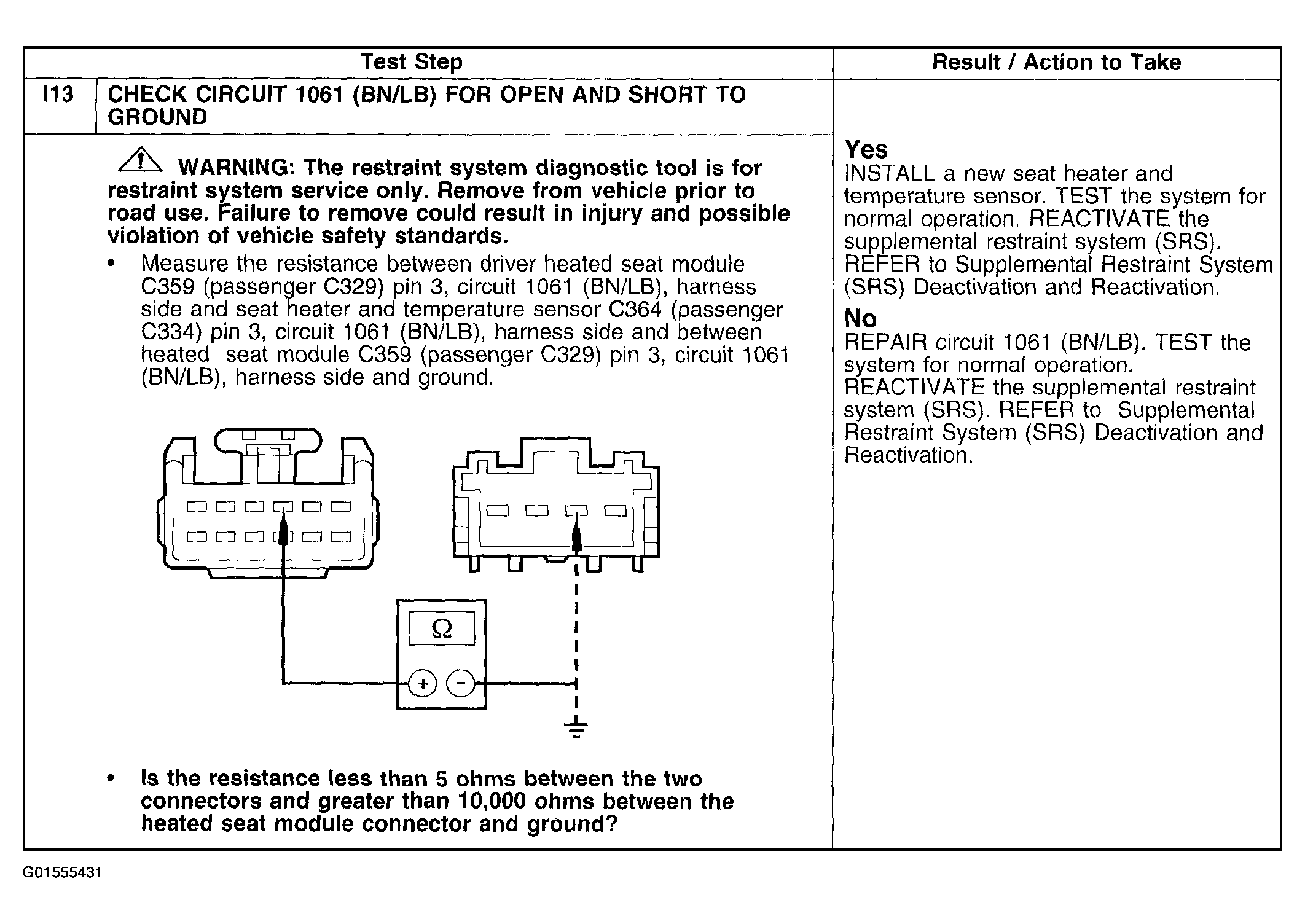

Fig 8: Pinpoint Test I: Heated Seat Is Inoperative (I13)

G01555431

Courtesy of FORD MOTOR CO.
