Pinpoint Test G: Memory Seat Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

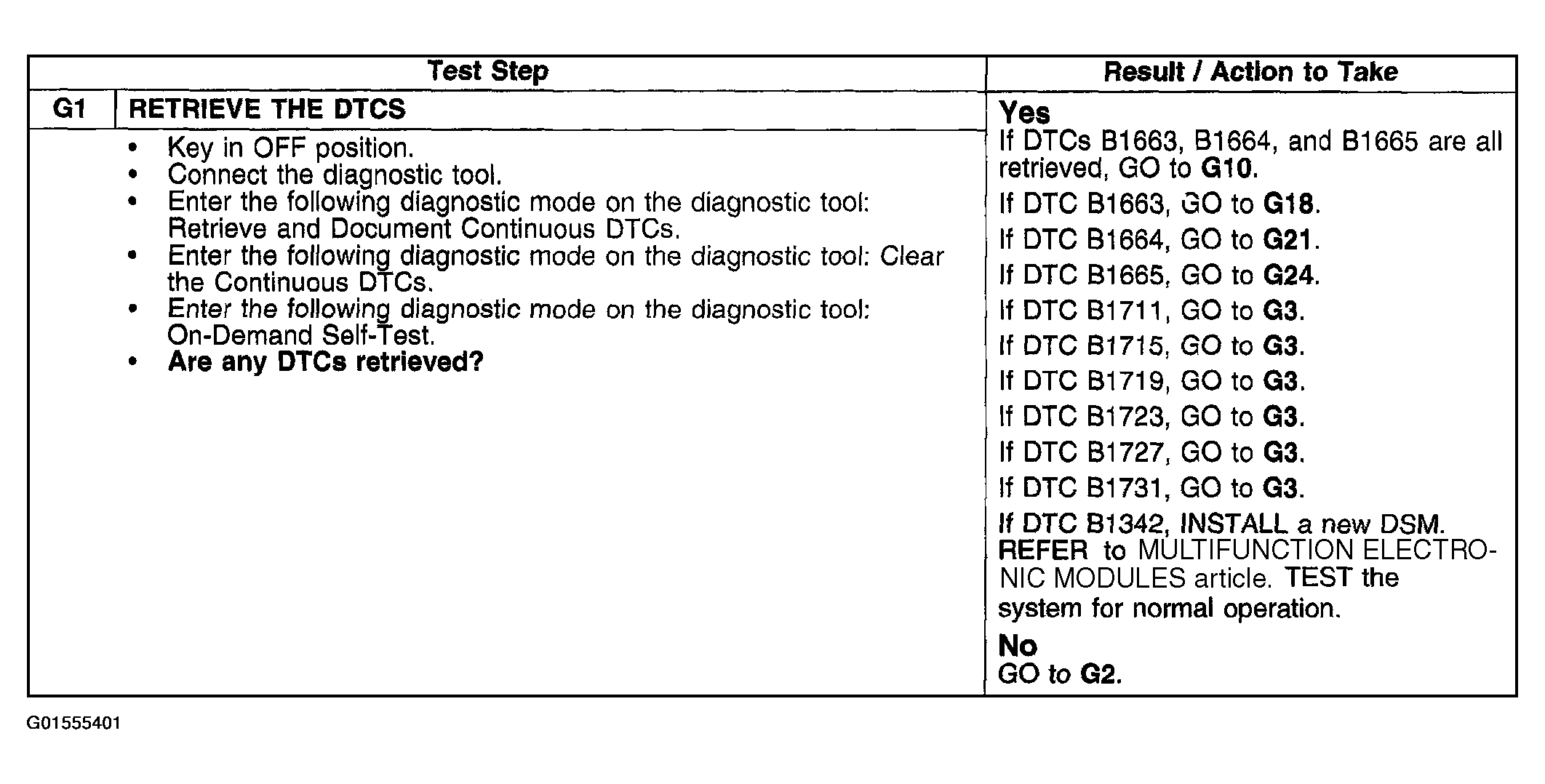

Fig 1: Pinpoint Test G: Memory Seat Is Inoperative (G1)

G01555401

Courtesy of FORD MOTOR CO.

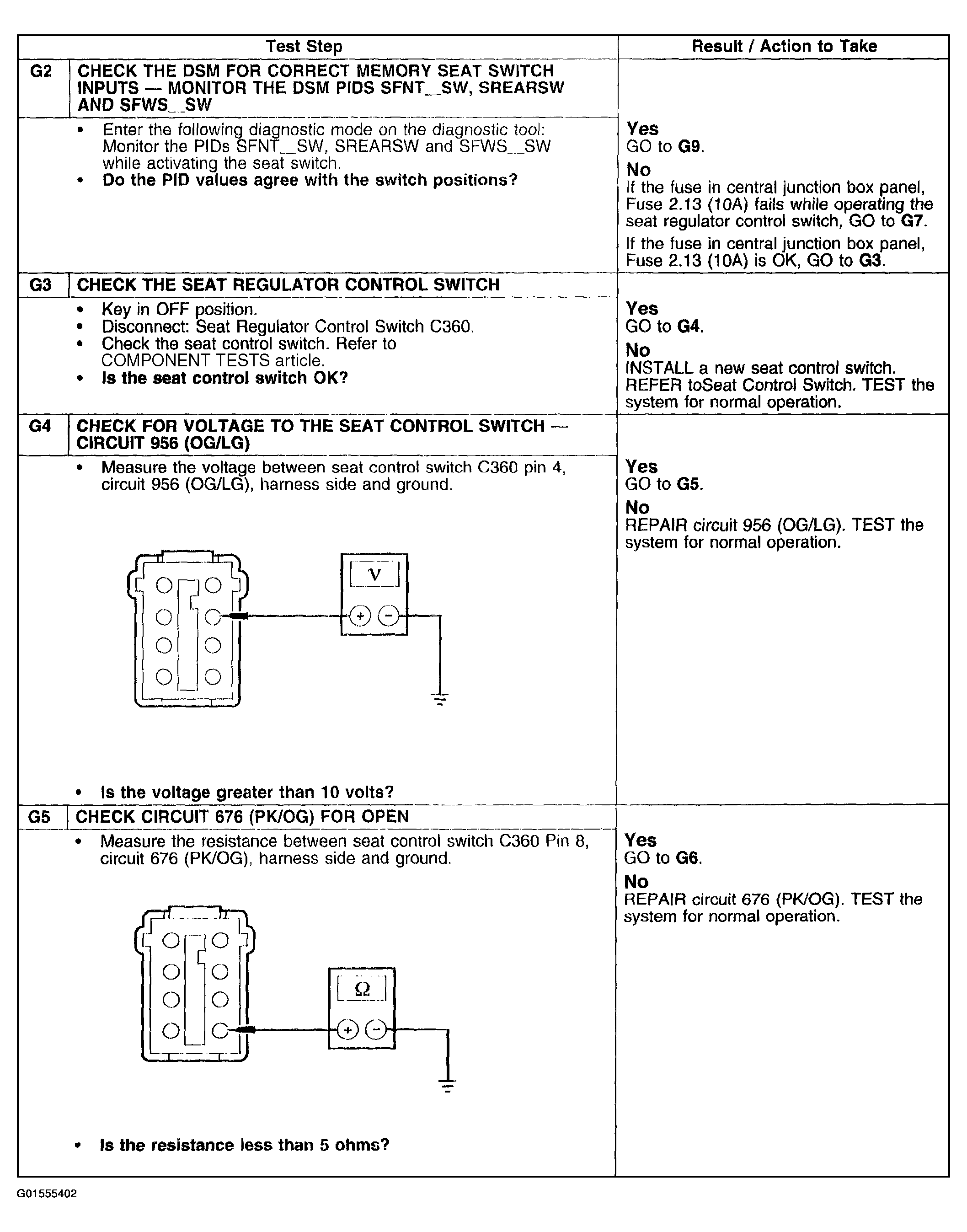

Fig 2: Pinpoint Test G: Memory Seat Is Inoperative (G2-G5)

G01555402

Courtesy of FORD MOTOR CO.

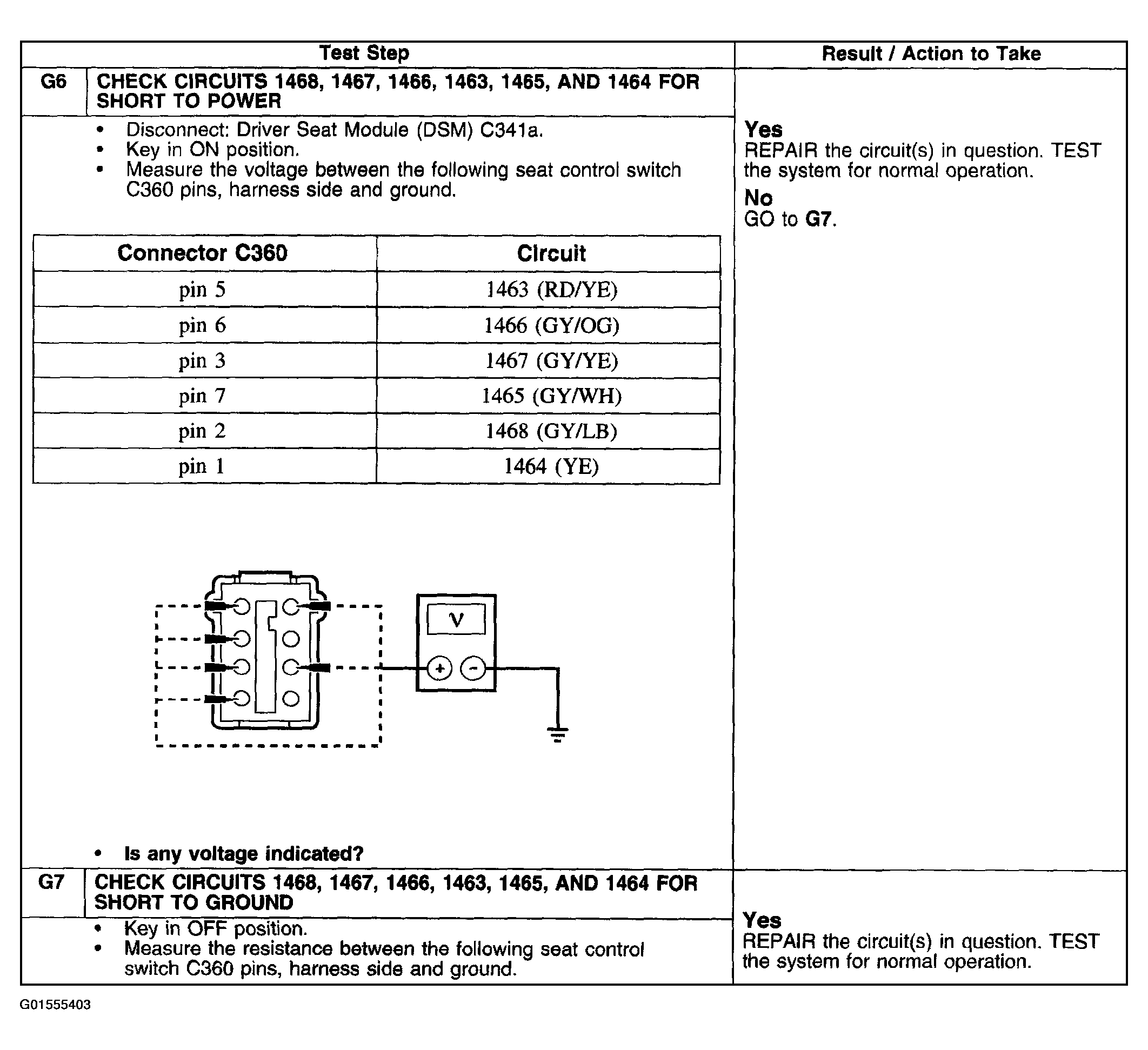

Fig 3: Pinpoint Test G: Memory Seat Is Inoperative (G6-G7)

G01555403

Courtesy of FORD MOTOR CO.

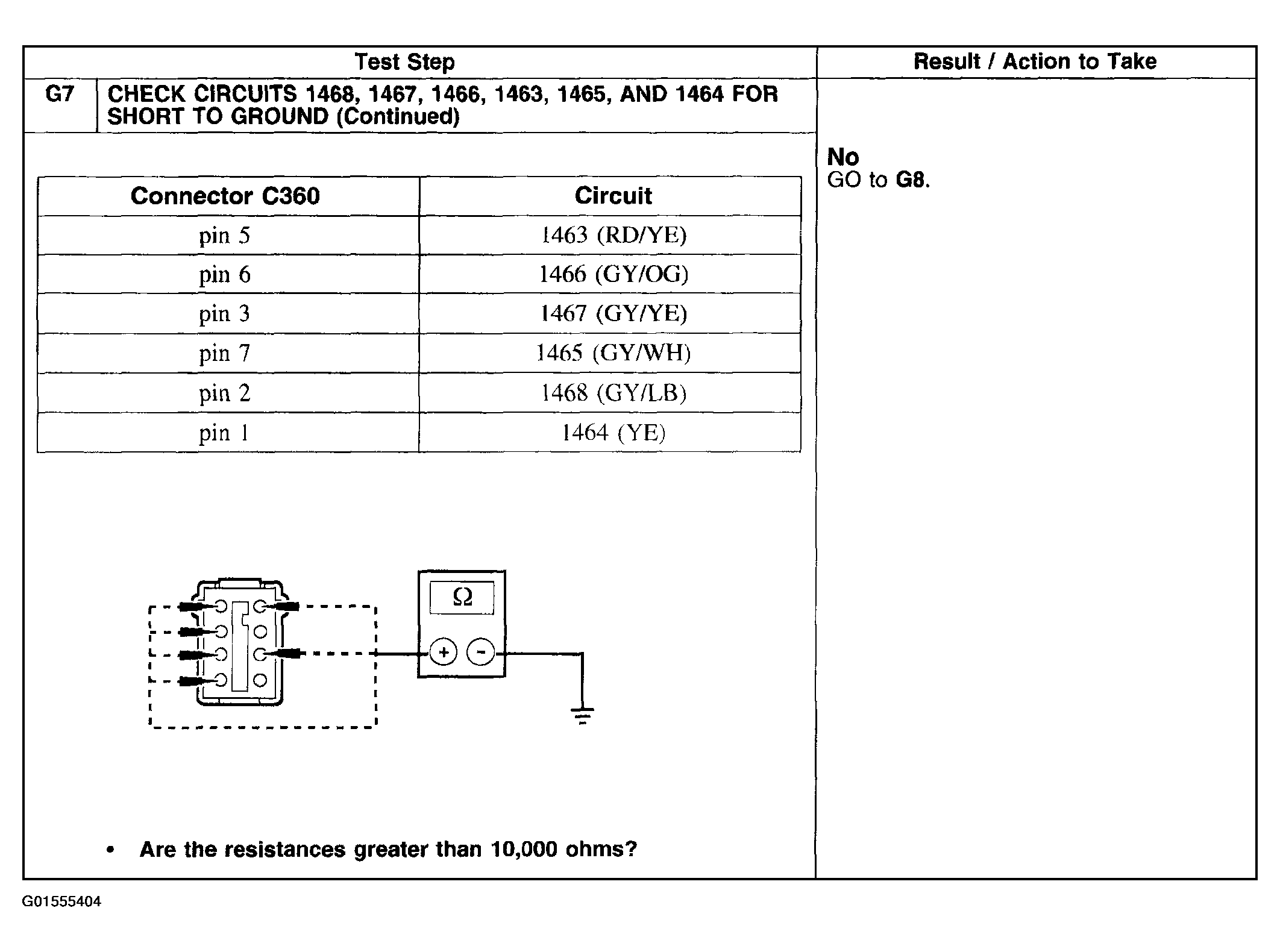

Fig 4: Pinpoint Test G: Memory Seat Is Inoperative (G7 Cont.)

G01555404

Courtesy of FORD MOTOR CO.

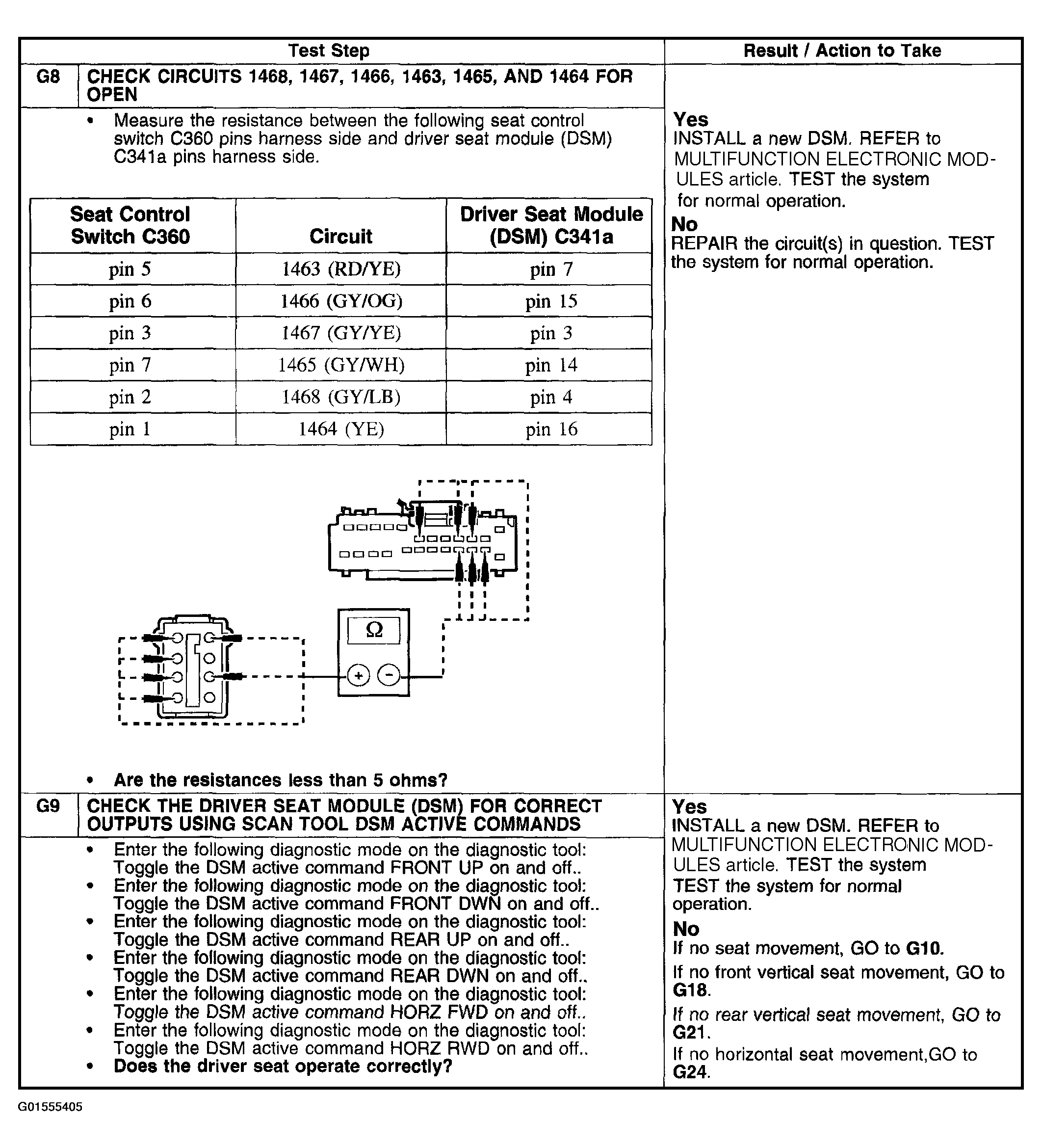

Fig 5: Pinpoint Test G: Memory Seat Is Inoperative (G8 & G9)

G01555405

Courtesy of FORD MOTOR CO.

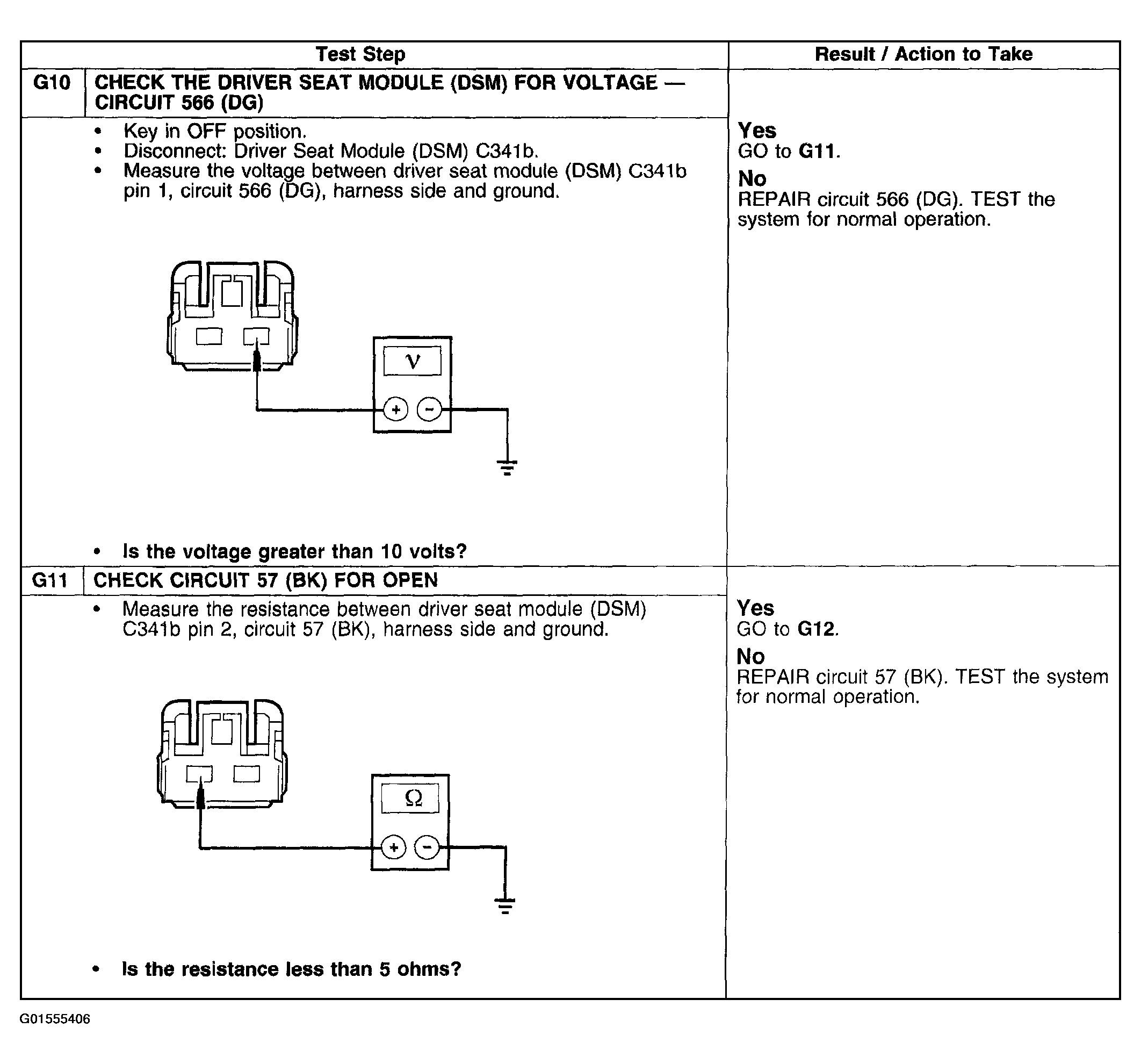

Fig 6: Pinpoint Test G: Memory Seat Is Inoperative (G10 & G11)

G01555406

Courtesy of FORD MOTOR CO.

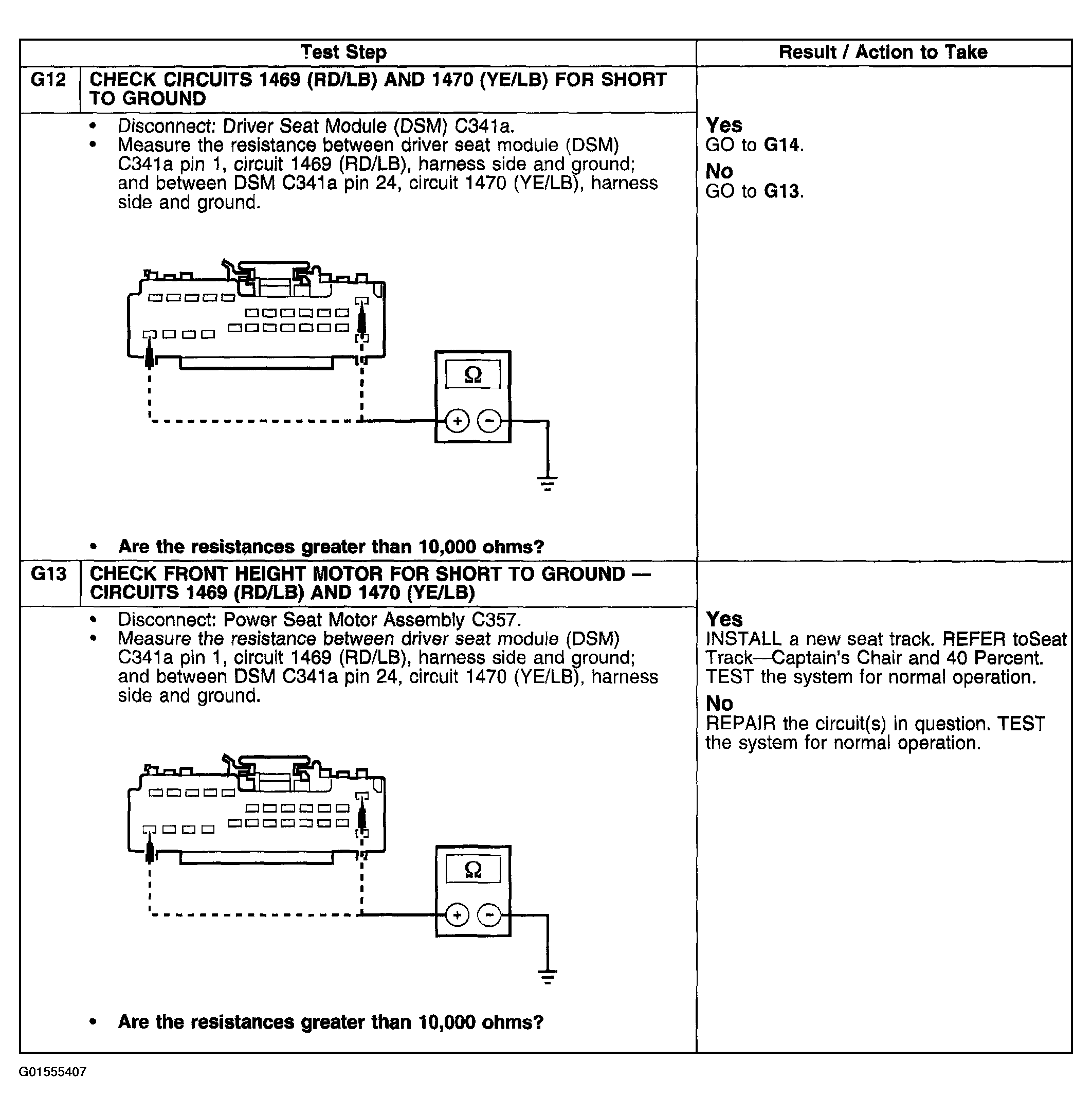

Fig 7: Pinpoint Test G: Memory Seat Is Inoperative (G12 & G13)

G01555407

Courtesy of FORD MOTOR CO.

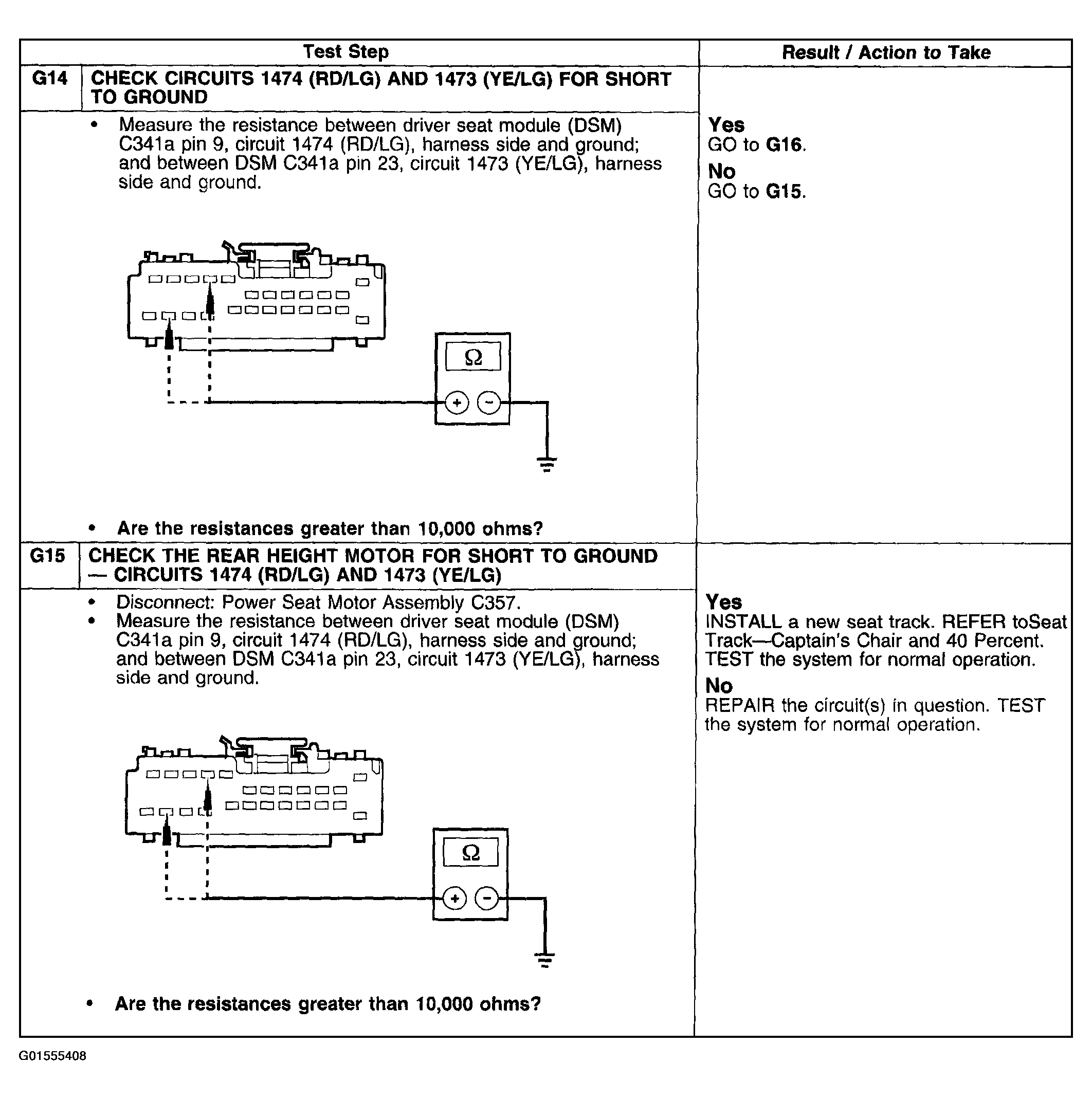

Fig 8: Pinpoint Test G: Memory Seat Is Inoperative (G14 & G15)

G01555408

Courtesy of FORD MOTOR CO.

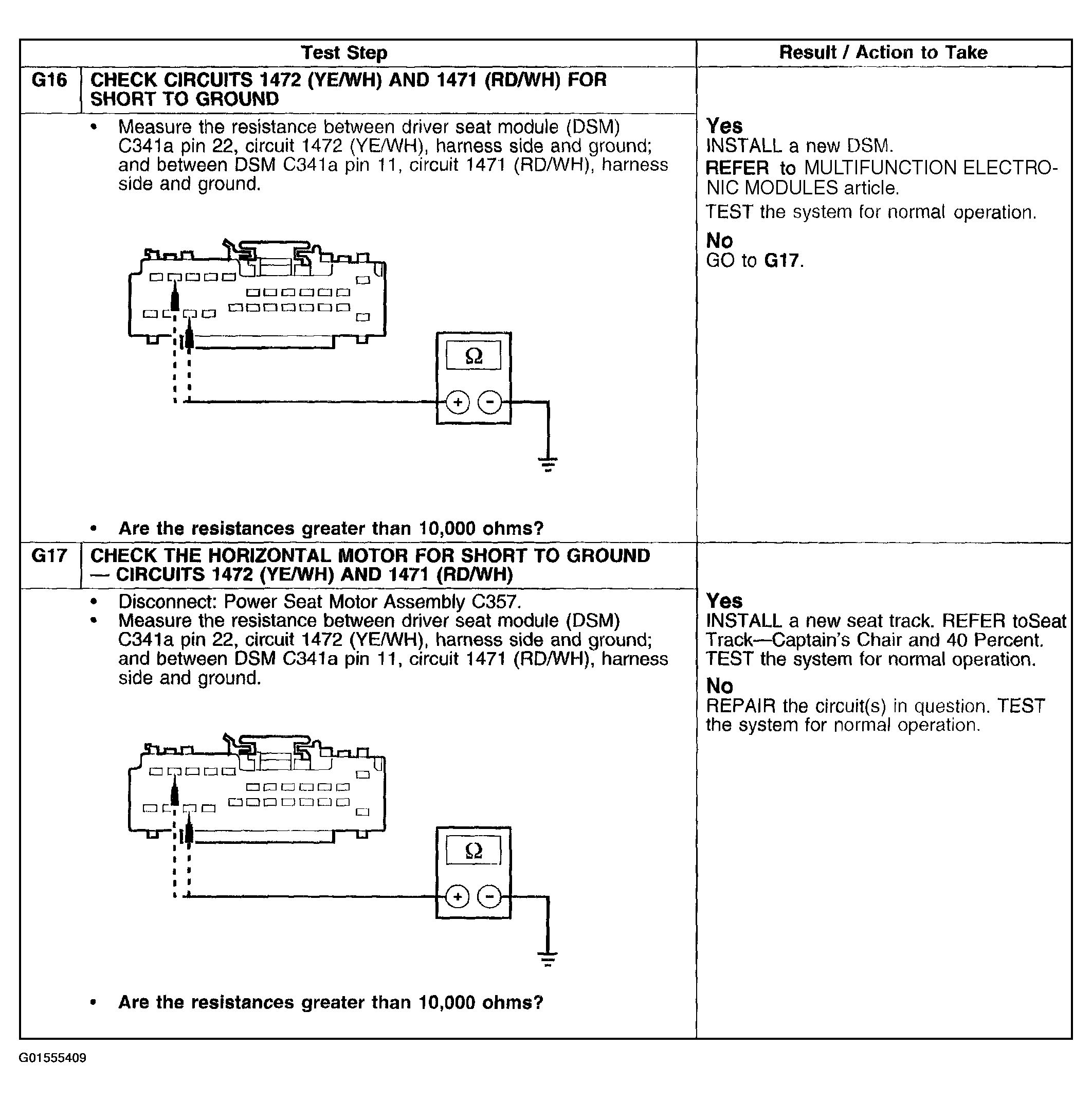

Fig 9: Pinpoint Test G: Memory Seat Is Inoperative (G16 & G17)

G01555409

Courtesy of FORD MOTOR CO.

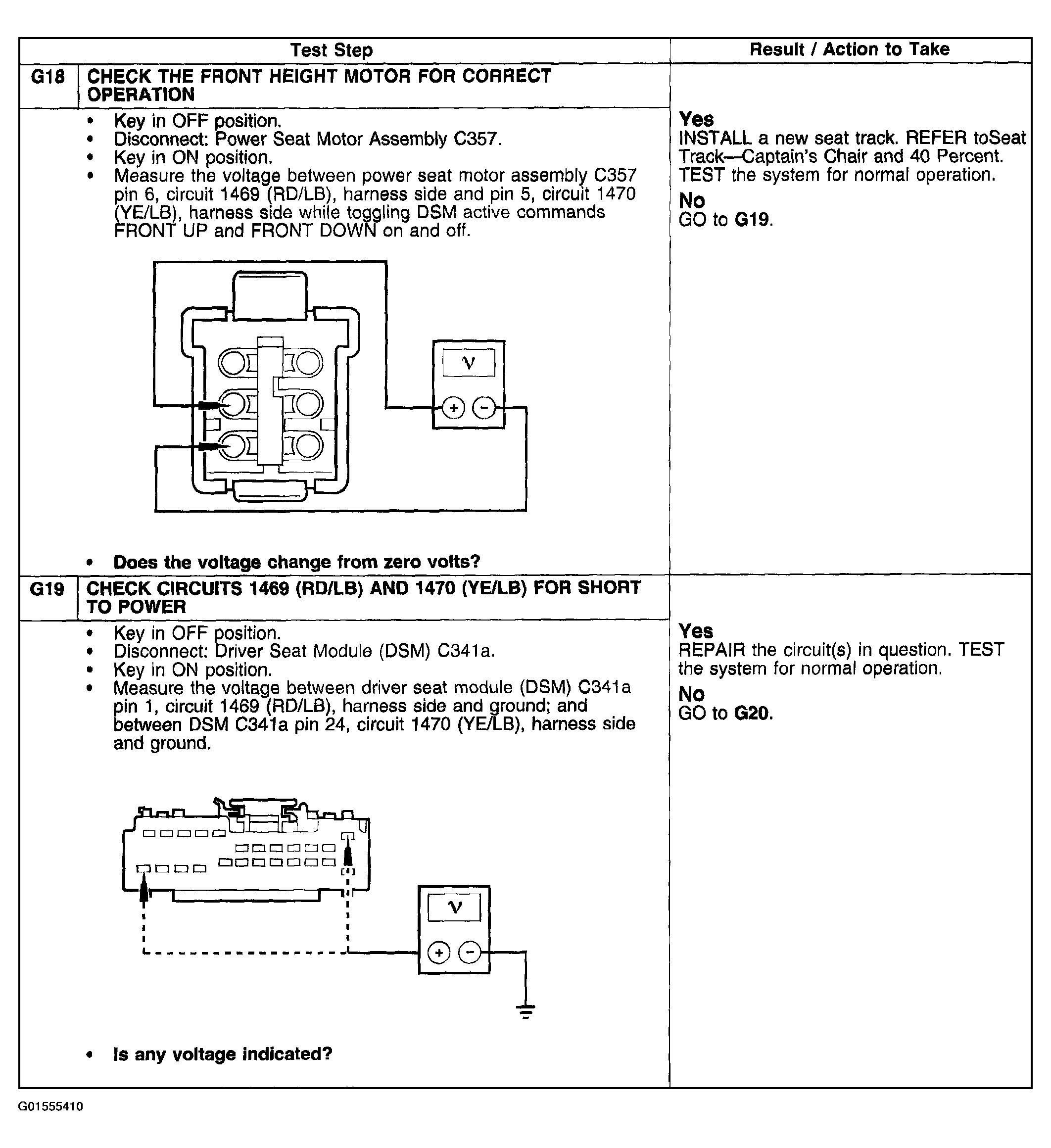

Fig 10: Pinpoint Test G: Memory Seat Is Inoperative (G18 & G19)

G01555410

Courtesy of FORD MOTOR CO.

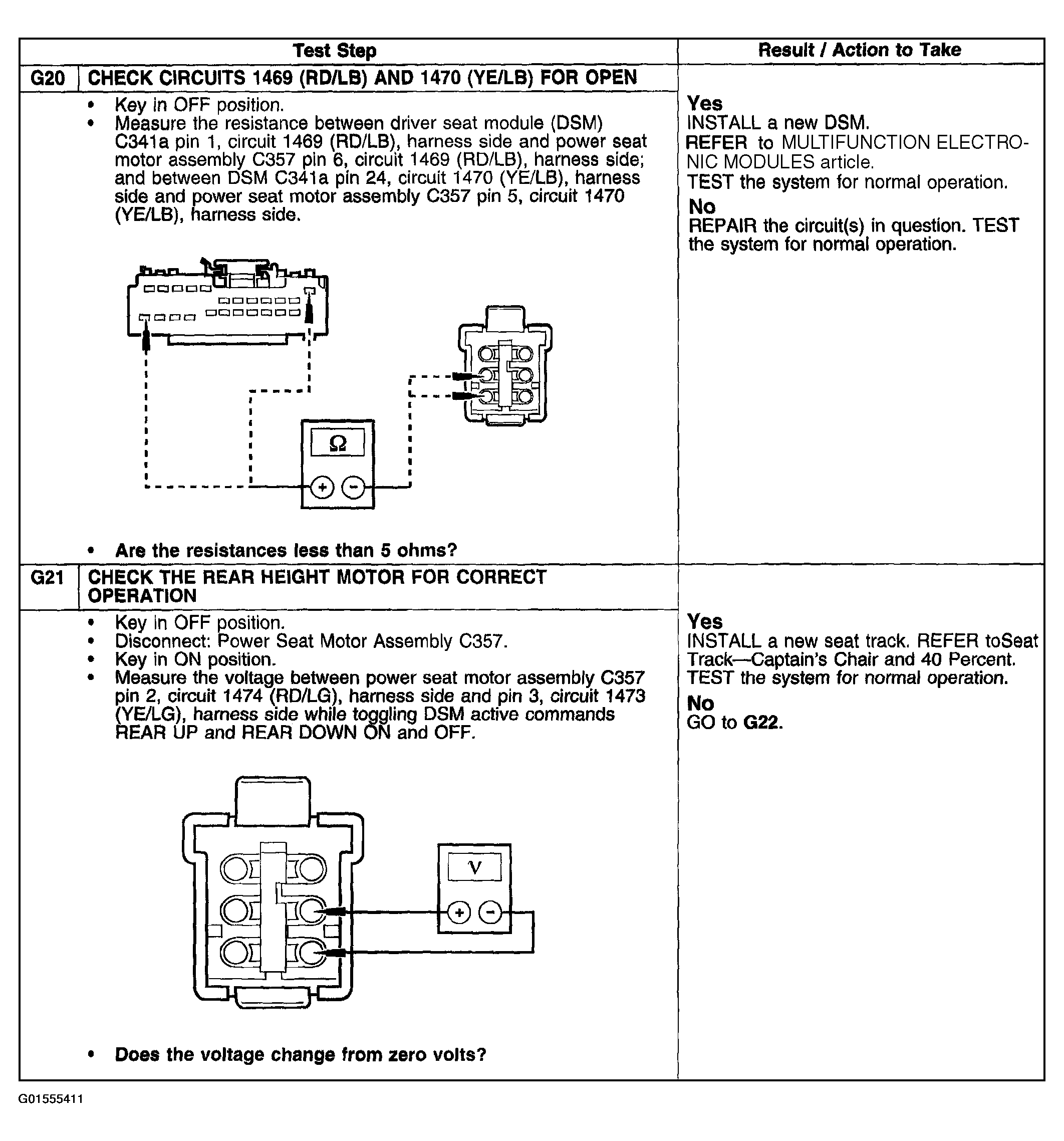

Fig 11: Pinpoint Test G: Memory Seat Is Inoperative (G20 & G21)

G01555411

Courtesy of FORD MOTOR CO.

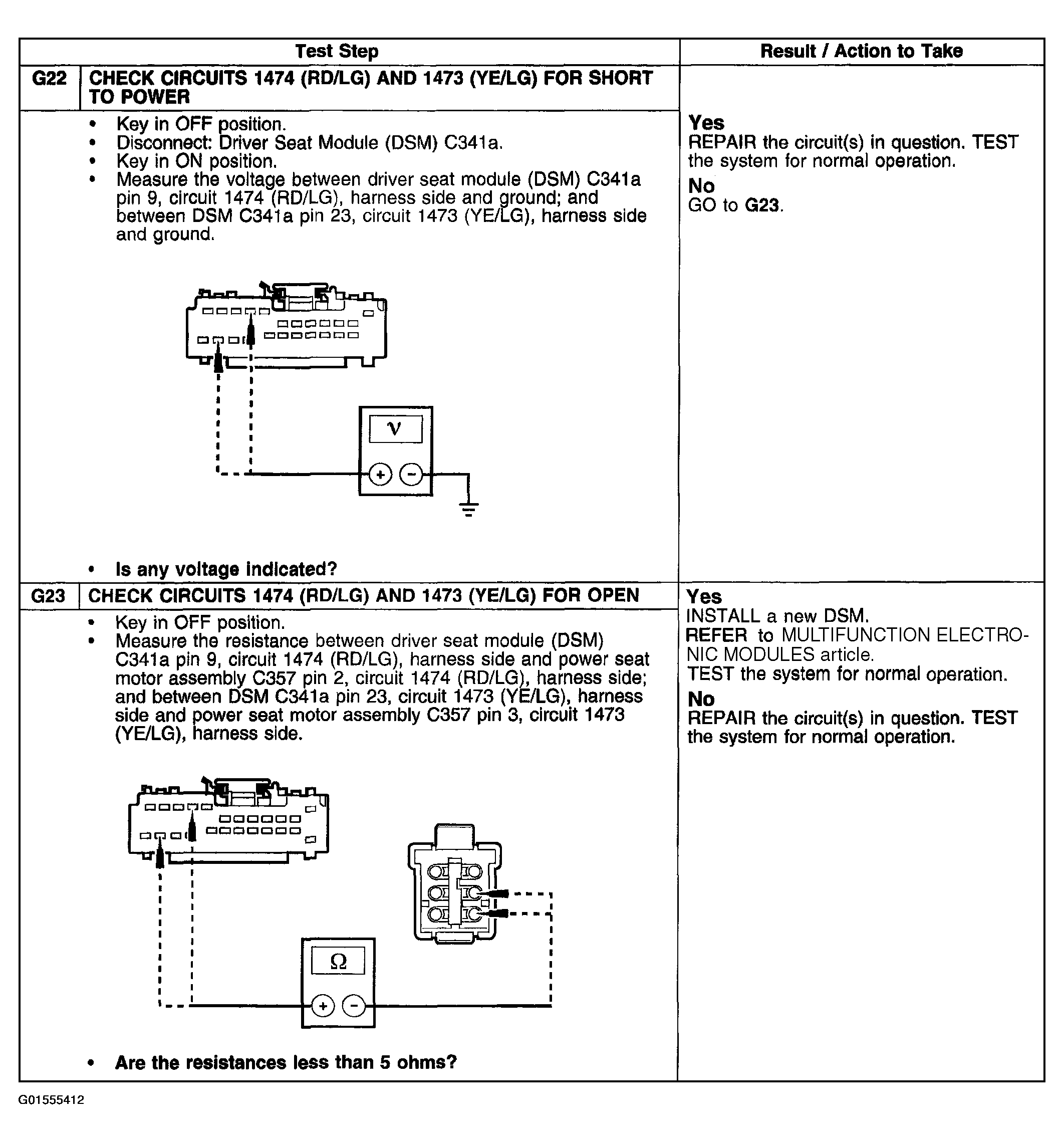

Fig 12: Pinpoint Test G: Memory Seat Is Inoperative (G22 & G23)

G01555412

Courtesy of FORD MOTOR CO.

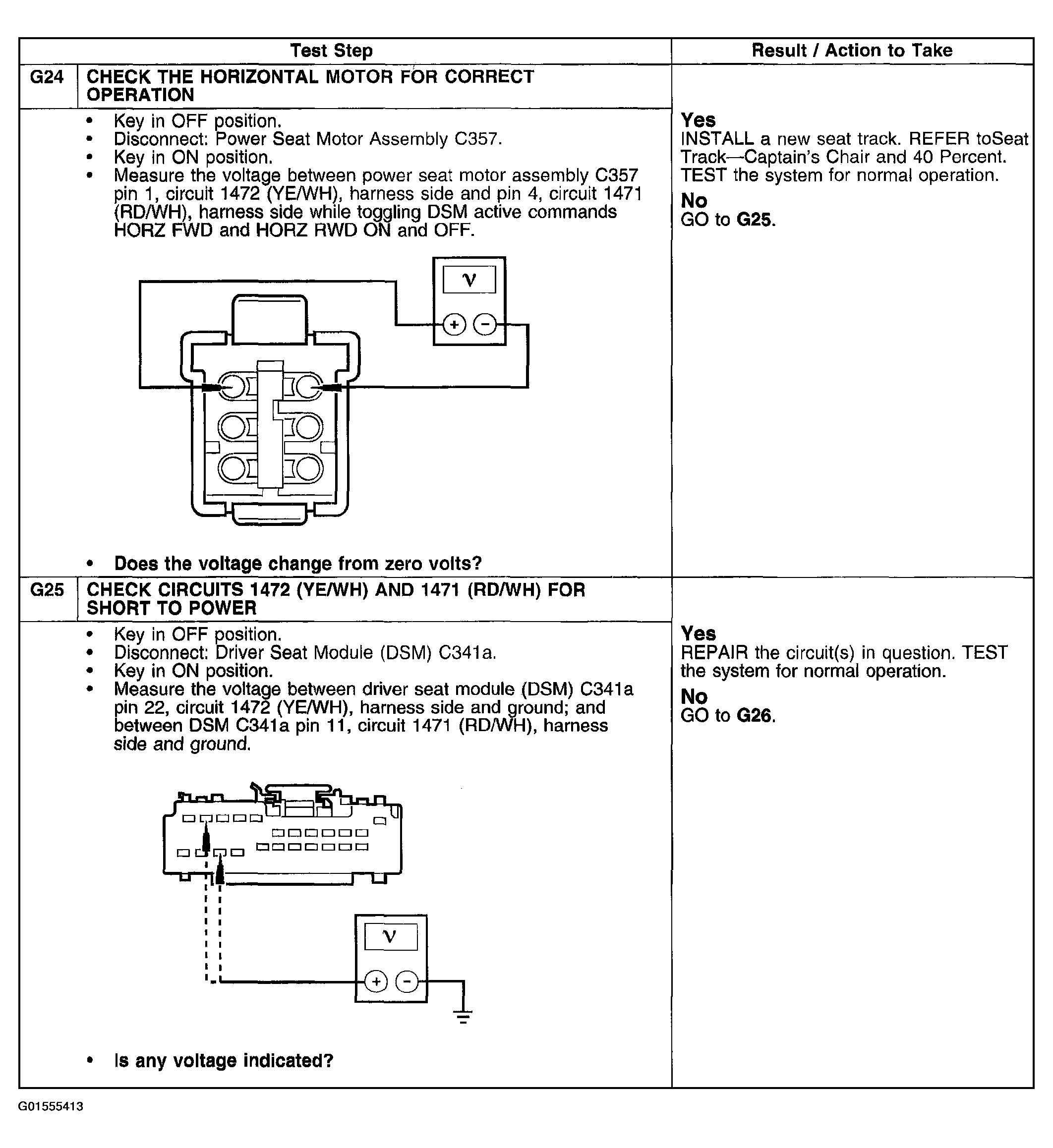

Fig 13: Pinpoint Test G: Memory Seat Is Inoperative (G24 & G25)

G01555413

Courtesy of FORD MOTOR CO.

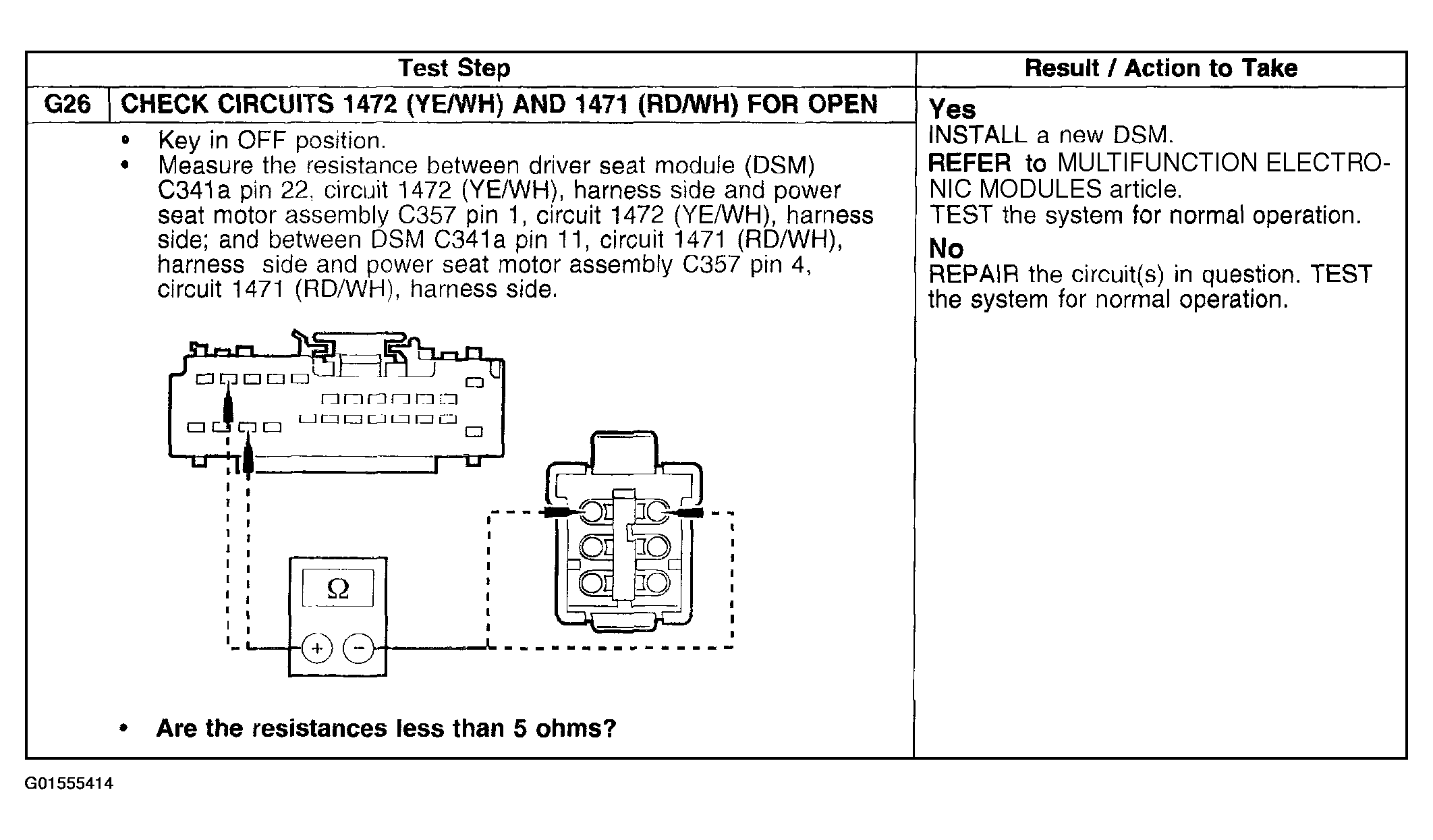

Fig 14: Pinpoint Test G: Memory Seat Is Inoperative (G26)

G01555414

Courtesy of FORD MOTOR CO.
