Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Passenger Side

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

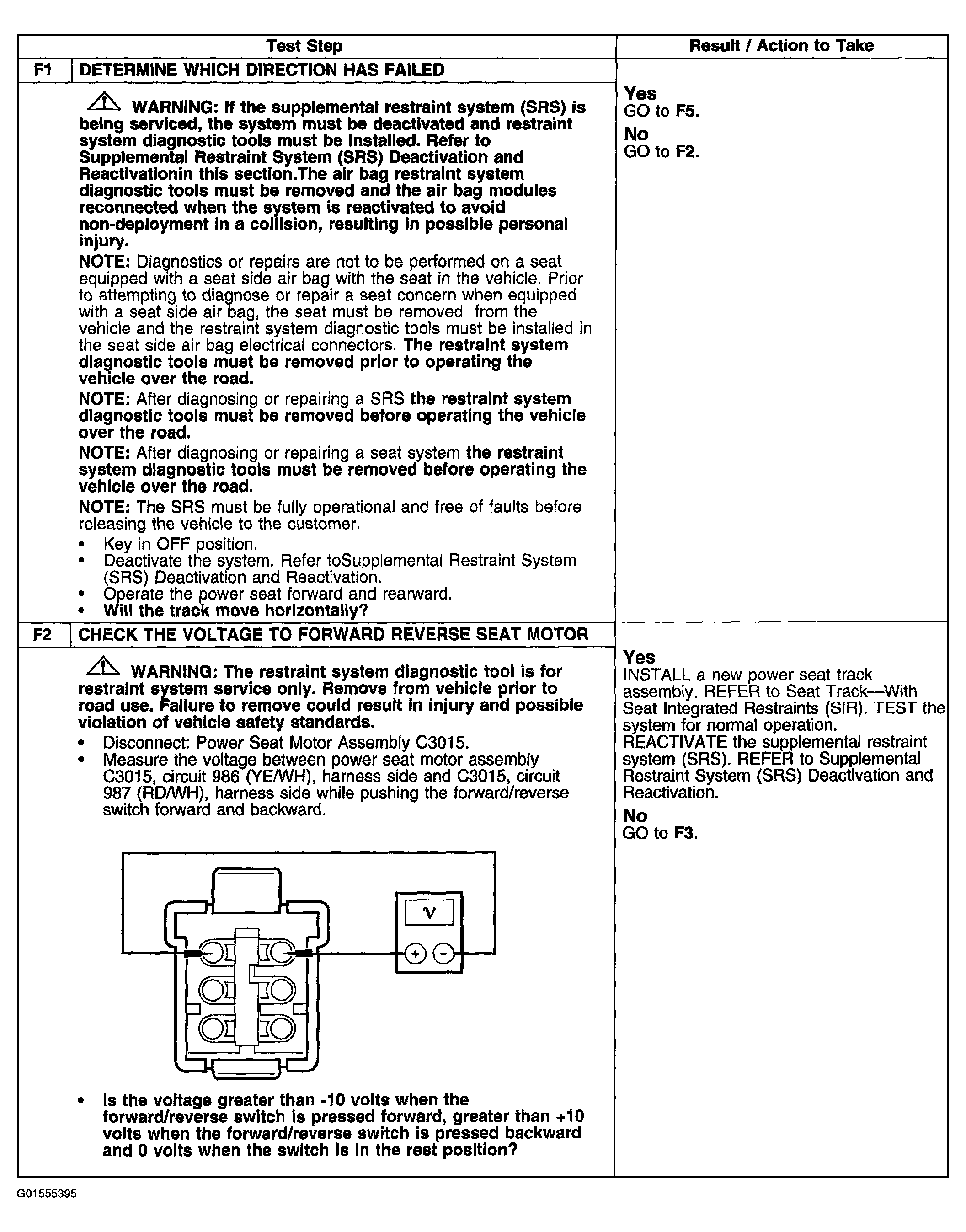

Fig 1: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Passenger Side (F1 & F2)

Courtesy of FORD MOTOR CO.

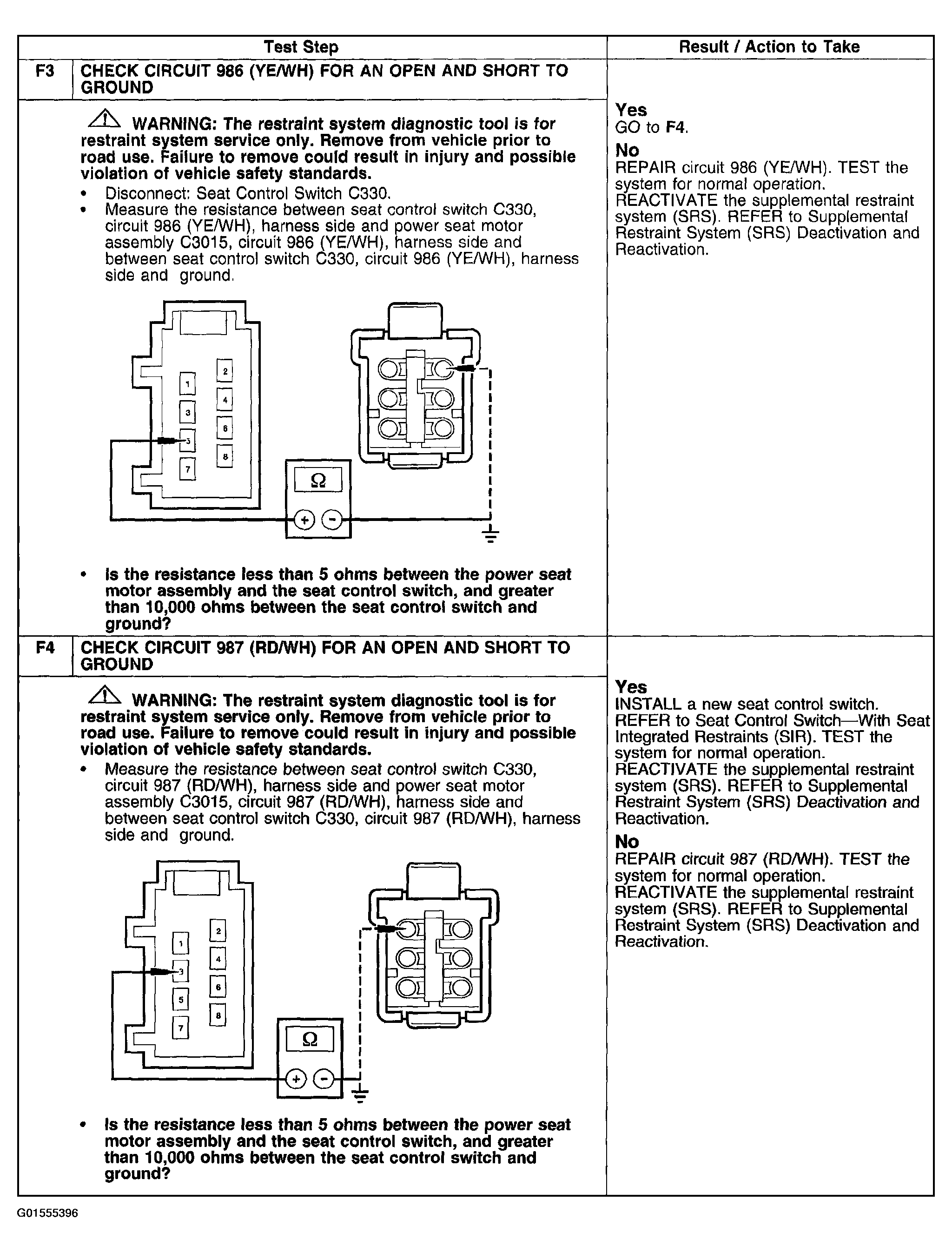

Fig 2: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Passenger Side (F3 & F4)

Courtesy of FORD MOTOR CO.

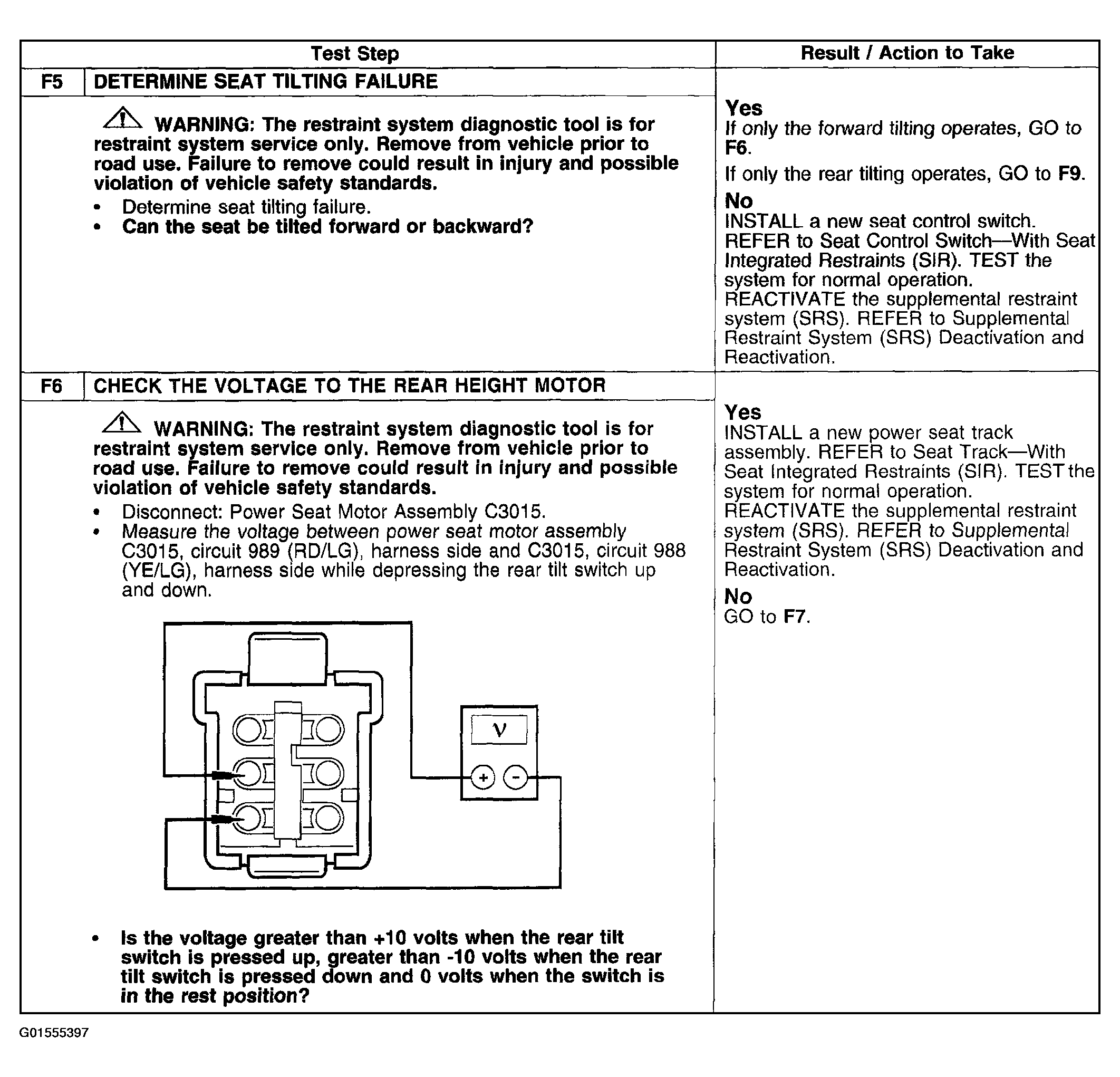

Fig 3: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Passenger Side (F5 & F6)

Courtesy of FORD MOTOR CO.

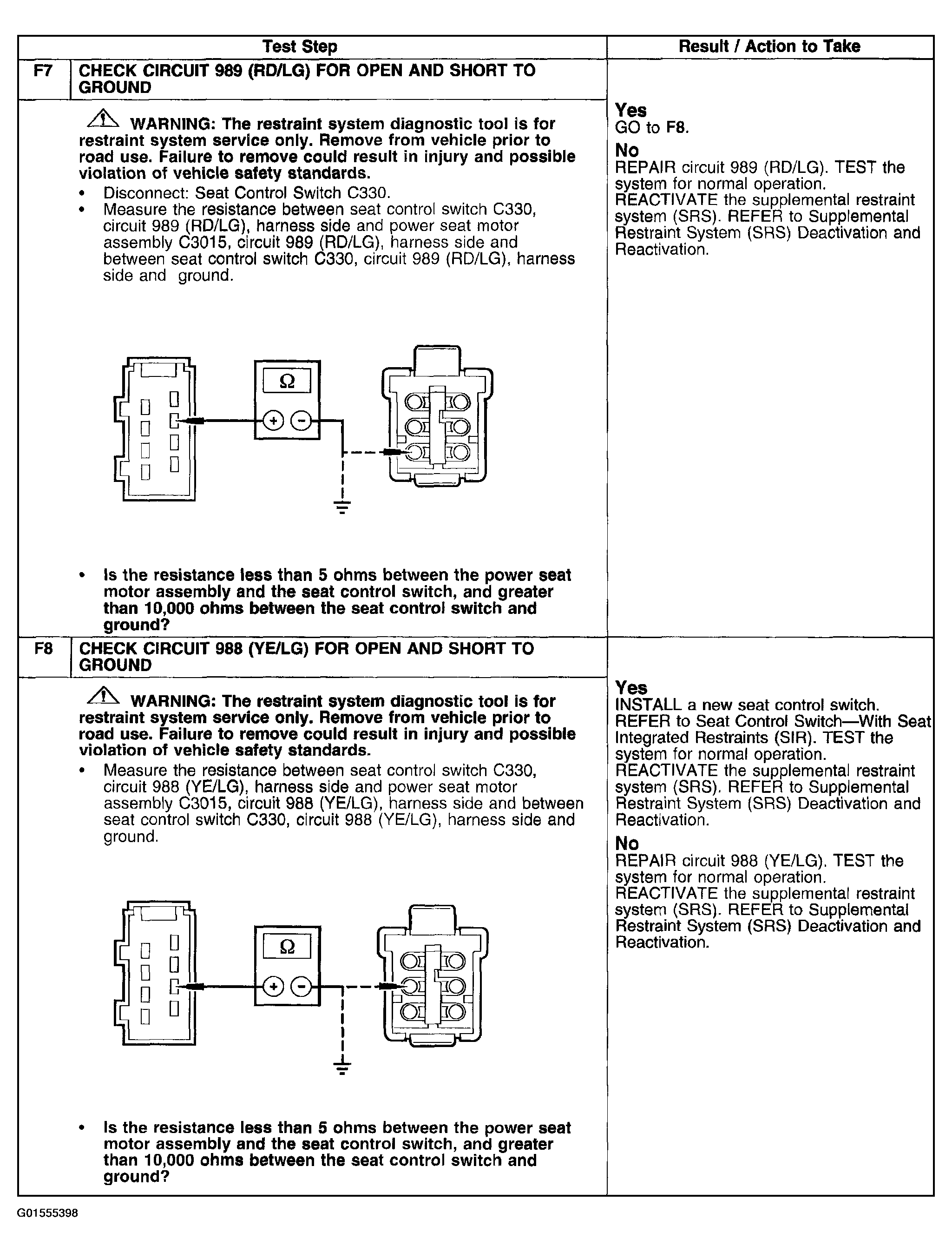

Fig 4: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Passenger Side (F7 & F8)

Courtesy of FORD MOTOR CO.

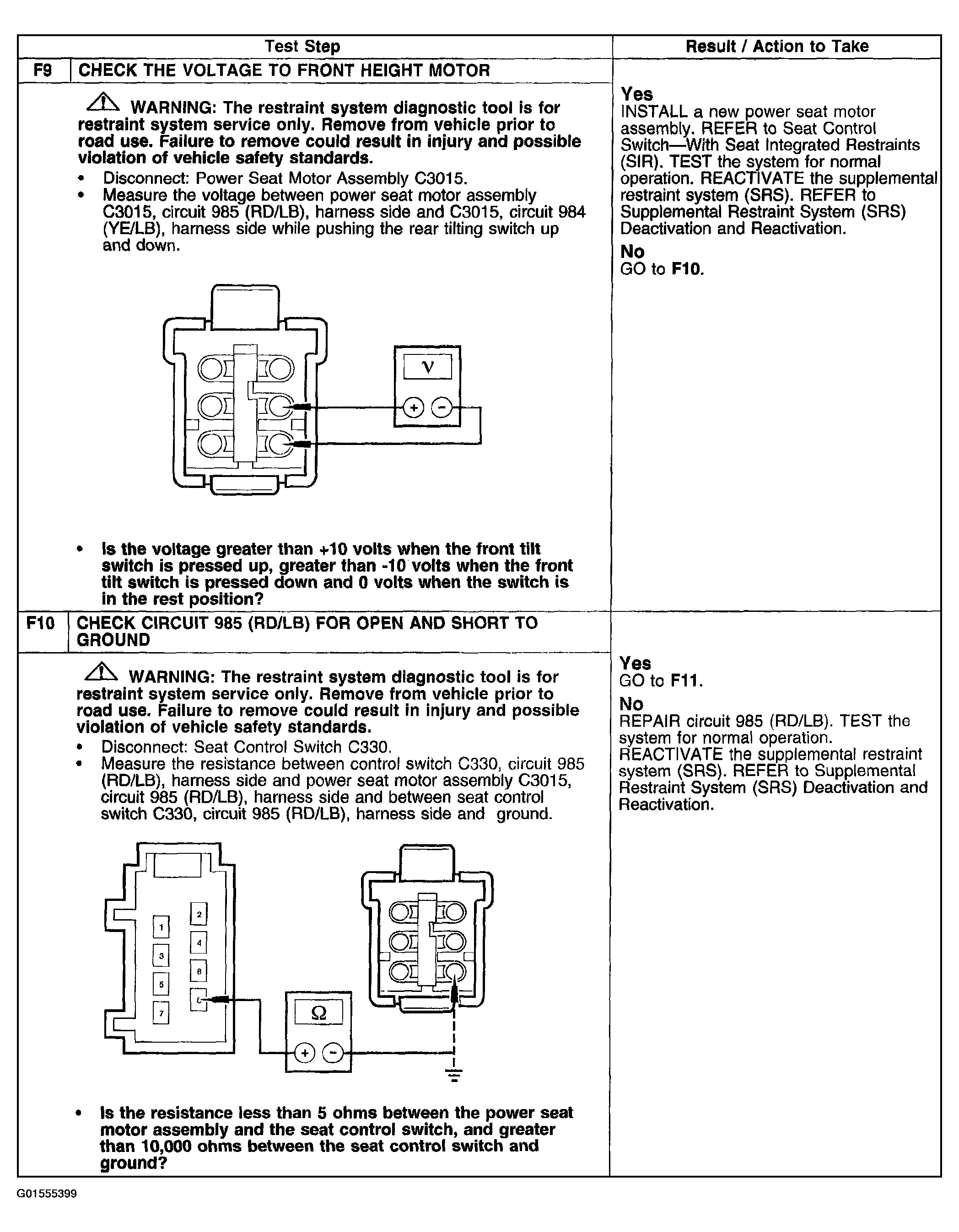

Fig 5: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Passenger Side (F9 & F10)

Courtesy of FORD MOTOR CO.

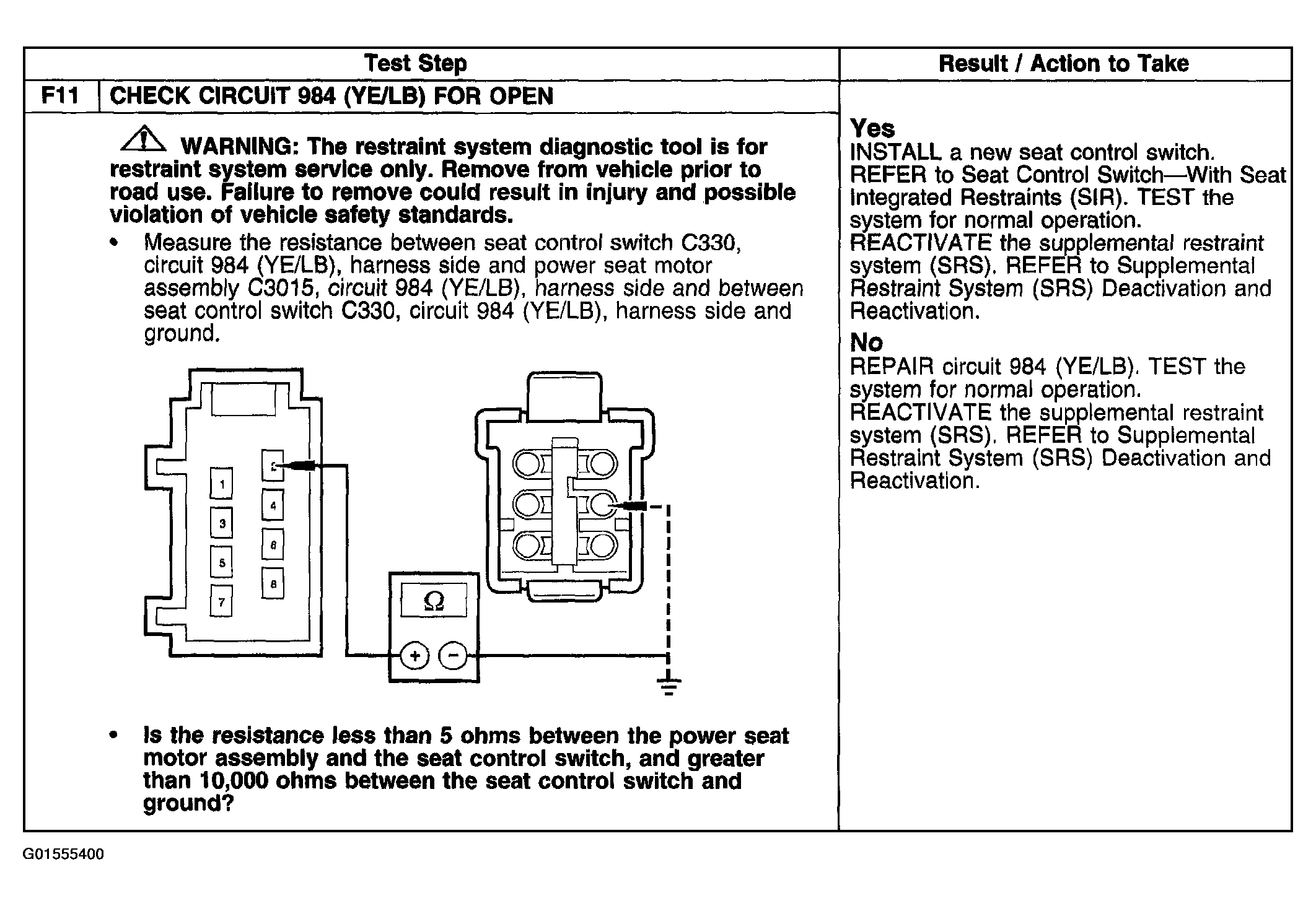

Fig 6: Pinpoint Test F: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Passenger Side (F11)

Courtesy of FORD MOTOR CO.
