Pinpoint Test E: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Passenger Side

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

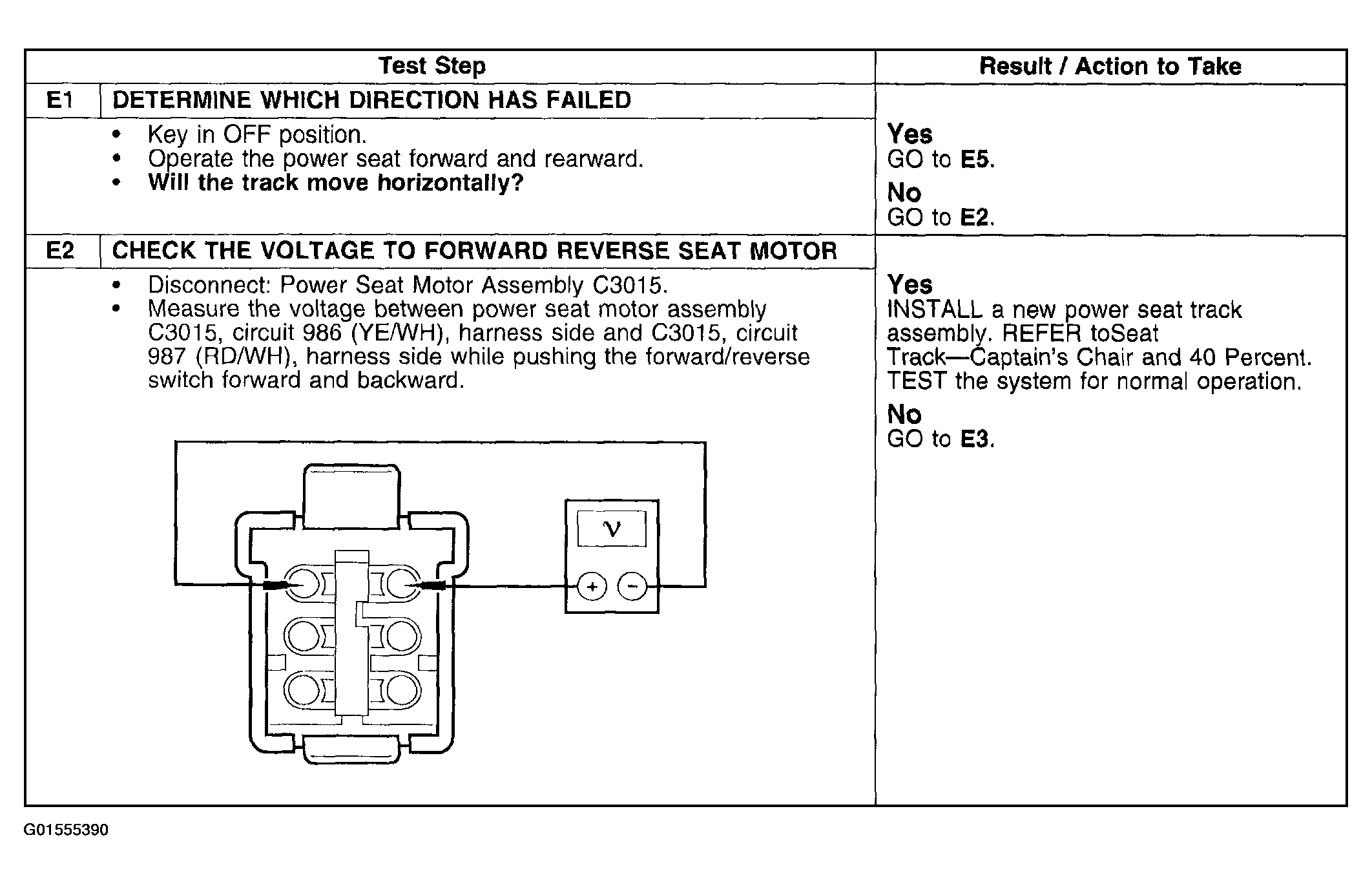

Fig 1: Pinpoint Test E: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Passenger Side (E1 & E2)
G01555390Courtesy of FORD MOTOR CO.

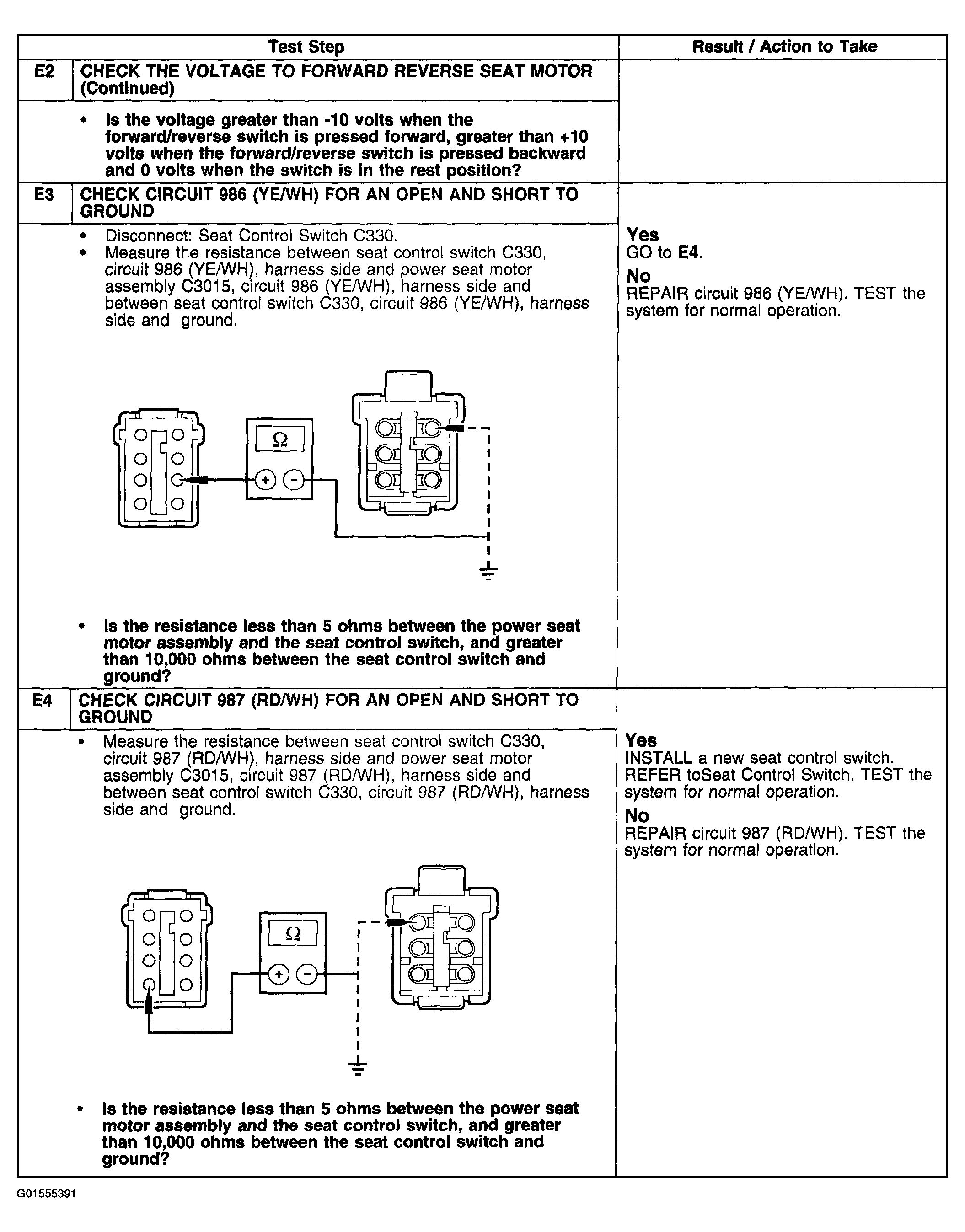

Fig 2: Pinpoint Test E: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Passenger Side (E2 Cont.-E4)
G01555391Courtesy of FORD MOTOR CO.

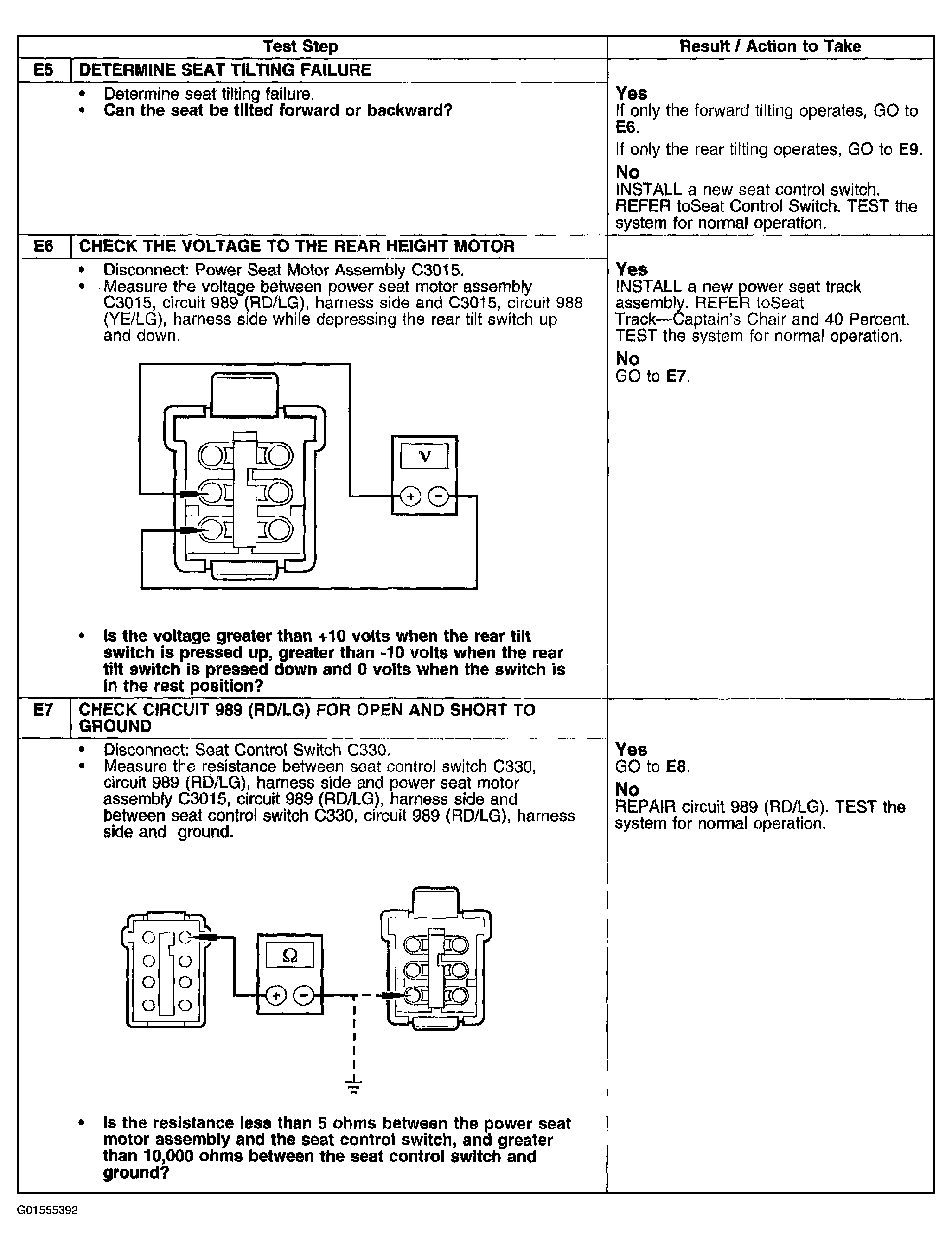

Fig 3: Pinpoint Test E: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Passenger Side (E5-E7)
G01555392Courtesy of FORD MOTOR CO.

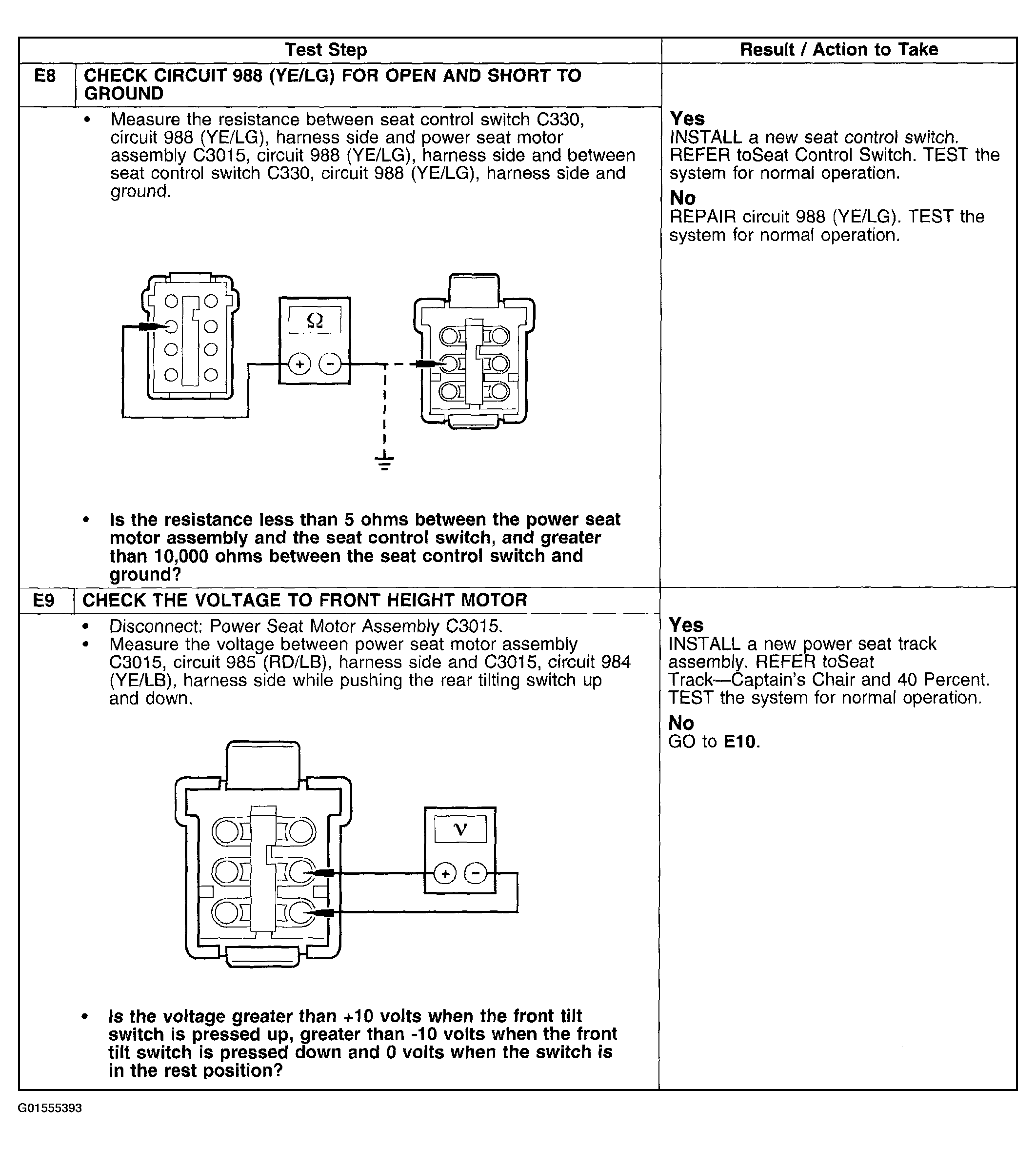

Fig 4: Pinpoint Test E: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Passenger Side (E8 & E9)
G01555393Courtesy of FORD MOTOR CO.

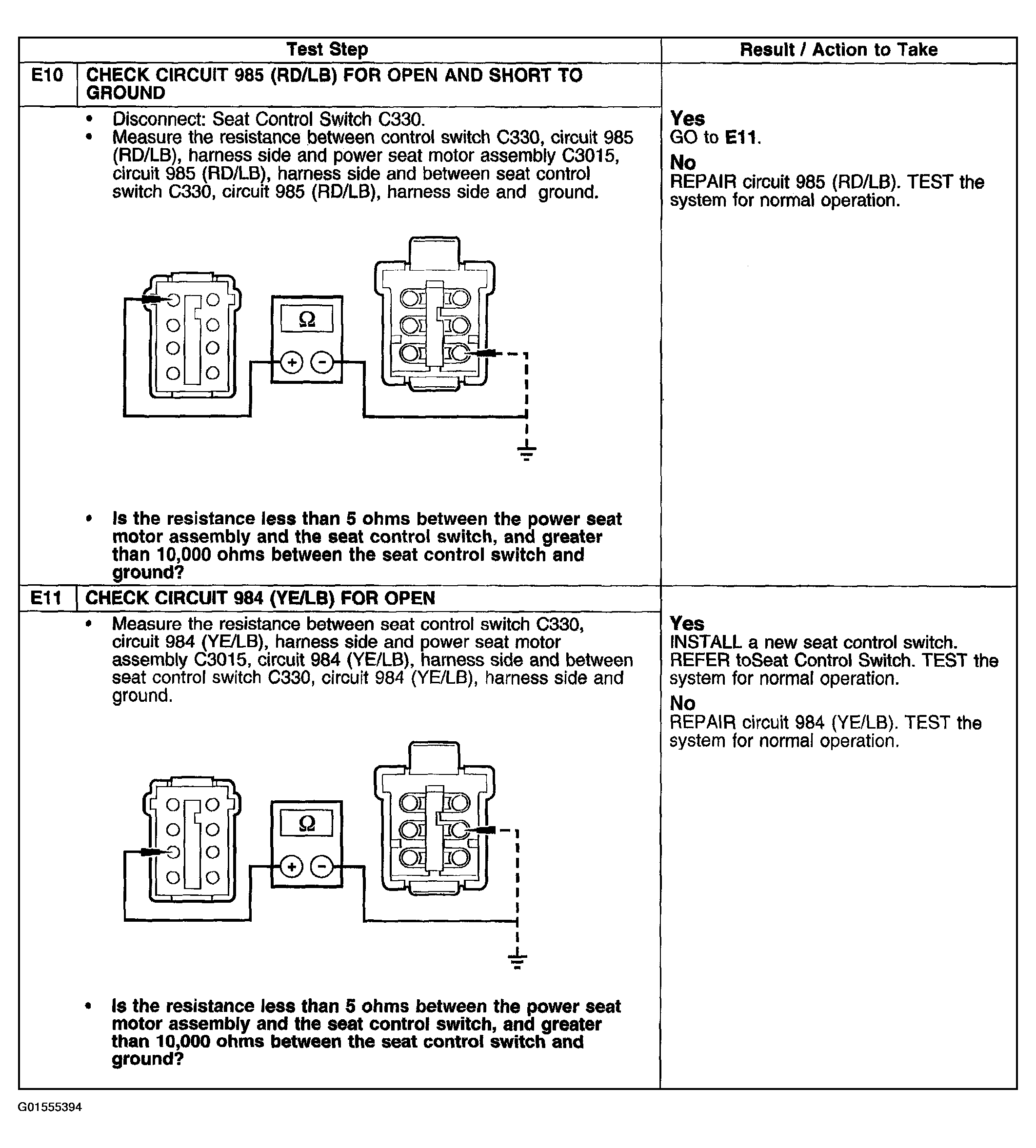

Fig 5: Pinpoint Test E: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Passenger Side (E10 & E11)
G01555394Courtesy of FORD MOTOR CO.
