Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With Sir, Driver Side

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

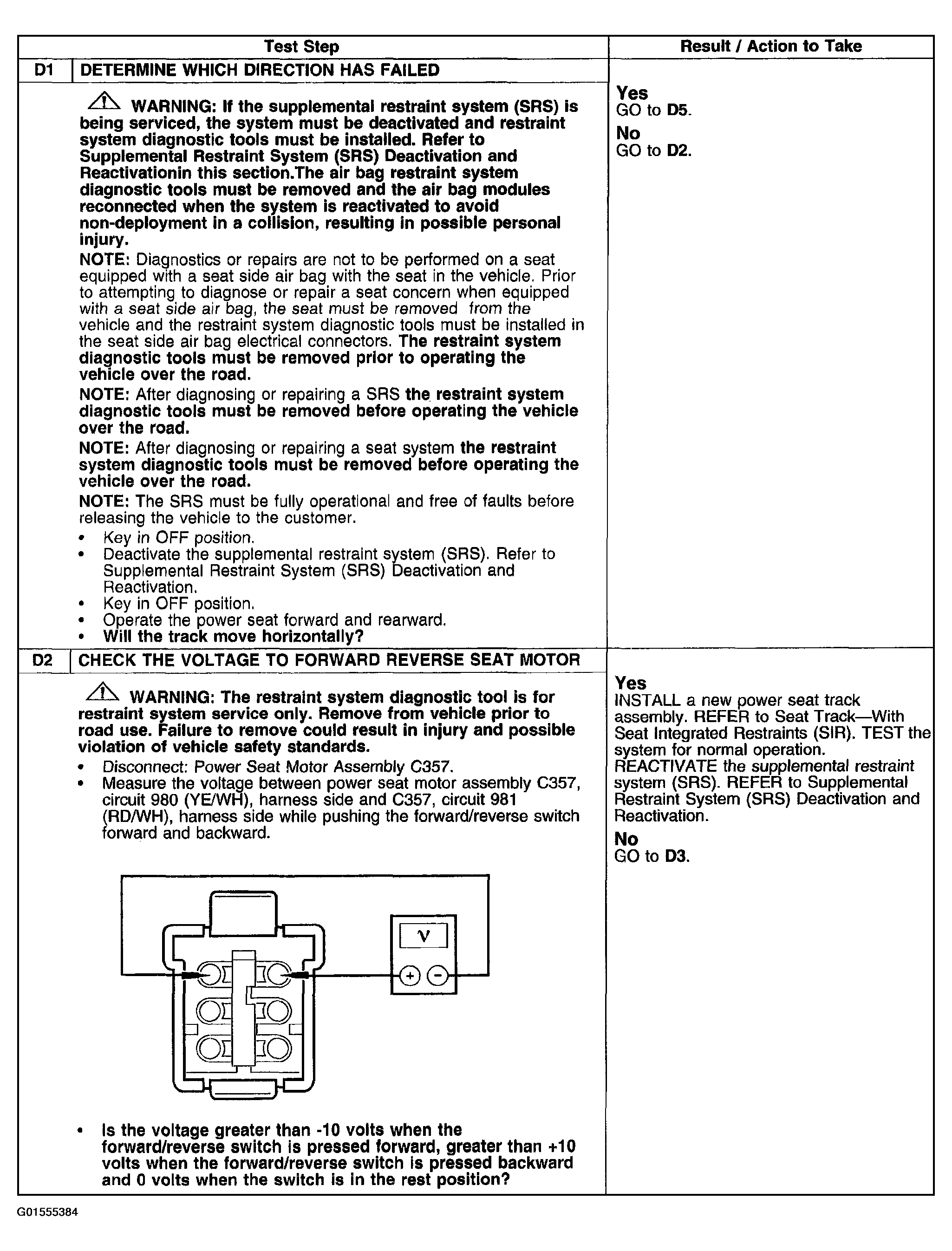

Fig 1: Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Driver Side (D1 & D2)
G01555384Courtesy of FORD MOTOR CO.

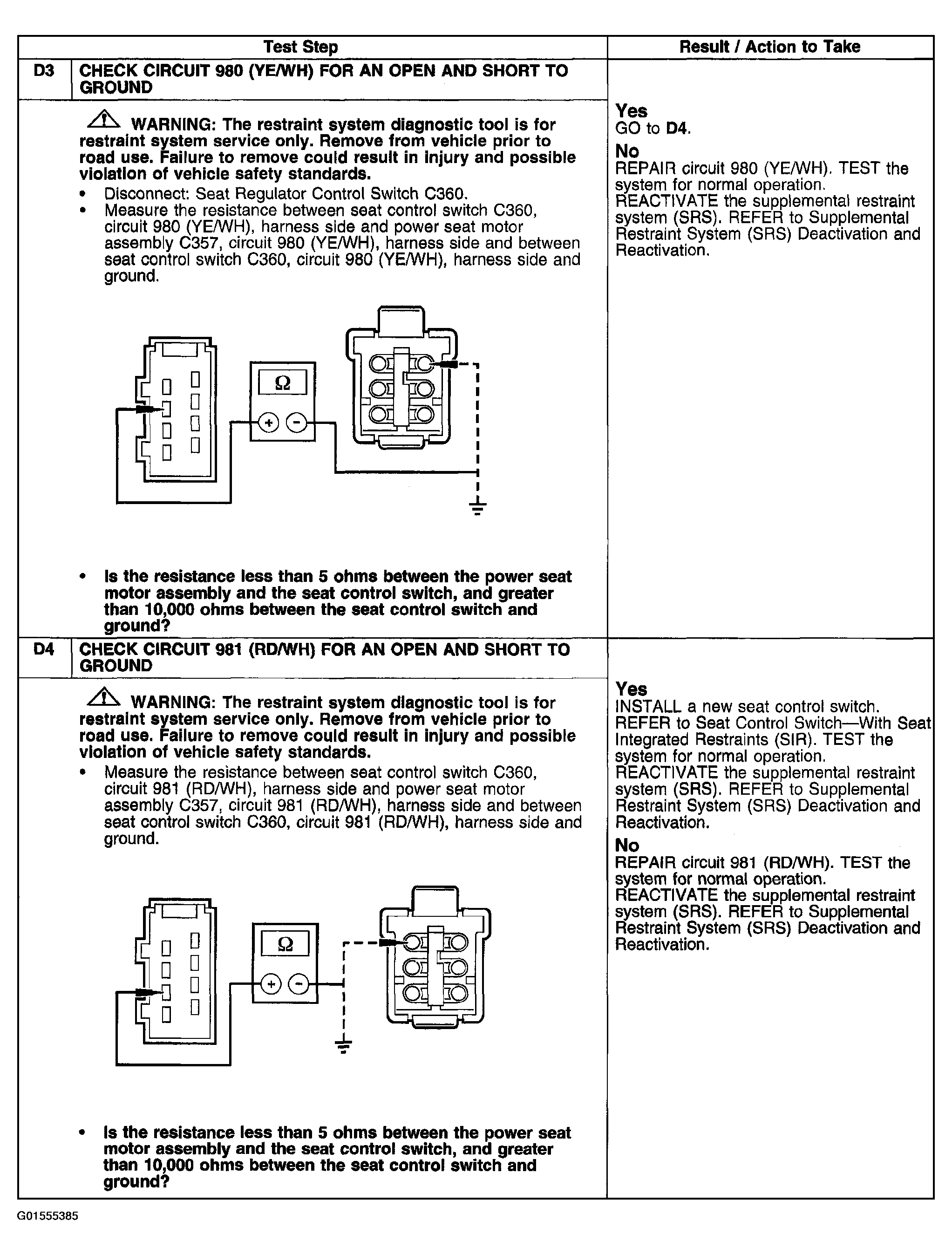

Fig 2: Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Driver Side (D3 & D4)
G01555385Courtesy of FORD MOTOR CO.

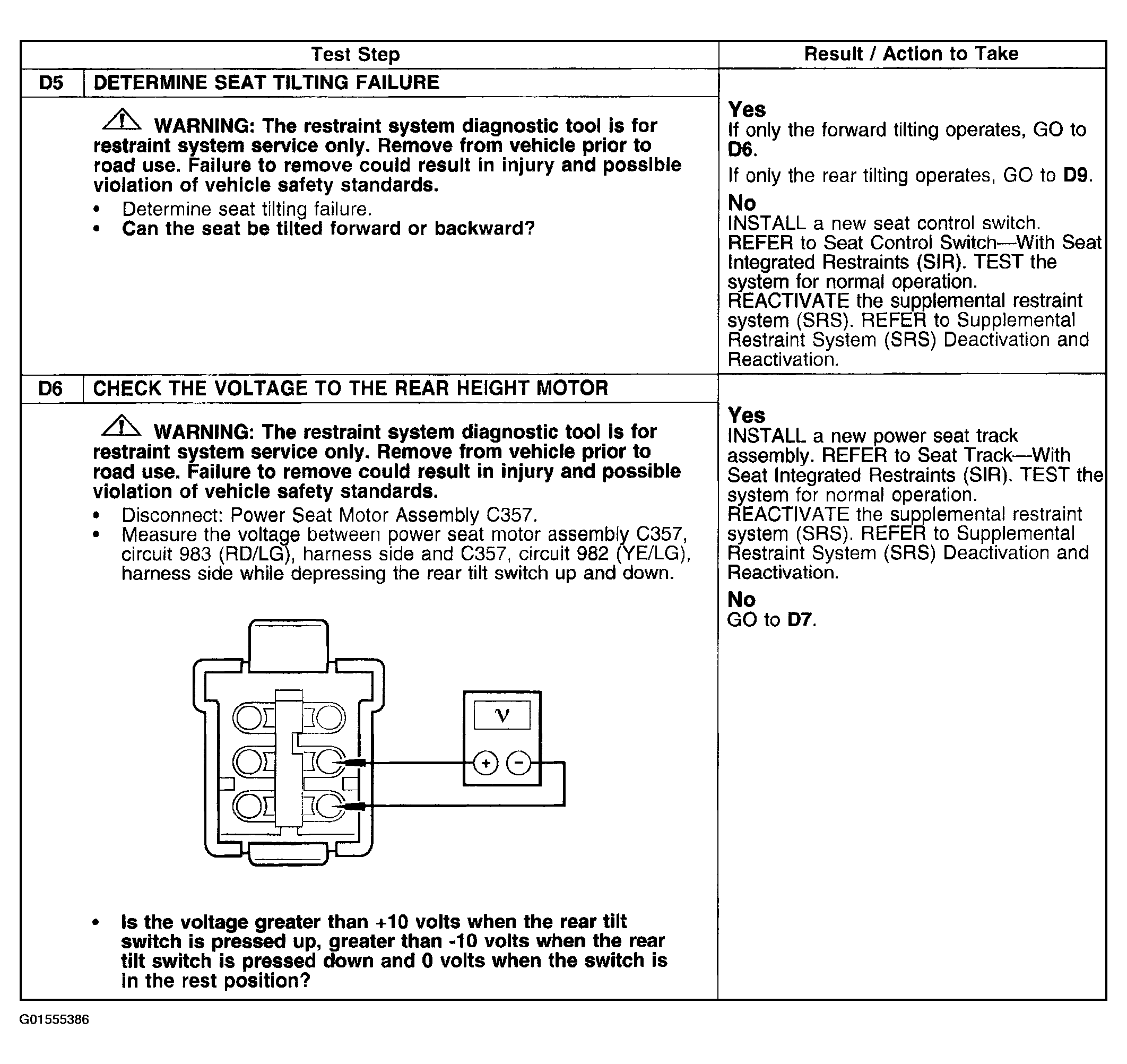

Fig 3: Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Driver Side (D5 & D6)
G01555386Courtesy of FORD MOTOR CO.

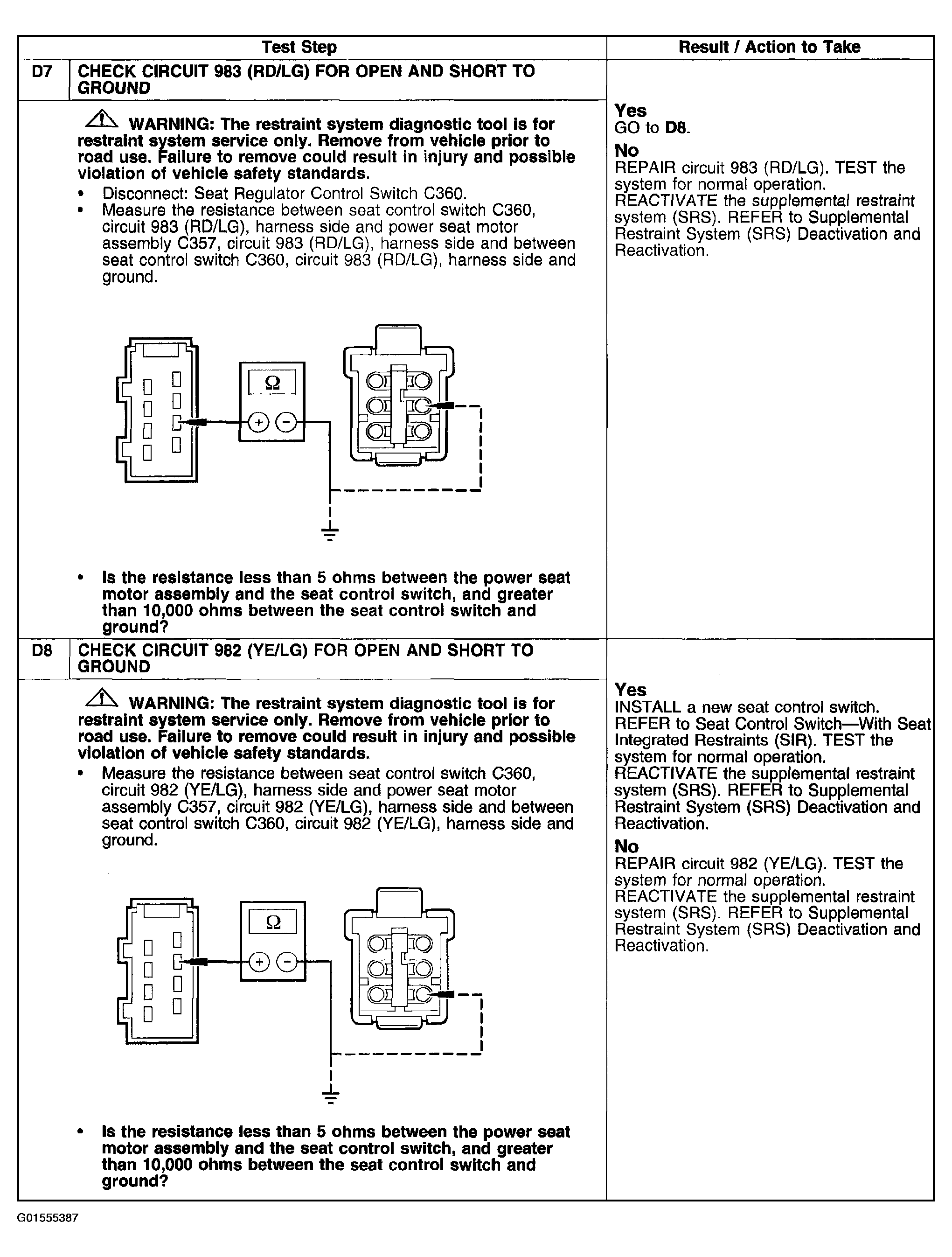

Fig 4: Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Driver Side (D7 & D8)
G01555387Courtesy of FORD MOTOR CO.

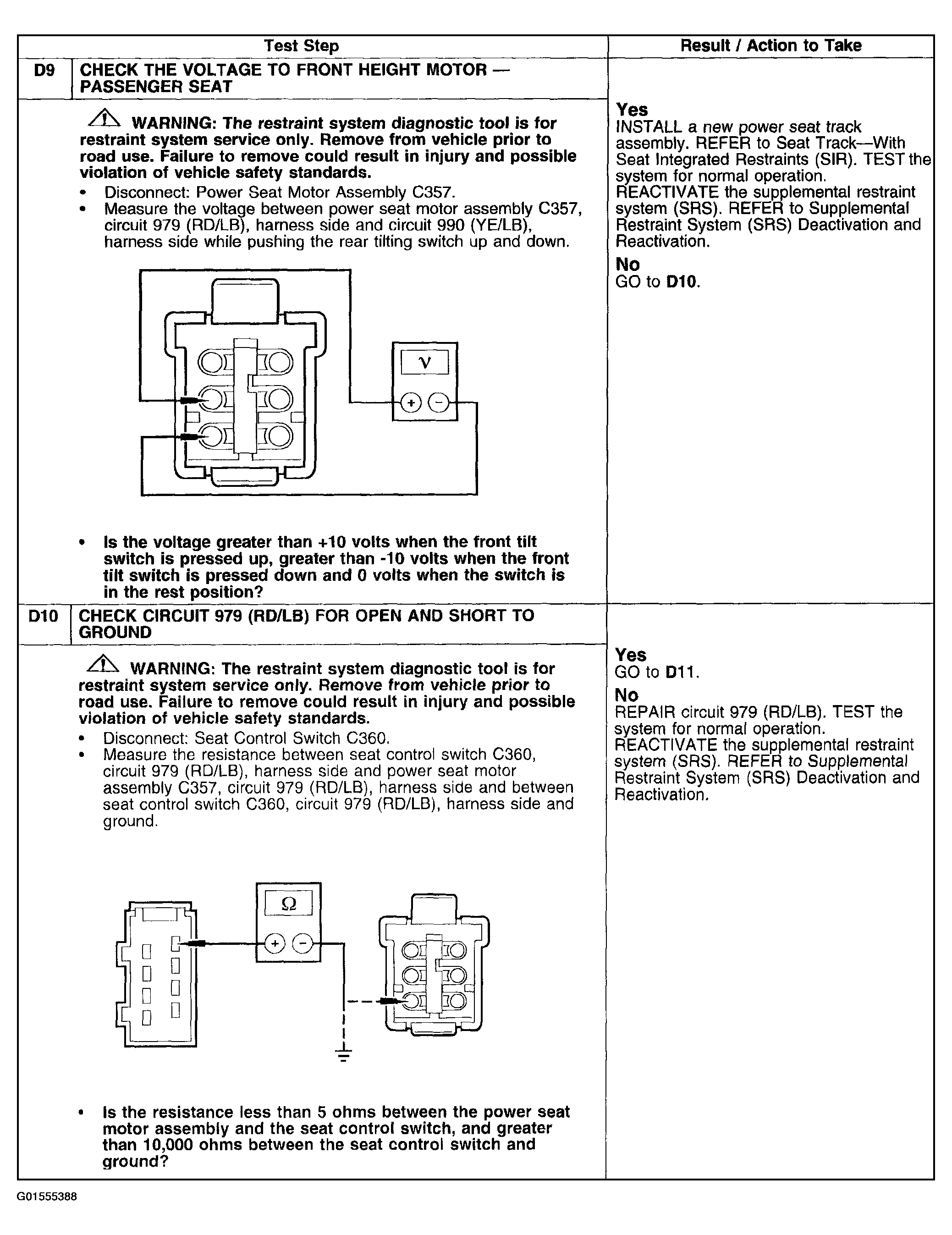

Fig 5: Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Driver Side (D9 & D10)
G01555388Courtesy of FORD MOTOR CO.

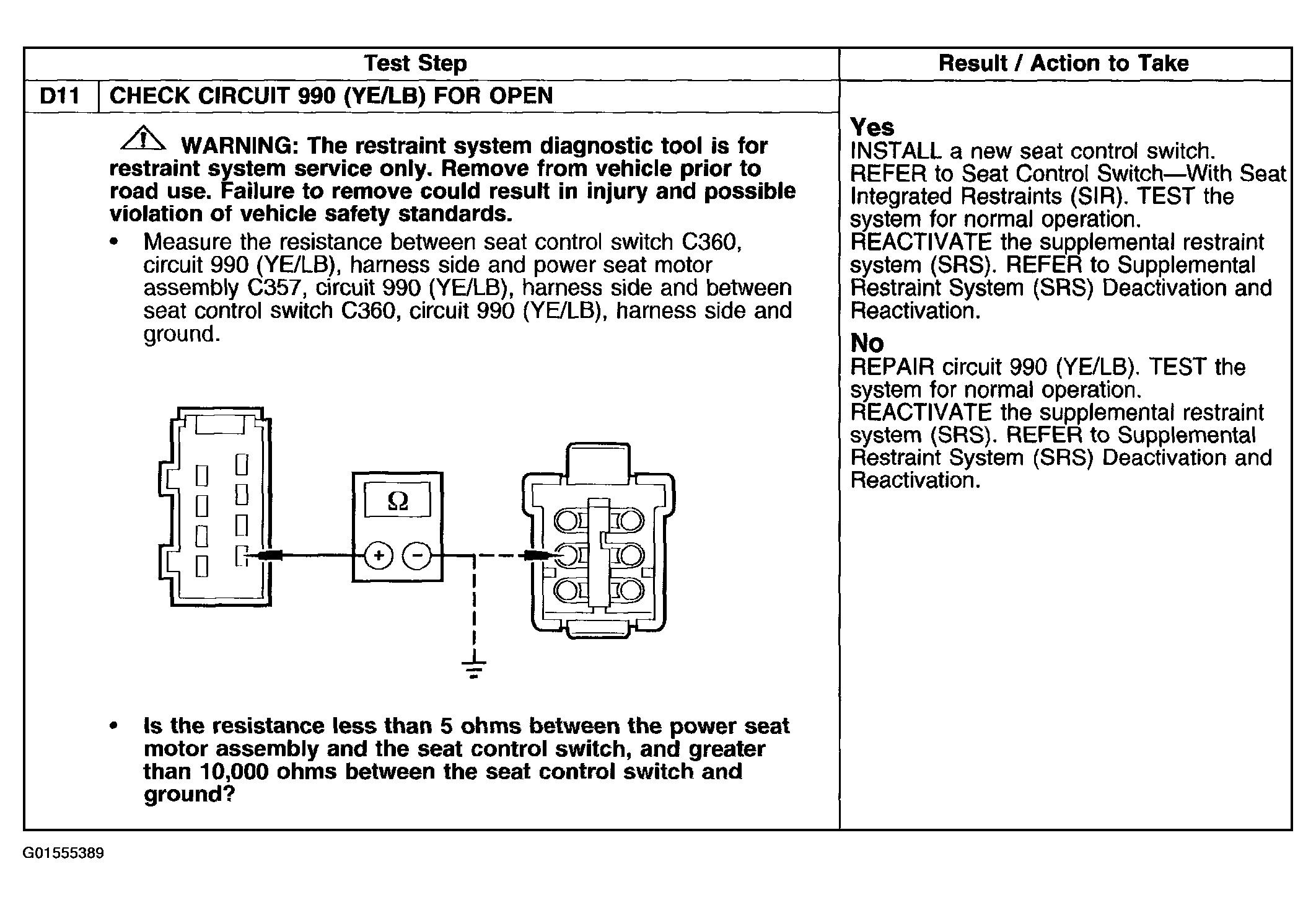

Fig 6: Pinpoint Test D: Power Seat Does Not Move Horizontally/Vertically - Vehicles With SIR, Driver Side (D11)
G01555389Courtesy of FORD MOTOR CO.
