Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without Sir, Driver Side

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

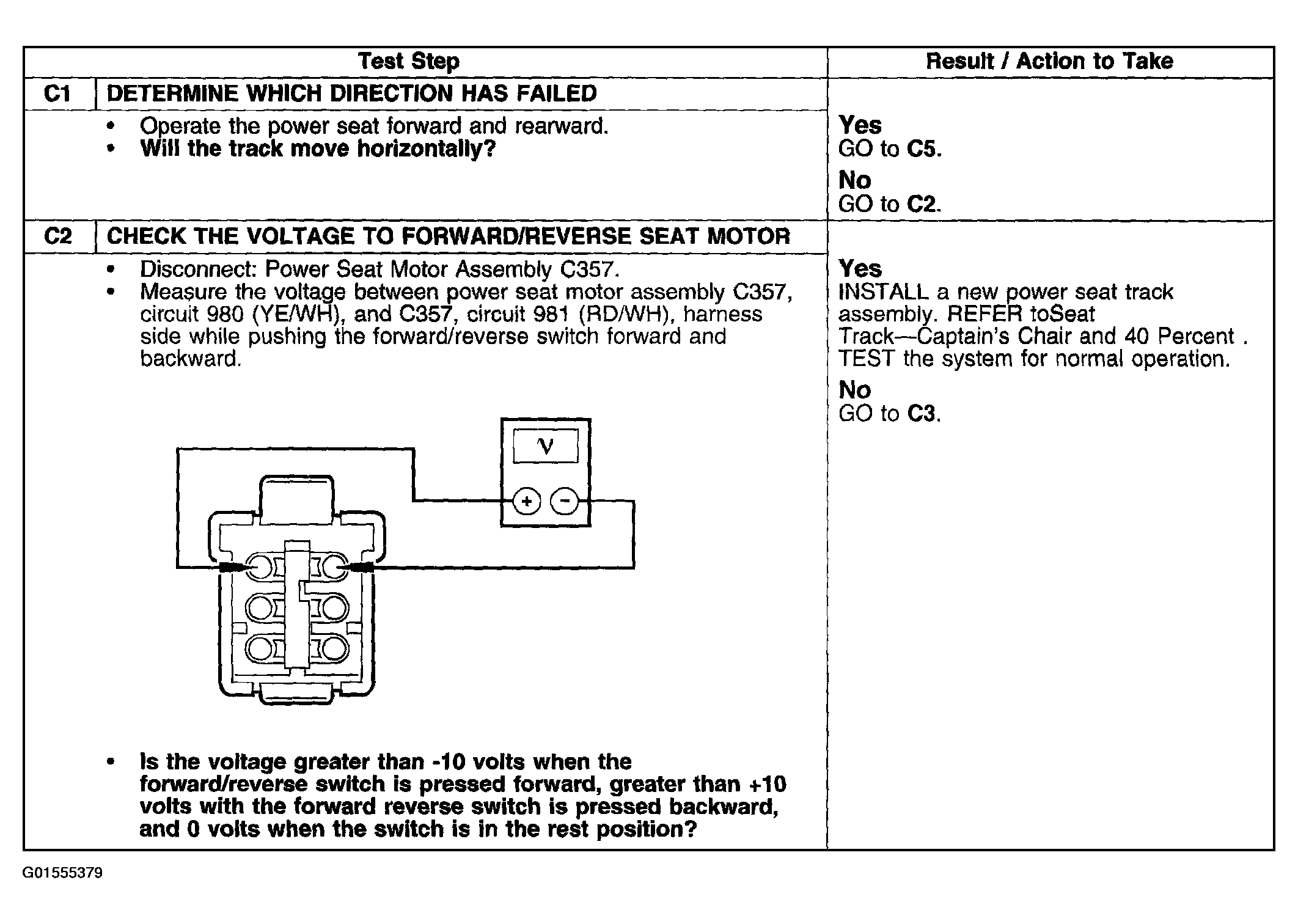

Fig 1: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Driver Side (C1 & C2)
G01555379Courtesy of FORD MOTOR CO.

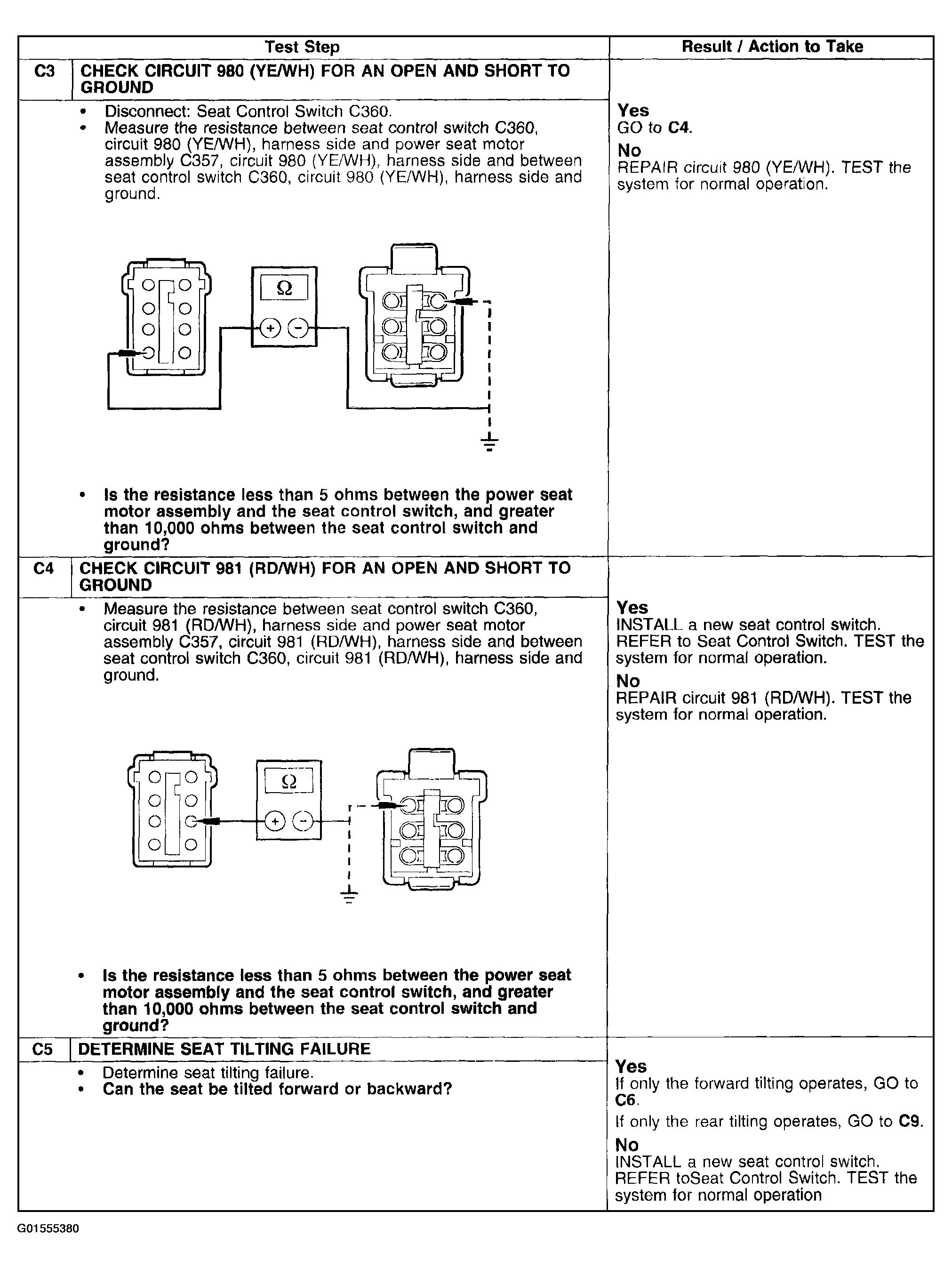

Fig 2: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Driver Side (C3-C5)
G01555380Courtesy of FORD MOTOR CO.

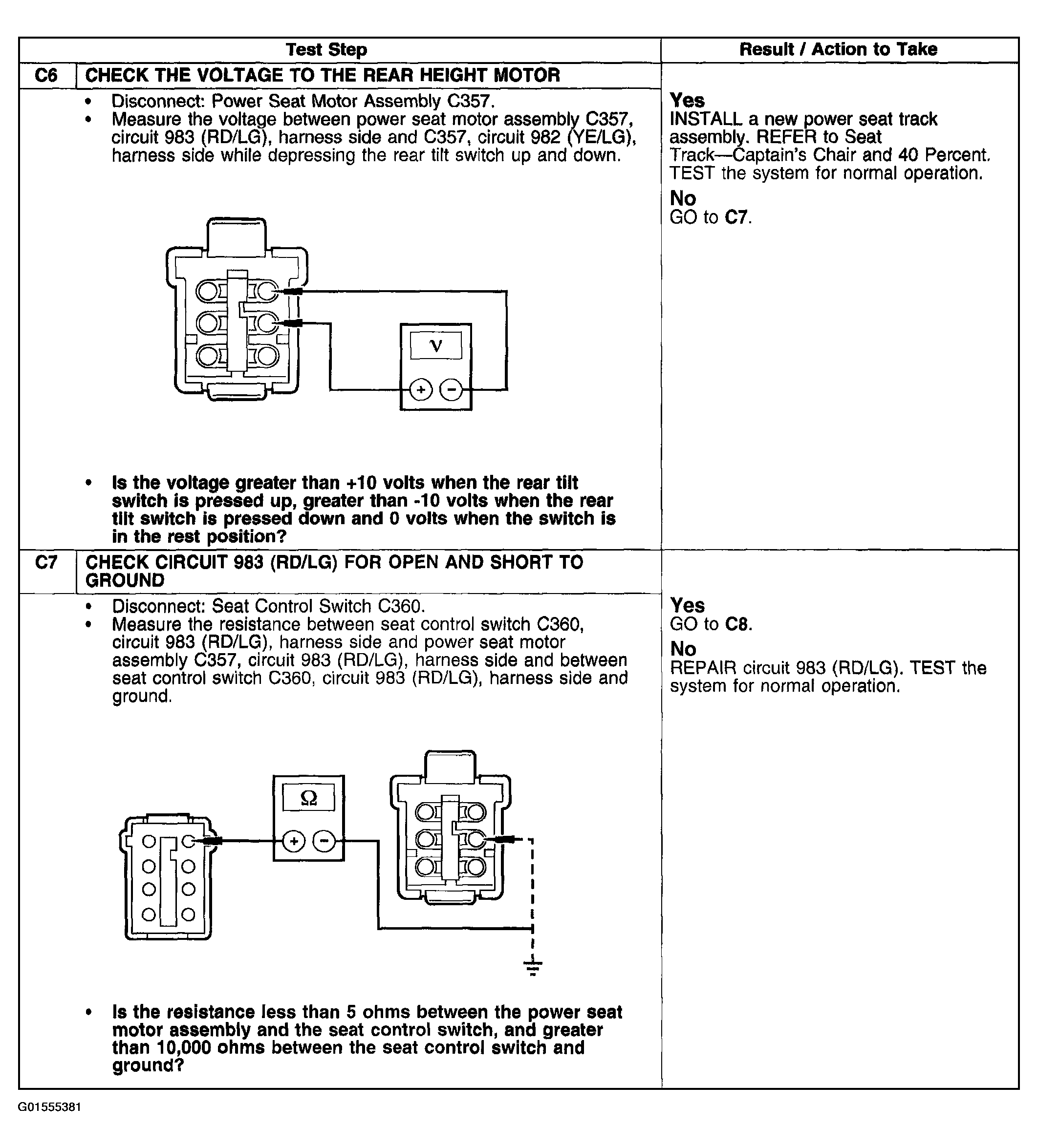

Fig 3: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Driver Side (C6 & C7)
G01555381Courtesy of FORD MOTOR CO.

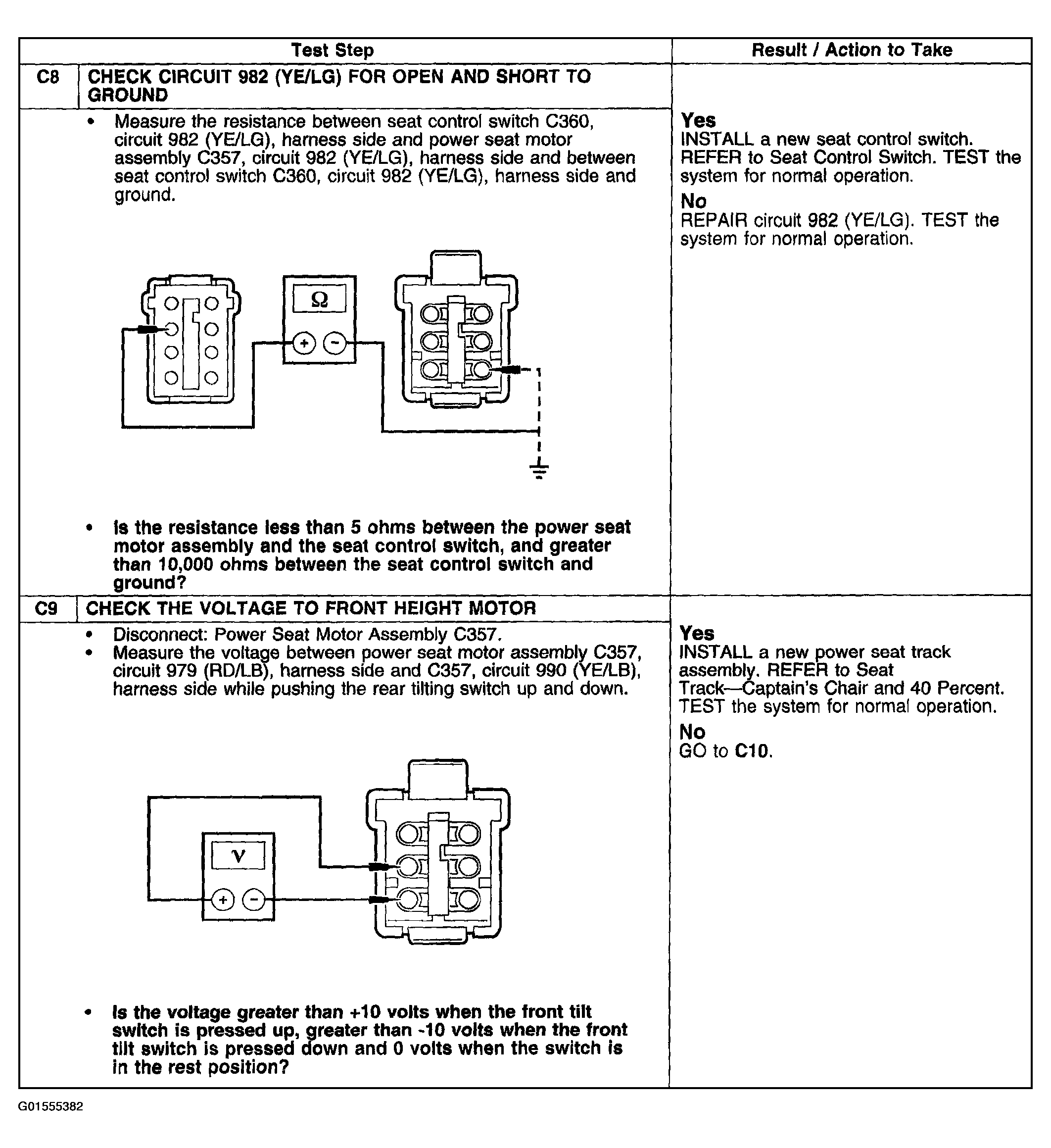

Fig 4: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Driver Side (C8 & C9)
G01555382Courtesy of FORD MOTOR CO.

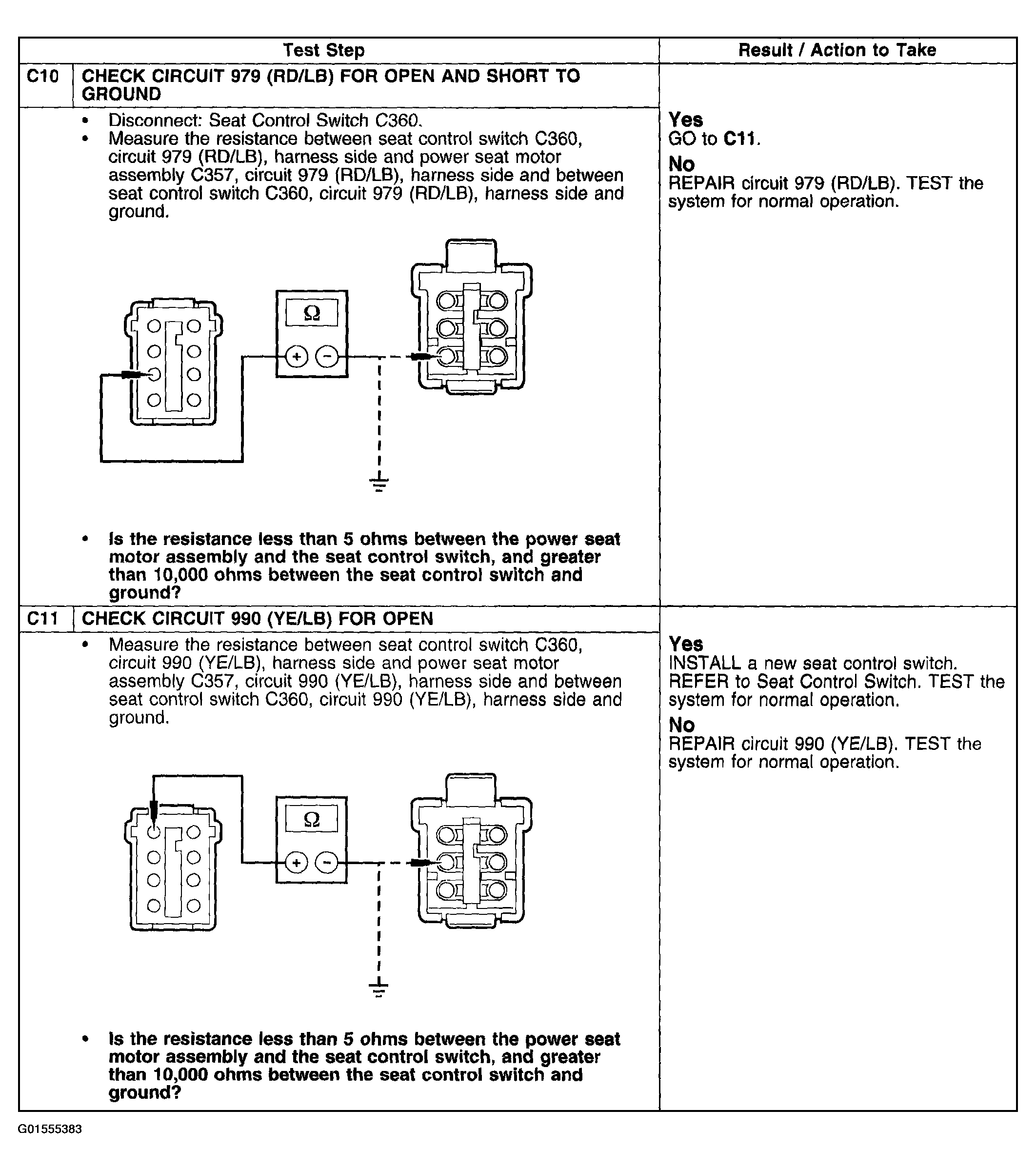

Fig 5: Pinpoint Test C: Power Seat Does Not Move Horizontally/Vertically - Vehicles Without SIR, Driver Side (C10 & C11)
G01555383Courtesy of FORD MOTOR CO.
