Pinpoint Test B: Power Seat Is Inoperative - Vehicles With Sir

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

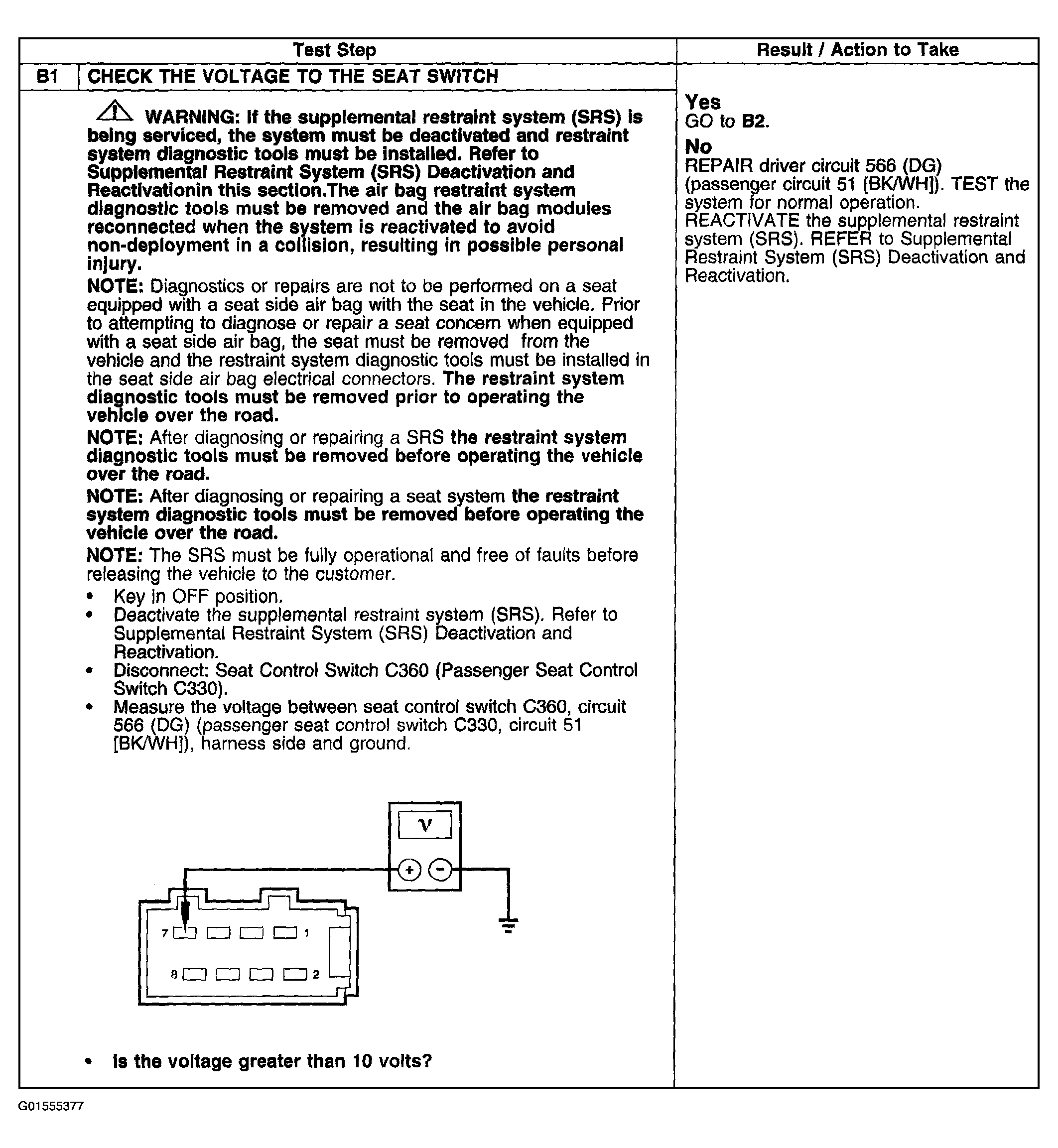

Fig 1: Pinpoint Test B: Power Seat Is Inoperative - Vehicles With SIR (B1)
G01555377Courtesy of FORD MOTOR CO.

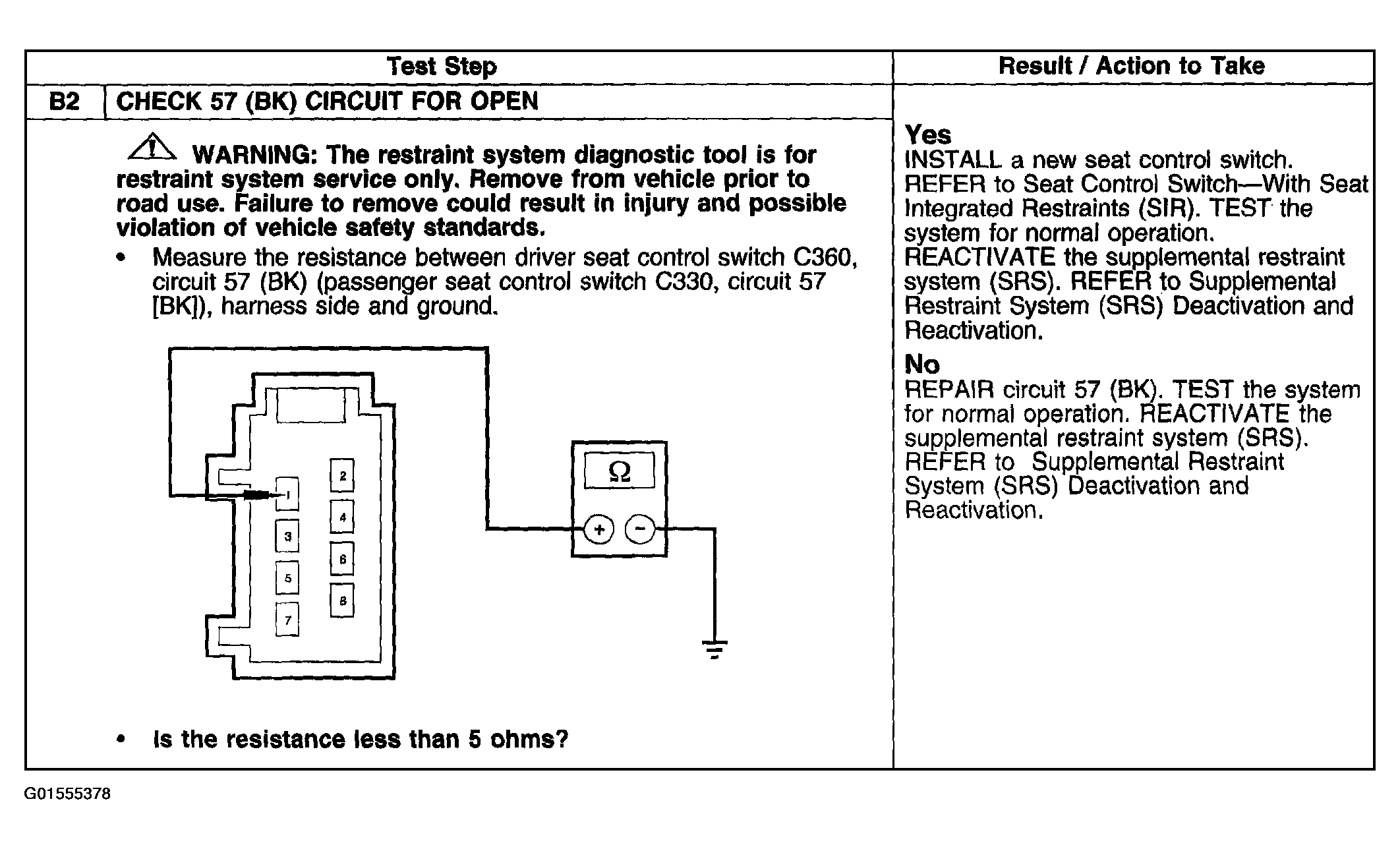

Fig 2: Pinpoint Test B: Power Seat Is Inoperative - Vehicles With SIR (B2)
G01555378Courtesy of FORD MOTOR CO.
