Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the scuff plate.

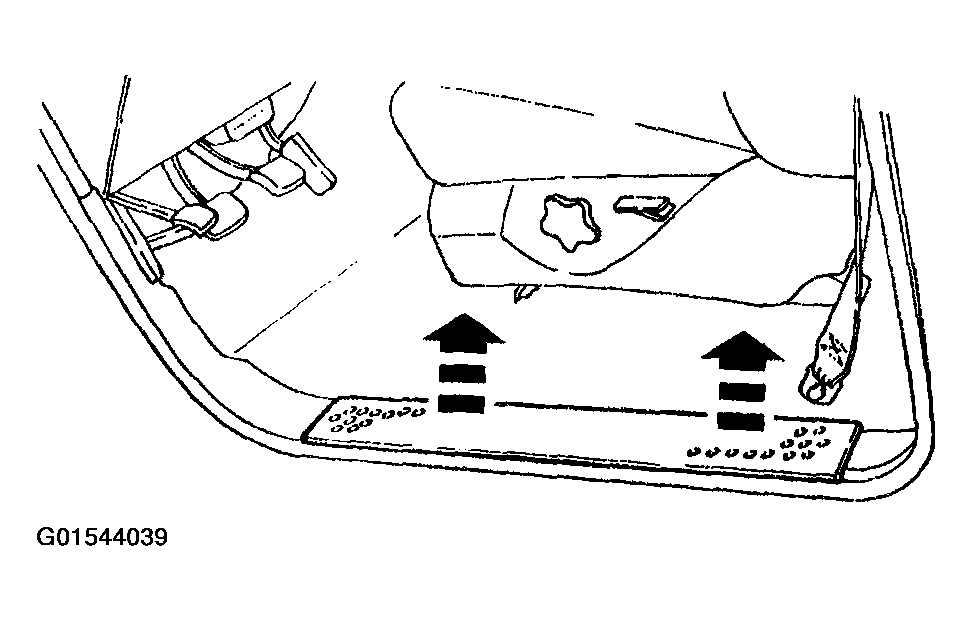

    Fig 1: Removing Scuff Plate
    G01544039Courtesy of FORD MOTOR CO.
  2. Remove the pushpin.

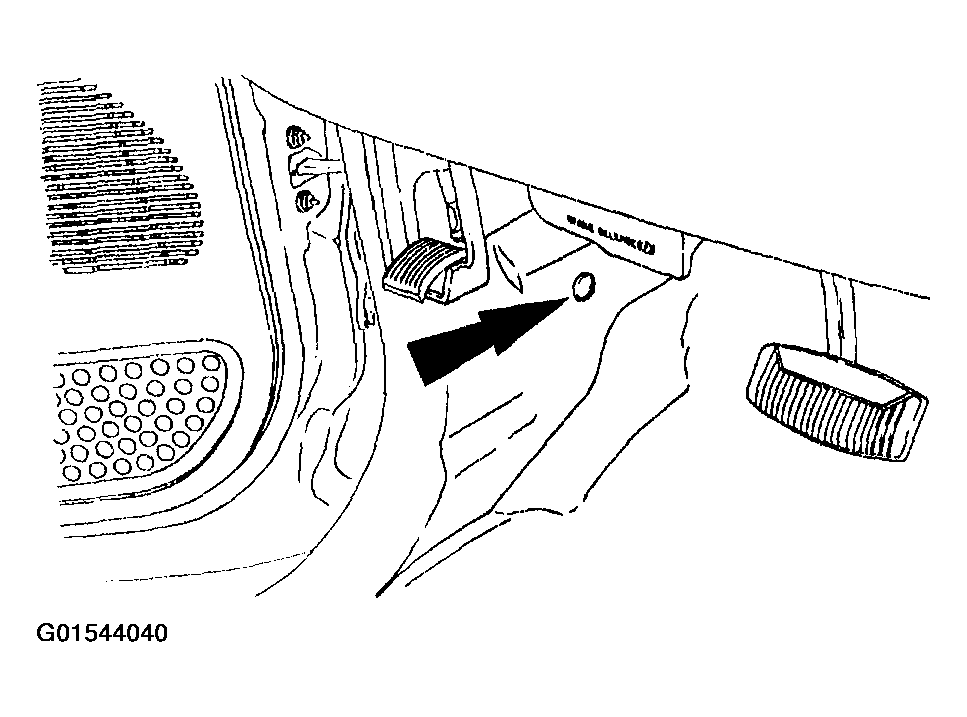

    Fig 2: Removing Pushpin
    G01544040Courtesy of FORD MOTOR CO.
  3. Remove the cowl side trim panel (02344).

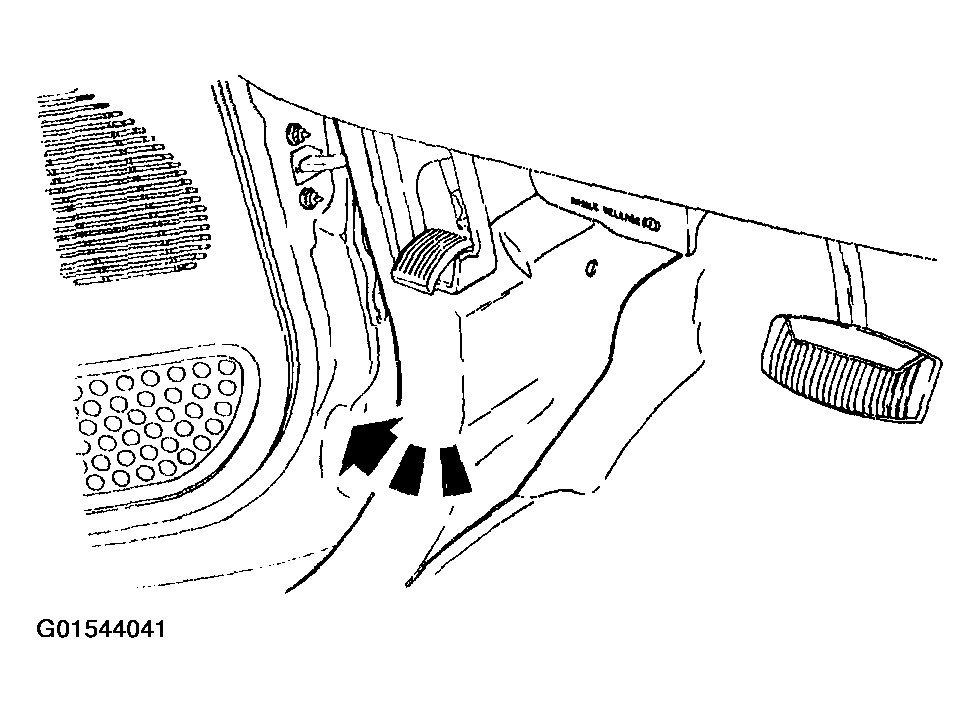

    Fig 3: Removing Cowl Side Trim Panel
    G01544041Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
