Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the ignition switch lock cylinder.
1. Insert the ignition key and turn to the RUN position.
2. Using a 1/8-inch drift through the access hole, press the ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
Twist the tilt wheel handle and shank to remove.

Fig 2: Twisting Tilt Wheel Handle And Shank To Remove
Courtesy of FORD MOTOR CO.
Remove the three upper and lower steering column shroud retaining screws, and remove the upper and lower shrouds.

Fig 3: Removing Three Upper And Lower Steering Column Shroud Retaining Screws, And Upper And Lower Shrouds
Courtesy of FORD MOTOR CO.

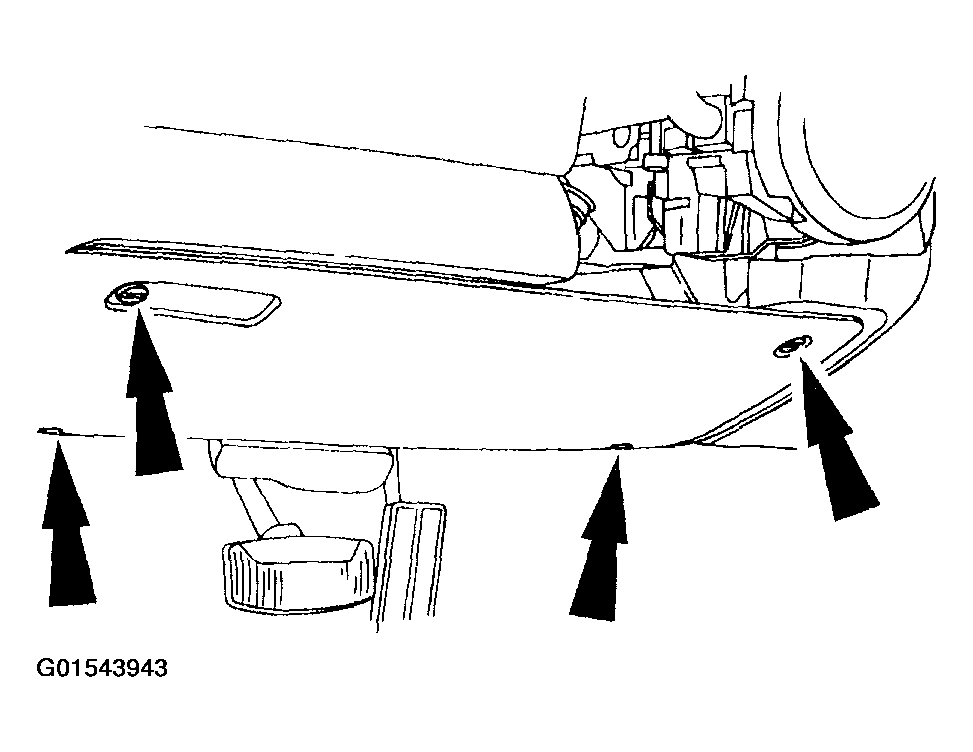

Remove the lower instrument panel steering column opening cover.

Fig 4: Removing Lower Instrument Panel Steering Column Opening Cover
Courtesy of FORD MOTOR CO.

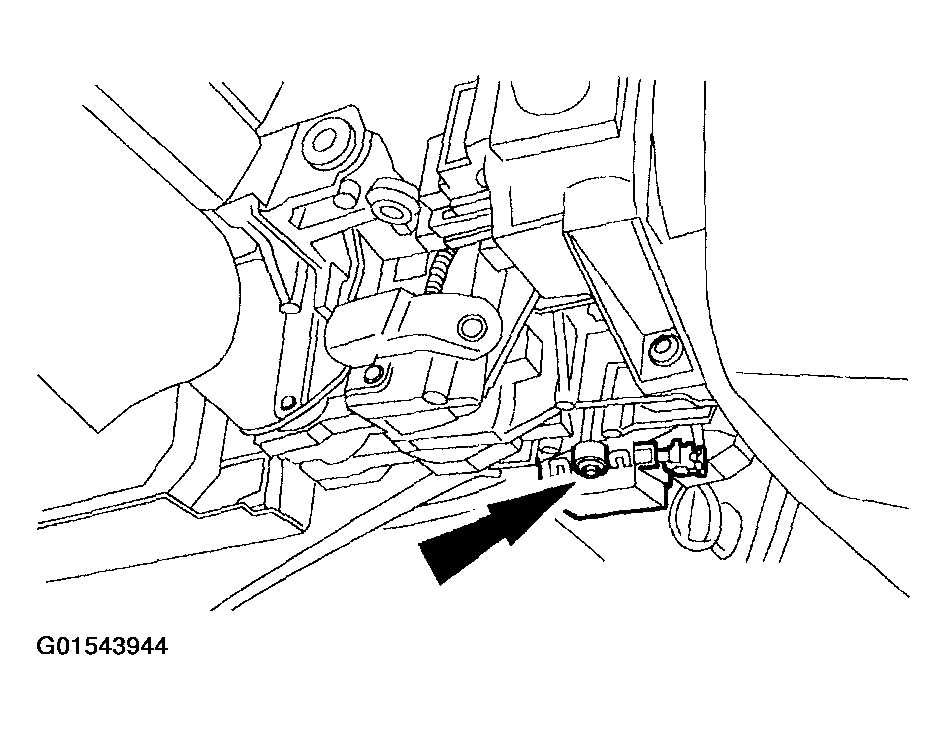

Remove the PATS transceiver module retaining screw.

Fig 5: Removing PATS Transceiver Module Retaining Screw
Courtesy of FORD MOTOR CO.

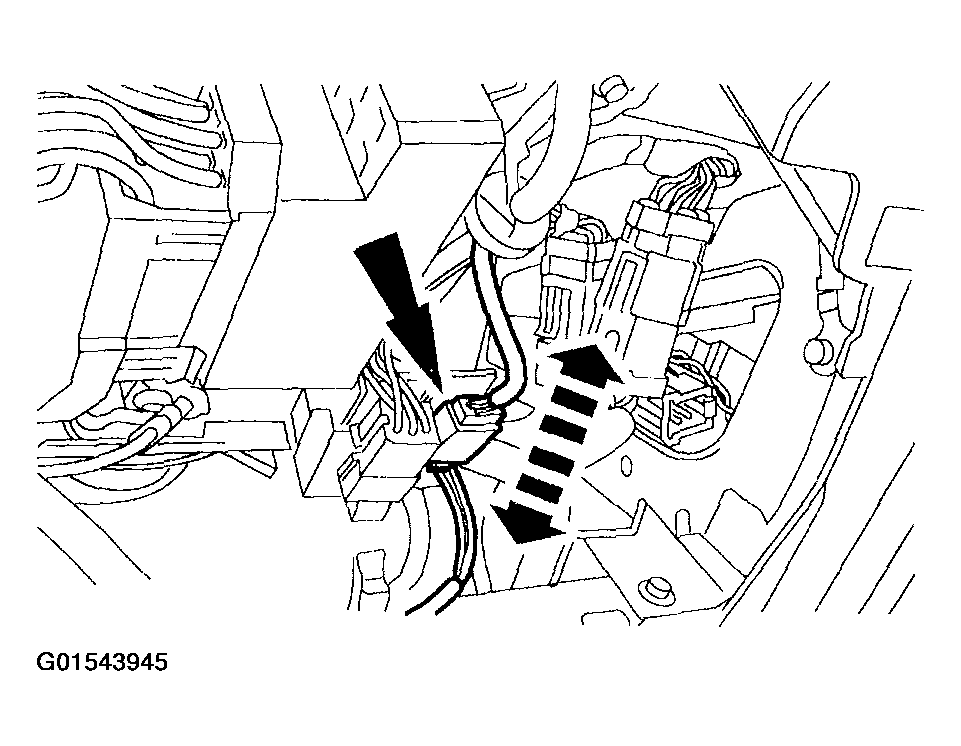

Disconnect the PATS transceiver module harness connector.

Fig 6: Disconnecting PATS Transceiver Module Harness Connector
Courtesy of FORD MOTOR CO.

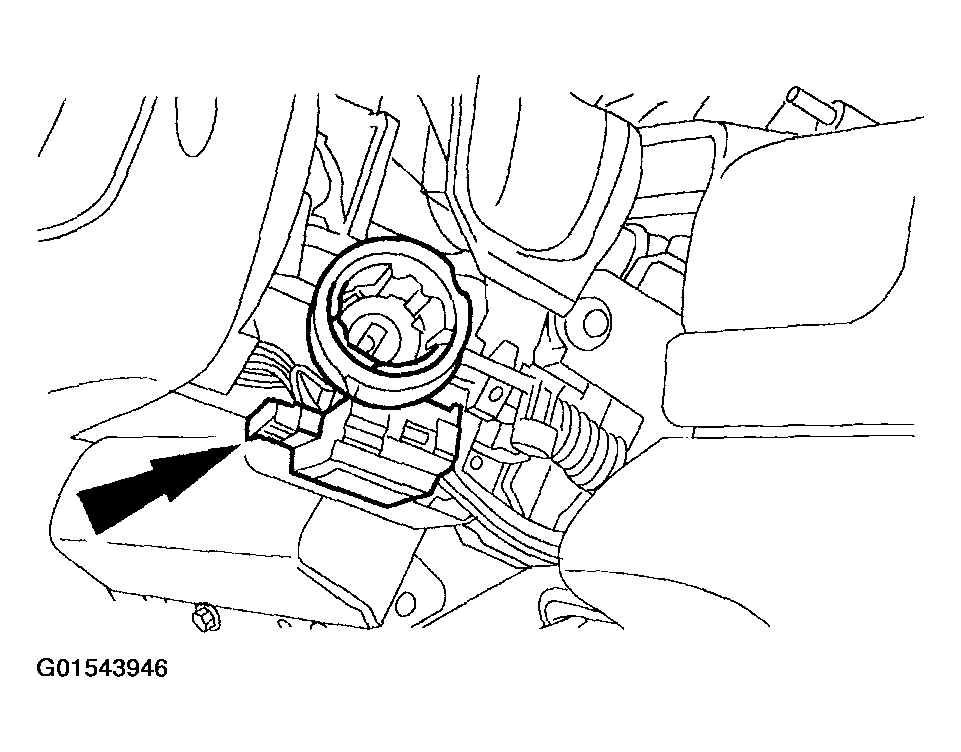

Remove the PATS transceiver module from the steering column.

Fig 7: Removing PATS Transceiver Module From Steering Column
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
NOTE: No ignition key replacement or re-initialization needs to occur with the removal or installation of a new PATS transceiver module.
