Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the passive anti-theft system (PATS) module electrical connector.

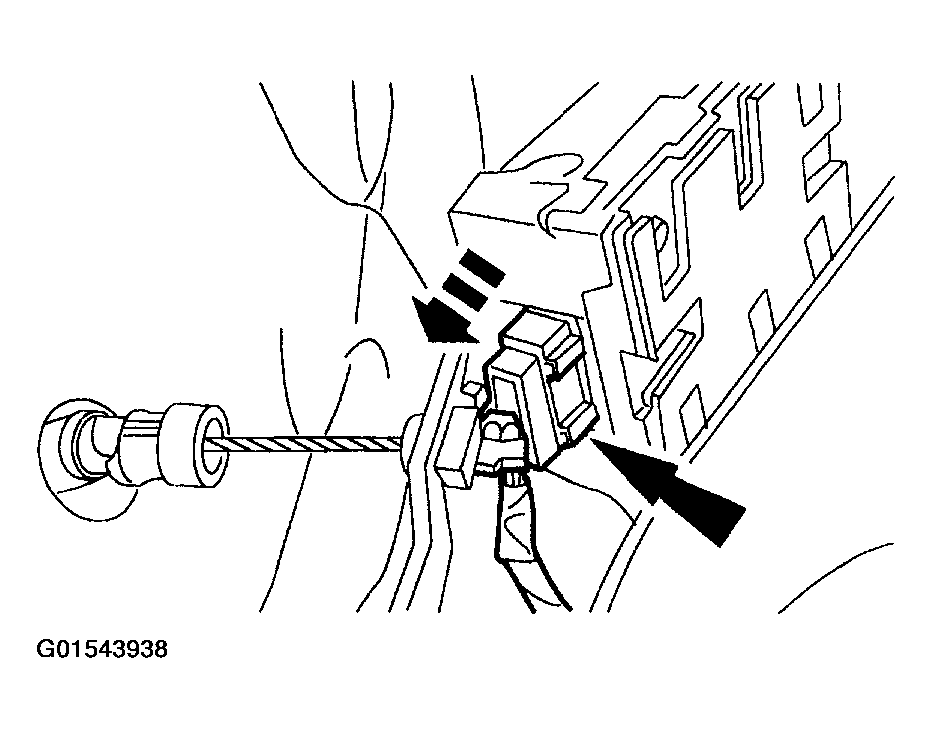

Fig 1: Disconnecting Passive Anti-Theft System (PATS) Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the PATS module by pulling it up off the two locator tabs on the bracket.

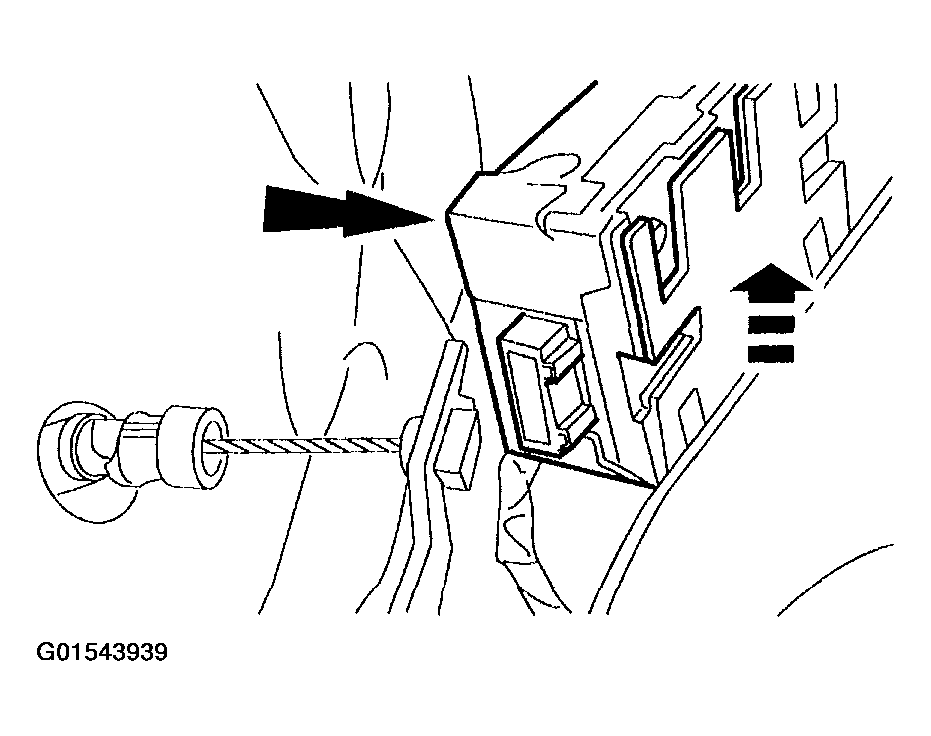

Fig 2: Removing PATS Module By Pulling It Up Off Two Locator Tabs On Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
CAUTION: Once the new PATS module is installed, it is necessary to configure the module. Refer to MODULE CONFIGURATION .

NOTE: Prior to starting the vehicle, check for PATS DTCs. If DTCs are retrieved, carry out the appropriate pinpoint test.

NOTE: When the PATS module is replaced, both ignition keys must be relearned and stored in memory. Insert each key in the ignition and turn to RUN for automatic programming.
