Pinpoint Test J: Pcm Id Does Not Match Between Passive Anti-Theft (Pats) Module And Powertrain Control Module (Pcm)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

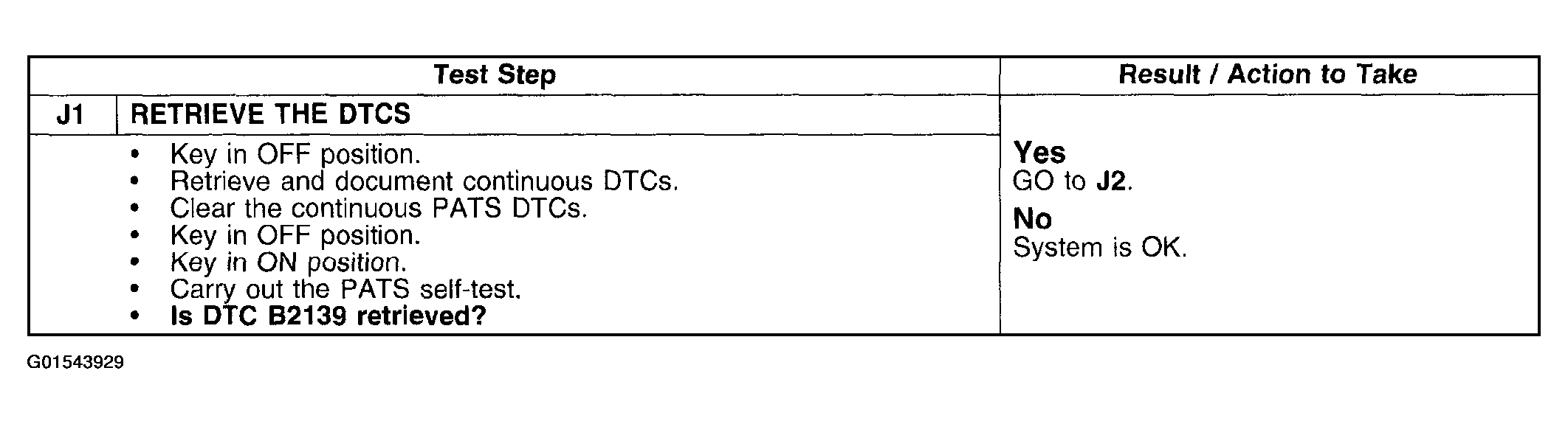

Fig 1: Pinpoint Test J: PCM ID Does Not Match Between Passive Anti-Theft (PATS) Module And Powertrain Control Module (PCM) (J1)
G01543929Courtesy of FORD MOTOR CO.

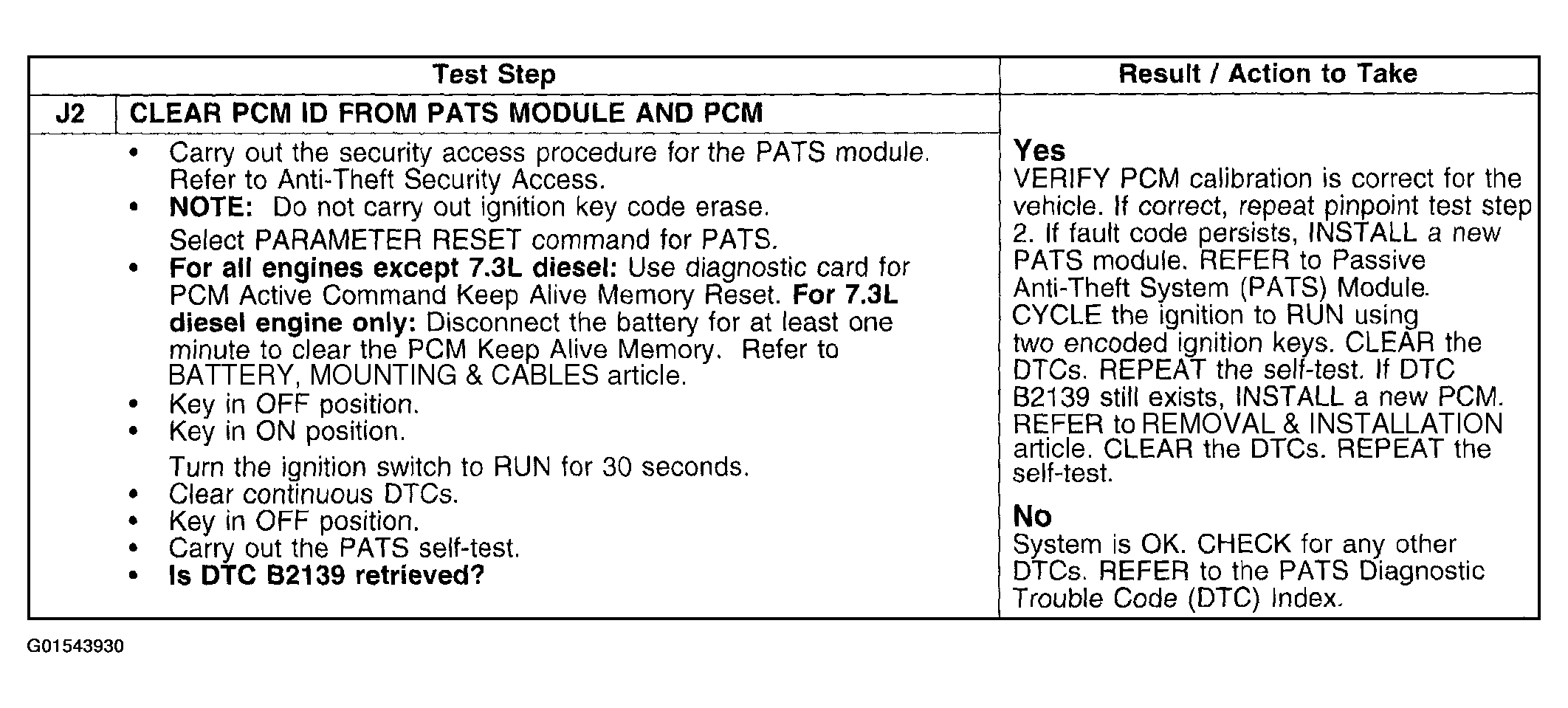

Fig 2: Pinpoint Test J: PCM ID Does Not Match Between Passive Anti-Theft (PATS) Module And Powertrain Control Module (PCM) (J2)
G01543930Courtesy of FORD MOTOR CO.
