Inspection and Verification: Notes
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A new Passive Anti-Theft System (PATS) module must be reconfigured after installation. Refer to
MODULE CONFIGURATION
.
- Verify the customer concern by operating the system.

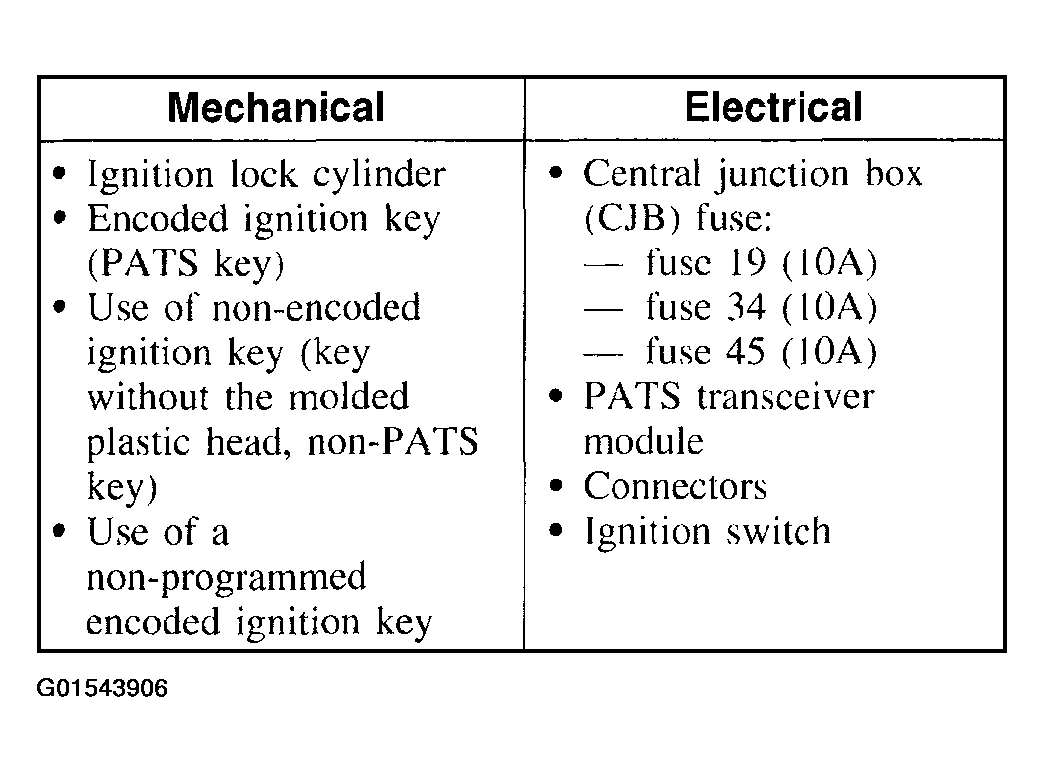

- Visually inspect for obvious signs of mechanical and electrical damage.
- If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
- If the diagnostic tool does not power up:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch is in RUN position.
- If the diagnostic tool still does not power up, refer to the diagnostic tool manual.
- Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with:
- CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK .
- NO RESP/NOT EQUIP for PATS module, GO to Pinpoint Test A.
- SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs, and carry out the self-test diagnostics for the PATS module.
- If the DTCs retrieved are related to the concern, go to the PATS Diagnostic Trouble Code (DTC) Index to continue diagnostics.
- If no DTCs related to the concern are retrieved, proceed to Symptom Chart to continue diagnostics.
