Pinpoint Test K: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (Excursion

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

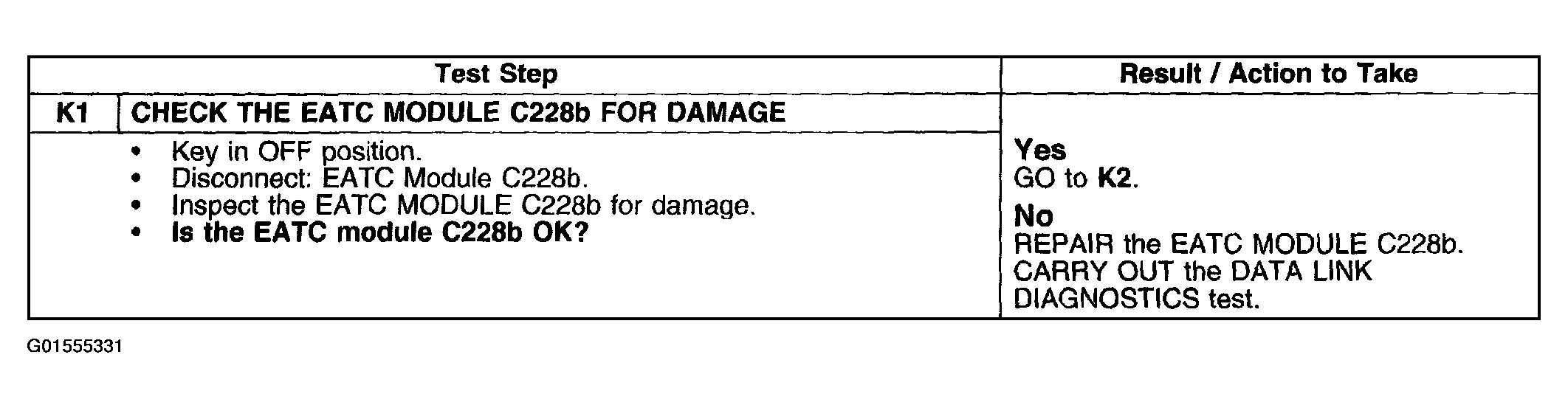

Fig 1: Pinpoint Test K: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (Excursion) (K1)
G01555331Courtesy of FORD MOTOR CO.

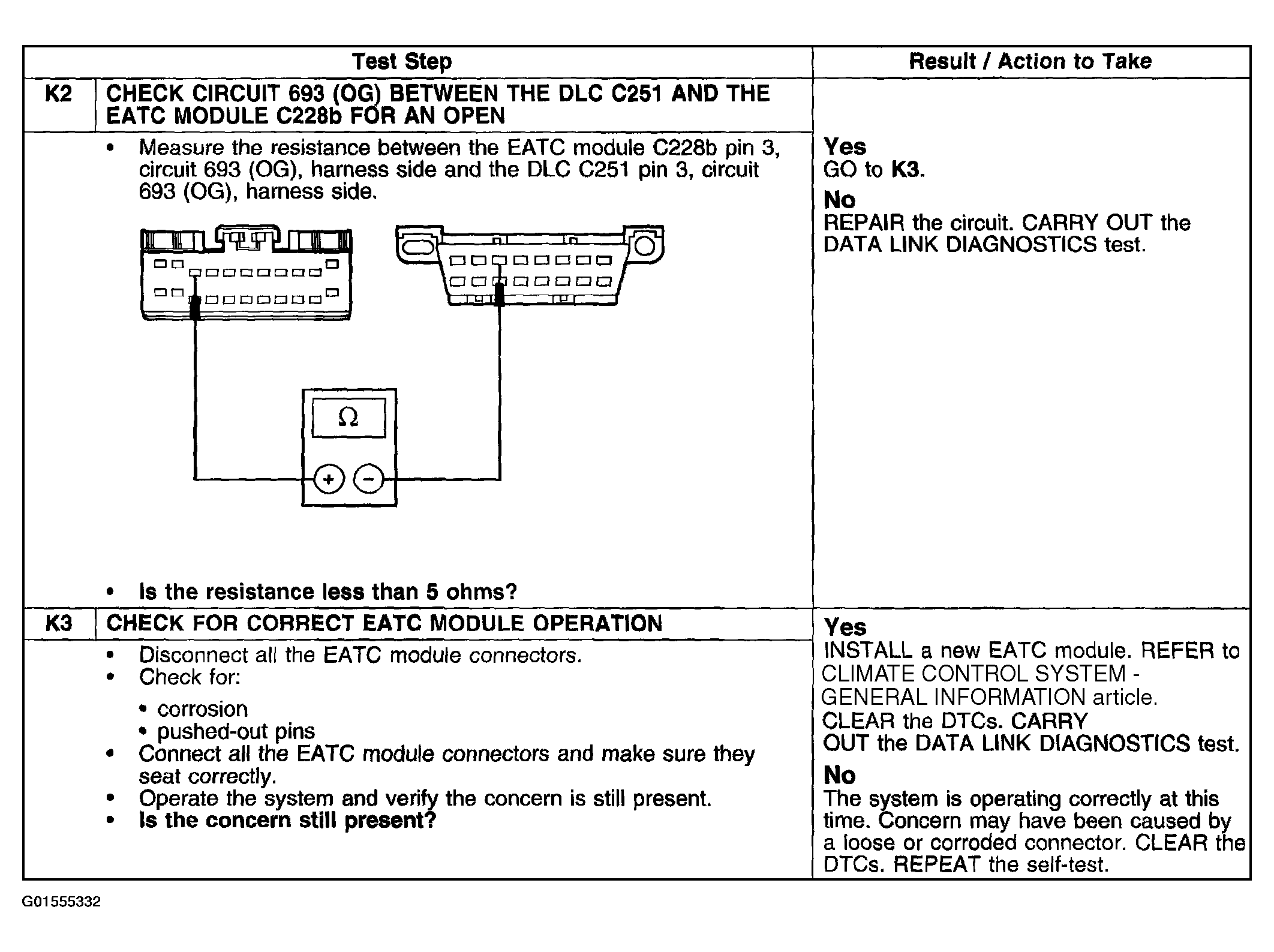

Fig 2: Pinpoint Test K: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (Excursion) (K2 & K3)
G01555332Courtesy of FORD MOTOR CO.
