Pinpoint Test G: Auxiliary Powertrain Control Module (APCM) Does Not Respond To Diagnostic Tool (Diesel Engine)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

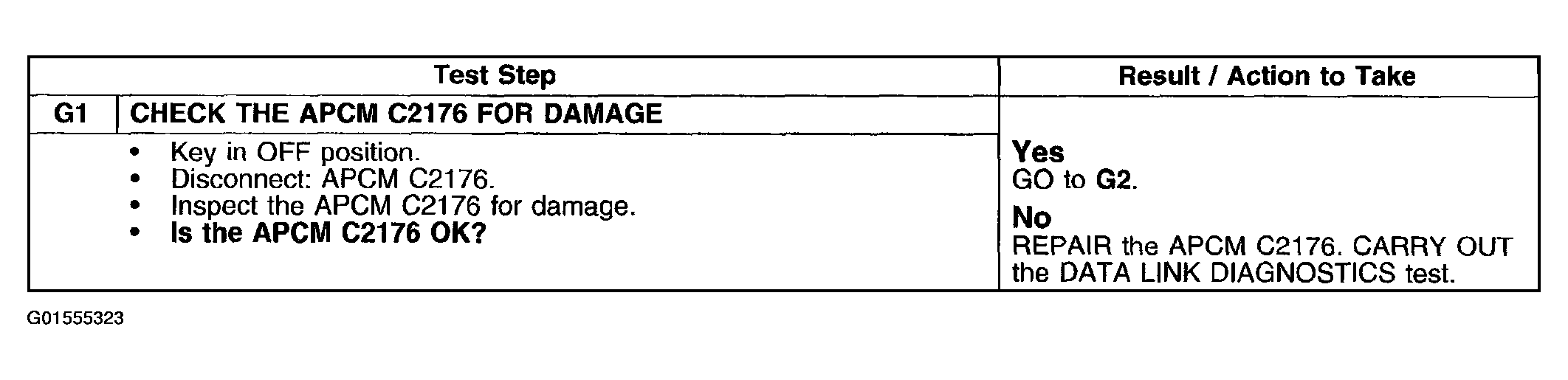

Fig 1: Pinpoint Test G: Auxiliary Powertrain Control Module (APCM) Does Not Respond To Diagnostic Tool (Diesel Engine) (G1)
G01555323Courtesy of FORD MOTOR CO.

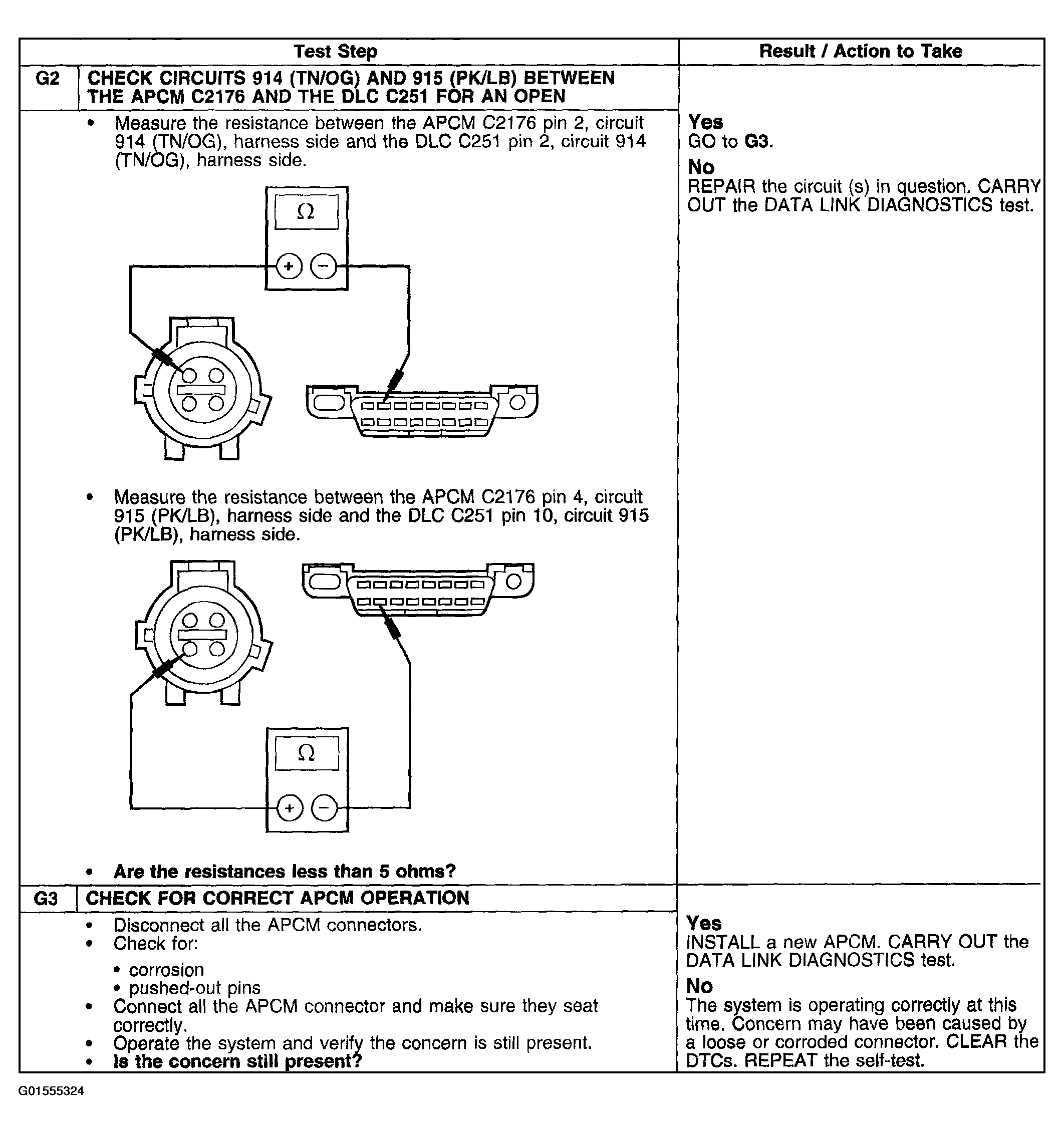

Fig 2: Pinpoint Test G: Auxiliary Powertrain Control Module (APCM) Does Not Respond To Diagnostic Tool (Diesel Engine) (G2 & G3)
G01555324Courtesy of FORD MOTOR CO.
