Pinpoint Test E: Parking Aid Module Does Not Respond To Diagnostic Tool (If Equipped)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

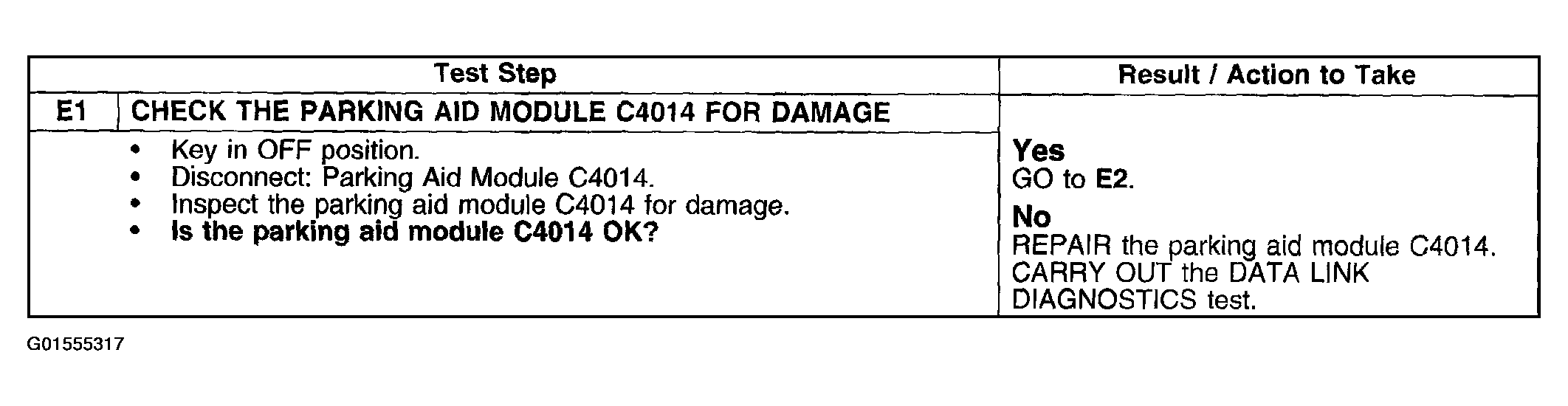

Fig 1: Pinpoint Test E: Parking Aid Module Does Not Respond To Diagnostic Tool (If Equipped) (E1)

Courtesy of FORD MOTOR CO.

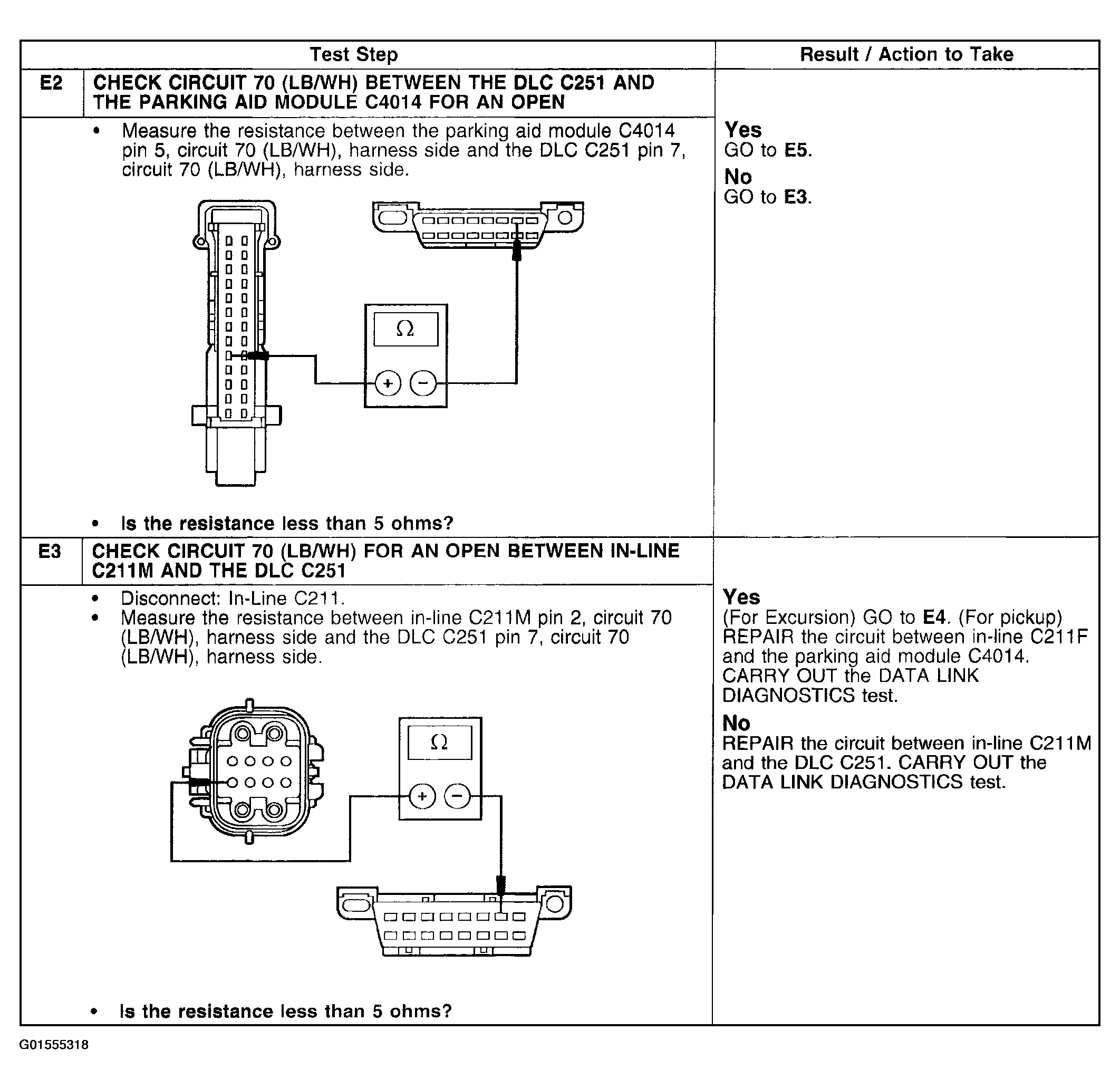

Fig 2: Pinpoint Test E: Parking Aid Module Does Not Respond To Diagnostic Tool (If Equipped) (E2 & E3)

Courtesy of FORD MOTOR CO.

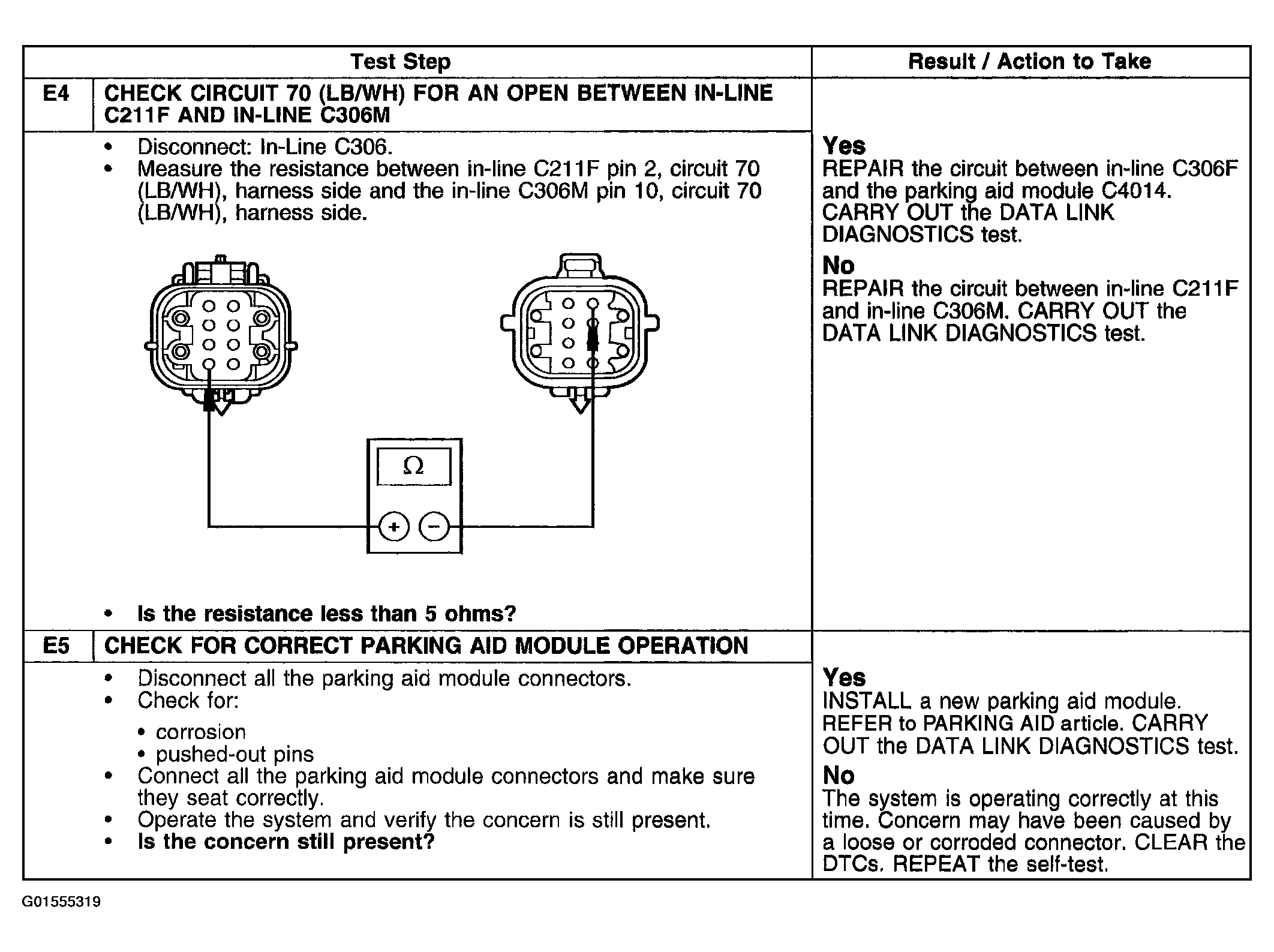

Fig 3: Pinpoint Test E: Parking Aid Module Does Not Respond To Diagnostic Tool (If Equipped) (E4 & E5)

Courtesy of FORD MOTOR CO.
