Pinpoint Test D: 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool (If Equipped)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

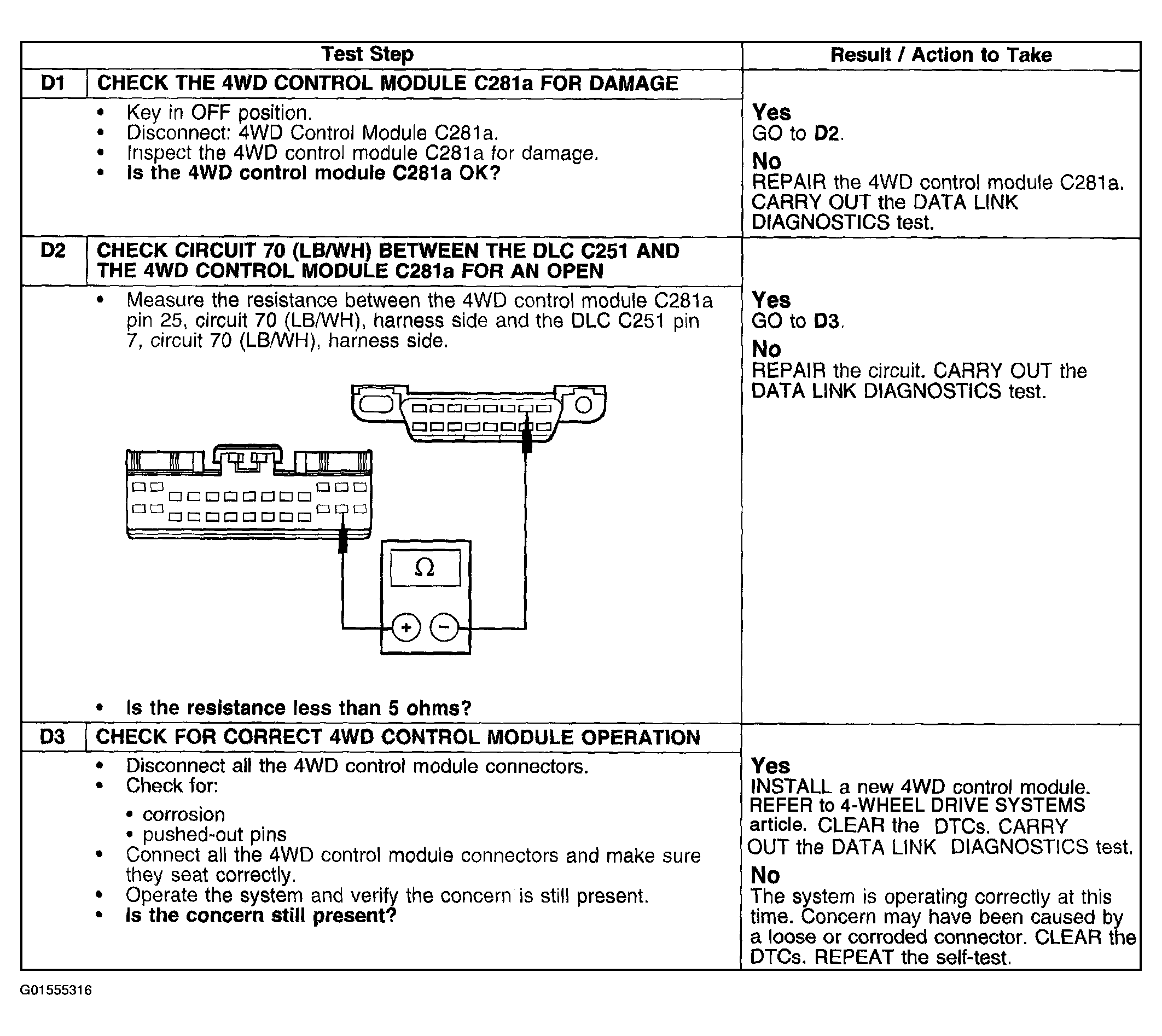

Fig 1: Pinpoint Test D: 4-Wheel Drive (4WD) Control Module Does Not Respond To Diagnostic Tool (If Equipped) (D1-D3)
G01555316Courtesy of FORD MOTOR CO.
