Pinpoint Test A: 4-Wheel Anti-Lock Brake Control (4WABS) Control Module Does Not Respond To Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

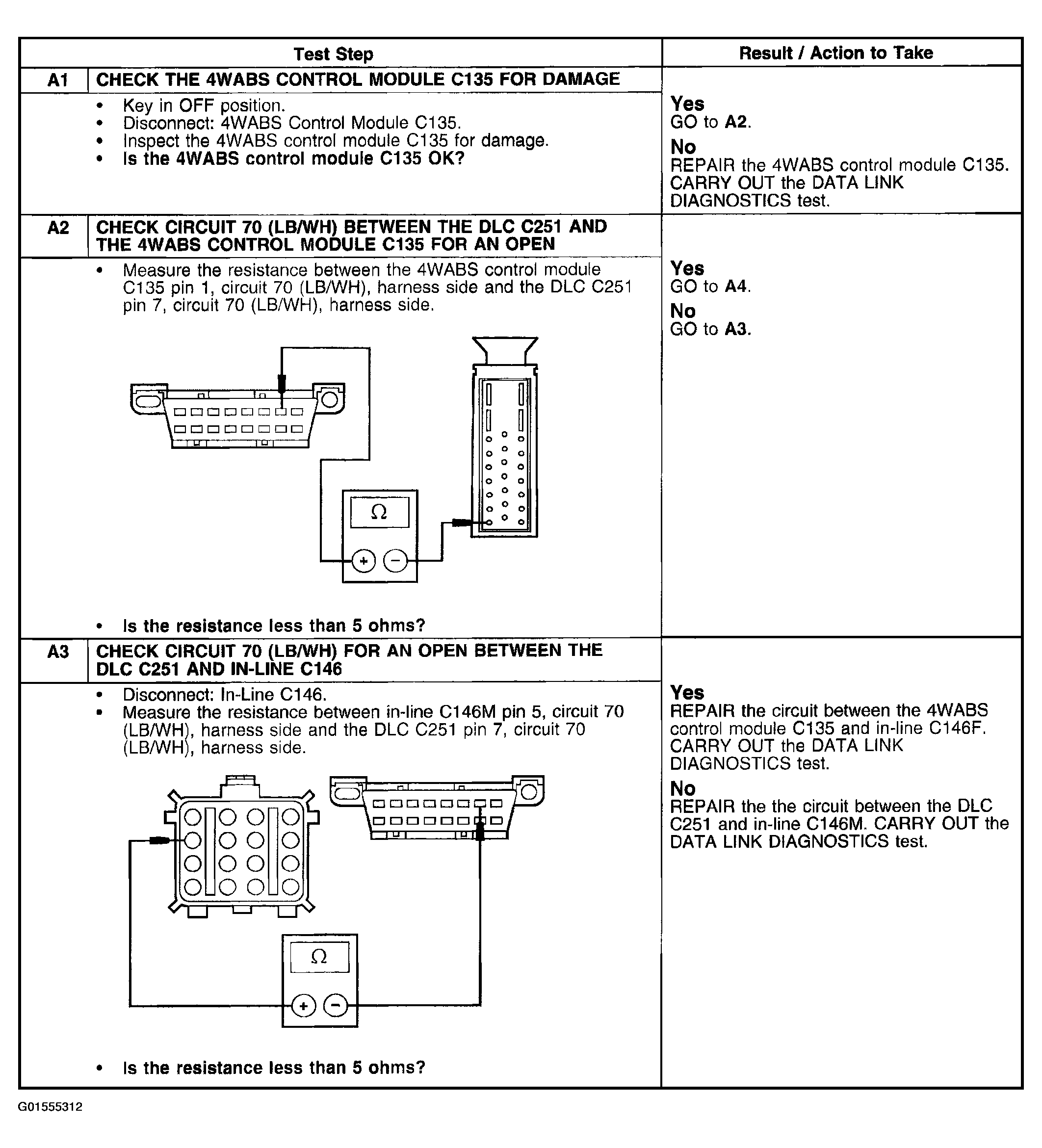

Fig 1: Pinpoint Test A: 4-Wheel Anti-Lock Brake Control (4WABS) Control Module Does Not Respond To Diagnostic Tool (A1-A3)
G01555312Courtesy of FORD MOTOR CO.

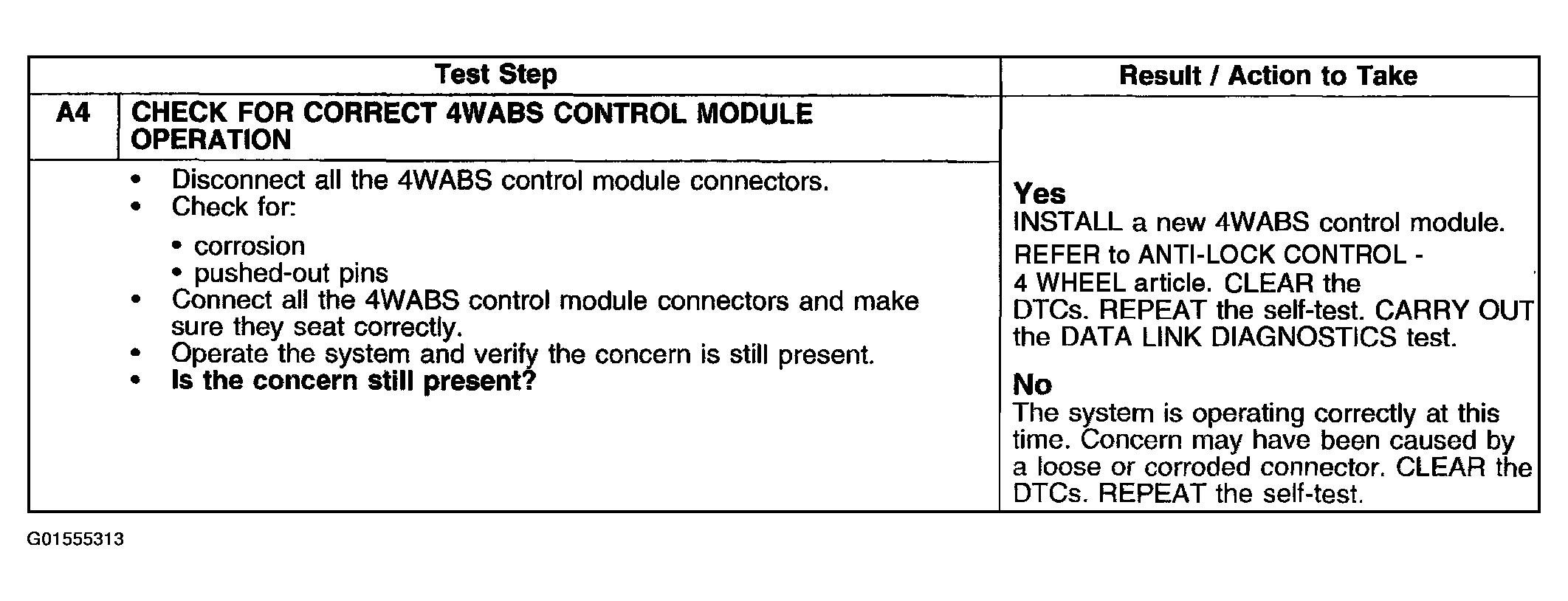

Fig 2: Pinpoint Test A: 4-Wheel Anti-Lock Brake Control (4WABS) Control Module Does Not Respond To Diagnostic Tool (A4)
G01555313Courtesy of FORD MOTOR CO.
