Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the photocell assembly.
- Disconnect the electrical connector.

  Fig 1: Identifying Photocell Assembly
  Courtesy of FORD MOTOR CO.
Disengage the locking tabs and remove the photocell.
NOTE: Take care not to break the retaining tabs.

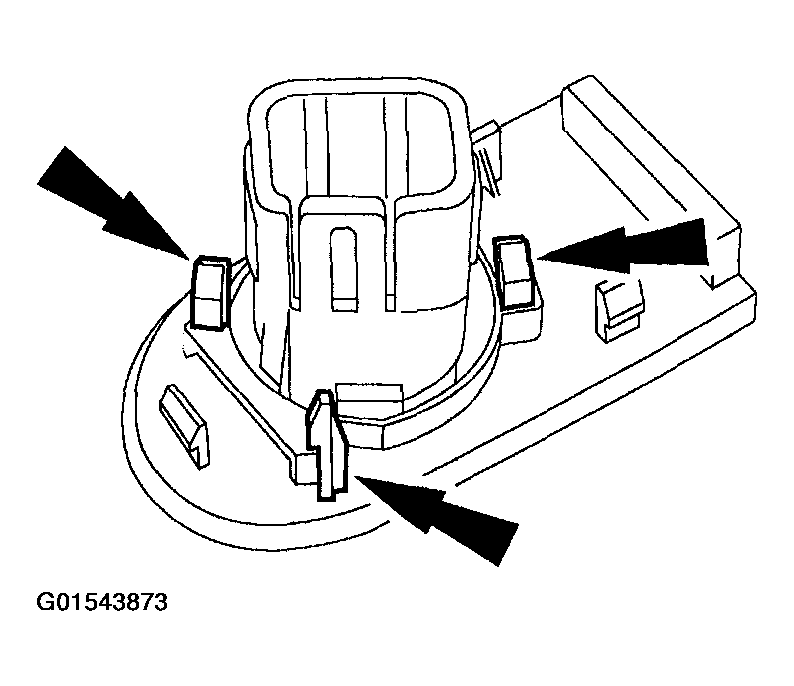

Fig 2: Disengaging Locking Tabs And Removing Photocell
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
