Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the brake pedal position (BPP) switch electrical connector.
    Fig 1: Disconnecting Brake Pedal Position (BPP) Switch Electrical Connector
    G01543870Courtesy of FORD MOTOR CO.
  3. Remove the BPP switch.
    1. Remove the self-locking pin.
    2. Remove the BPP switch from the brake master cylinder push rod.
    3. Remove the brake master cylinder push rod spacer.
    4. Remove the brake master cylinder push rod bushing.

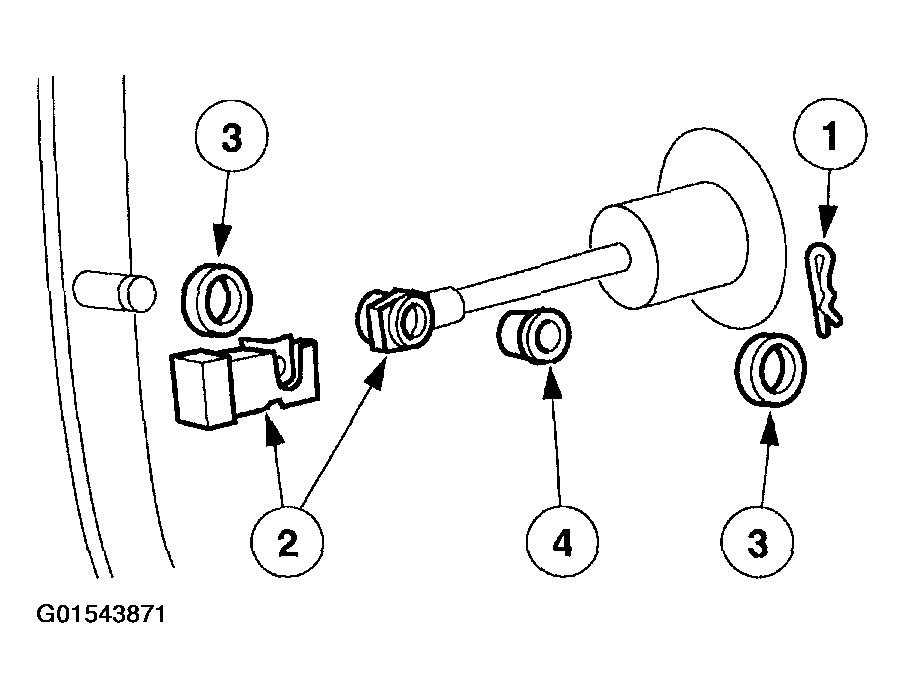

      Fig 2: Identifying Components Of Brake Pedal Position (BPP) Switch
      G01543871Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
