Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown; RH similar.

Remove the rear lamp (13404).
1. Remove the screws.
2. Remove the rear lamp (13404).

  Fig 1: Removing Rear Lamp (13404)
  Courtesy of FORD MOTOR CO.
Remove the bulbs.

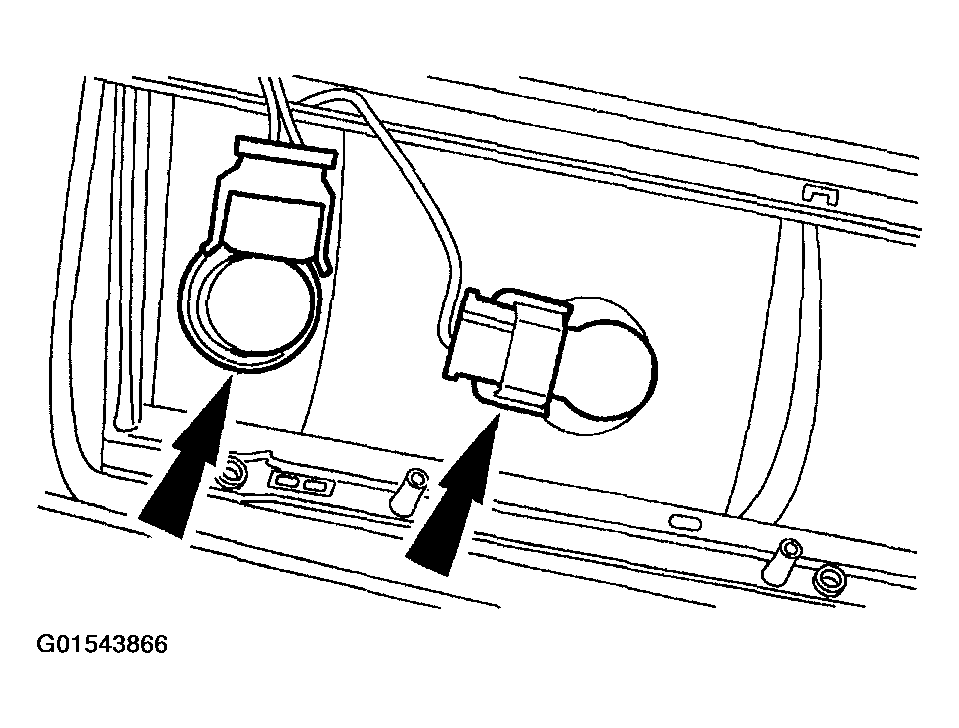

Fig 2: Removing Bulbs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
