Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking lamp assembly.
    NOTE: The side marker lamp and parking lamp are one piece. Do not pull on the side marker to pull the assembly out.
    1. Remove the parking lamp bolts.
    2. Position the parking lamp assembly so the electrical connectors can be accessed.
    3. Disconnect the electrical connectors.

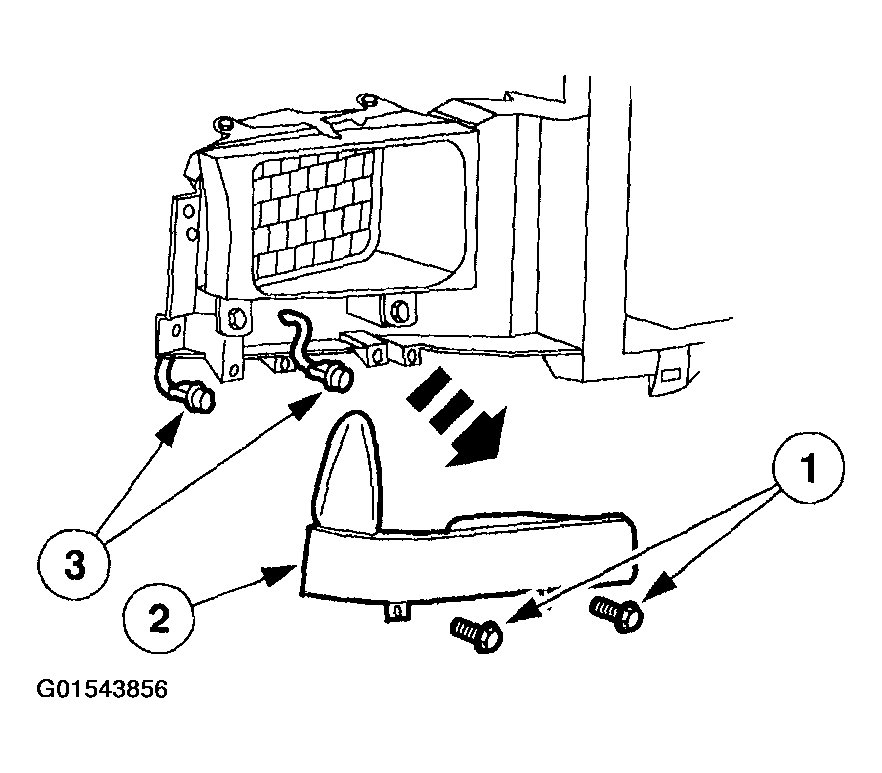

      Fig 1: Identifying Components Of Parking Lamp Assembly
      G01543856Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
