Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlamp assembly.
NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.
1. Pull up and remove the two upper headlamp clips.
2. Release the lower headlamp clip.
3. Position the headlamp so the electrical connector can be accessed.
4. Disconnect the headlamp electrical connector.

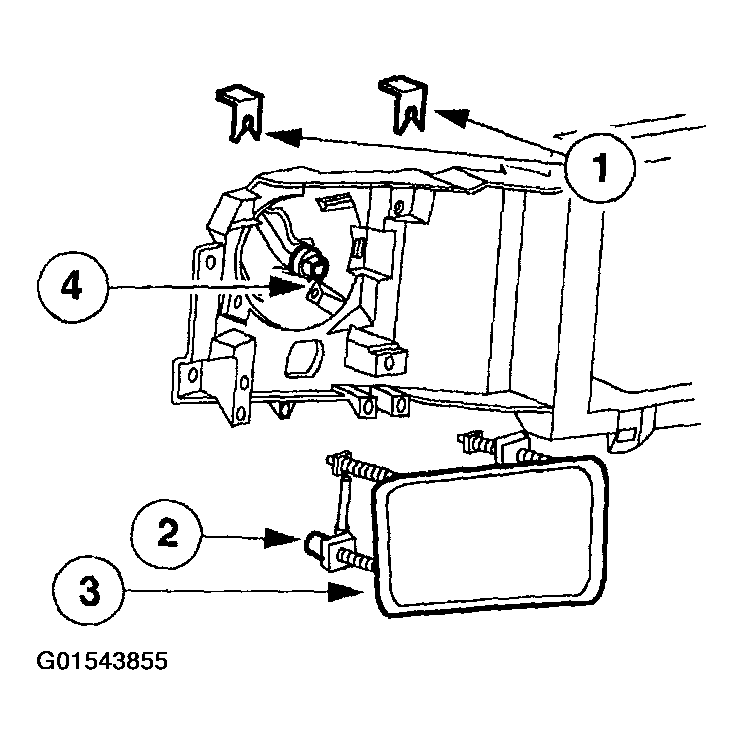

  Fig 1: Identifying Components Of Headlamp Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If necessary, adjust the headlamps. Refer to Headlamp Adjustment .
