Pinpoint Test M: Hazard Lamps Are Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

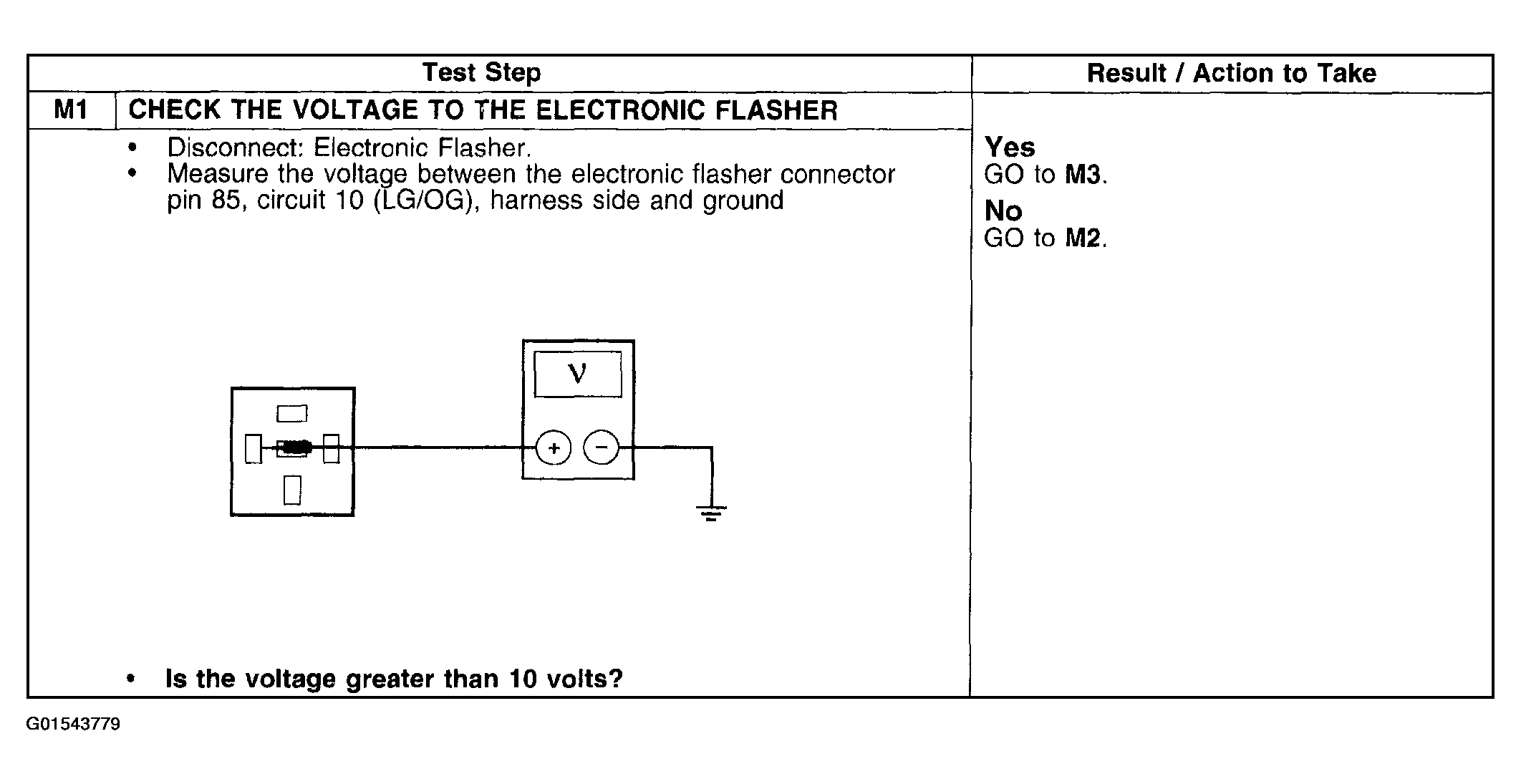

Fig 1: Pinpoint Test M: Hazard Lamps Are Inoperative (M1)
G01543779Courtesy of FORD MOTOR CO.

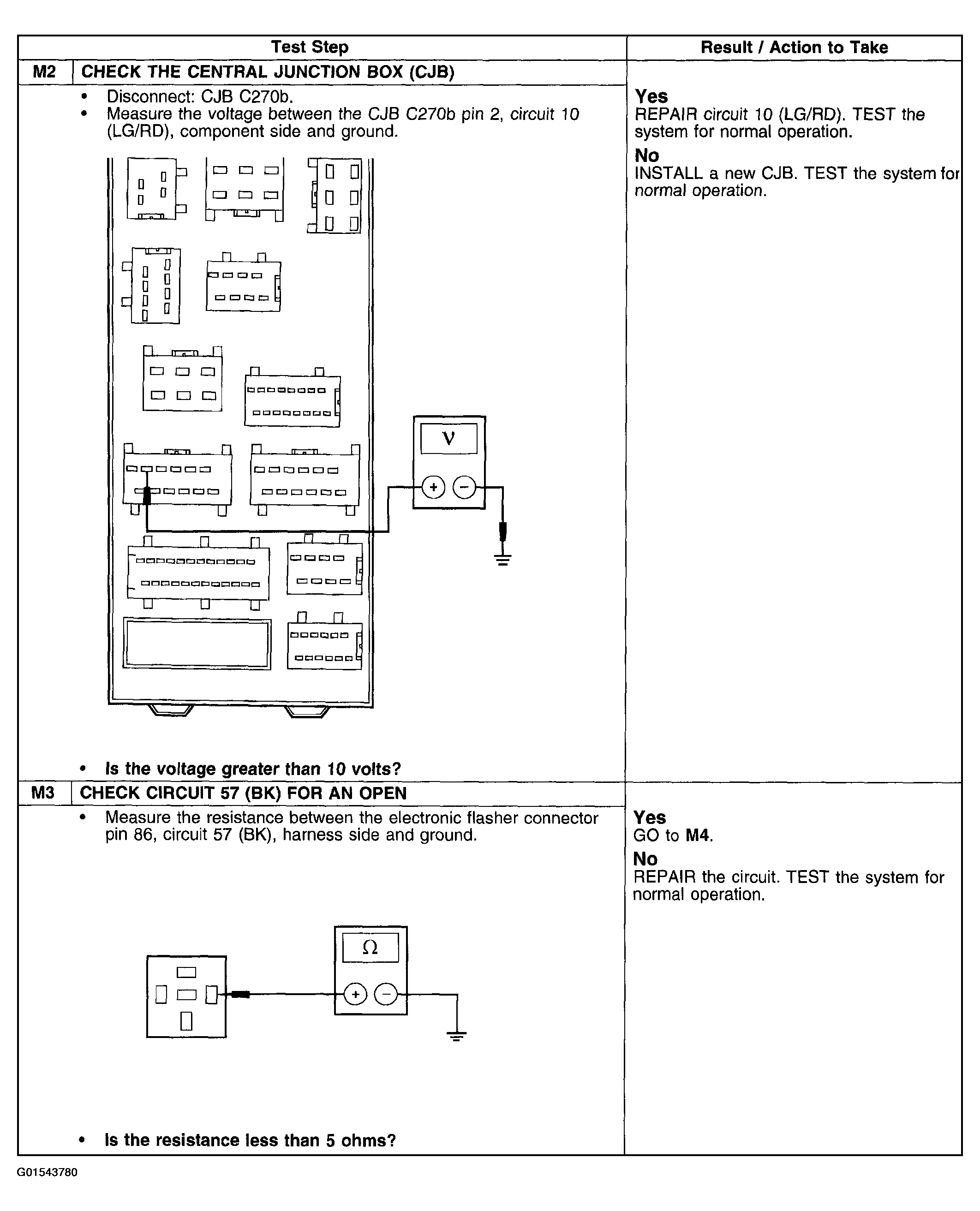

Fig 2: Pinpoint Test M: Hazard Lamps Are Inoperative (M2 & M3)
G01543780Courtesy of FORD MOTOR CO.

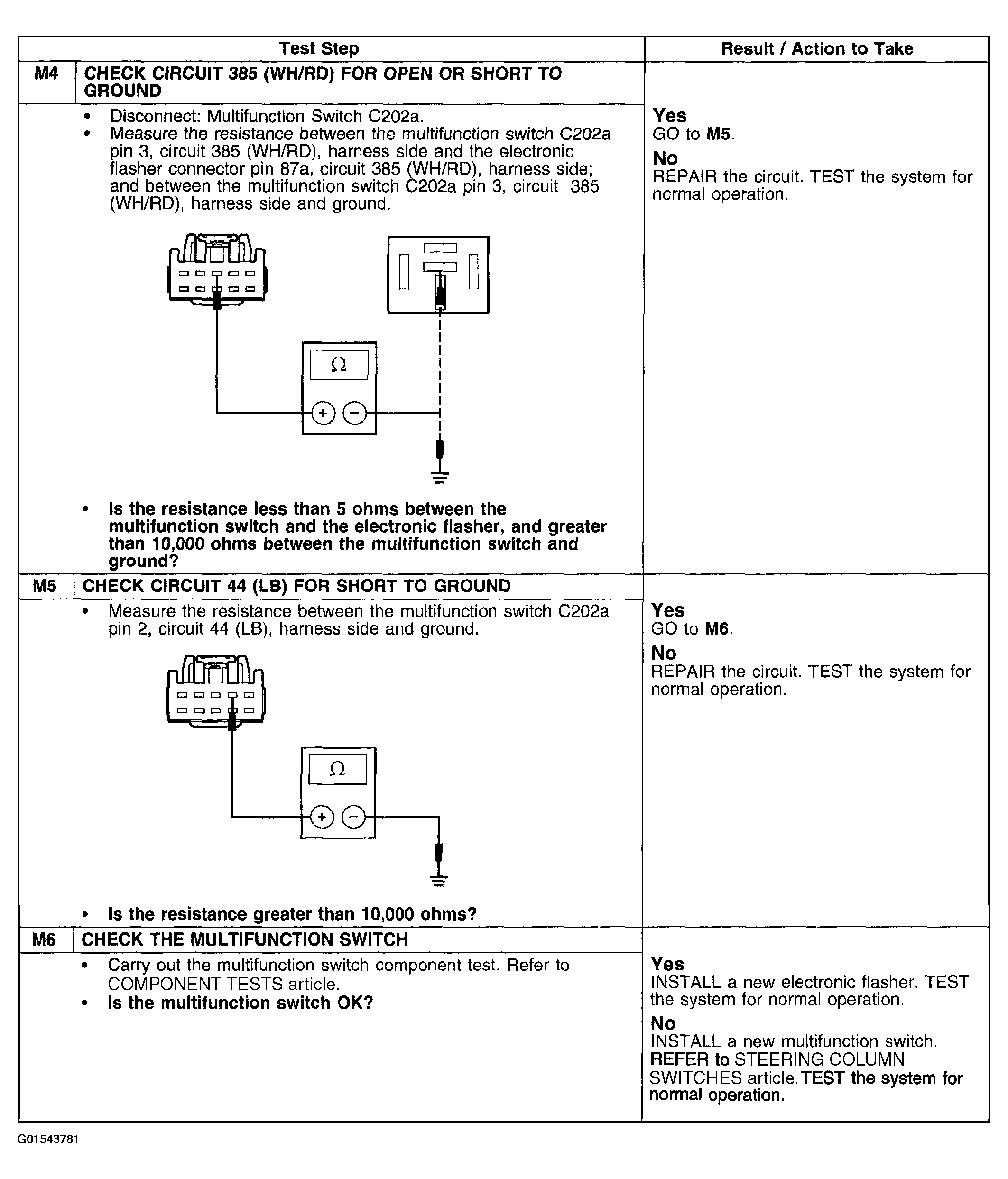

Fig 3: Pinpoint Test M: Hazard Lamps Are Inoperative (M4-M6)
G01543781Courtesy of FORD MOTOR CO.
