Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/STOPLAMP/Hazard Flasher Lamp

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

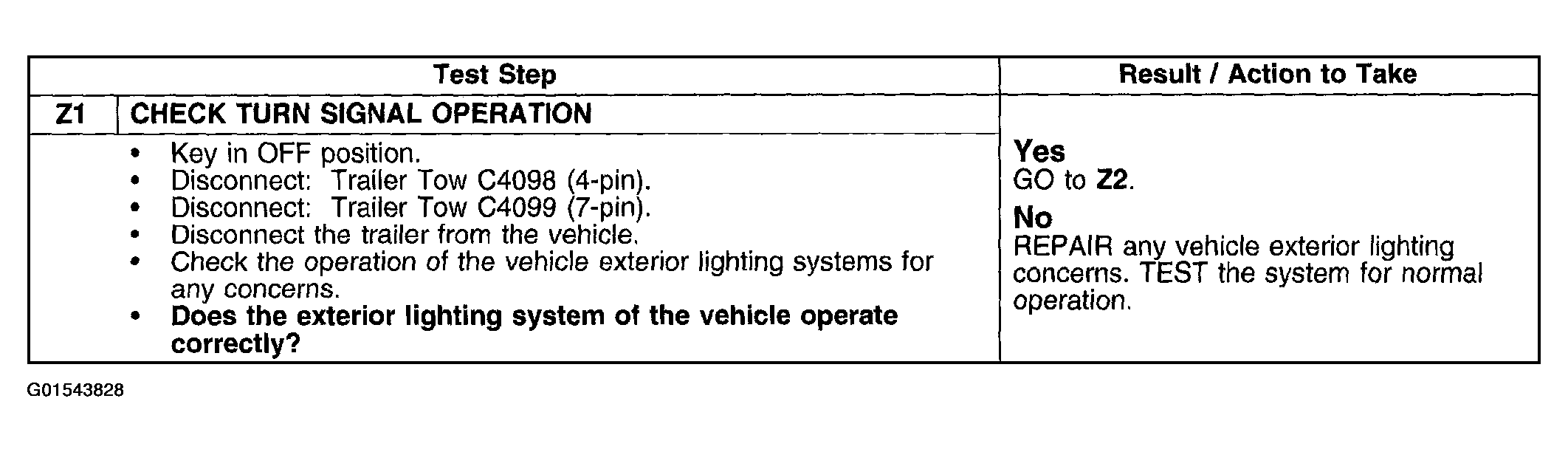

Fig 1: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z1)
G01543828Courtesy of FORD MOTOR CO.

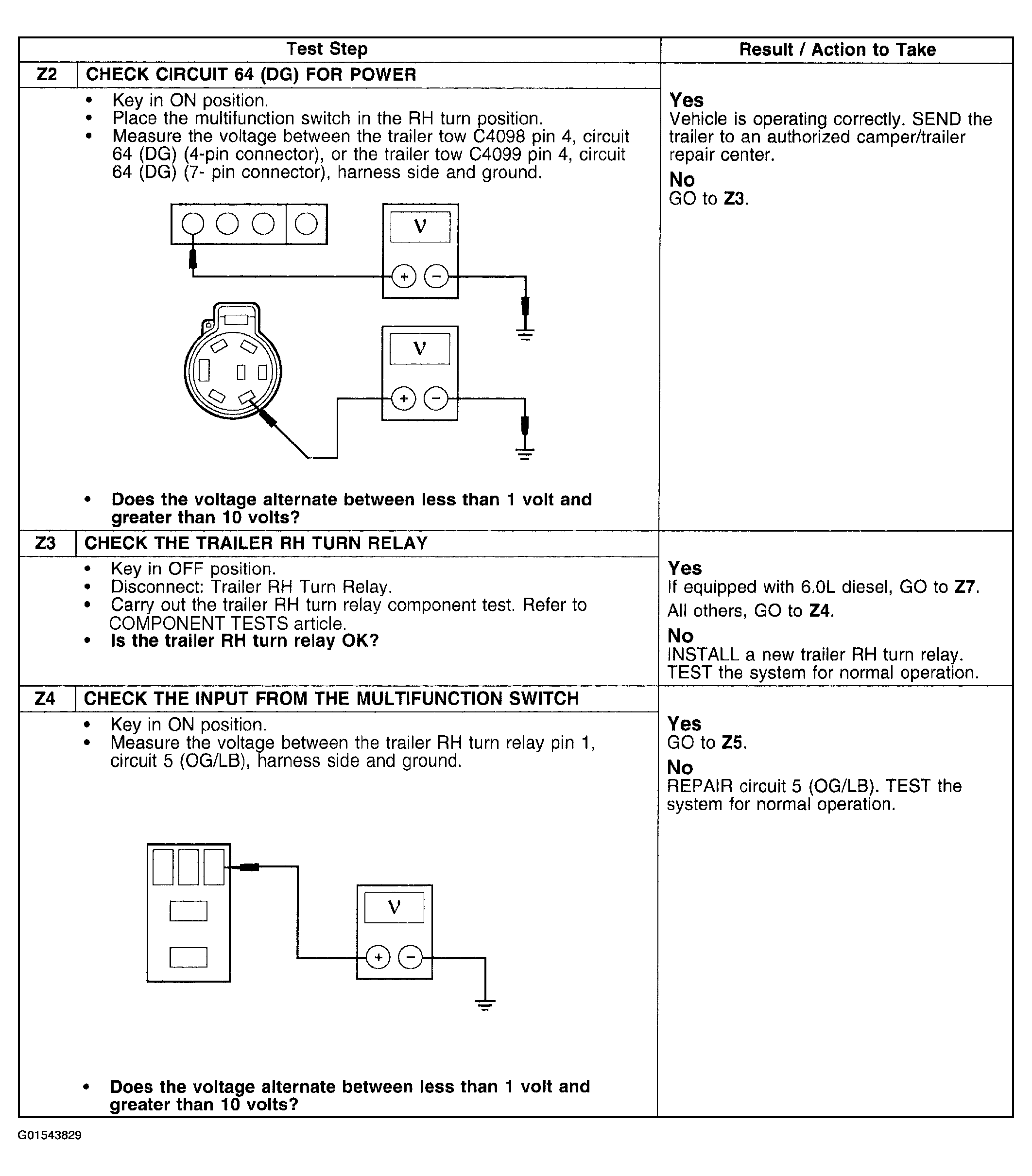

Fig 2: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z2-Z4)
G01543829Courtesy of FORD MOTOR CO.

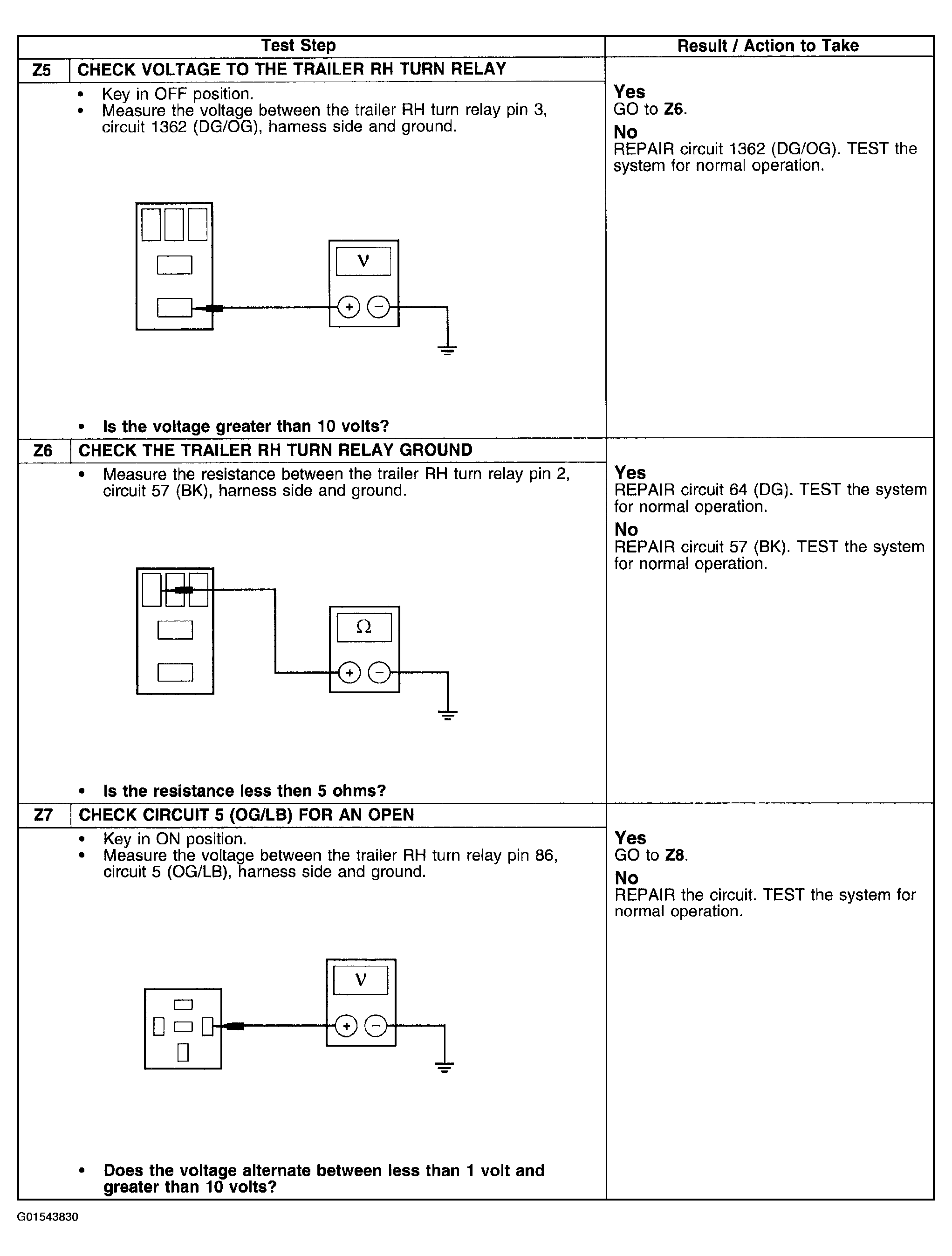

Fig 3: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z5-Z7)
G01543830Courtesy of FORD MOTOR CO.

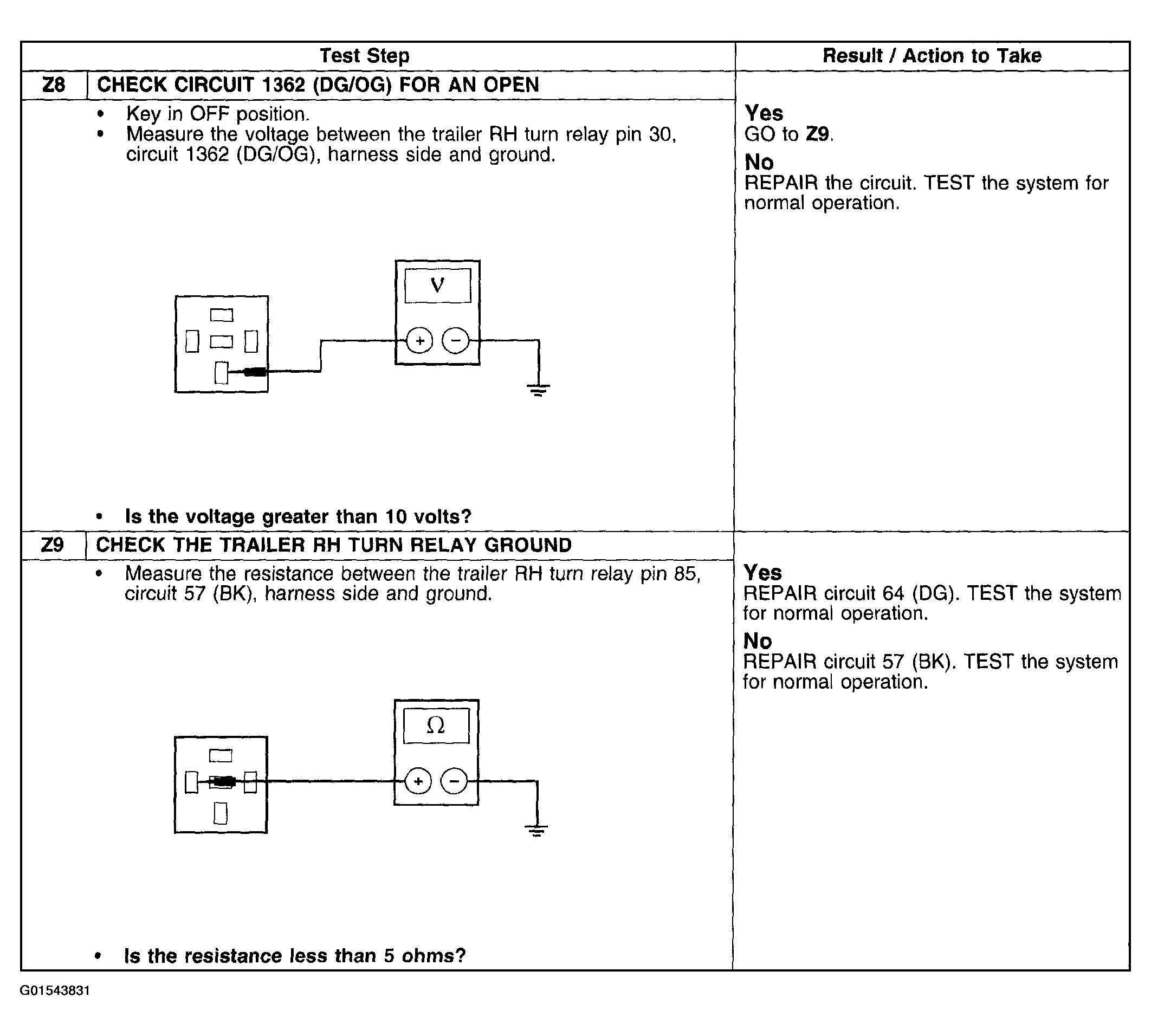

Fig 4: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z8 & Z9)
G01543831Courtesy of FORD MOTOR CO.
