Pinpoint Test Aa: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/STOPLAMP/Hazard Flasher Lamp

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

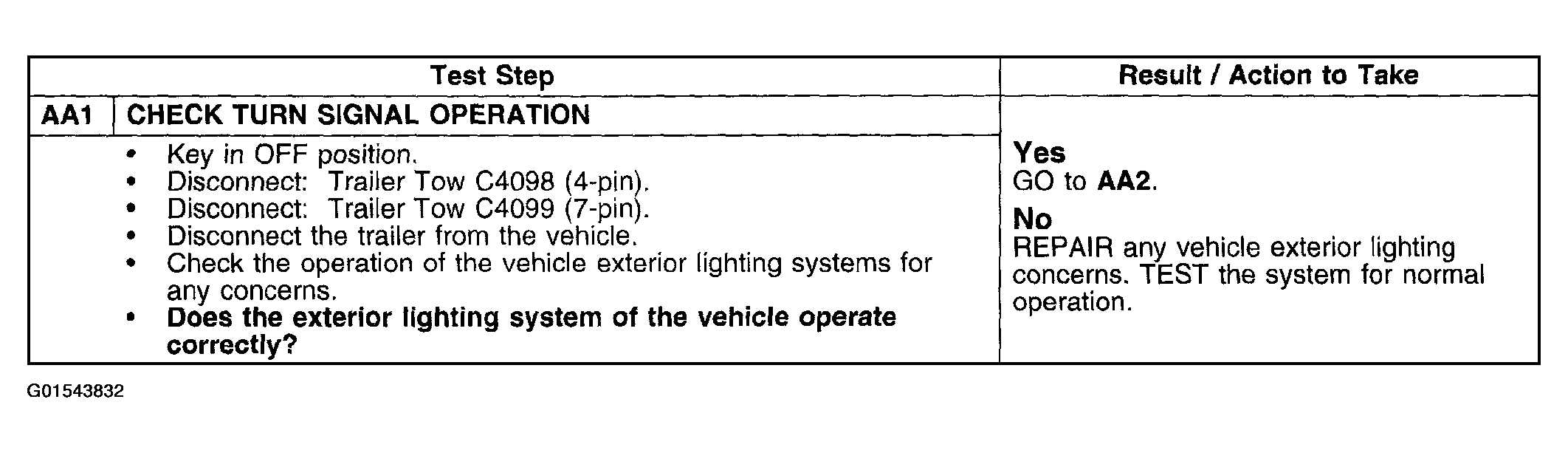

Fig 1: Pinpoint Test AA: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (AA1)
G01543832Courtesy of FORD MOTOR CO.

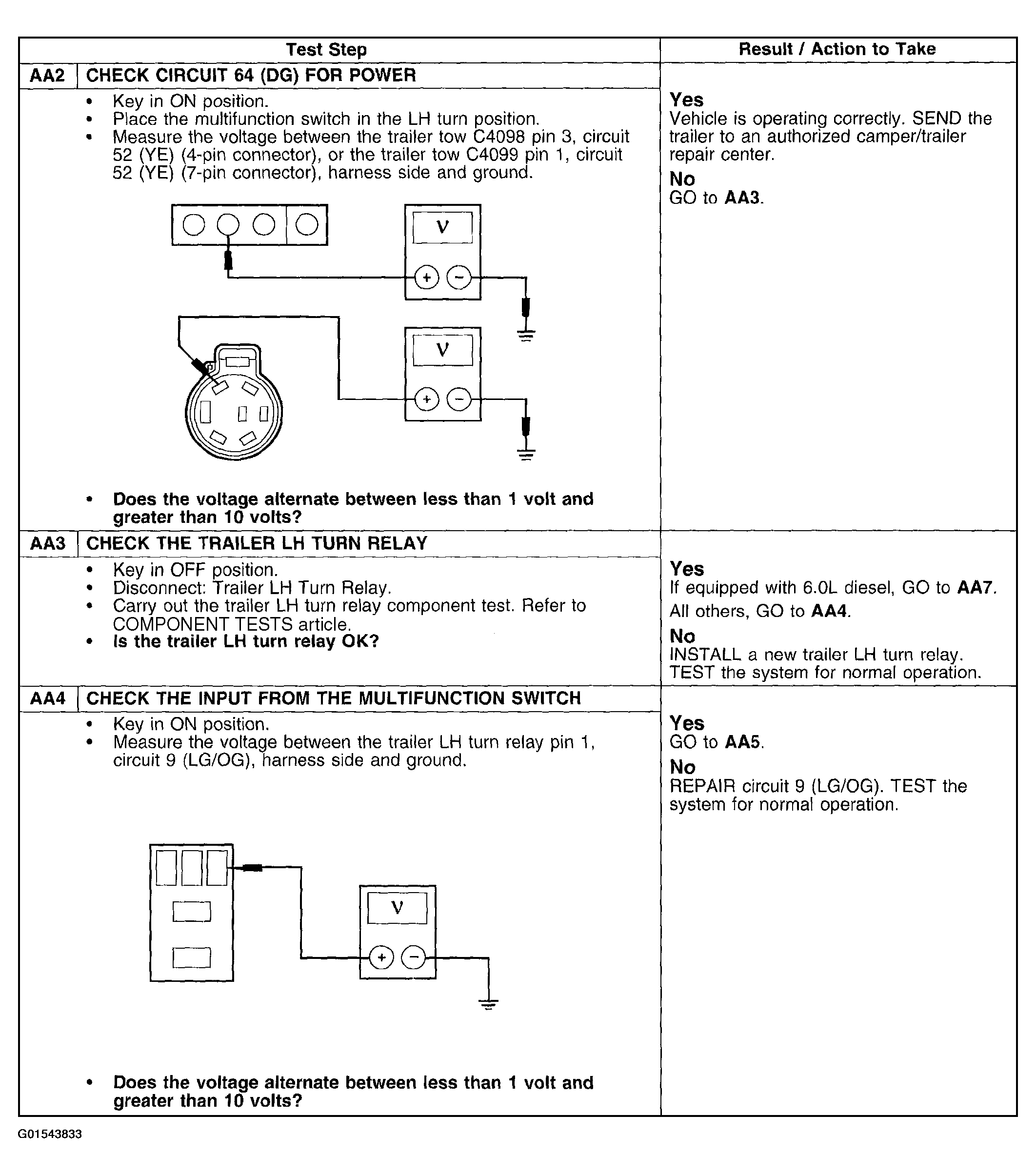

Fig 2: Pinpoint Test AA: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (AA2-AA4)
G01543833Courtesy of FORD MOTOR CO.

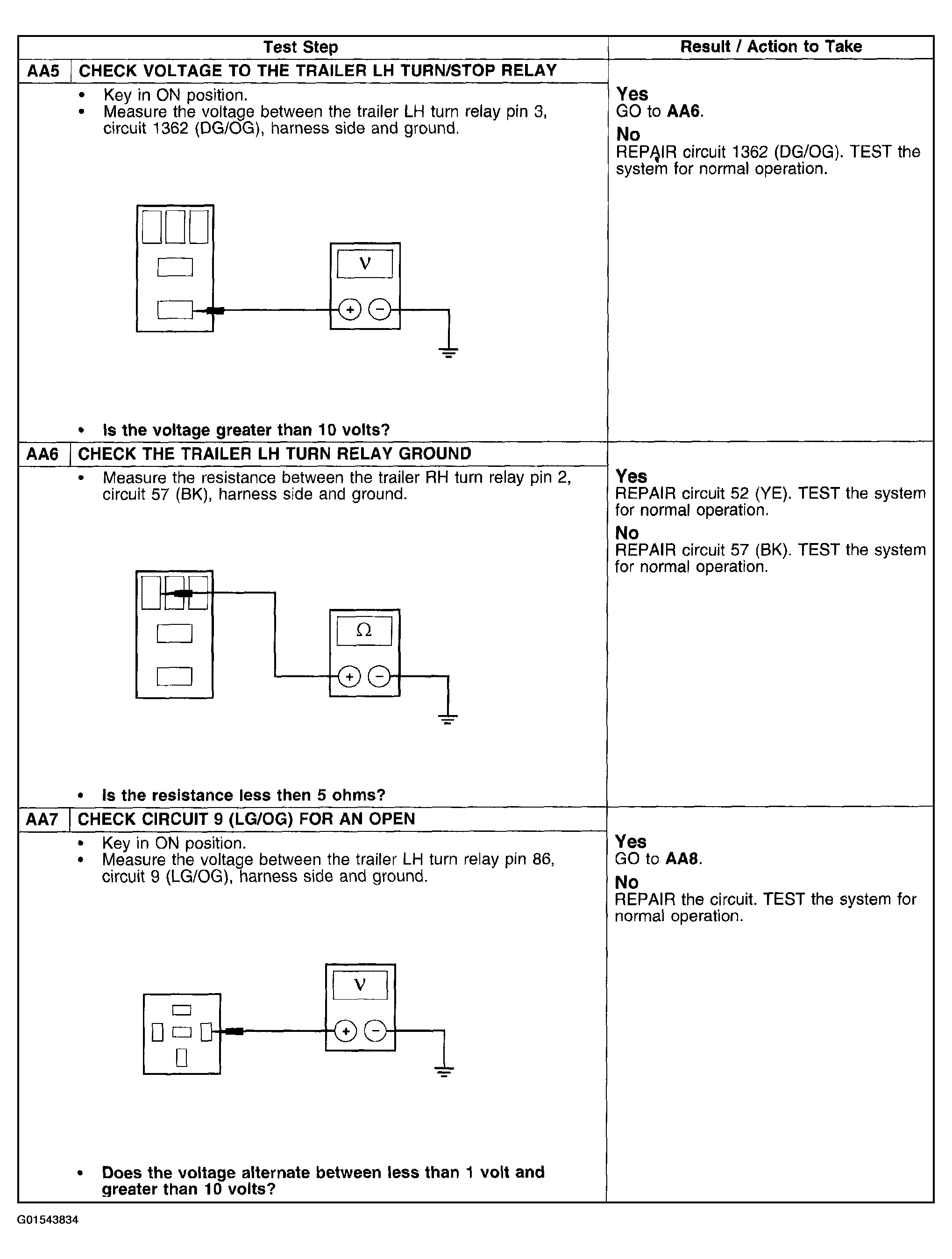

Fig 3: Pinpoint Test AA: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (AA5-AA7)
G01543834Courtesy of FORD MOTOR CO.

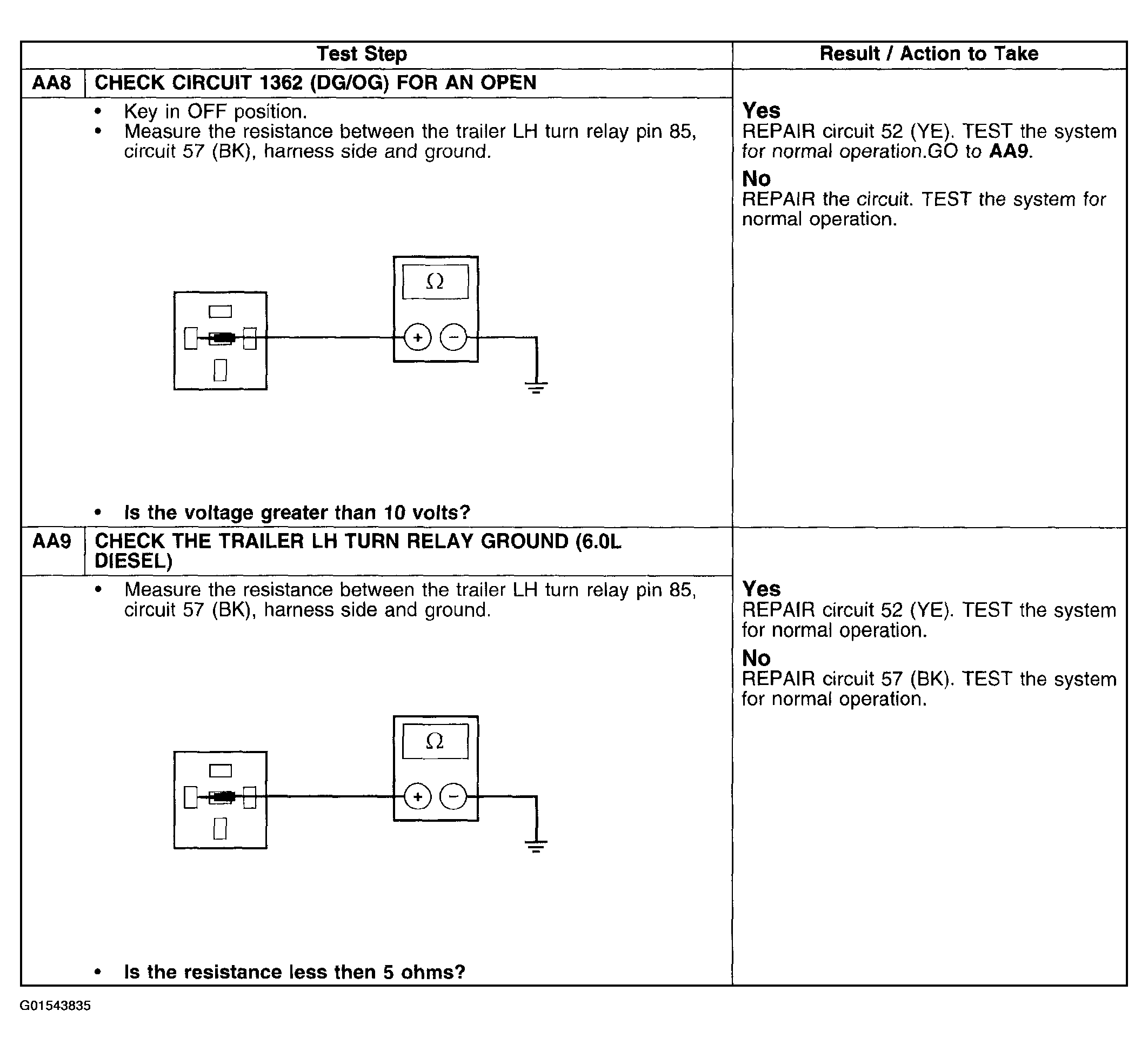

Fig 4: Pinpoint Test AA: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (AA8 & AA9)
G01543835Courtesy of FORD MOTOR CO.
