Pinpoint Test AF: Trailer Electric Brakes Are Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

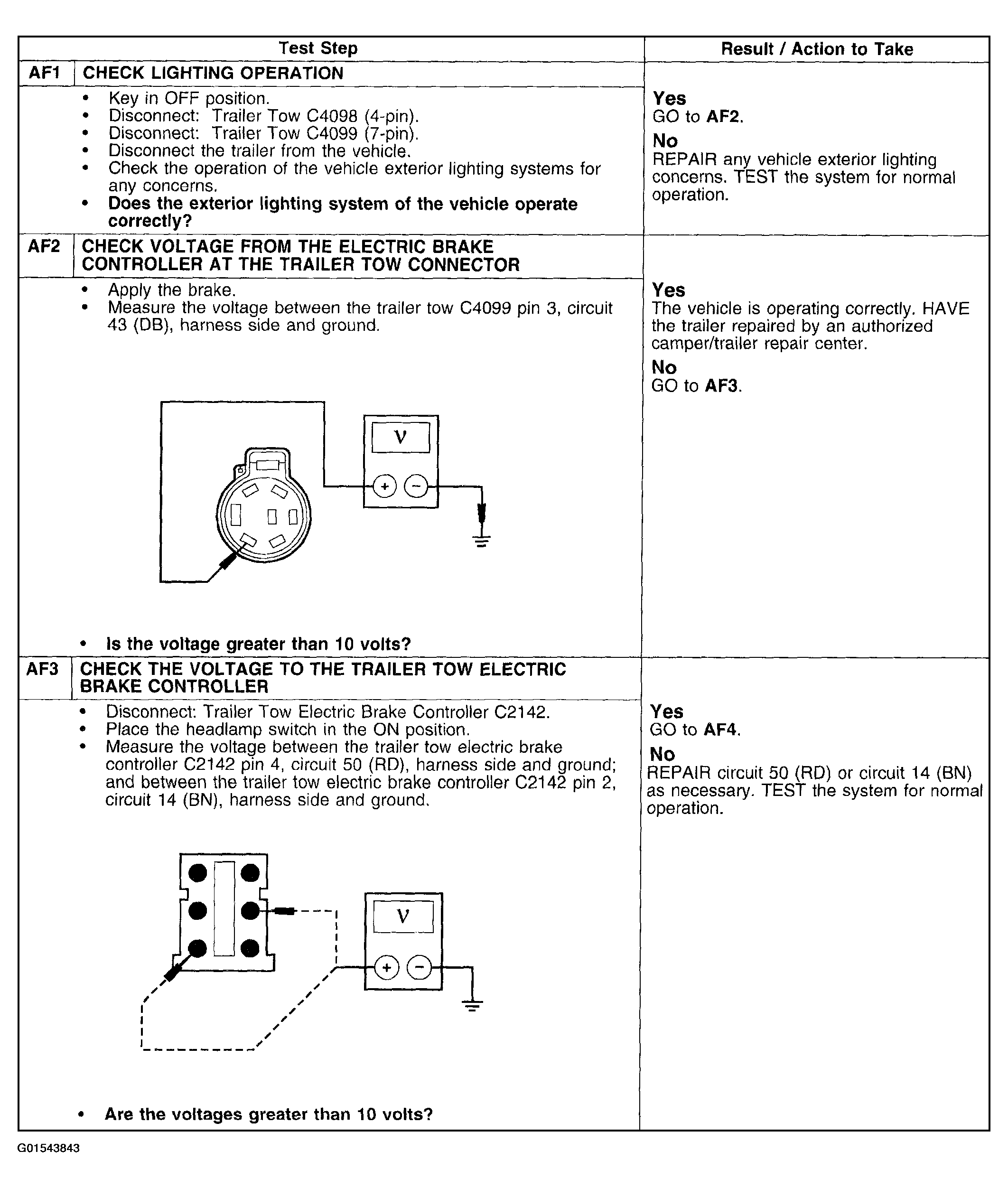

Fig 1: Pinpoint Test AF: Trailer Electric Brakes Are Inoperative (AF1-AF3)
G01543843Courtesy of FORD MOTOR CO.

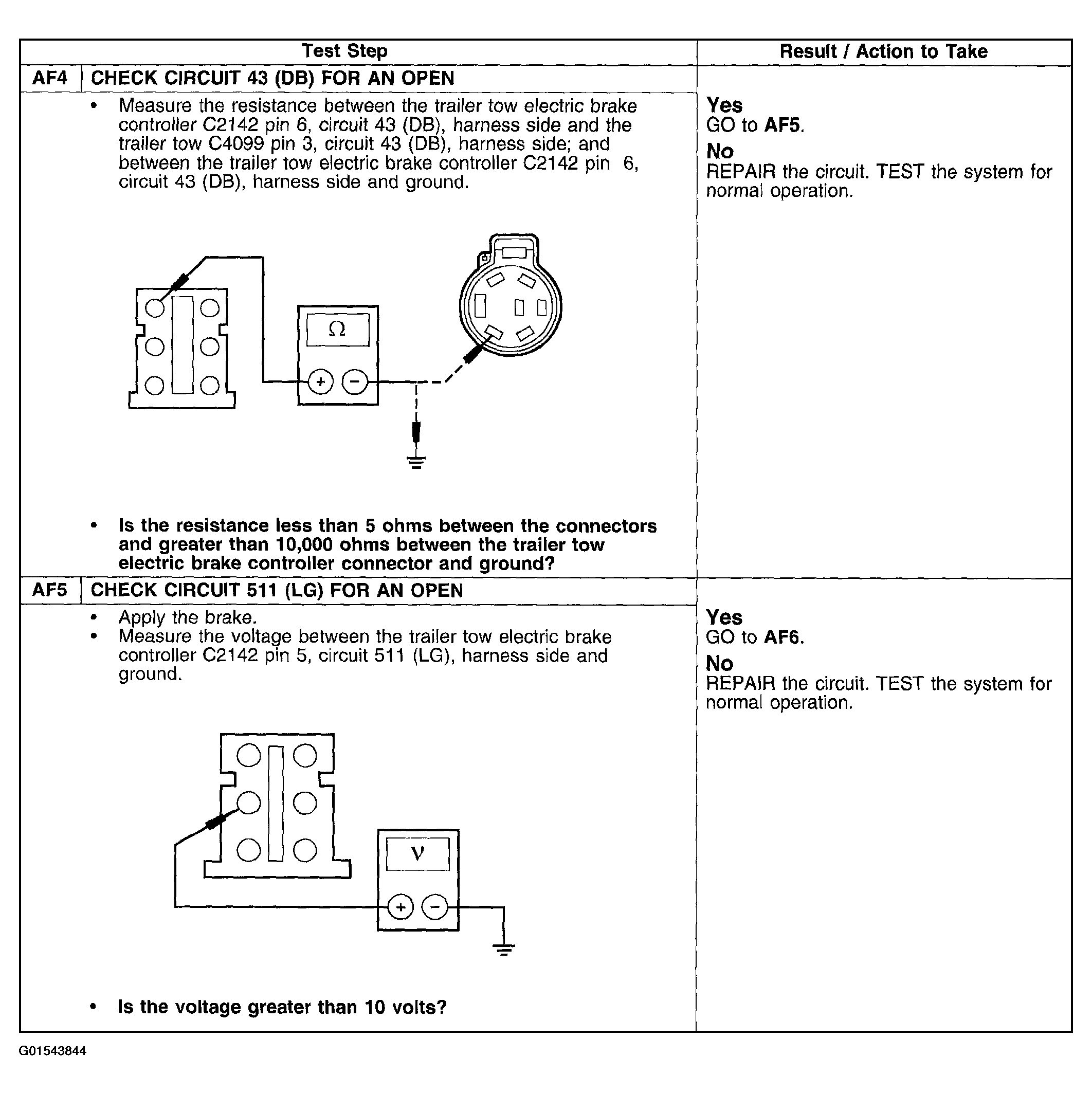

Fig 2: Pinpoint Test AF: Trailer Electric Brakes Are Inoperative (AF4 & AF5)
G01543844Courtesy of FORD MOTOR CO.

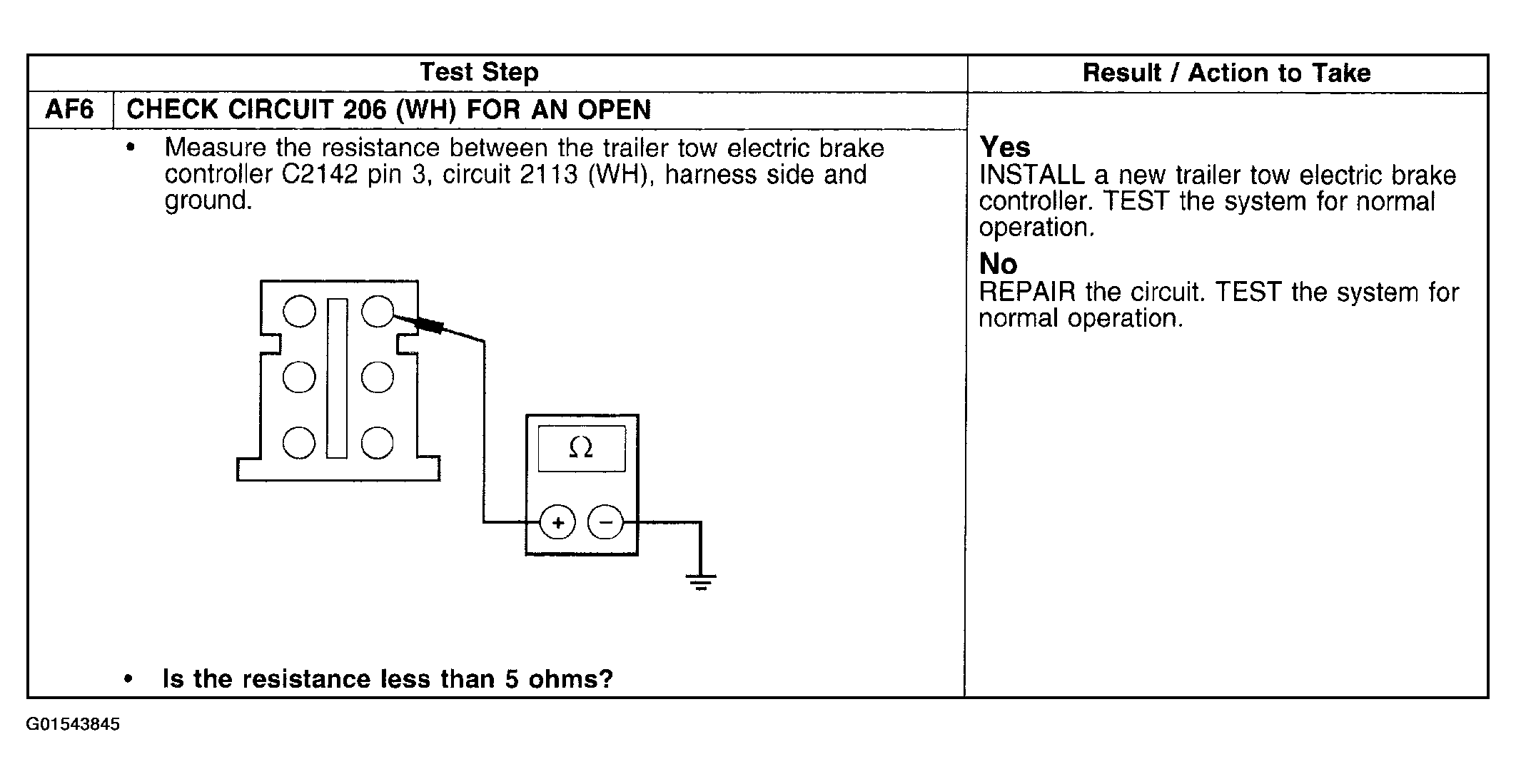

Fig 3: Pinpoint Test AF: Trailer Electric Brakes Are Inoperative (AF6)
G01543845Courtesy of FORD MOTOR CO.
