Pinpoint Test I: One Or More STOPLAMPS Are Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

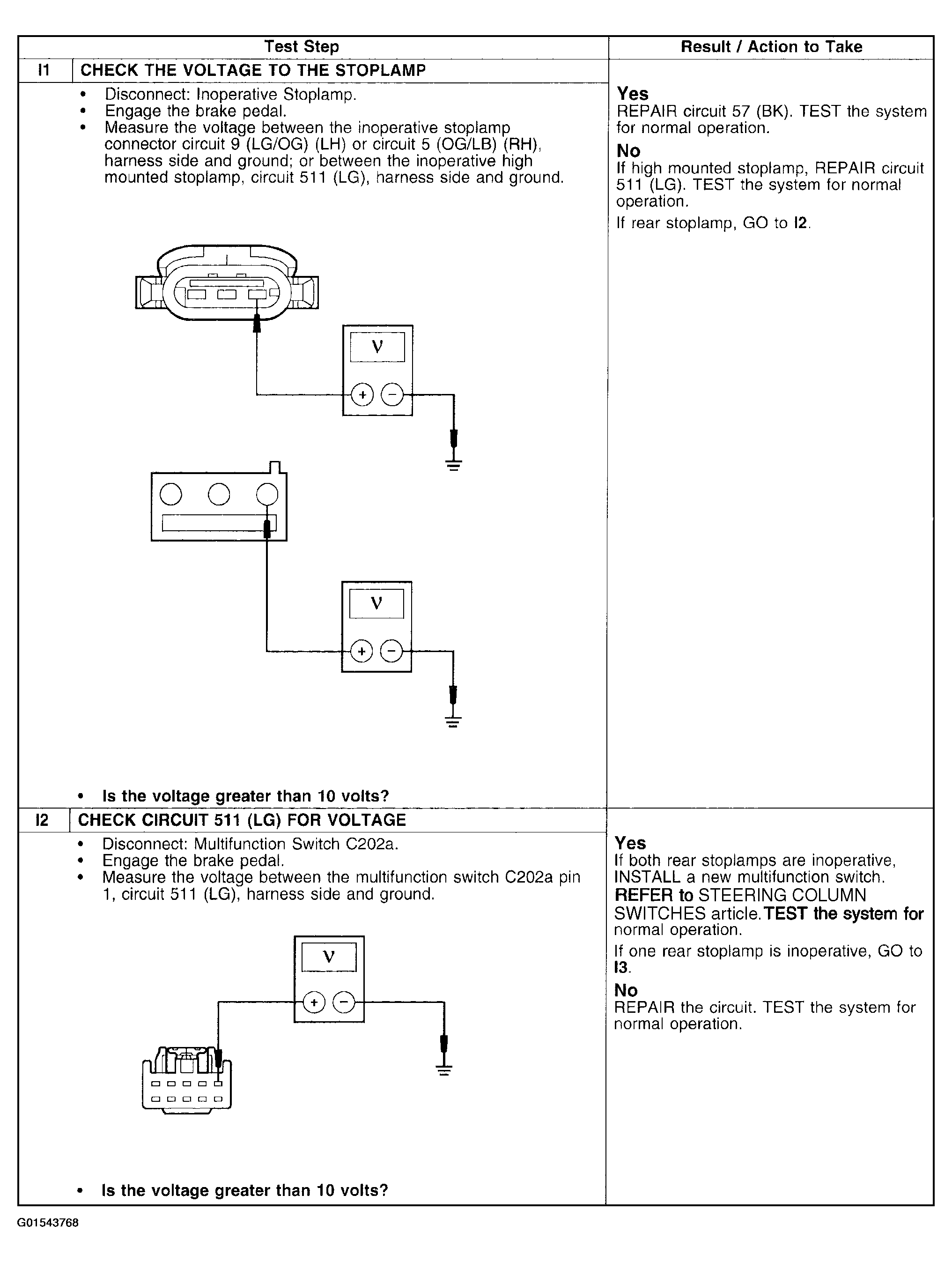

Fig 1: Pinpoint Test I: One Or More Stoplamps Are Inoperative (I1 & I2)
G01543768Courtesy of FORD MOTOR CO.

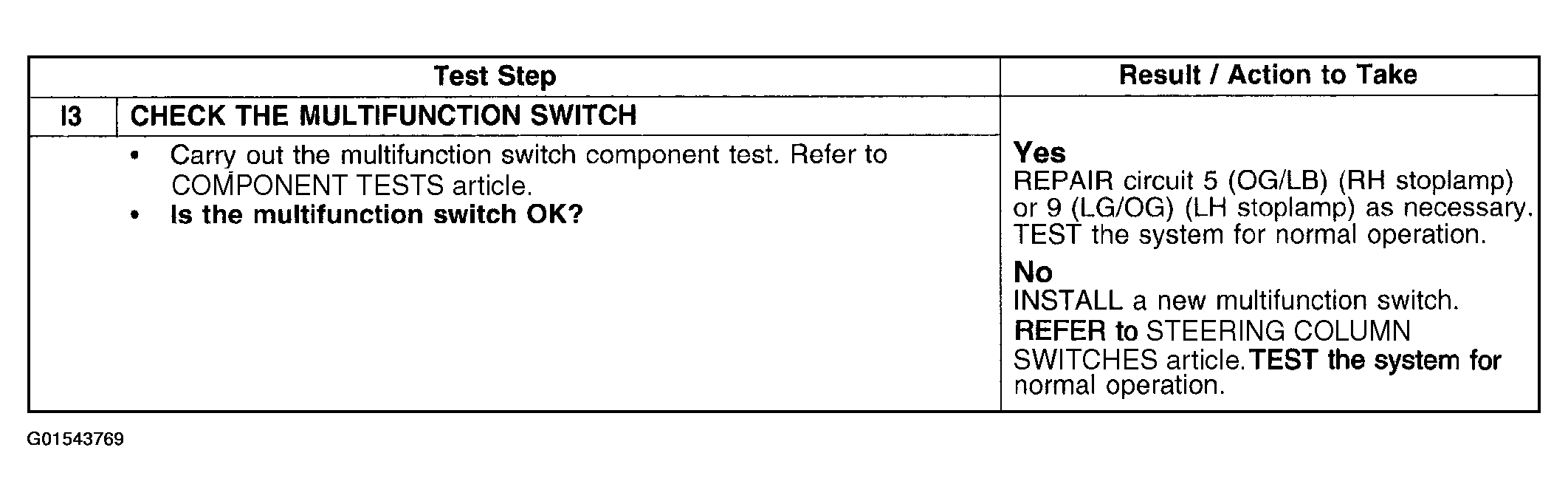

Fig 2: Pinpoint Test I: One Or More Stoplamps Are Inoperative (I3)
G01543769Courtesy of FORD MOTOR CO.
