Pinpoint Test V: Reversing Lamps Are Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

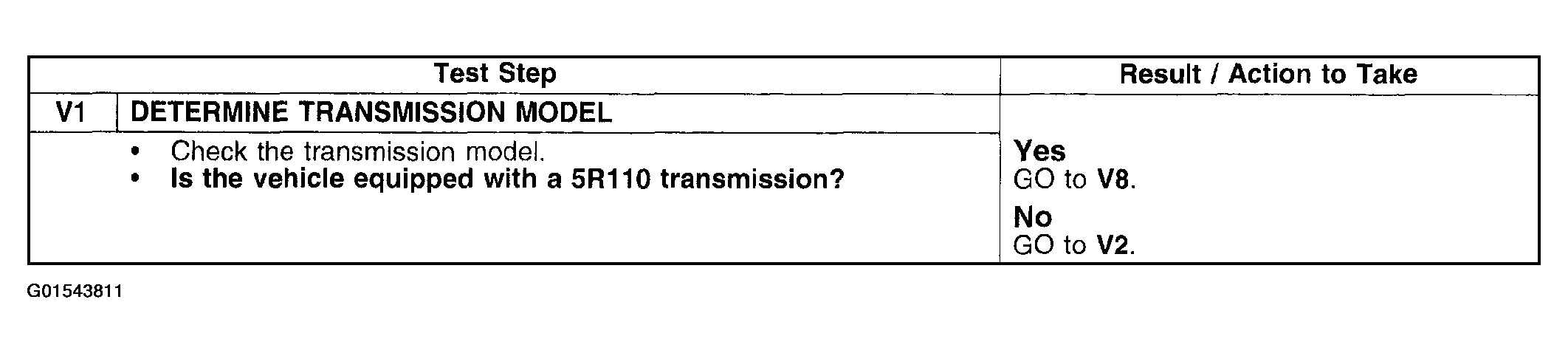

Fig 1: Pinpoint Test V: Reversing Lamps Are Inoperative (V1)

G01543811

Courtesy of FORD MOTOR CO.

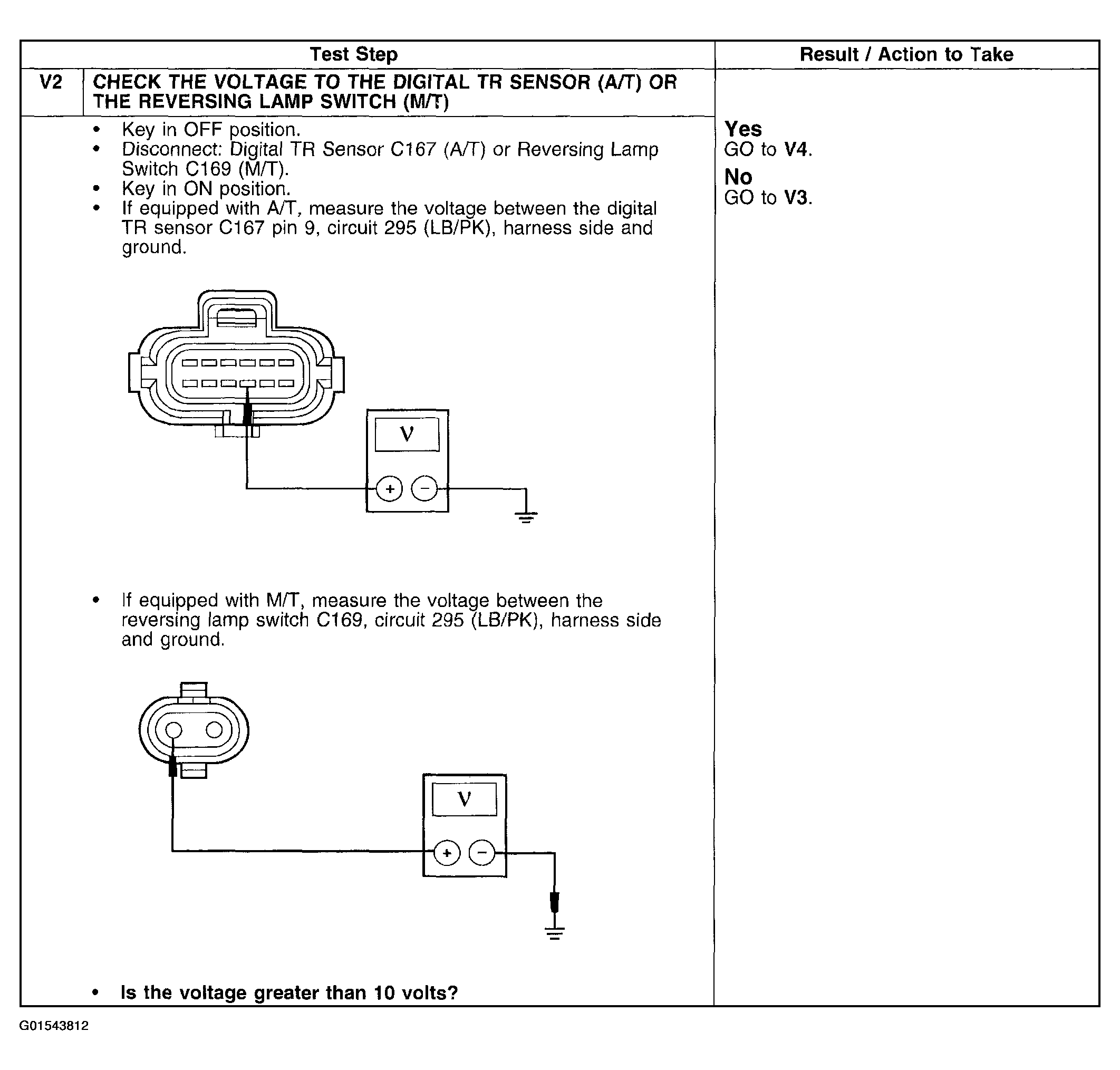

Fig 2: Pinpoint Test V: Reversing Lamps Are Inoperative (V2)

G01543812

Courtesy of FORD MOTOR CO.

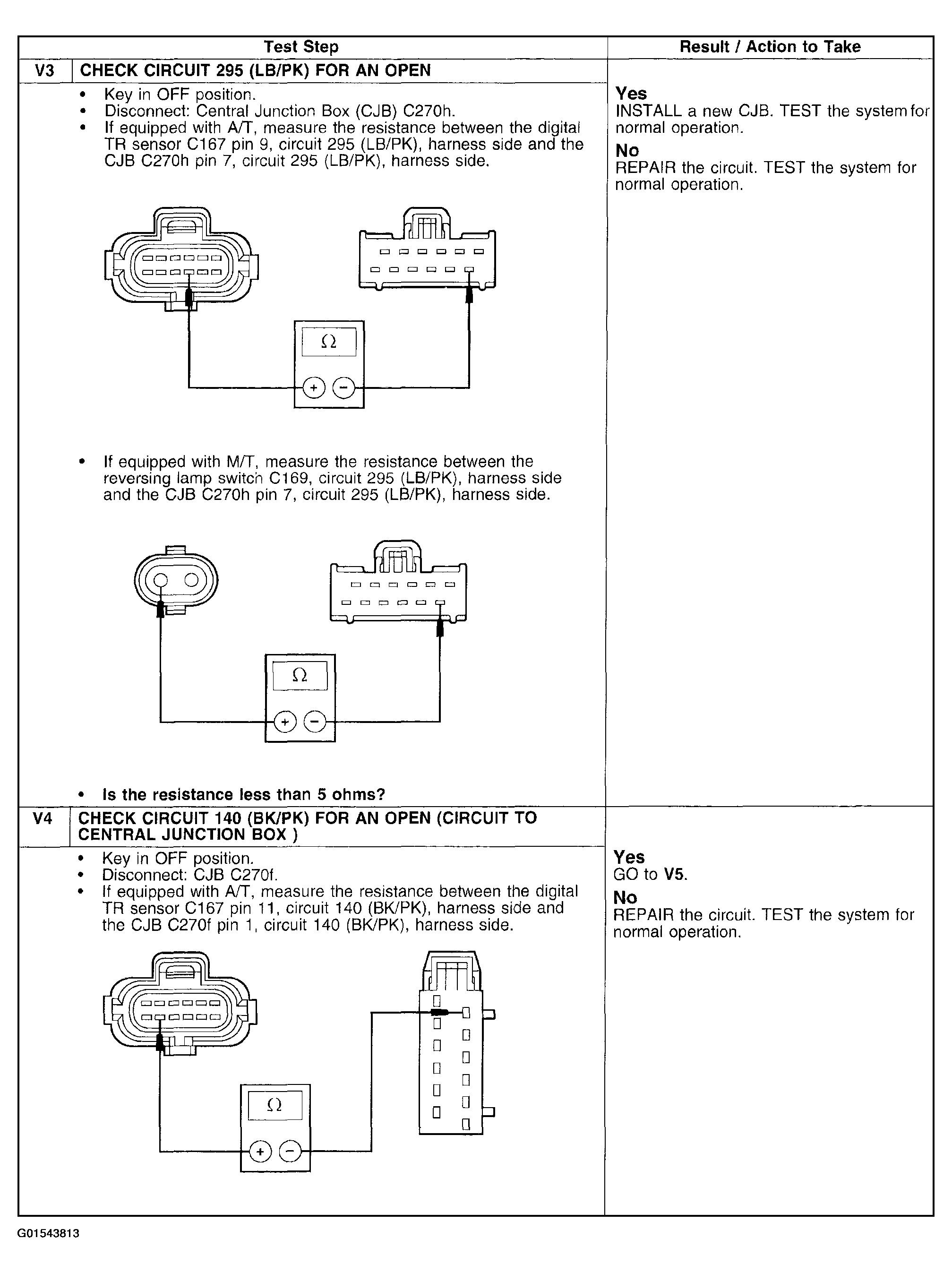

Fig 3: Pinpoint Test V: Reversing Lamps Are Inoperative (V3 & V4)

G01543813

Courtesy of FORD MOTOR CO.

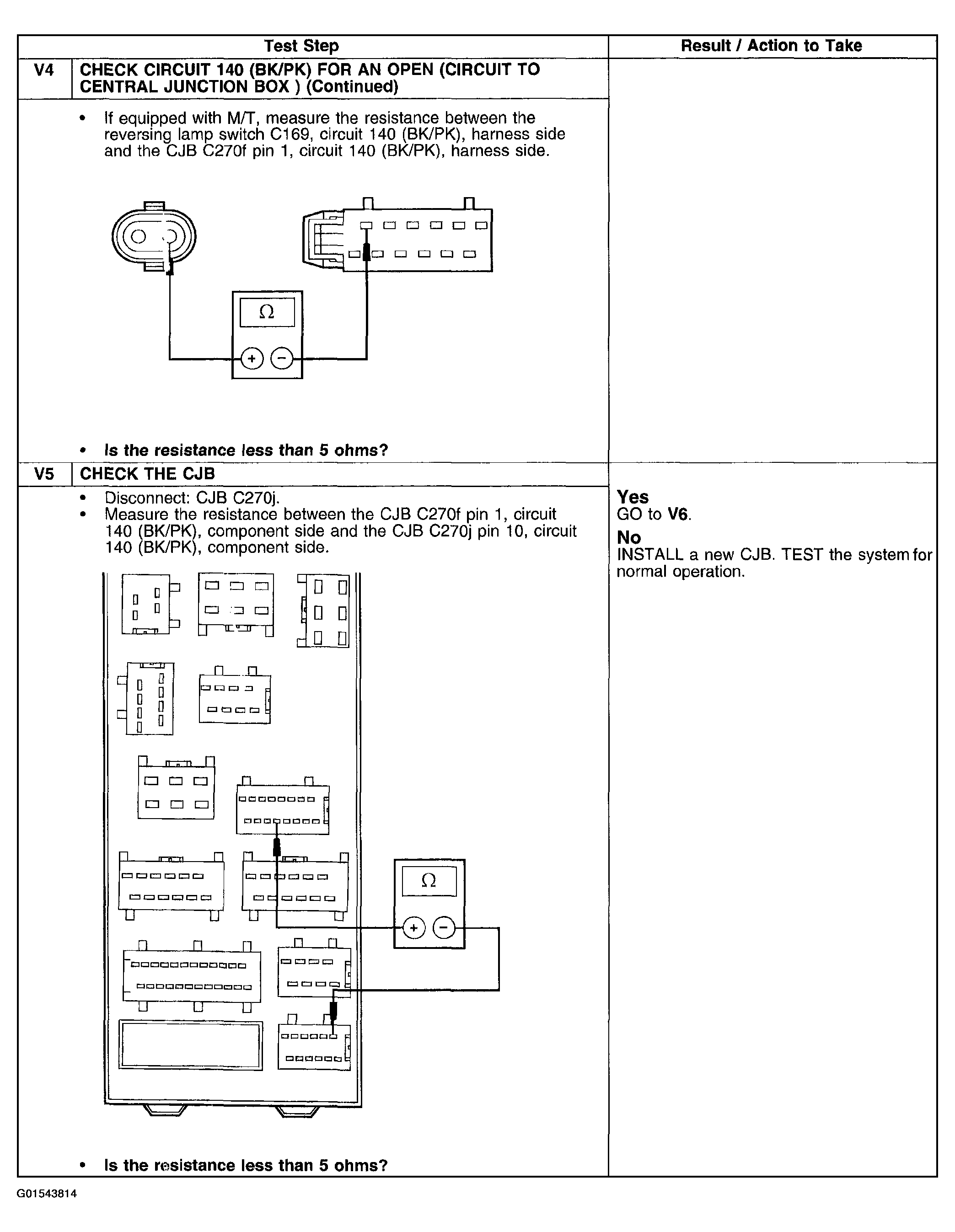

Fig 4: Pinpoint Test V: Reversing Lamps Are Inoperative (V4 Cont. & V5)

G01543814

Courtesy of FORD MOTOR CO.

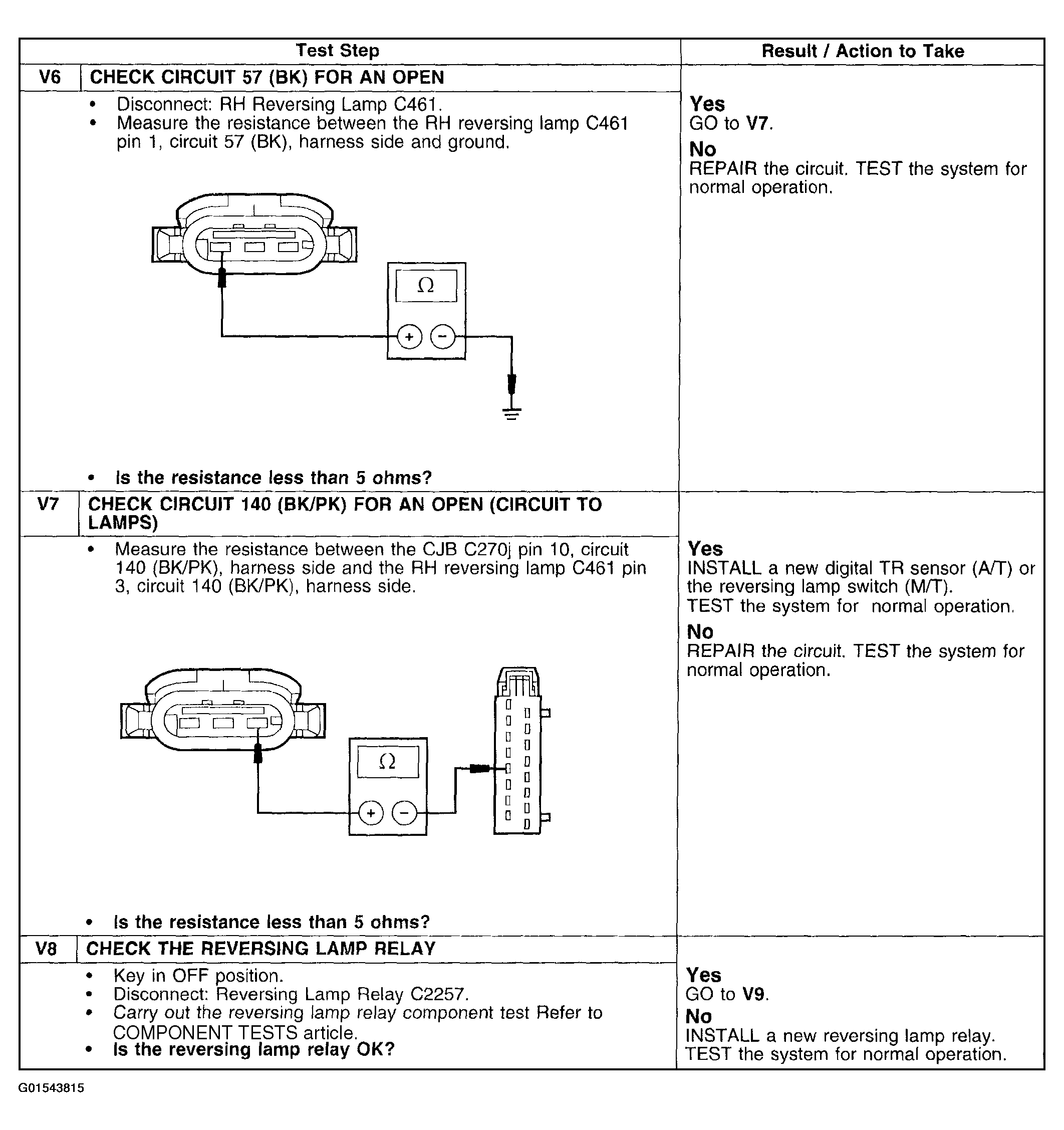

Fig 5: Pinpoint Test V: Reversing Lamps Are Inoperative (V6-V8)

G01543815

Courtesy of FORD MOTOR CO.

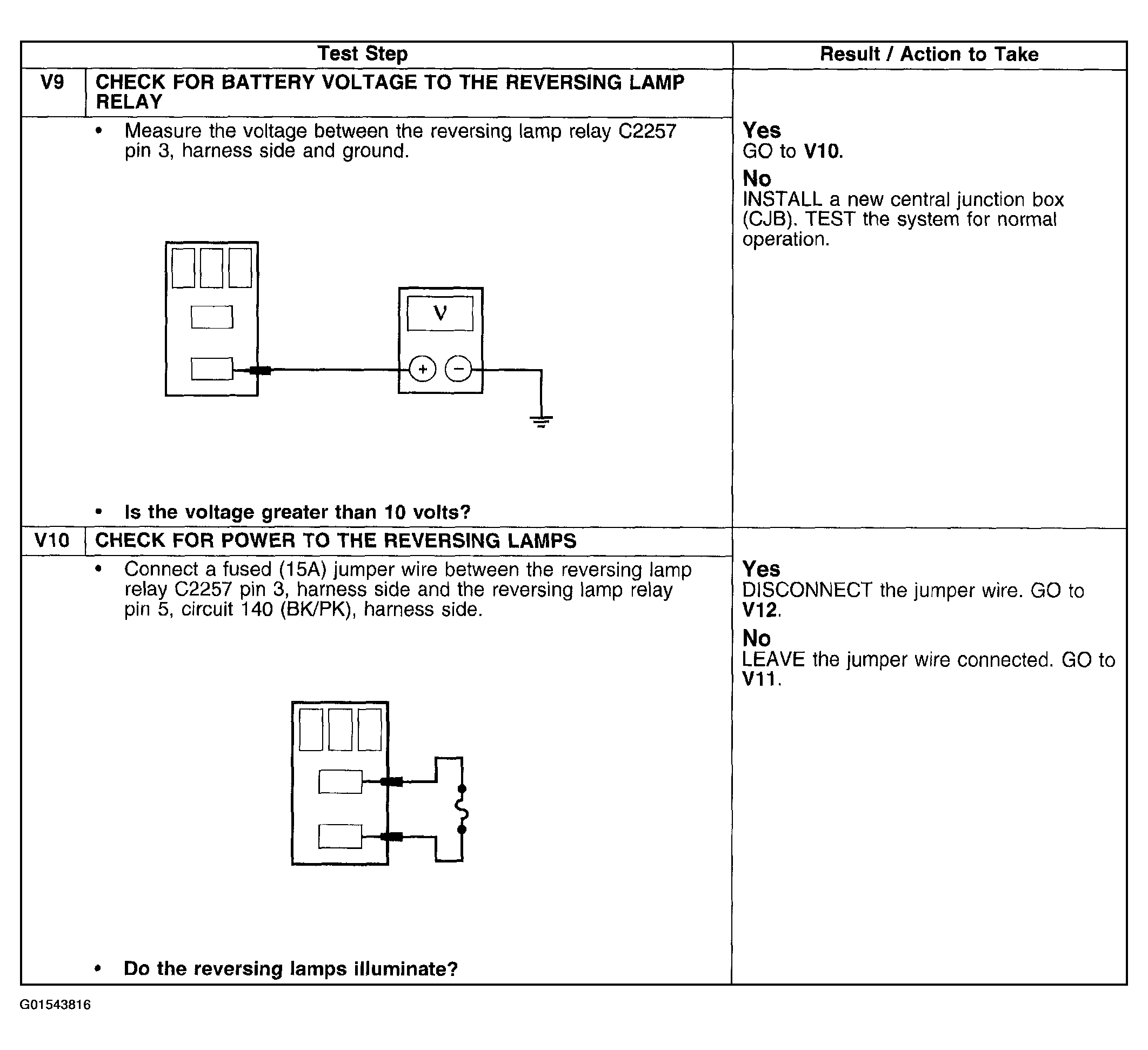

Fig 6: Pinpoint Test V: Reversing Lamps Are Inoperative (V9 & V10)

G01543816

Courtesy of FORD MOTOR CO.

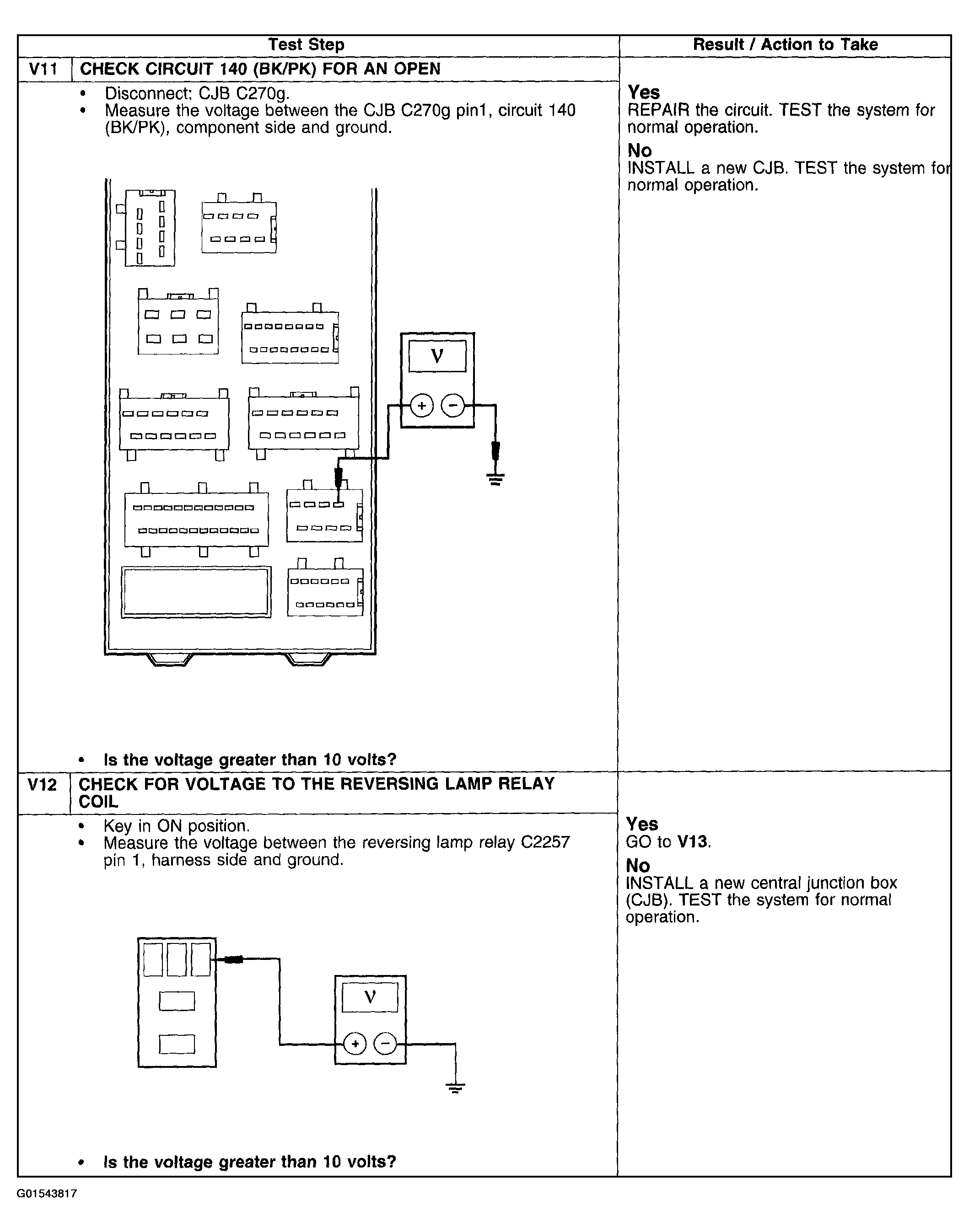

Fig 7: Pinpoint Test V: Reversing Lamps Are Inoperative (V11 & V12)

G01543817

Courtesy of FORD MOTOR CO.

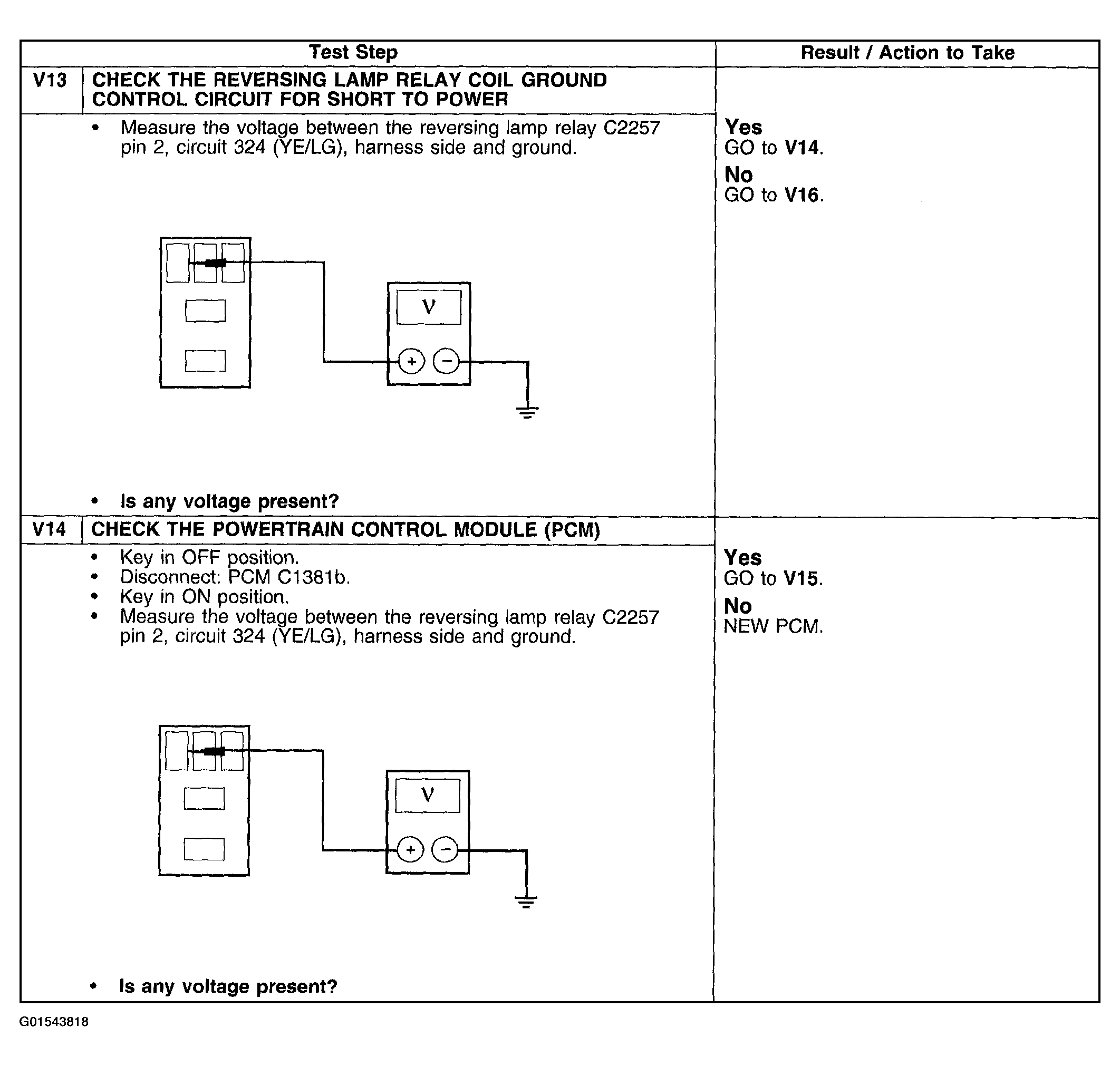

Fig 8: Pinpoint Test V: Reversing Lamps Are Inoperative (V13 & V14)

G01543818

Courtesy of FORD MOTOR CO.

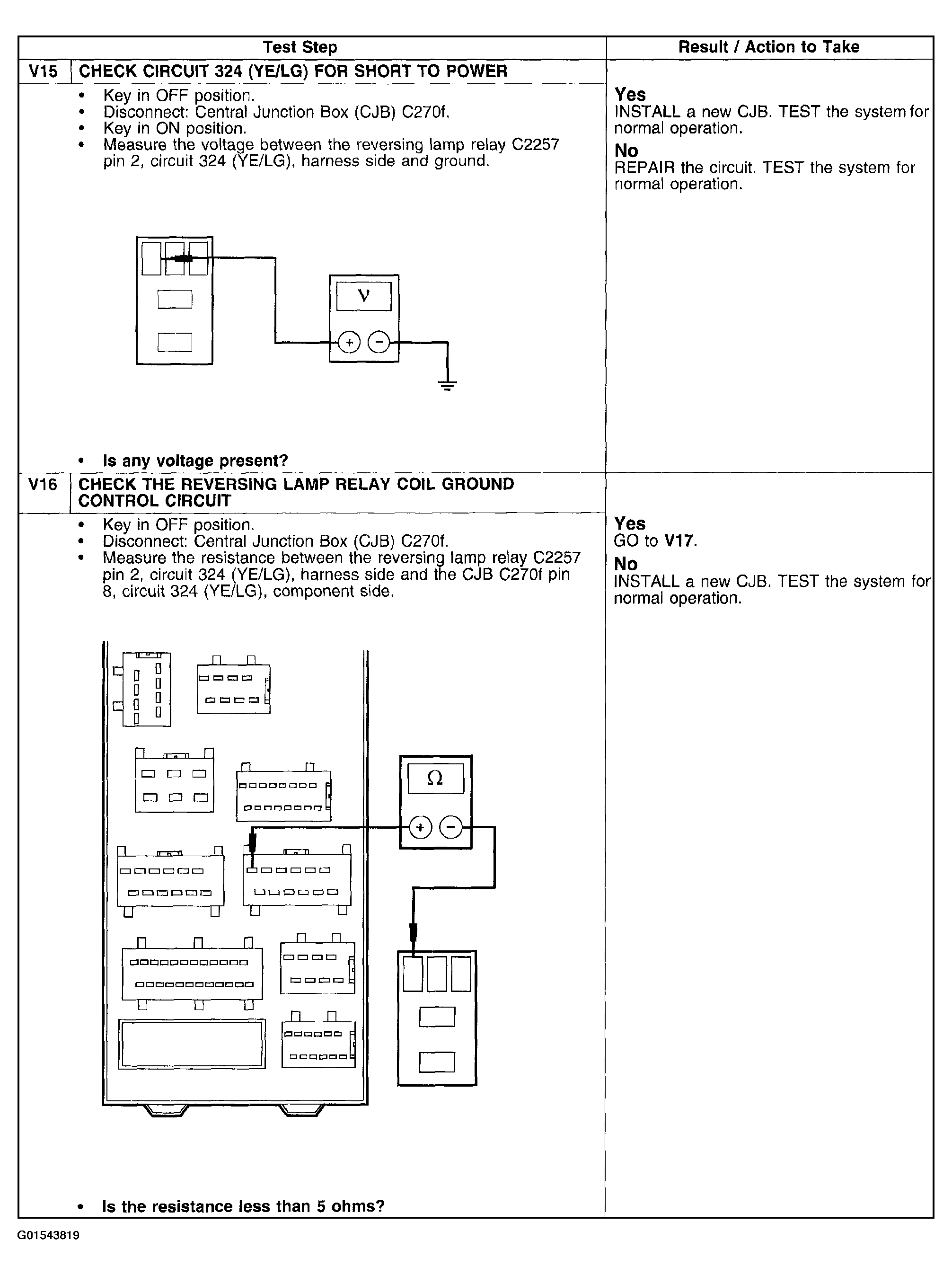

Fig 9: Pinpoint Test V: Reversing Lamps Are Inoperative (V15 & V16)

G01543819

Courtesy of FORD MOTOR CO.

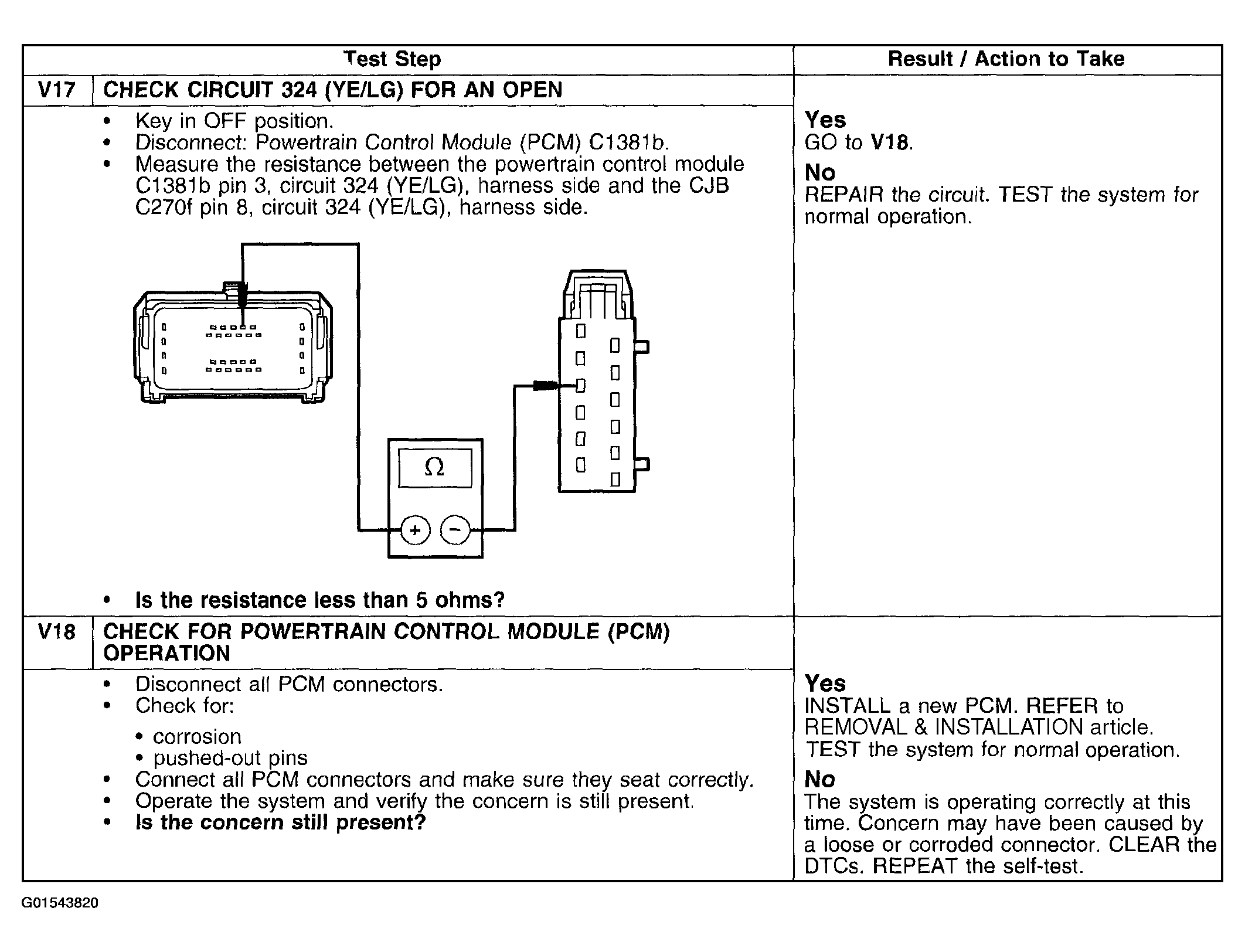

Fig 10: Pinpoint Test V: Reversing Lamps Are Inoperative (V17 & V18)

G01543820

Courtesy of FORD MOTOR CO.
