Inspection and Verification

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the parking lamps.
  2. Visually inspect the following for obvious signs of mechanical and electrical damage.

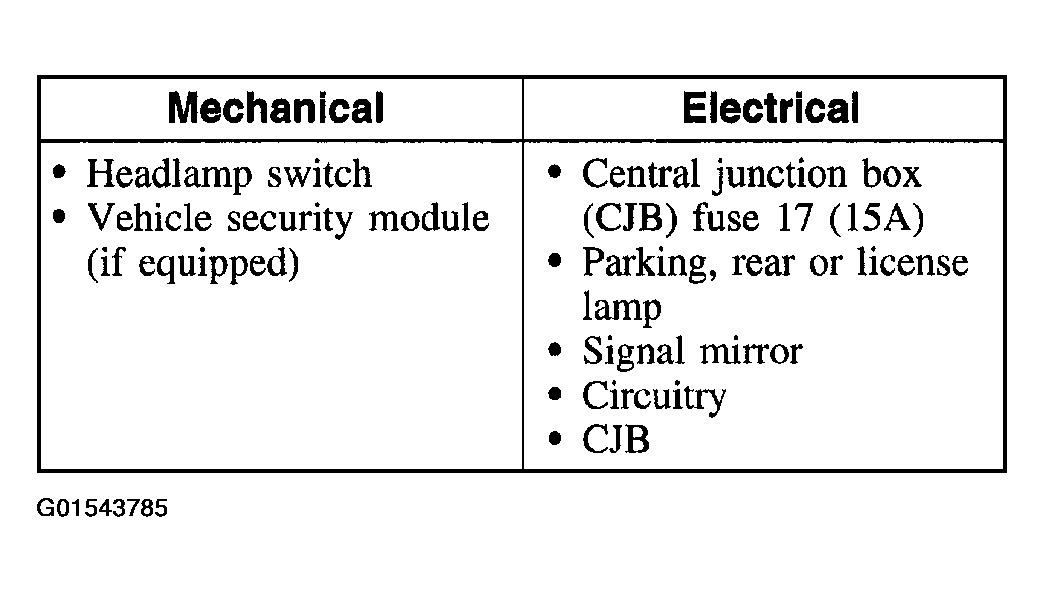

    Fig 1: Visual Inspection Chart
    G01543785Courtesy of FORD MOTOR CO.
  3. If the concern is not visually evident, verify the symptom and proceed to the Symptom Chart.
