Pinpoint Test E: The Headlamps Are On Continuously

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

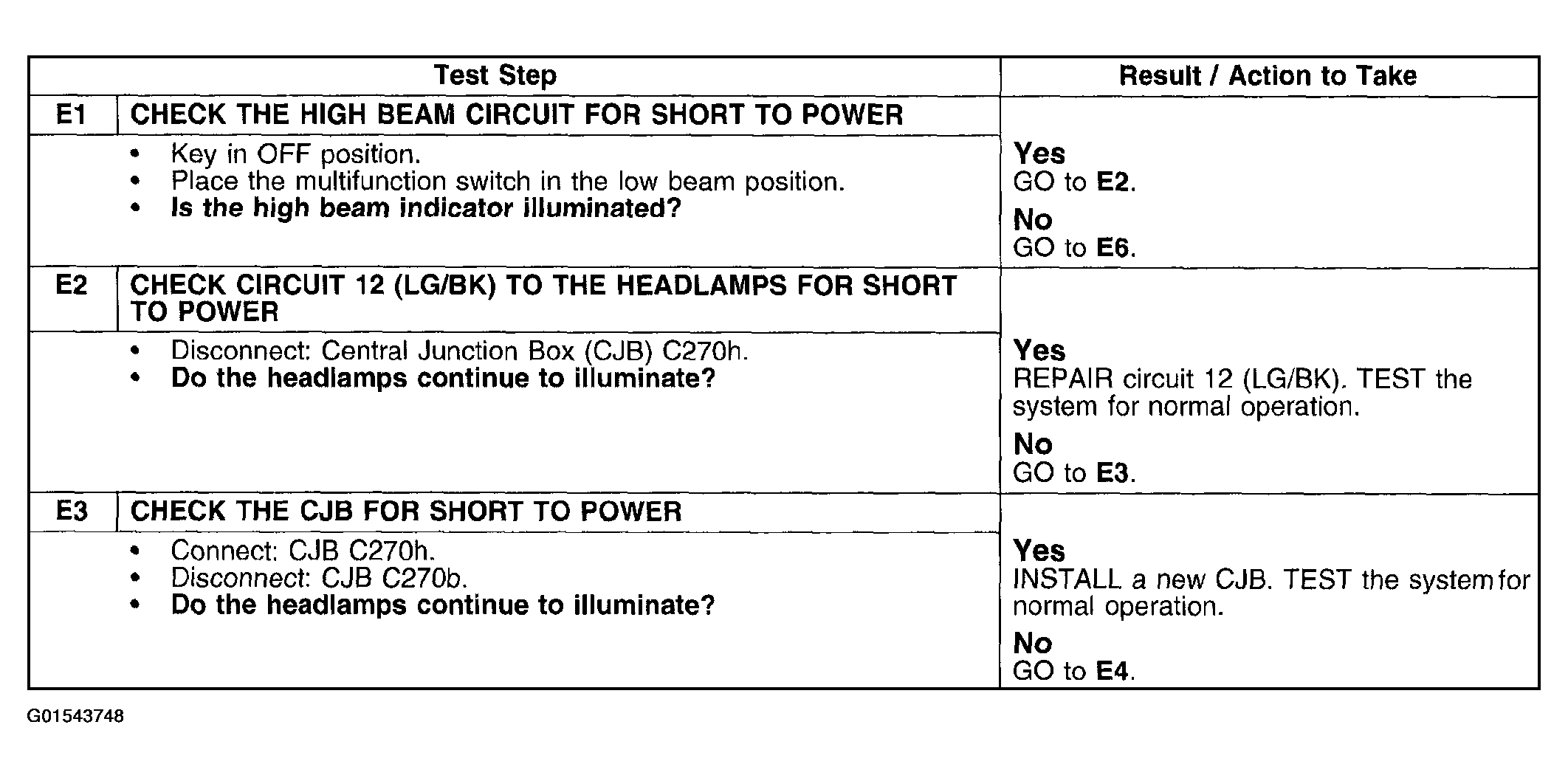

Fig 1: Pinpoint Test E: The Headlamps Are On Continuously (E1-E3)
G01543748Courtesy of FORD MOTOR CO.

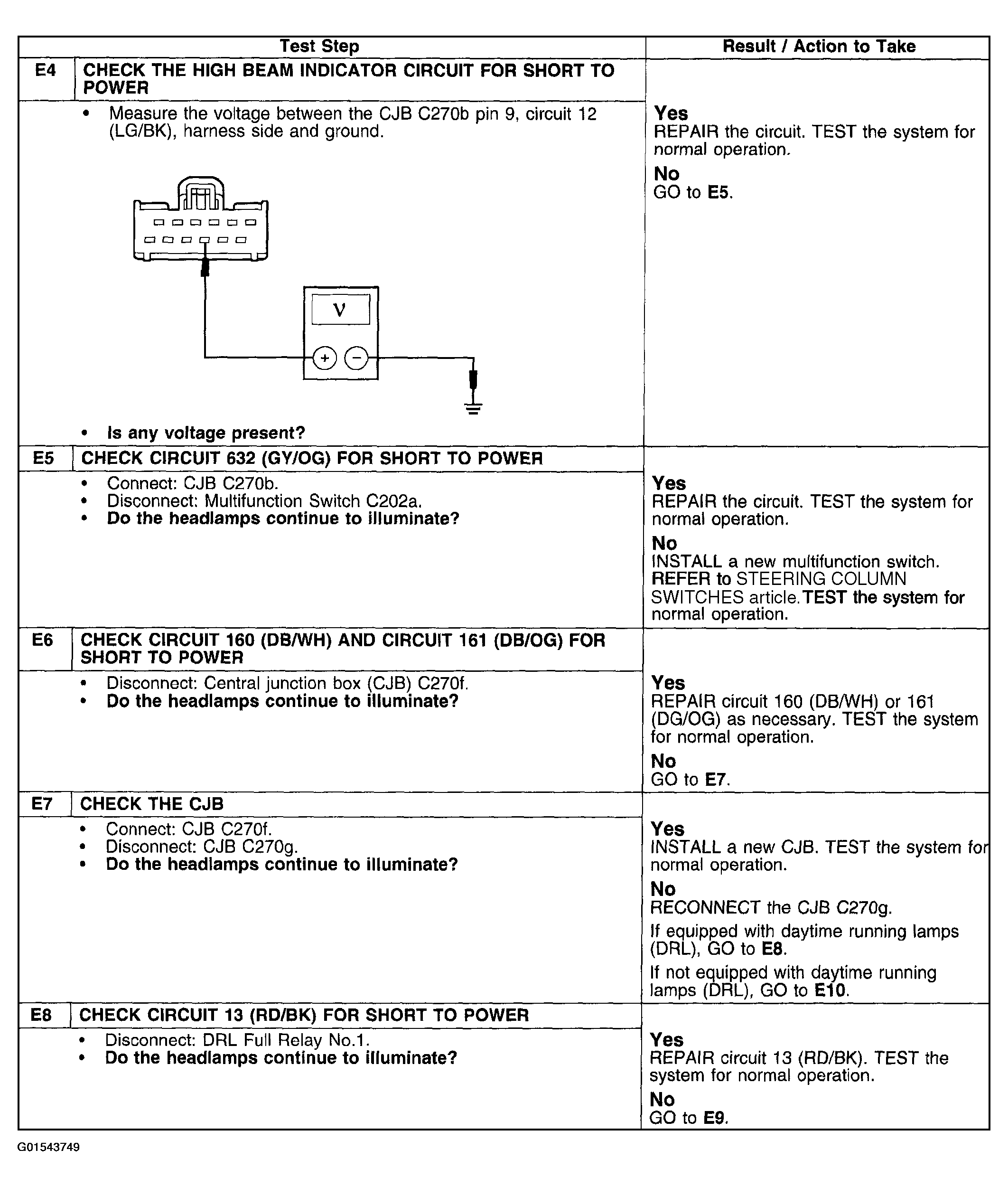

Fig 2: Pinpoint Test E: The Headlamps Are On Continuously (E4-E8)
G01543749Courtesy of FORD MOTOR CO.

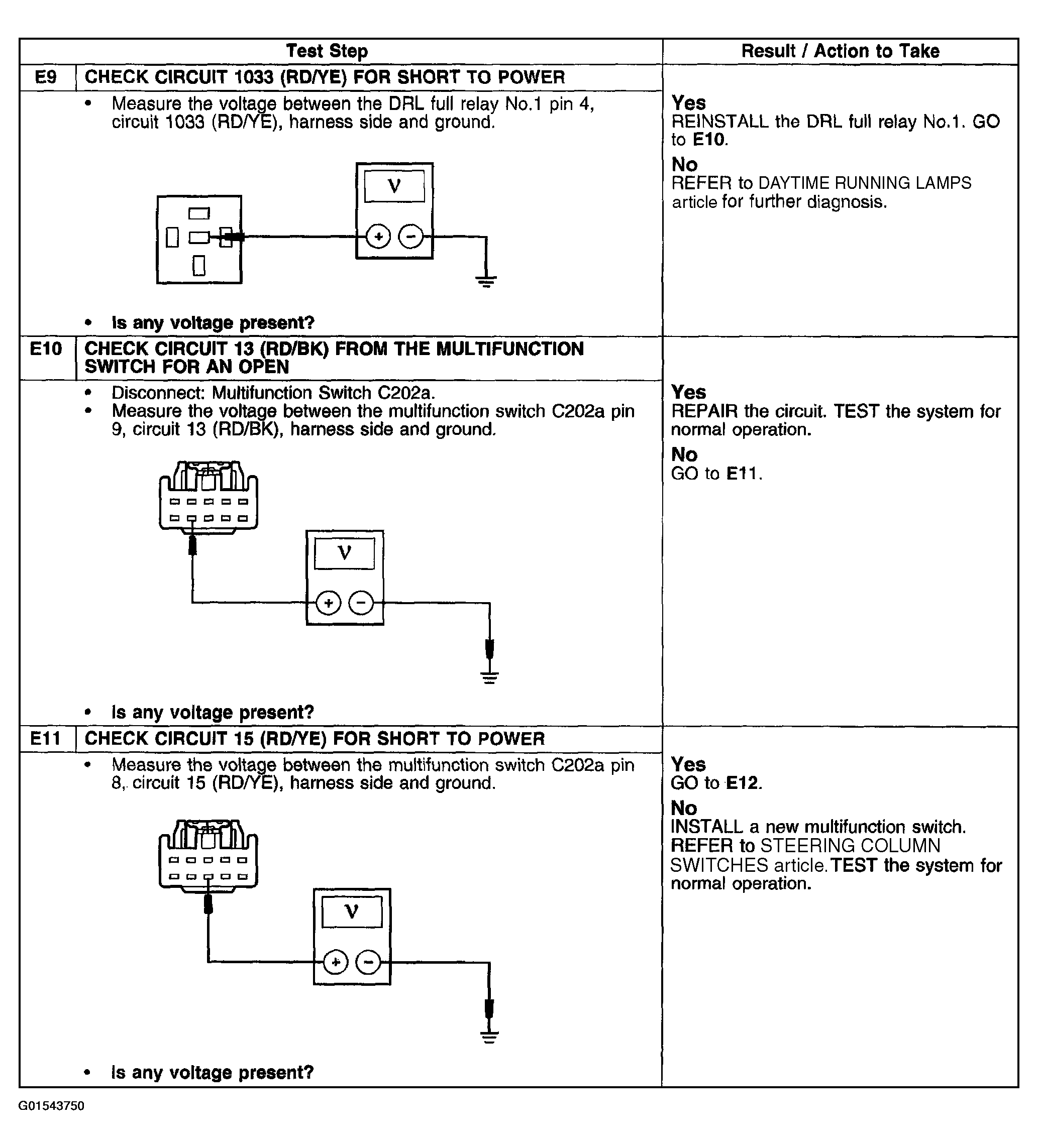

Fig 3: Pinpoint Test E: The Headlamps Are On Continuously (E9-E11)
G01543750Courtesy of FORD MOTOR CO.

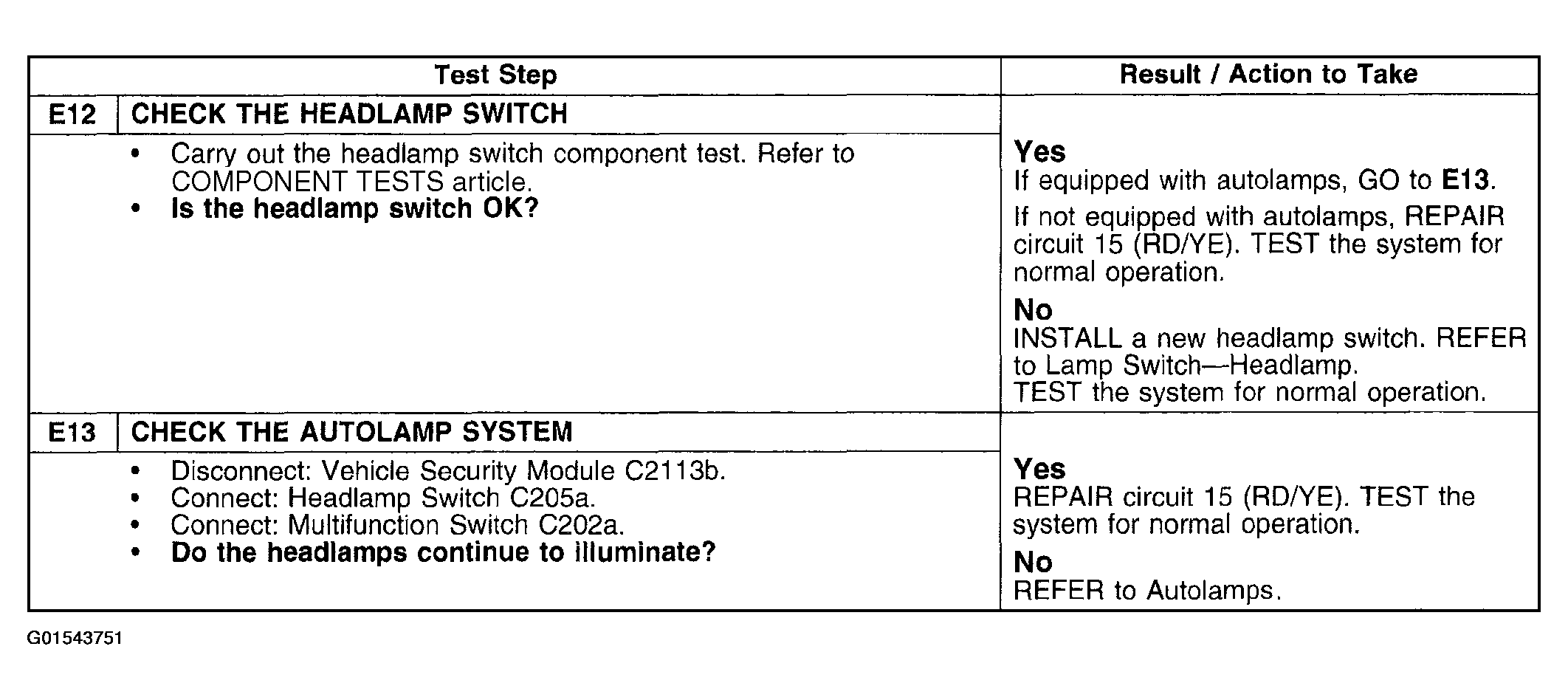

Fig 4: Pinpoint Test E: The Headlamps Are On Continuously (E12 & E13)
G01543751Courtesy of FORD MOTOR CO.
