Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following removal and installation procedures apply only to the original video cassette player (VCP) video system.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the overhead console. Refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the video display electrical connectors.

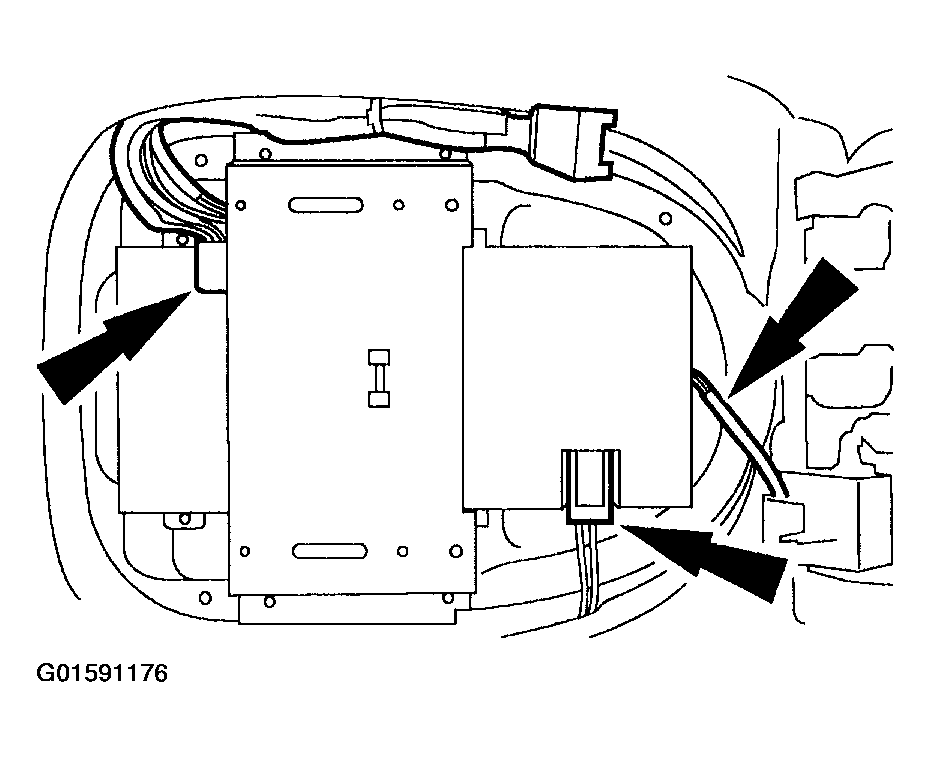

Fig 1: Disconnecting Video Display Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the screws.
- Remove the video display assembly.

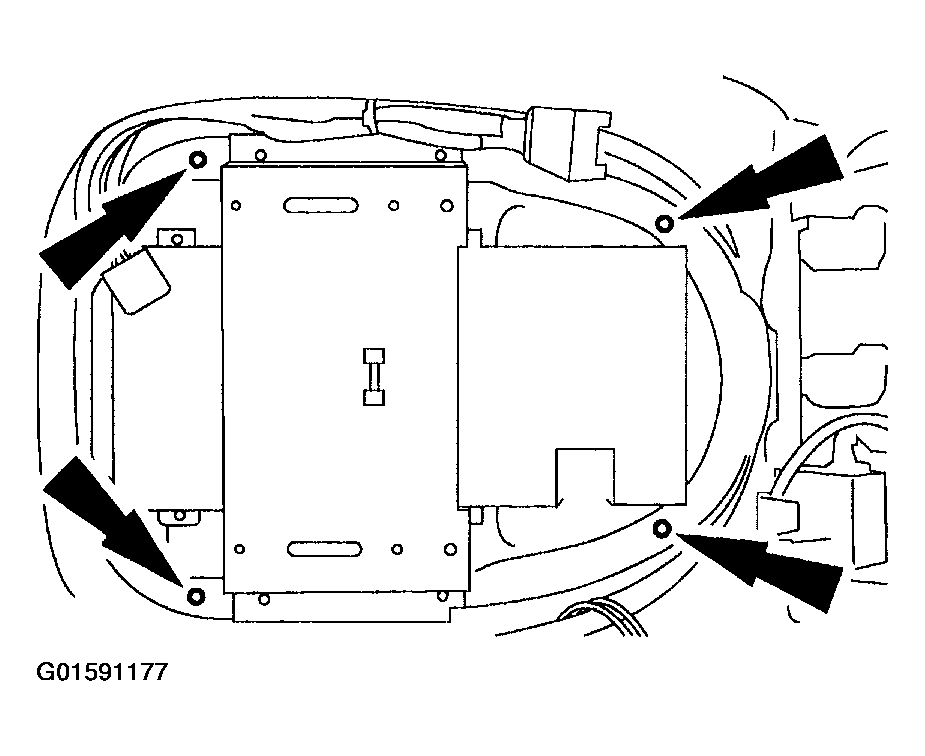

  Fig 2: Removing Video Display Assembly Screws
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
