Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following removal and installation procedures apply to all original equipment mounted video cassette player (VCP) units.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the floor console. Refer to INSTRUMENT PANEL AND CONSOLE .
Remove the four screws.
- Remove the floor console trim panel.

  Fig 1: Removing Floor Console Trim Panel Screws
  Courtesy of FORD MOTOR CO.
Remove the VCP screws.

Fig 2: Removing VCP Screws (1 Of 2)
Courtesy of FORD MOTOR CO.
Remove the VCP screws.

Fig 3: Removing VCP Screws (2 Of 2)
Courtesy of FORD MOTOR CO.
Remove the VCP and bracket assembly.

Fig 4: Removing VCP And Bracket Assembly
Courtesy of FORD MOTOR CO.
Disconnect the VCP electrical connector.

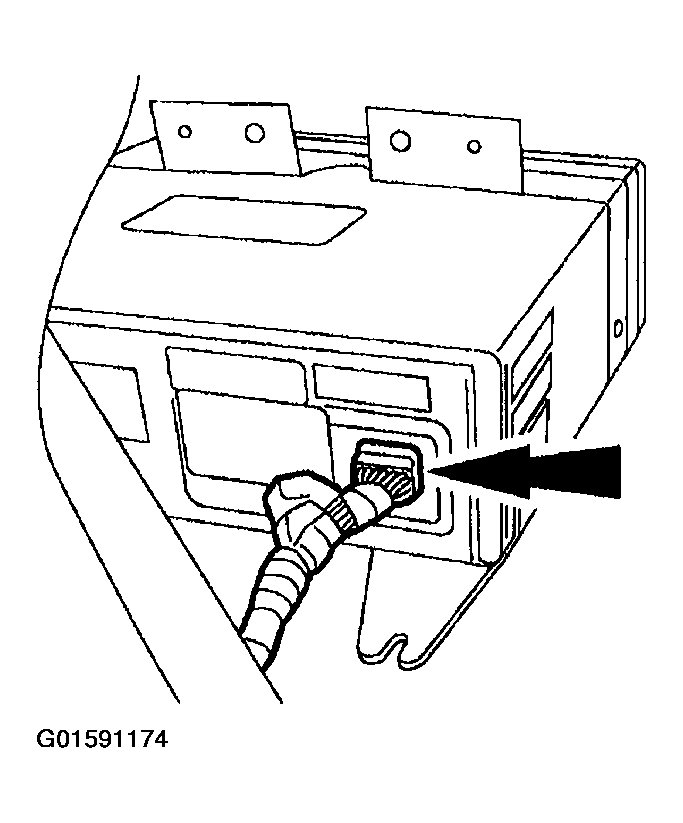

Fig 5: Disconnecting VCP Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the four screws.
- Remove the brackets.

  Fig 6: Removing Brackets Screws
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
