Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
    NOTE: The following removal and installation procedures apply to all original equipment mounted (DVD) player units.
  2. Remove the screws.
    Fig 1: Removing Screws
    G01591167Courtesy of FORD MOTOR CO.
  3. Lower the video system enclosure.
    • Grasp the front edge of the enclosure and pull down gently.
      Fig 2: Lowering Video System Enclosure
      G01591168Courtesy of FORD MOTOR CO.
  4. Remove the DVD player.
    1. Disconnect the electrical connectors.
    2. Remove the screws.

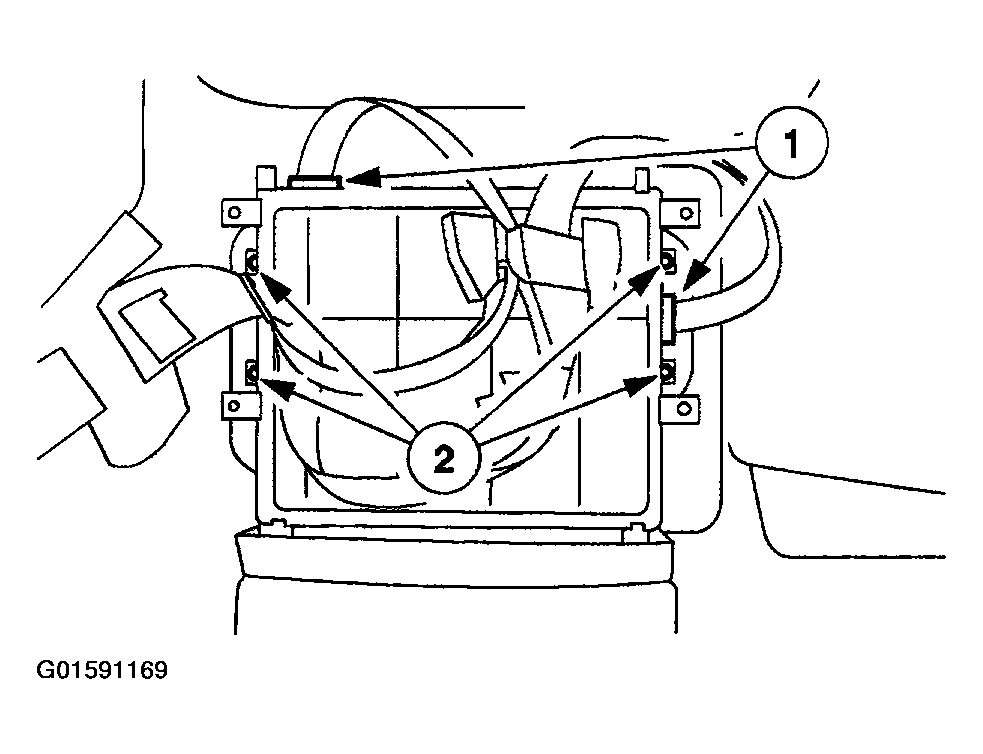

      Fig 3: Removing DVD Player
      G01591169Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
