Steering Wheel Audio Controls

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the steering wheel audio control switch be careful not to damage the leather wrap tied around the switch. New wire ties need to be installed when this procedure is complete to secure the audio control switch harness.

Remove the driver air bag module. Refer to AIR BAG RESTRAINT SYSTEMS .
Remove the steering wheel audio control switch.
- Cut the wire ties.
- Disconnect the electrical connector.

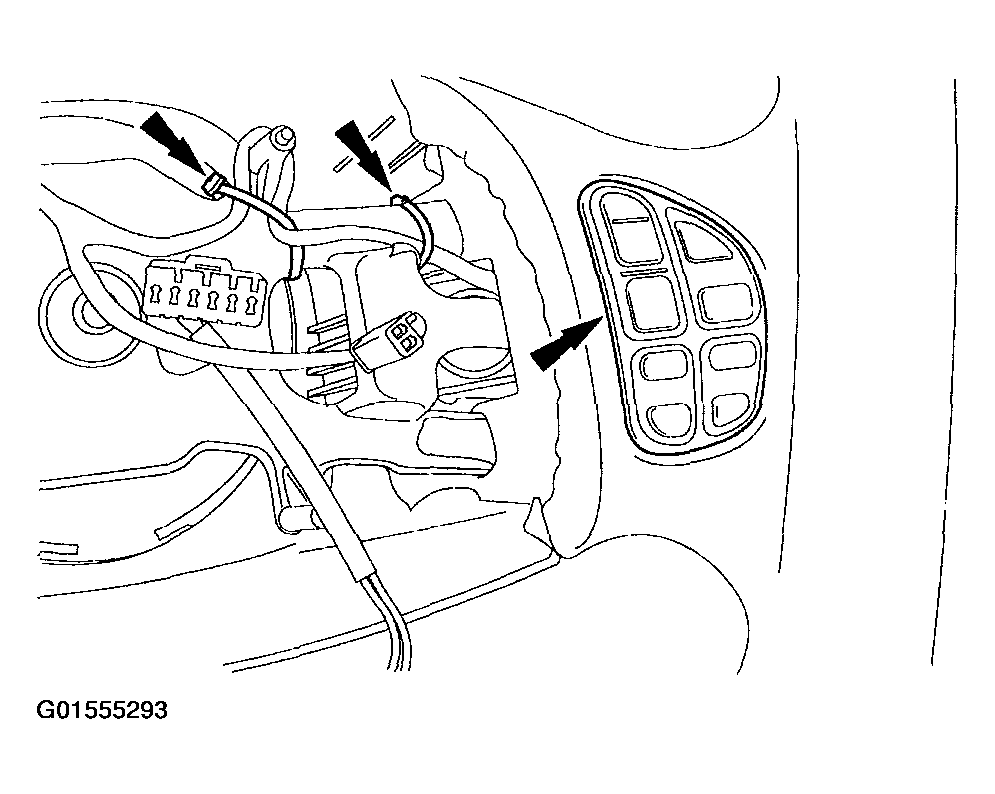

  Fig 1: Removing Steering Wheel Audio Control Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
