Rear Auxiliary Audio Controls

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
Remove the floor console. Refer to INSTRUMENT PANEL AND CONSOLE .
Remove the four screws.
- Remove the floor console trim panel.

  Fig 1: Removing Rear Auxiliary Audio Screws
  Courtesy of FORD MOTOR CO.
Disconnect the rear audio control panel (RACP) electrical connectors.

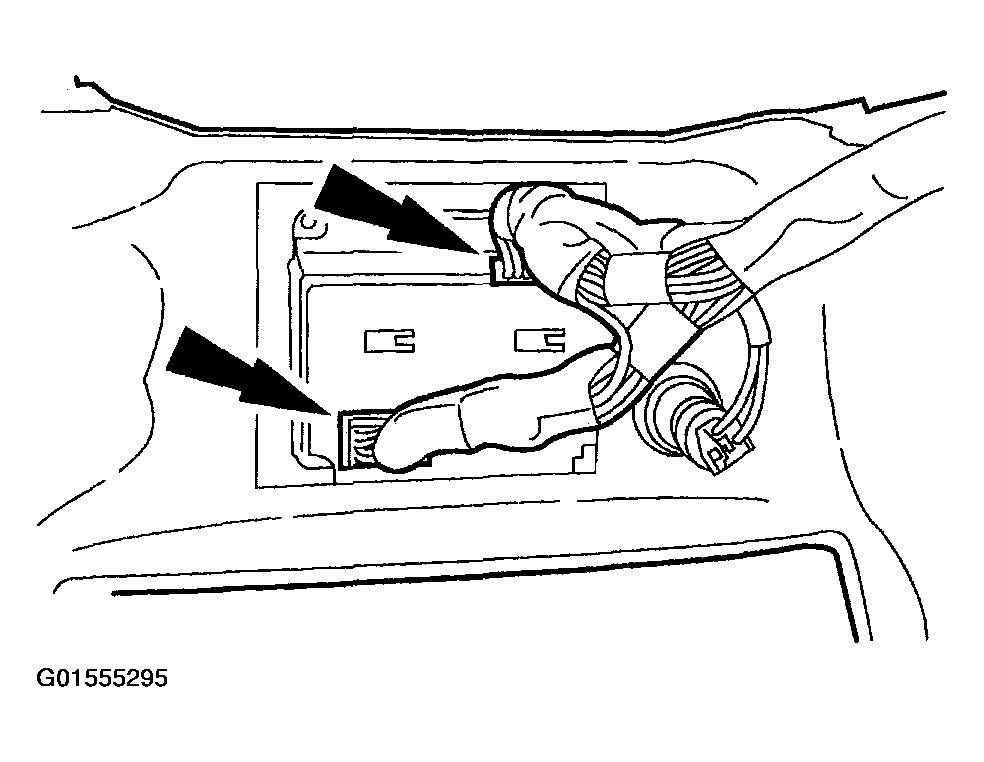

Fig 2: Disconnecting Rear Audio Control Panel (RACP) Electrical Connectors
Courtesy of FORD MOTOR CO.
Depress both retaining tabs and remove the RACP.

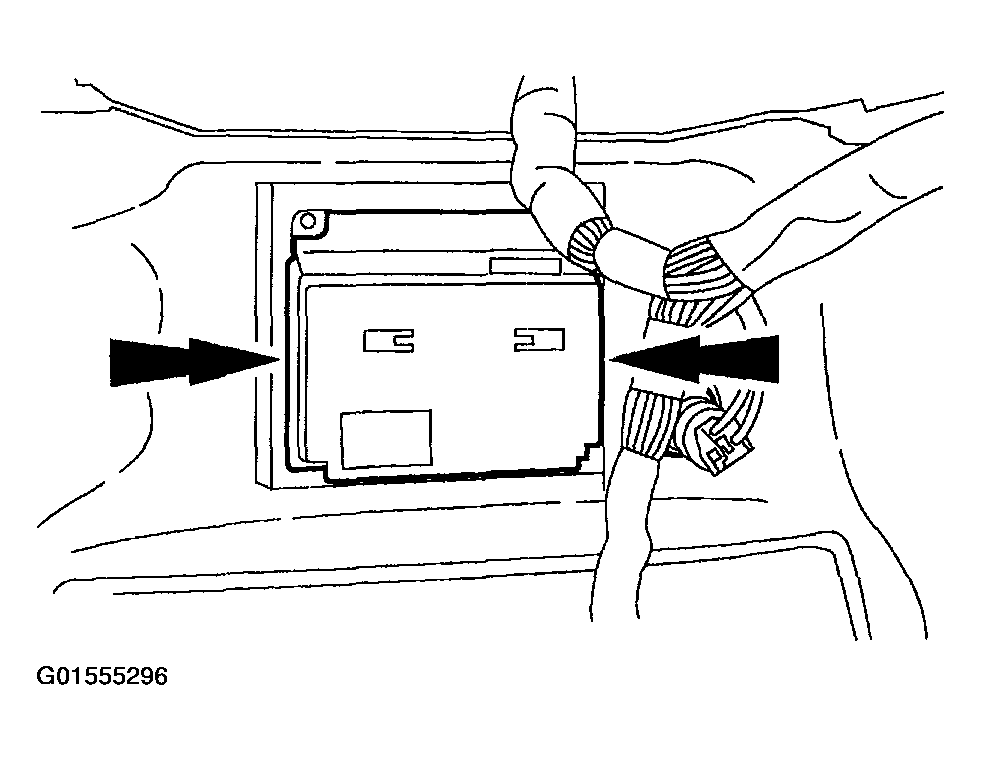

Fig 3: Depressing Retaining Tabs And Removing RACP
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
