Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following removal and installation procedure applies to all audio units.

Disconnect the battery ground cable (14301). Refer to BATTERY, MOUNTING AND CABLES .
Remove the audio unit from the instrument panel.
1. Use the special tool to release the audio unit retaining clips.
2. Apply outward pressure on the special tool while pulling the audio unit away from the instrument panel.
3. Remove the audio unit.
- Disconnect the audio unit electrical connectors.

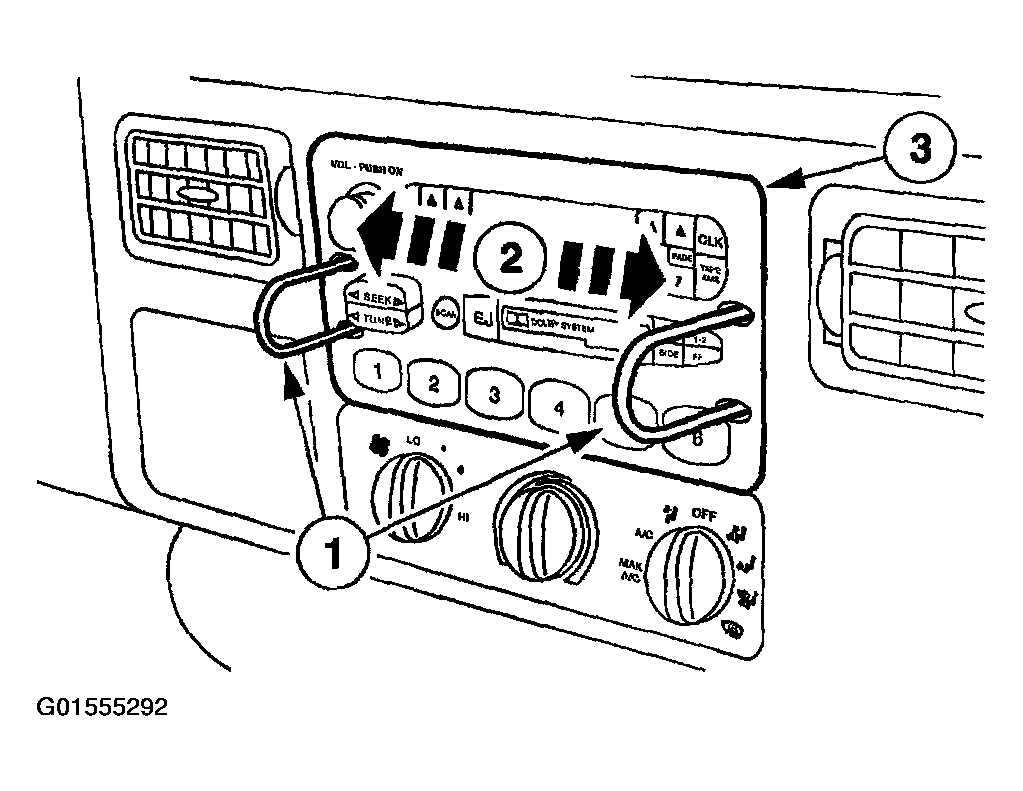

  Fig 1: Removing Audio Unit From Instrument Panel
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
