Pinpoint Test Q: Auxiliary Audio Control Is Inoperative - Steering Wheel Control

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

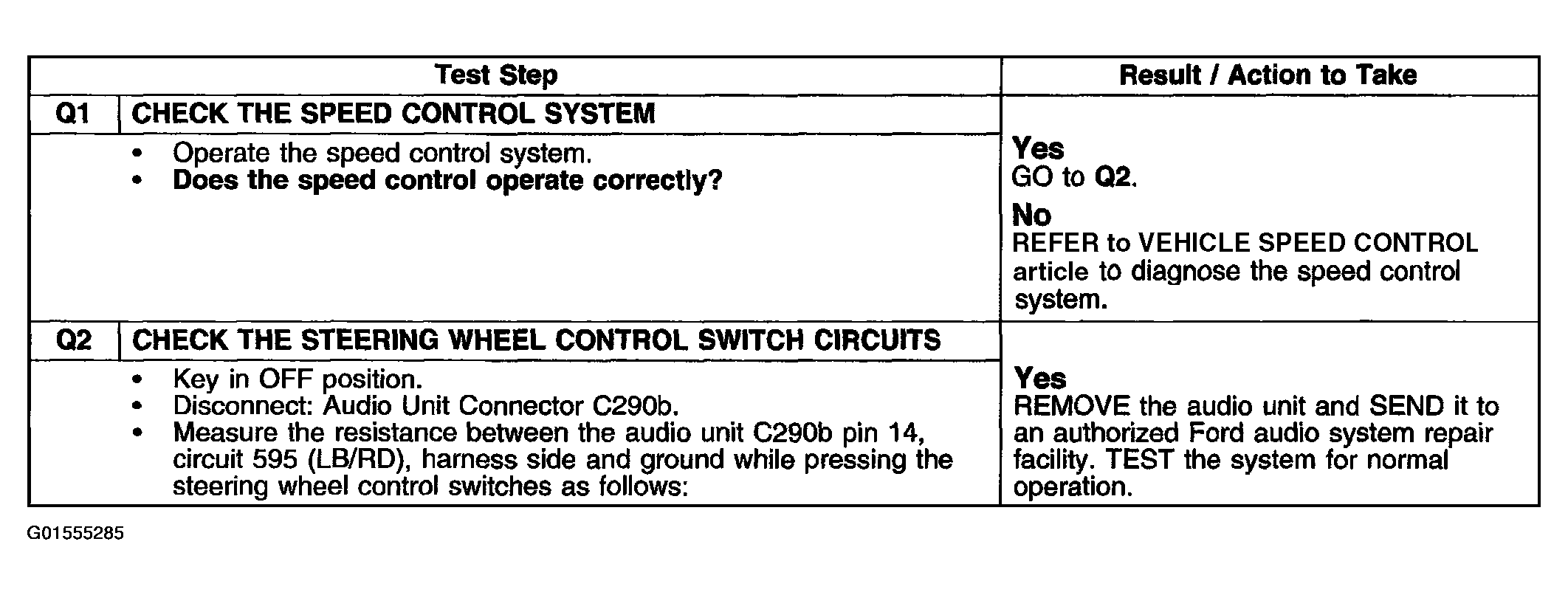

Fig 1: Pinpoint Test Q: Auxiliary Audio Control Is Inoperative - Steering Wheel Control (Q1 & Q2)
G01555285Courtesy of FORD MOTOR CO.

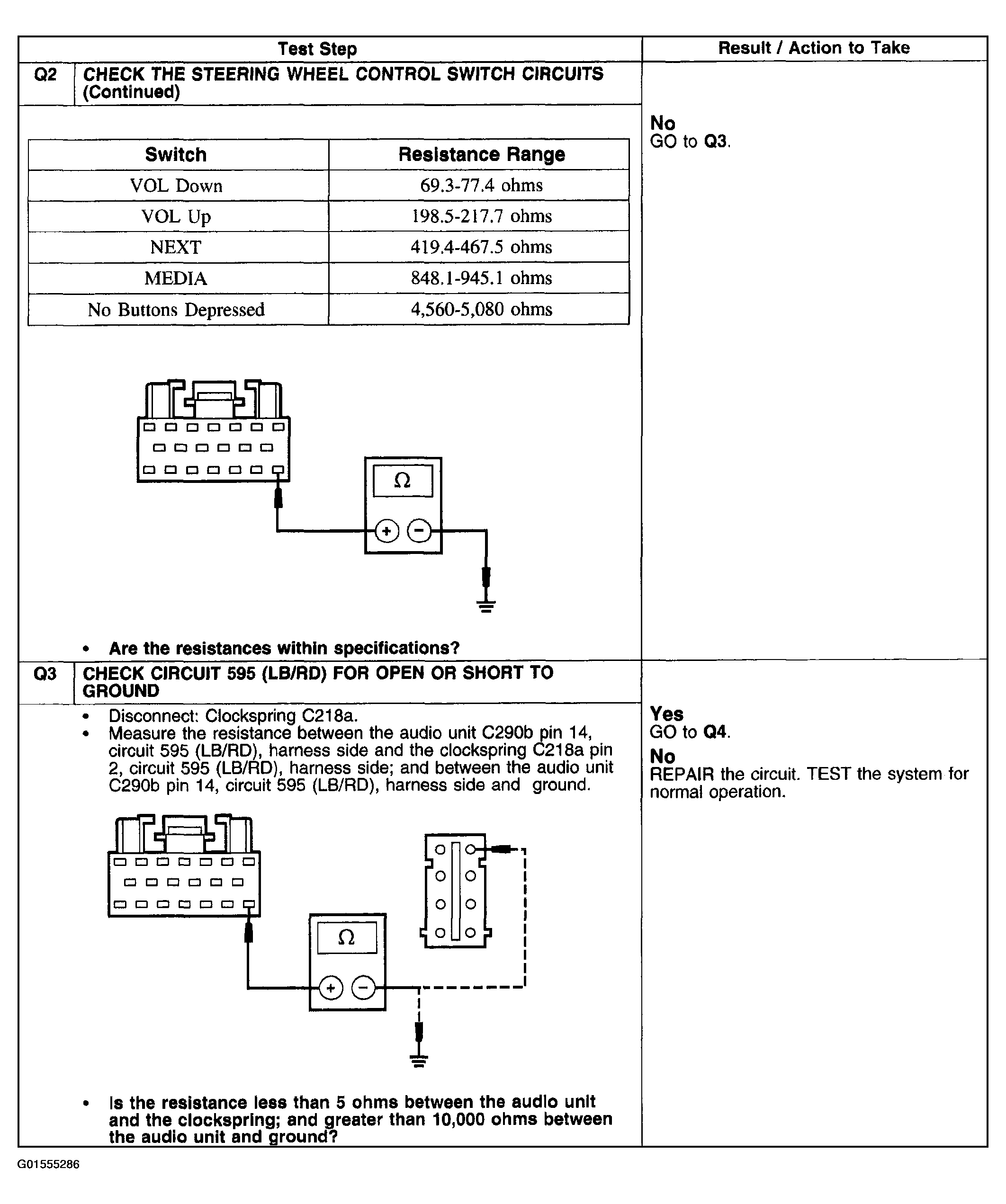

Fig 2: Pinpoint Test Q: Auxiliary Audio Control Is Inoperative - Steering Wheel Control (Q2 Cont. & Q3)
G01555286Courtesy of FORD MOTOR CO.

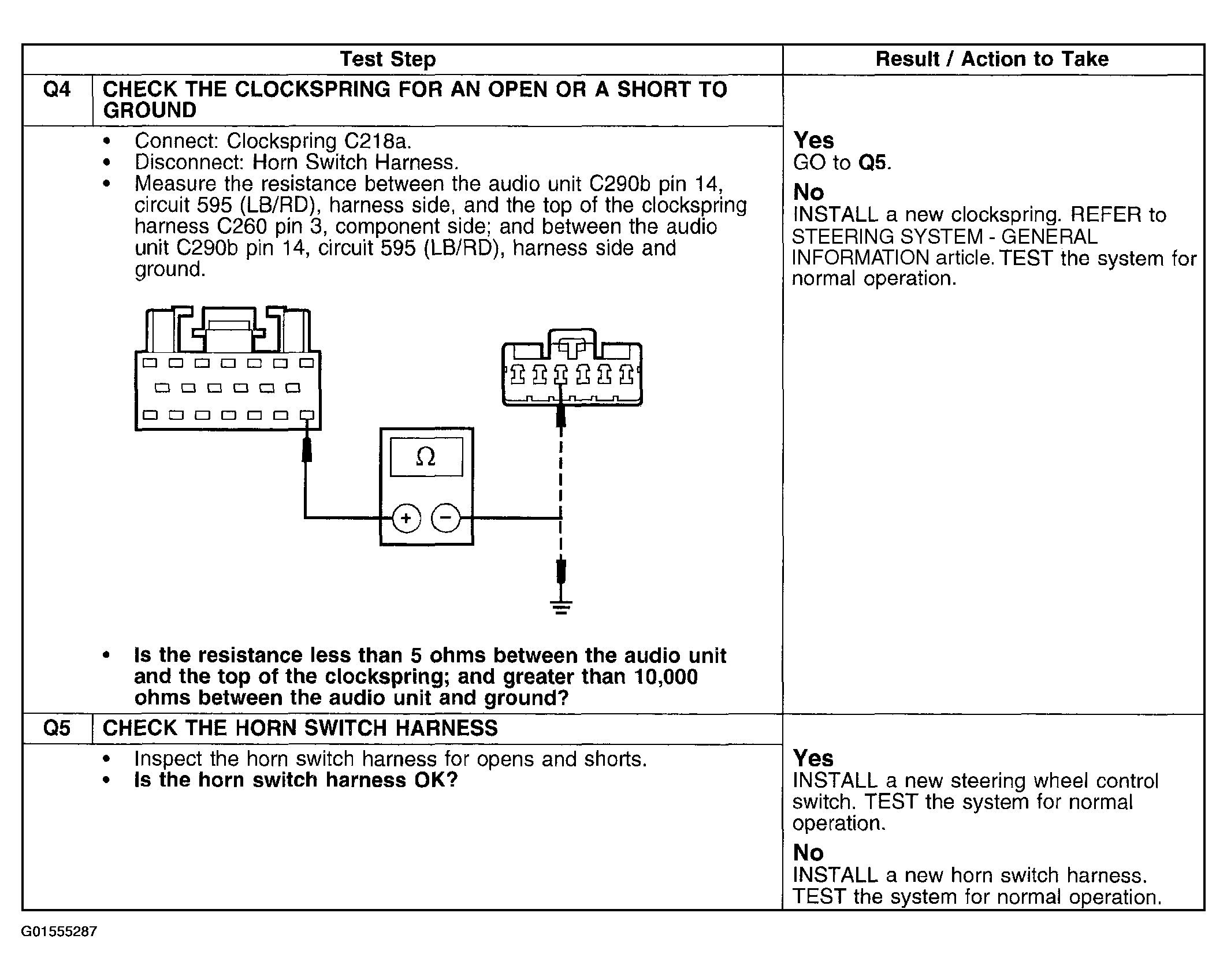

Fig 3: Pinpoint Test Q: Auxiliary Audio Control Is Inoperative - Steering Wheel Control (Q4 & Q5)
G01555287Courtesy of FORD MOTOR CO.
