Pinpoint Test O: Video System Is Inoperative - No Video (DVD Only)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

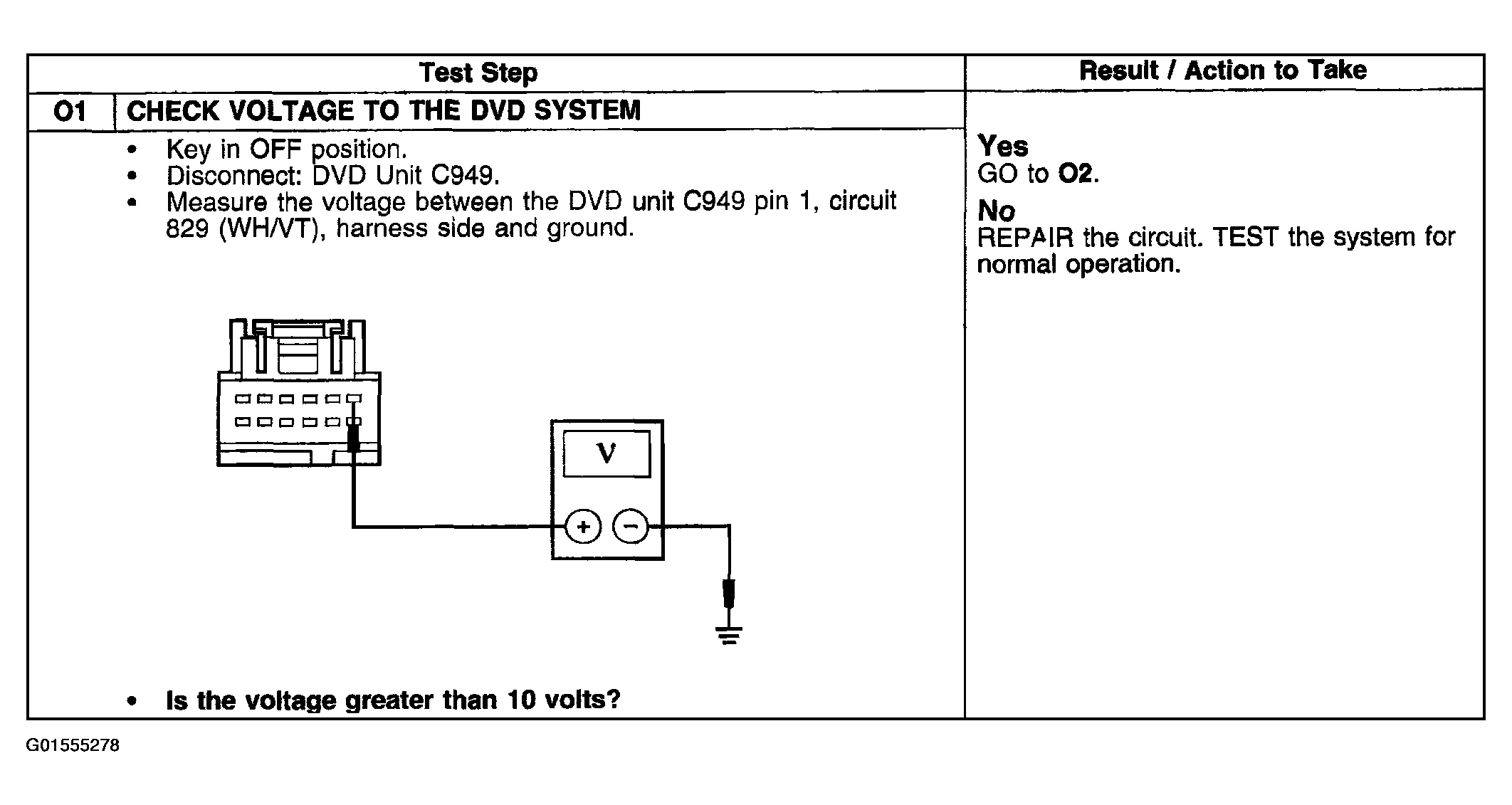

Fig 1: Pinpoint Test O: Video System Is Inoperative - No Video (DVD Only) (O1)
G01555278Courtesy of FORD MOTOR CO.

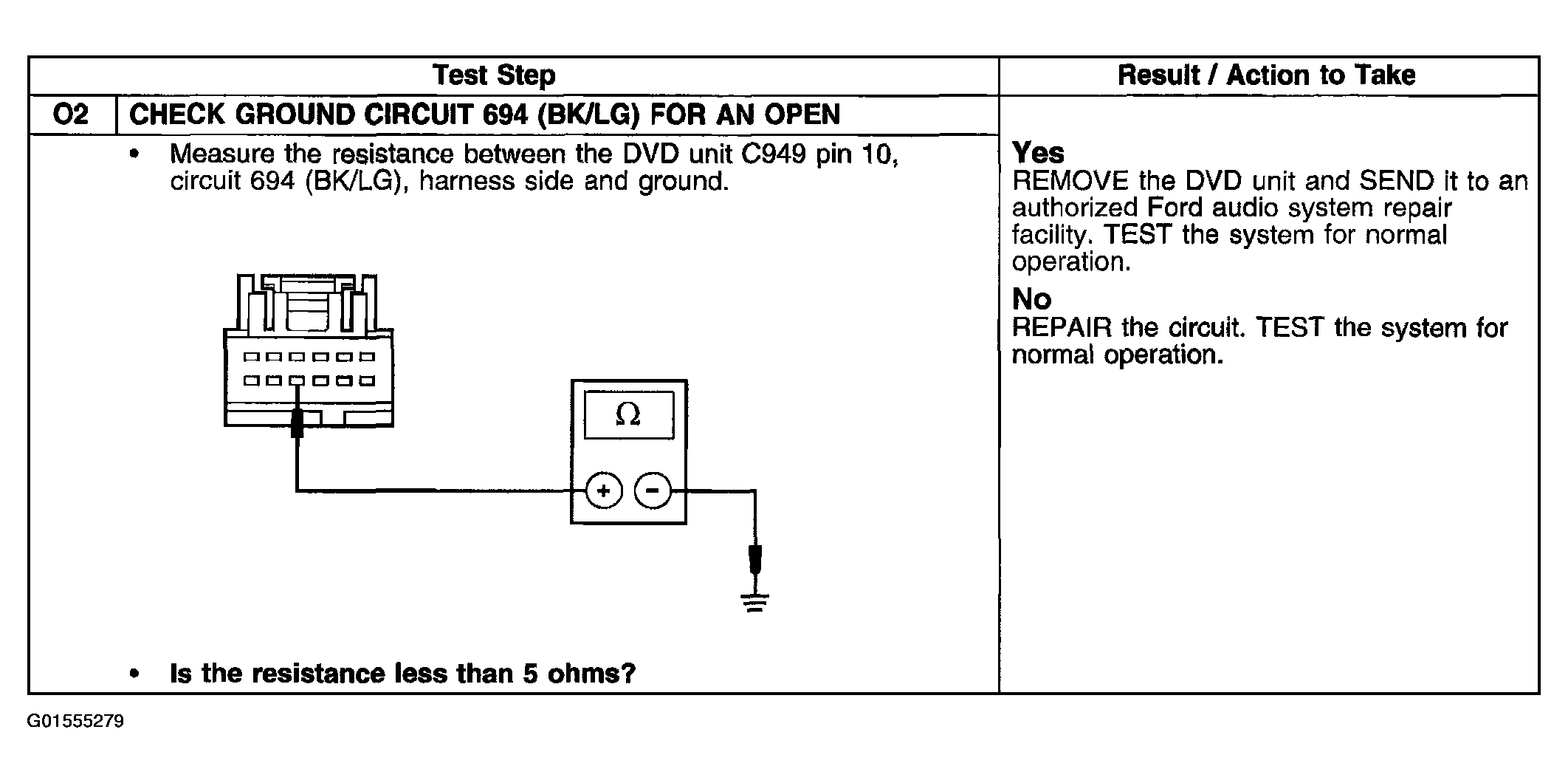

Fig 2: Pinpoint Test O: Video System Is Inoperative - No Video (DVD Only) (O2)
G01555279Courtesy of FORD MOTOR CO.
