Pinpoint Test L: Video Display Is Inoperative - No Picture With Video Display On (VCP Only)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

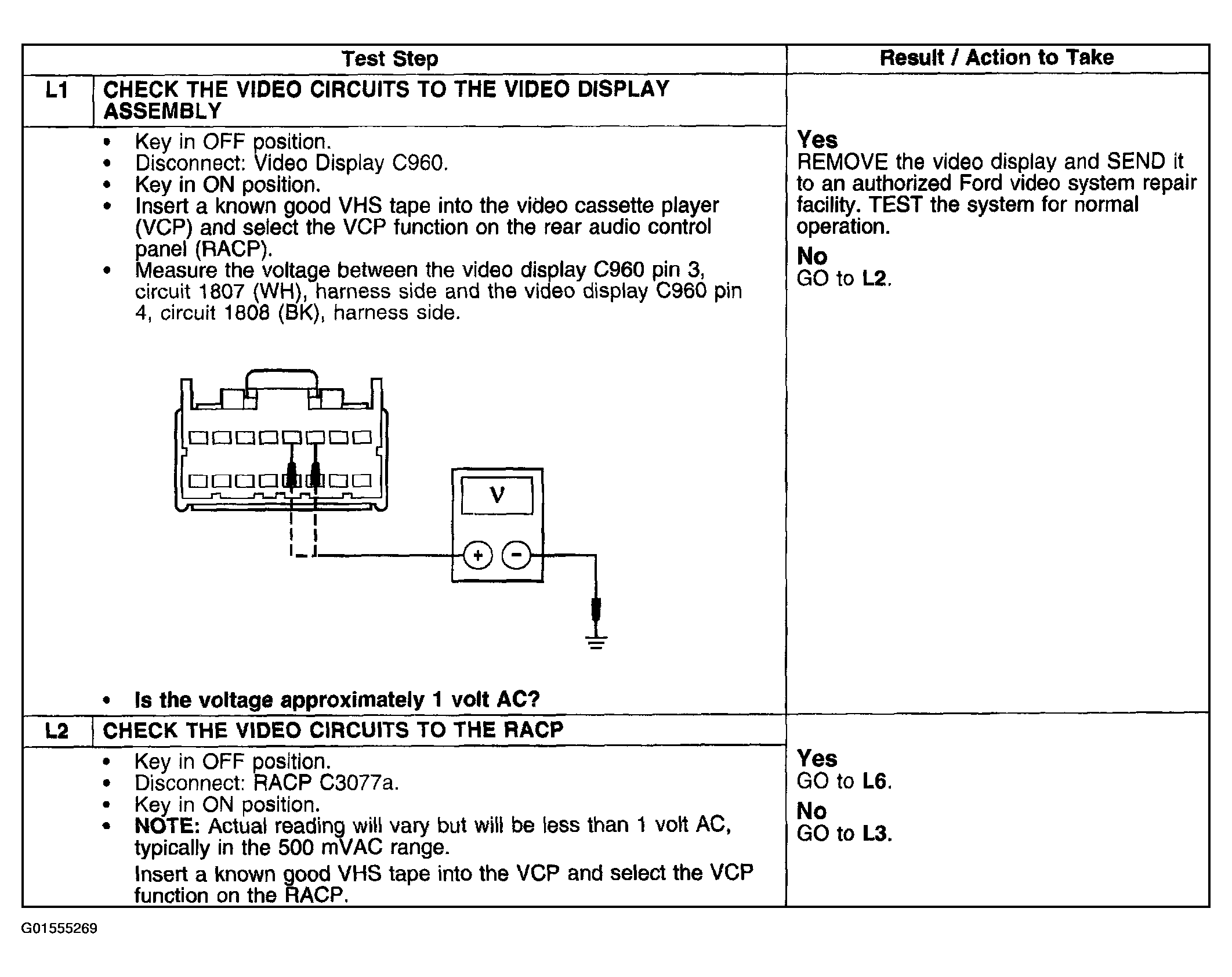

Fig 1: Pinpoint Test L: Video Display Is Inoperative - No Picture With Video Display On (VCP Only) (L1 & l2)
G01555269Courtesy of FORD MOTOR CO.

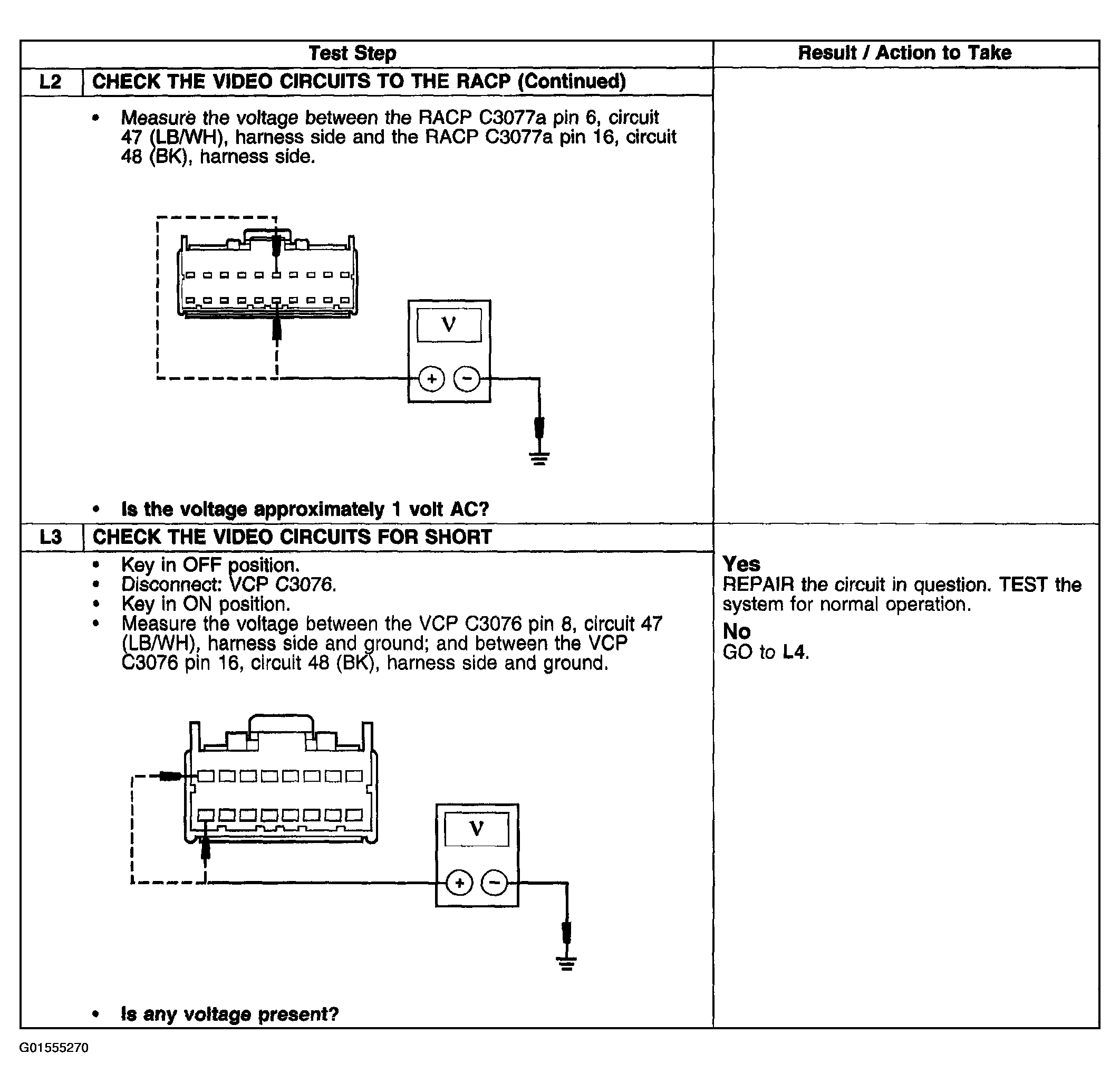

Fig 2: Pinpoint Test L: Video Display Is Inoperative - No Picture With Video Display On (VCP Only) (L2 Cont & L3)
G01555270Courtesy of FORD MOTOR CO.

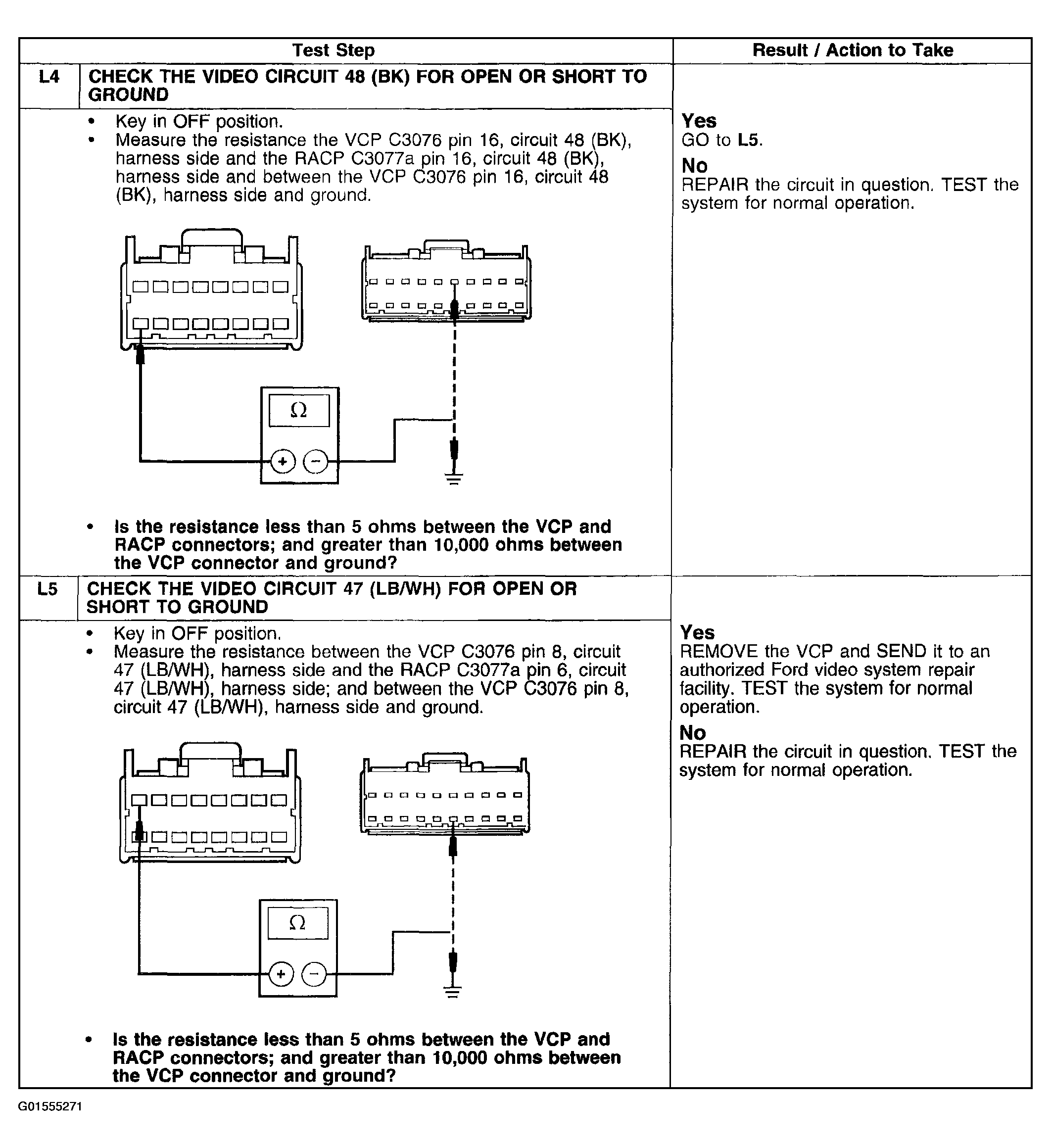

Fig 3: Pinpoint Test L: Video Display Is Inoperative - No Picture With Video Display On (VCP Only) (L4 & L5)
G01555271Courtesy of FORD MOTOR CO.

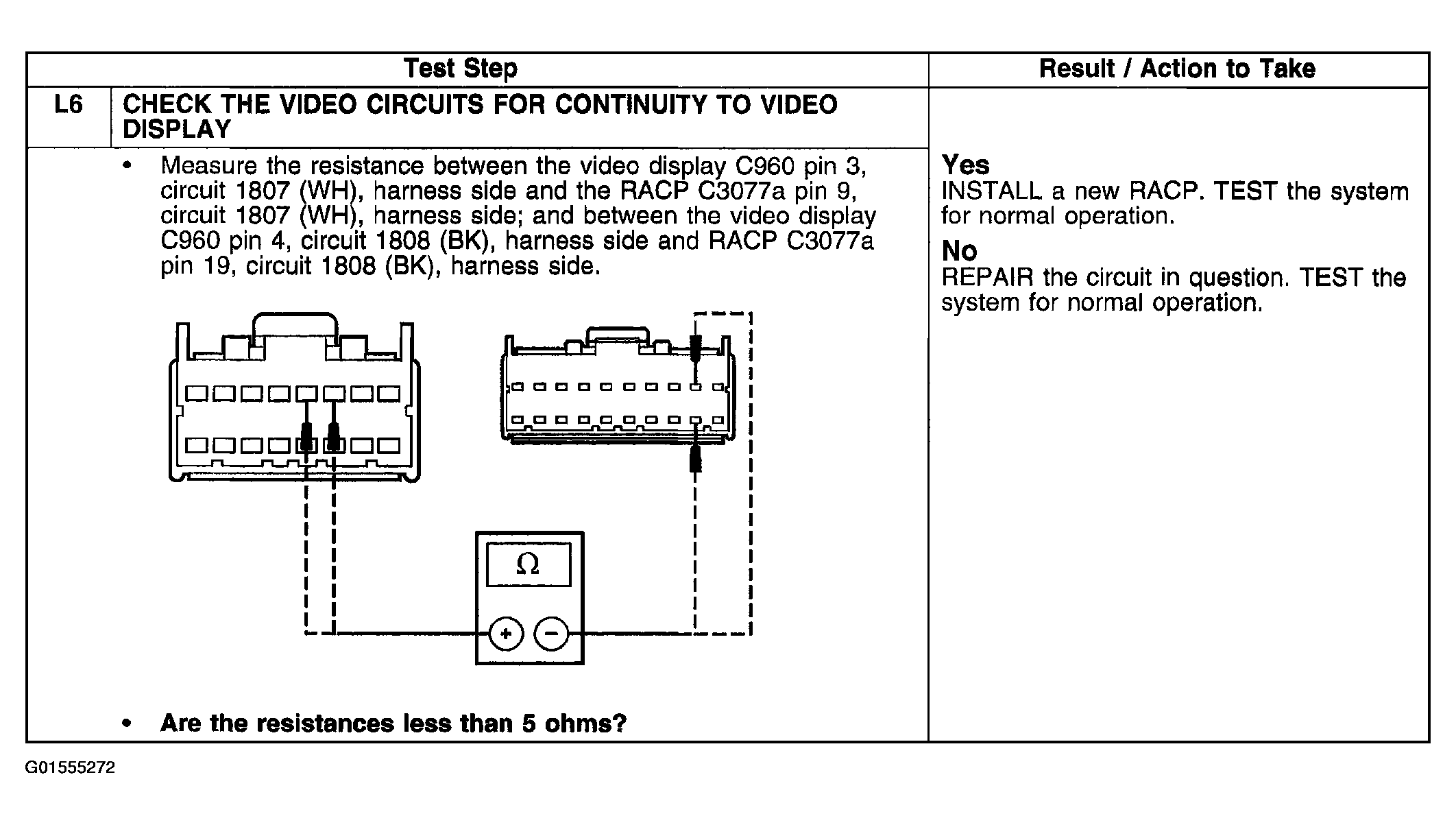

Fig 4: Pinpoint Test L: Video Display Is Inoperative - No Picture With Video Display On (VCP Only) (L6)
G01555272Courtesy of FORD MOTOR CO.
