Pinpoint Test I: Auxiliary Audio Control Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

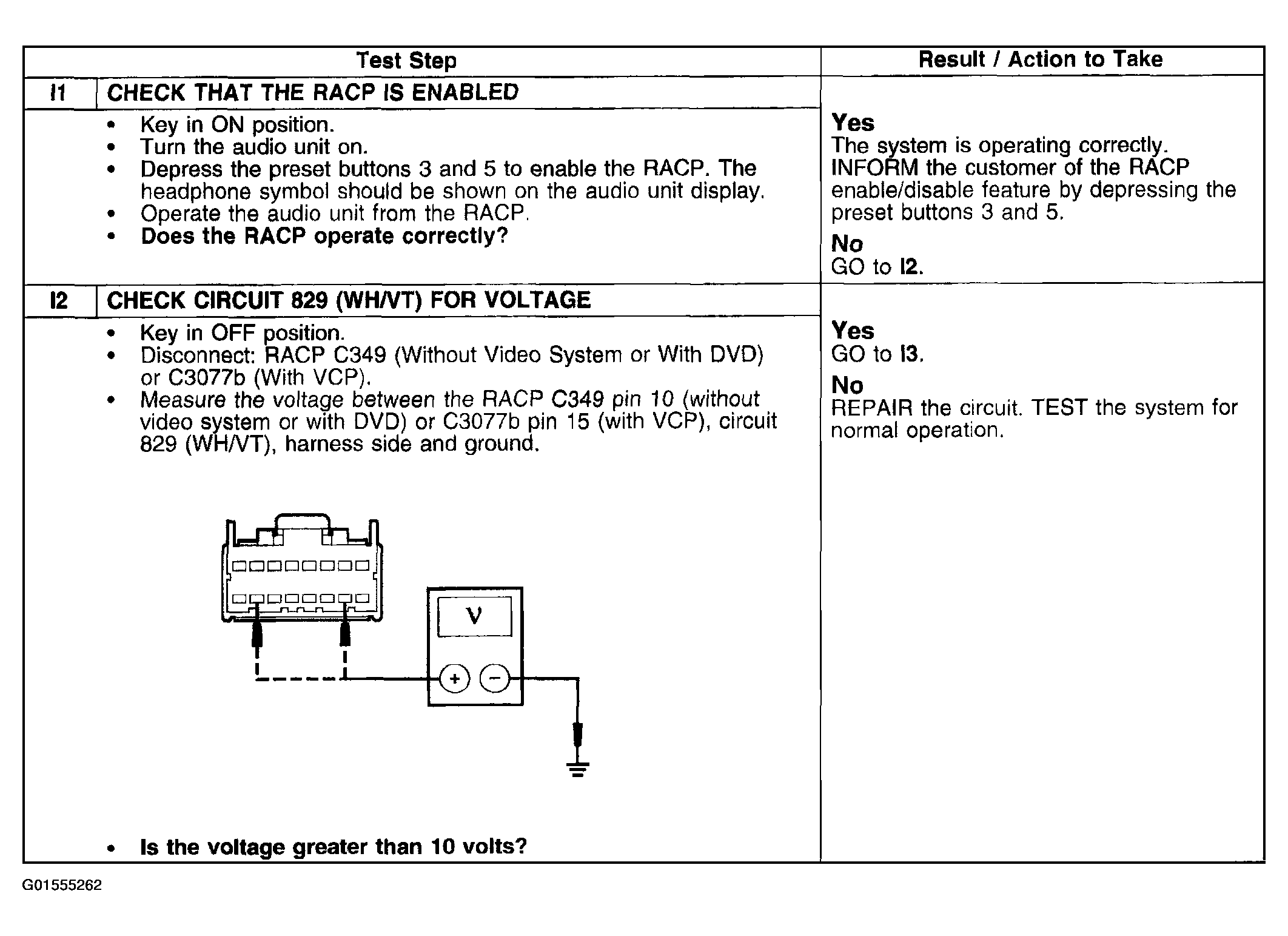

Fig 1: Pinpoint Test I: Auxiliary Audio Control Is Inoperative (I1 & I2)
G01555262Courtesy of FORD MOTOR CO.

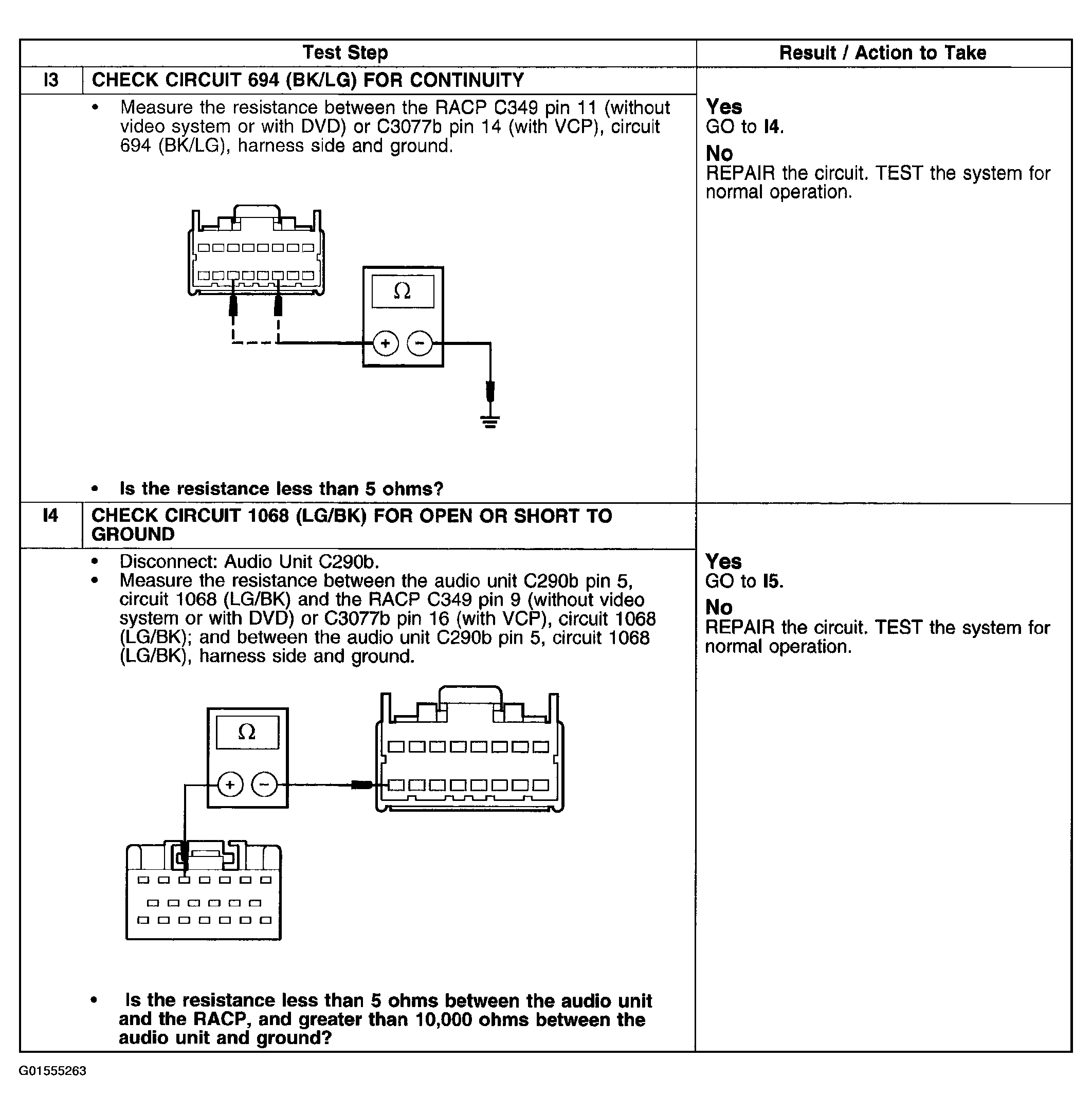

Fig 2: Pinpoint Test I: Auxiliary Audio Control Is Inoperative (I3 & I4)
G01555263Courtesy of FORD MOTOR CO.

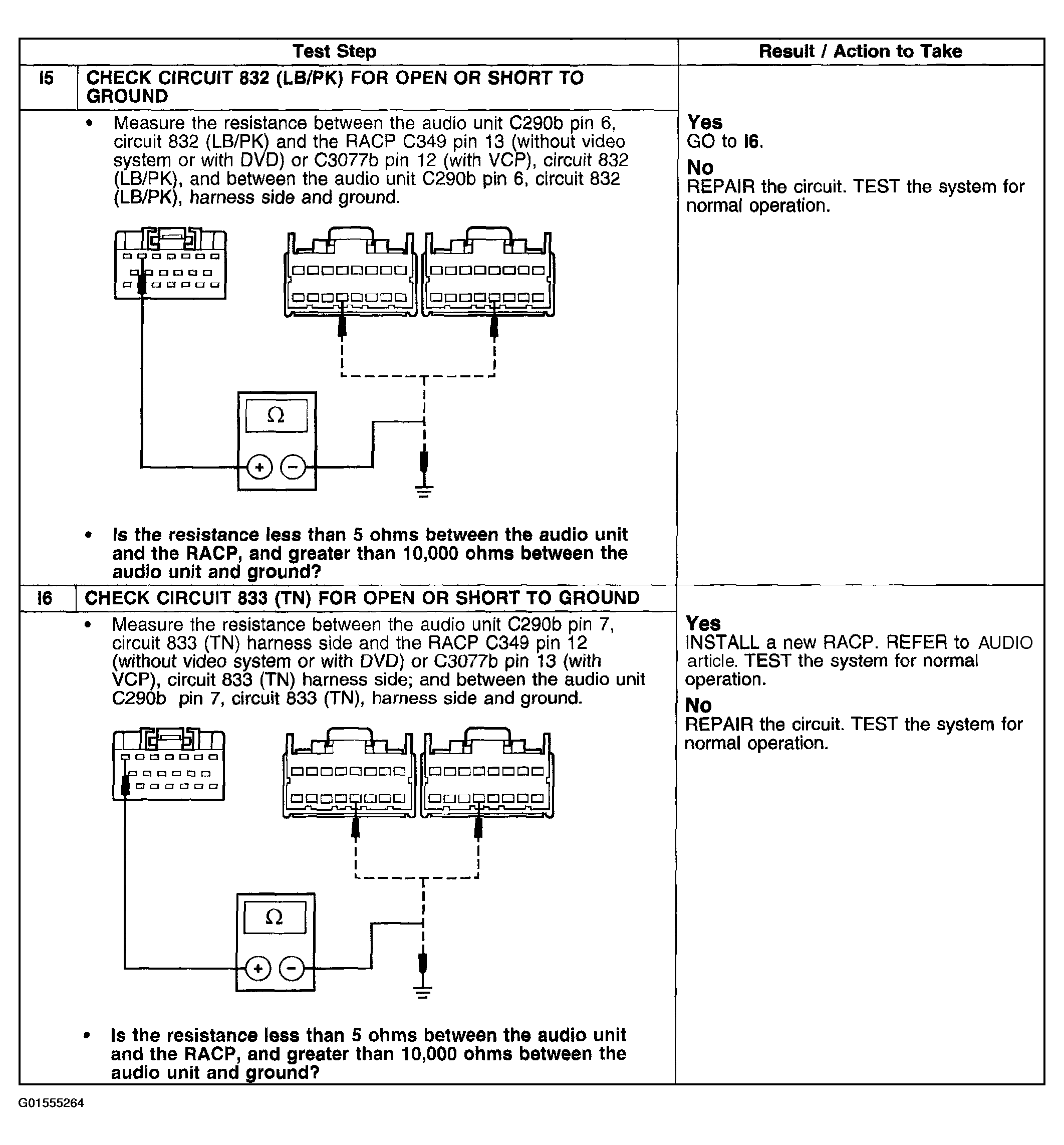

Fig 3: Pinpoint Test I: Auxiliary Audio Control Is Inoperative (I5 & I6)
G01555264Courtesy of FORD MOTOR CO.
