Pinpoint Test C: Continuous Seek/Scan In Am/Fm

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

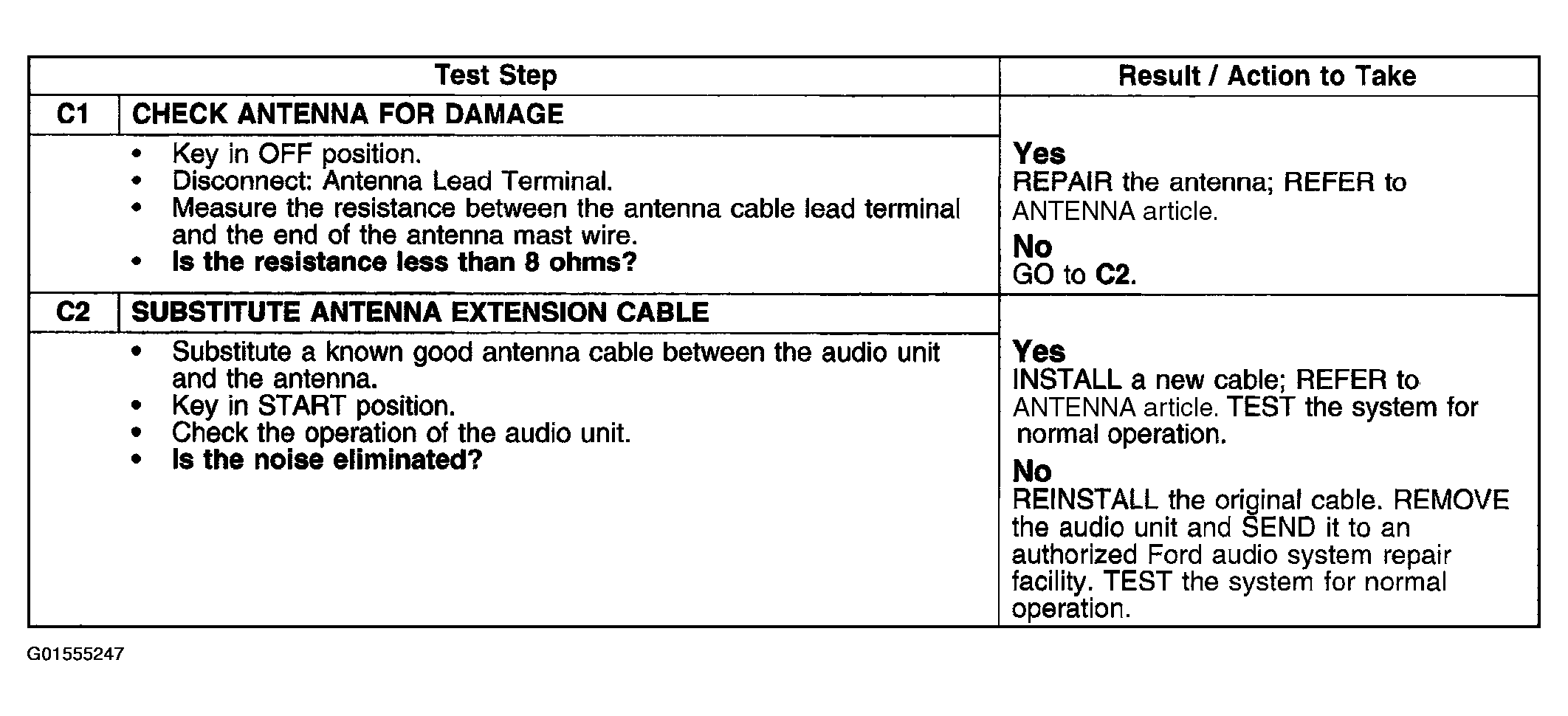

Fig 1: Pinpoint Test C: Continuous Seek/Scan In AM/FM (C1 & C2)
G01555247Courtesy of FORD MOTOR CO.
