Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. Refer to Battery Disconnect or BATTERY DISCONNECT - Dual .
Remove the bolt and the battery hold down clamp.

Fig 1: Removing Bolt And Battery Hold Down Clamp
Courtesy of FORD MOTOR CO.
Remove the battery.
WARNING: When lifting a battery, excessive pressure on the end walls could cause acid to spew through the vent caps, resulting in personal injury. Lift with a battery carrier or with hands on opposite corners. Failure to follow these instructions may result in personal injury.

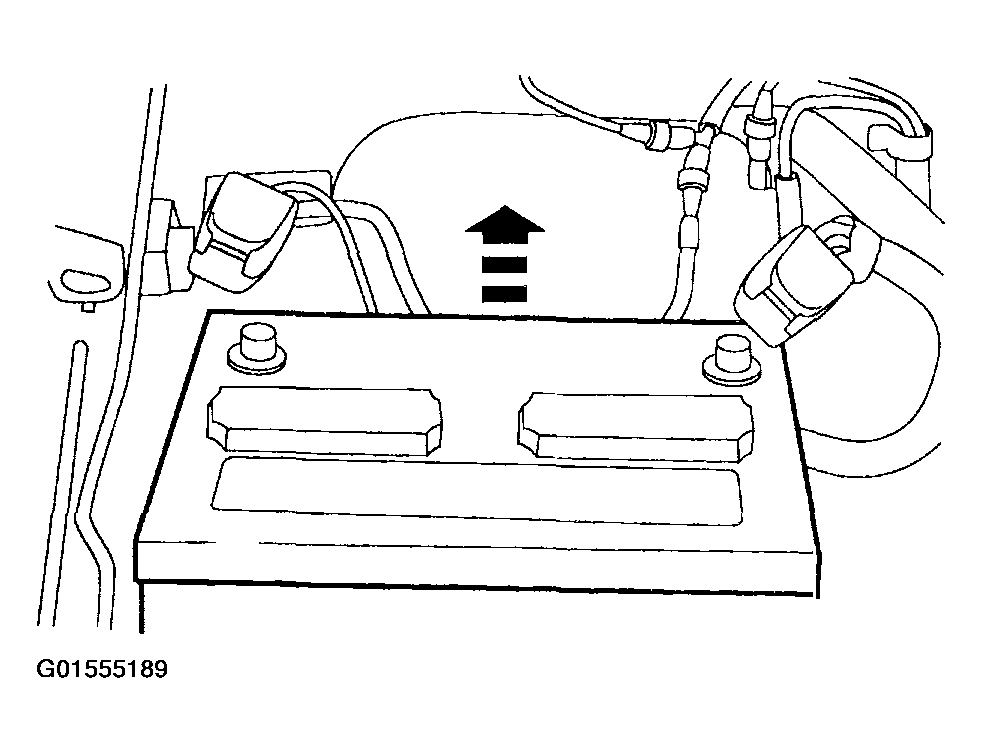

Fig 2: Removing Battery
Courtesy of FORD MOTOR CO.
If equipped, remove the battery cover.
CAUTION: Be sure the battery cover is reinstalled to avoid premature battery failure.
To install, reverse the removal procedure.
