Battery Tray - Auxiliary

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary battery. Refer to Auxiliary Battery .
  2. Remove the air cleaner assembly.
  3. Remove the bolts and remove the battery tray.

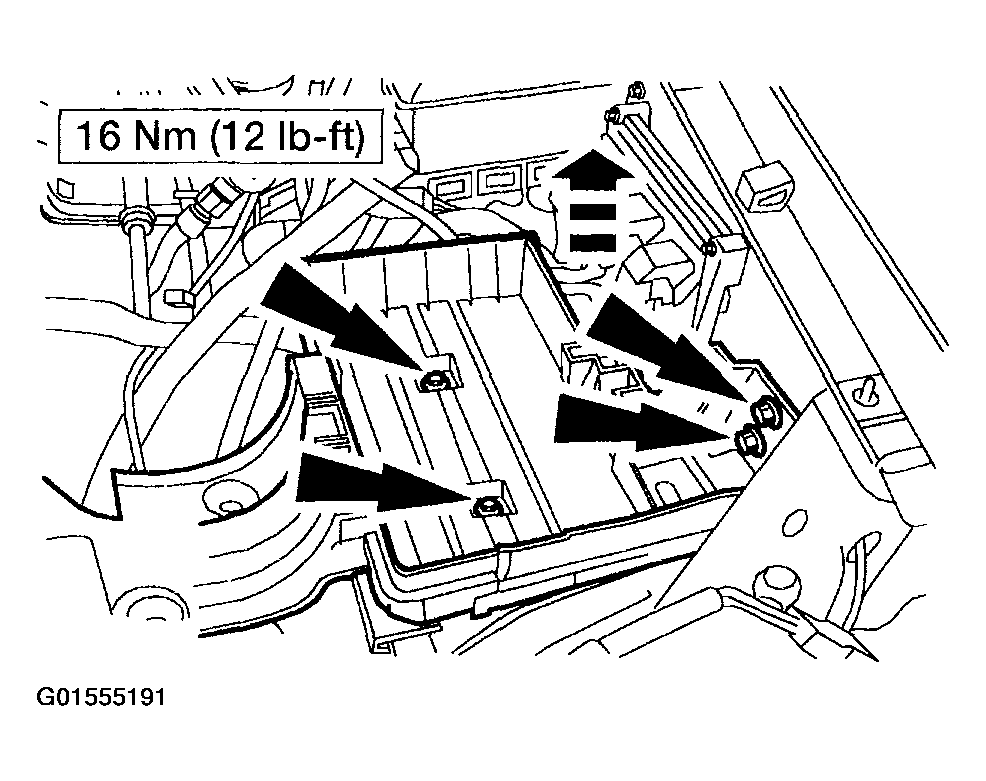

    Fig 1: Removing Bolts And Removing Battery Tray (Auxiliary)
    G01555191Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
