Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. Refer to Battery Disconnect .

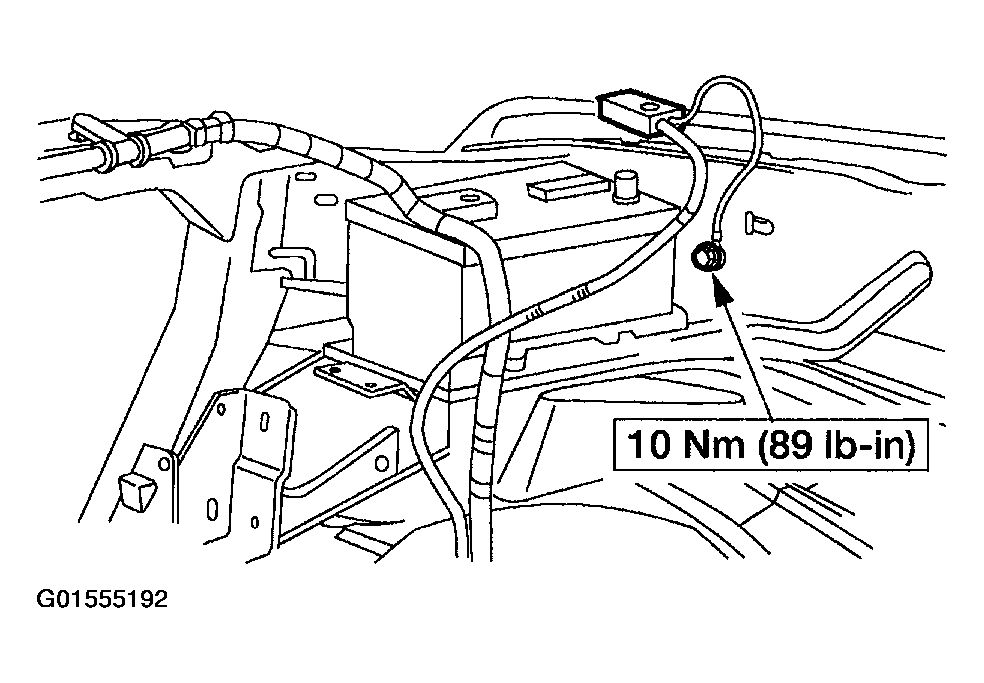

Remove the battery ground cable screw and remove the cable.

Fig 1: Removing Battery Ground Cable Screw
Courtesy of FORD MOTOR CO.
Remove the screw located on top of the frame rail.

Fig 2: Removing Screw Located On Top Of Frame Rail
Courtesy of FORD MOTOR CO.

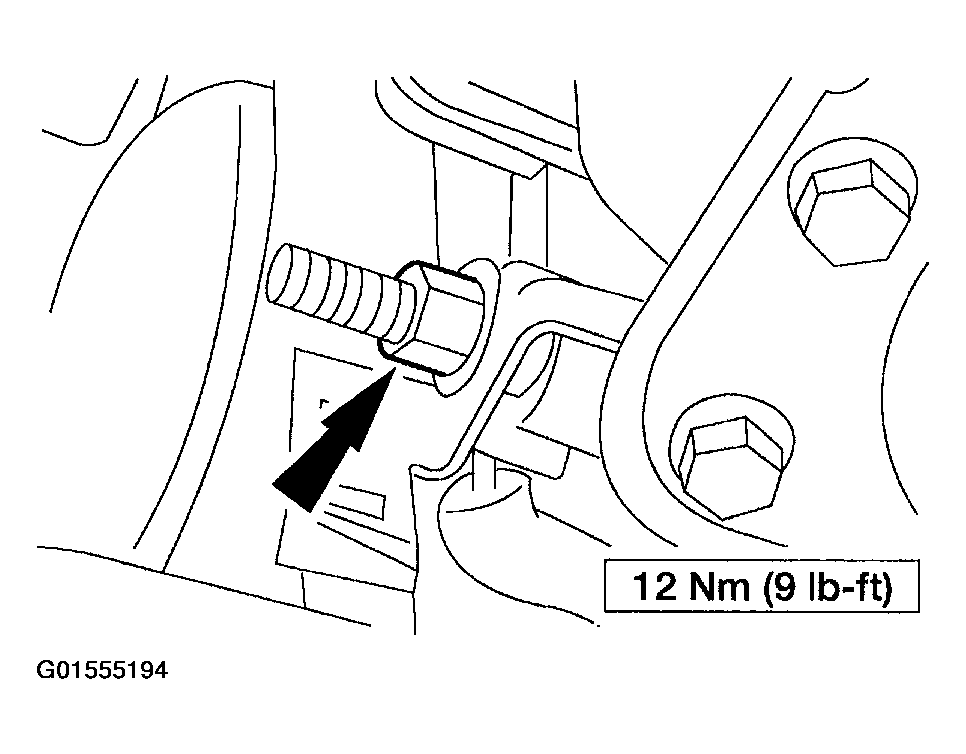

Remove the nut on bottom of the engine, near the front engine cover.

Fig 3: Removing Nut On Bottom Of Engine, Near Front Engine Cover
Courtesy of FORD MOTOR CO.

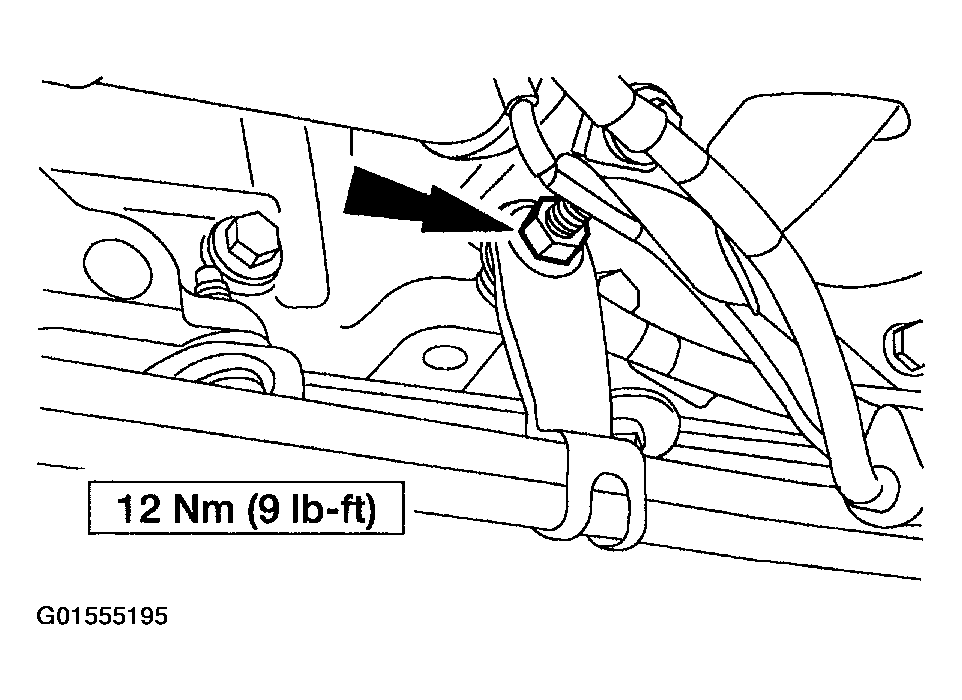

Remove the nut located on the engine block right above the oil pan rail. Pull the transmission line bracket off the stud.

Fig 4: Removing Nut Located On Engine Block Right Above Oil Pan Rail
Courtesy of FORD MOTOR CO.

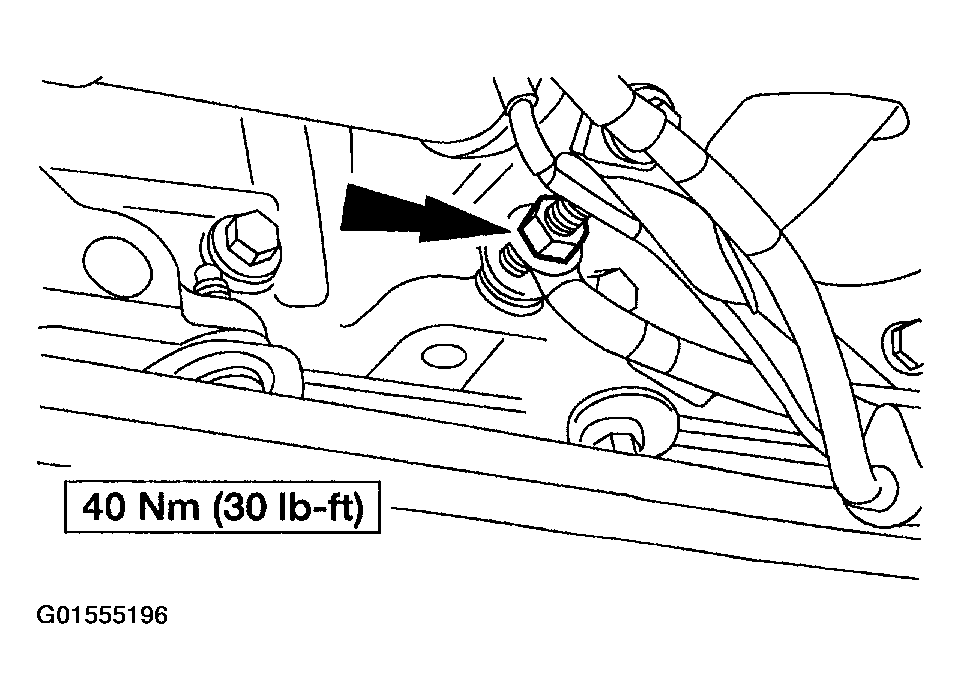

Remove the stud and the battery ground cable eyelet.

Fig 5: Removing Stud And Battery Ground Cable Eyelet
Courtesy of FORD MOTOR CO.

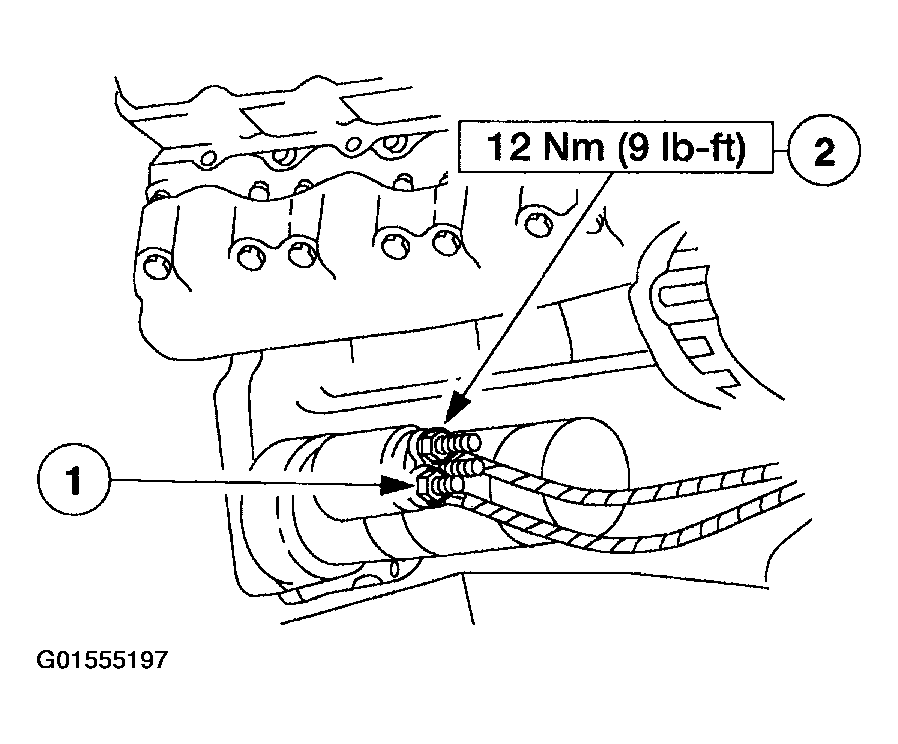

Disconnect the starter motor connections.
1. Remove the nut and disconnect the solenoid cable.
2. Remove the nut and disconnect the starter motor positive cable.

  Fig 6: Disconnecting Starter Motor Positive Cable
  Courtesy of FORD MOTOR CO.
Remove the cables.
To install, reverse the removal procedure.
